IW-RJ472-08
4U Ultra Density 72-Bay JBOD Enclosure
- Top-load 2.5"/3.5" hot-swap HDD trays x 72 support SAS4 and SAS3 data transfer rate
- Hot swappable tray-based design lets users replace a failed drive by pulling out only its drawer
- Cross-position trays to limit vibrations caused by HDDs
- Dual-path storage for high-availability systems
- Modular design, lower complexity, fast and easy maintenance
- Generating intensive airflow by using four 80 x 38mm PMW hot-swap fans
- CRPS 1200W/1600W 80 PLUS® Platinum certified
- Compatible with 1200mm deep cabinets
4U High Density JBOD Enclosure
Feel Free to Save Your Data
Unlock massive storage potential with the IW-RJ472-08. Its exclusive backplane supports SAS4 (24 Gb/s) or SAS3 (12 Gb/s) configurations and up to 72 bays. Designed for massive sequential data processing, it ensures rapid and reliable performance for demanding applications.
CRPS
80 x 38 mm fans x4
Bulk Mass Capacity Design

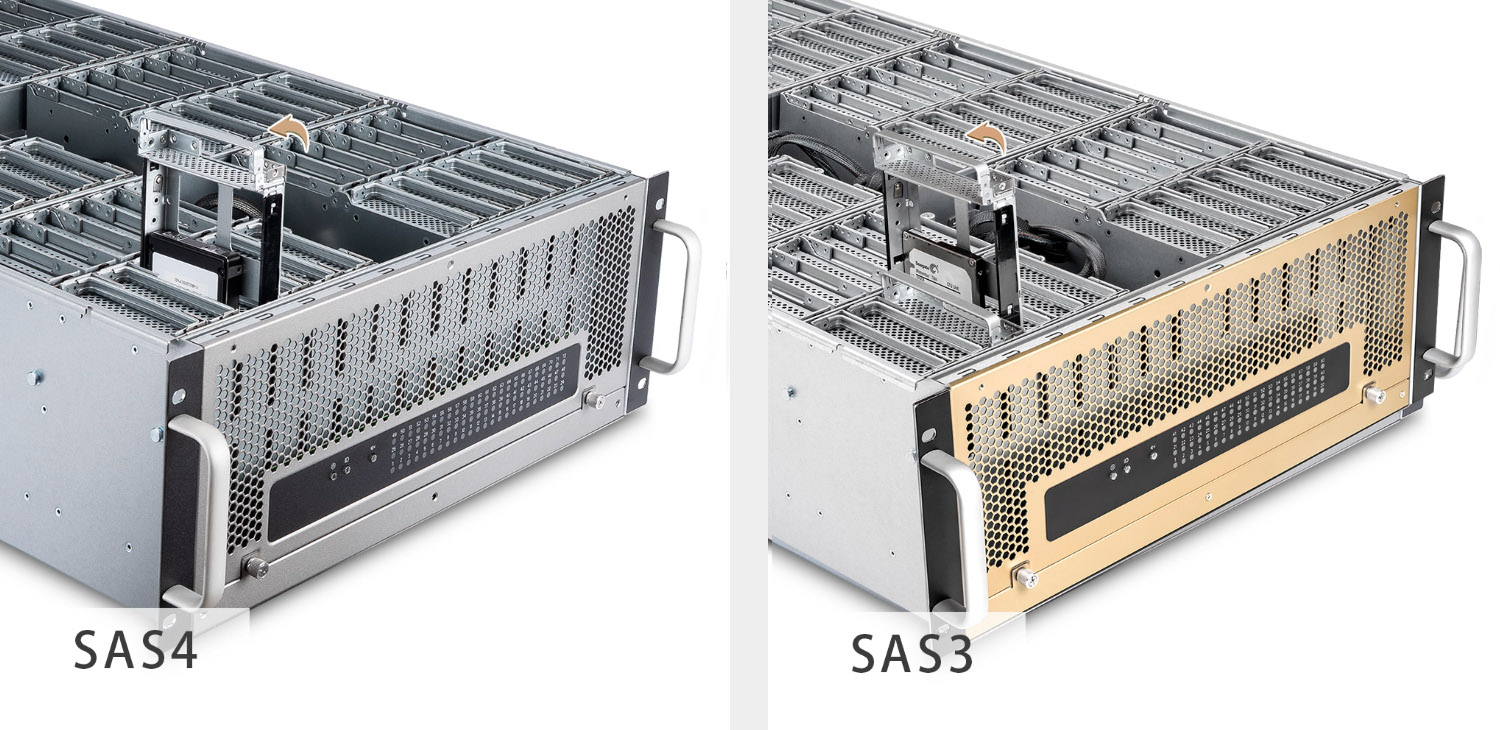

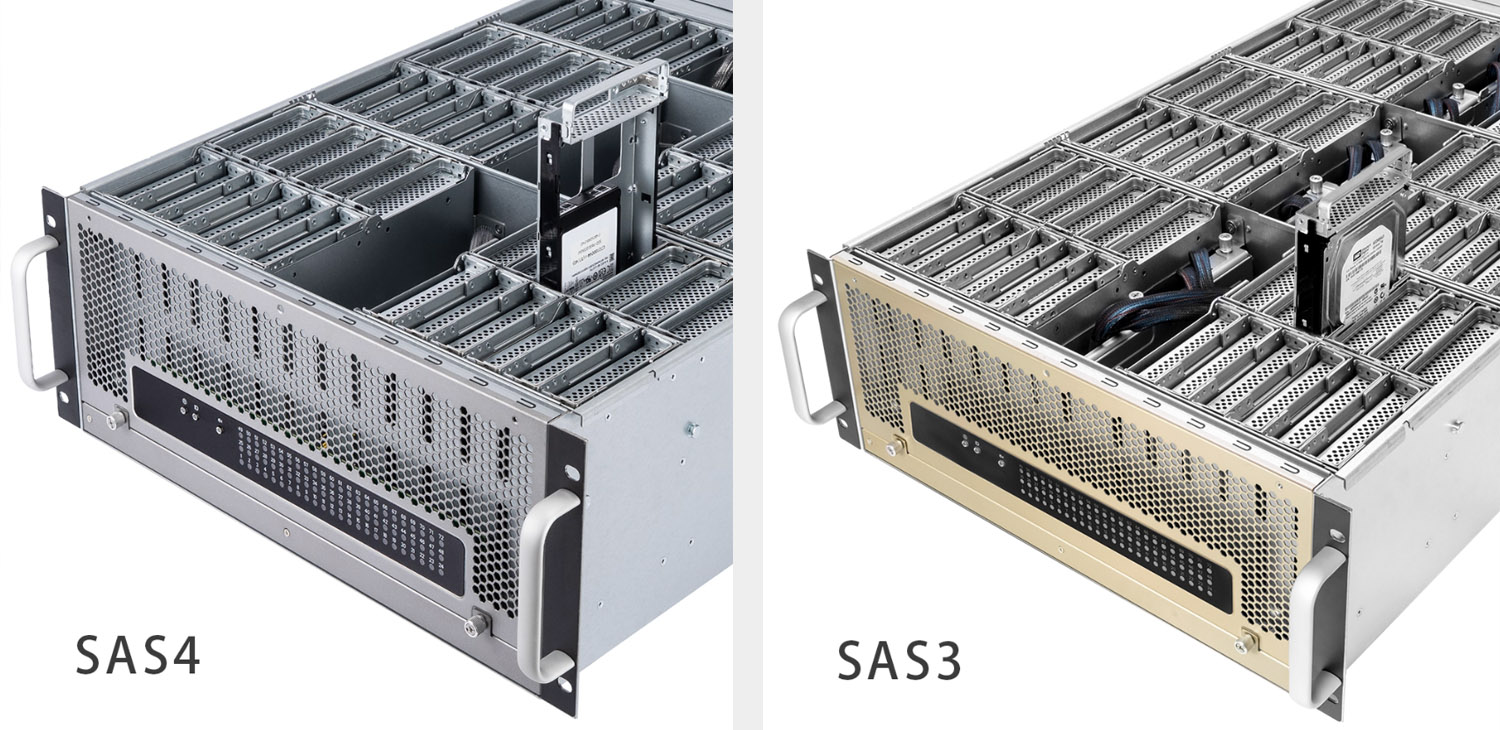

Top-loading, quick fold, 90° holder that enables simple install 2.5"/3.5" HDDs. With contracted, high-density design, the IW-RJ472-08 can provide more efficient space management and allow maximum capacity up to 72 bays.

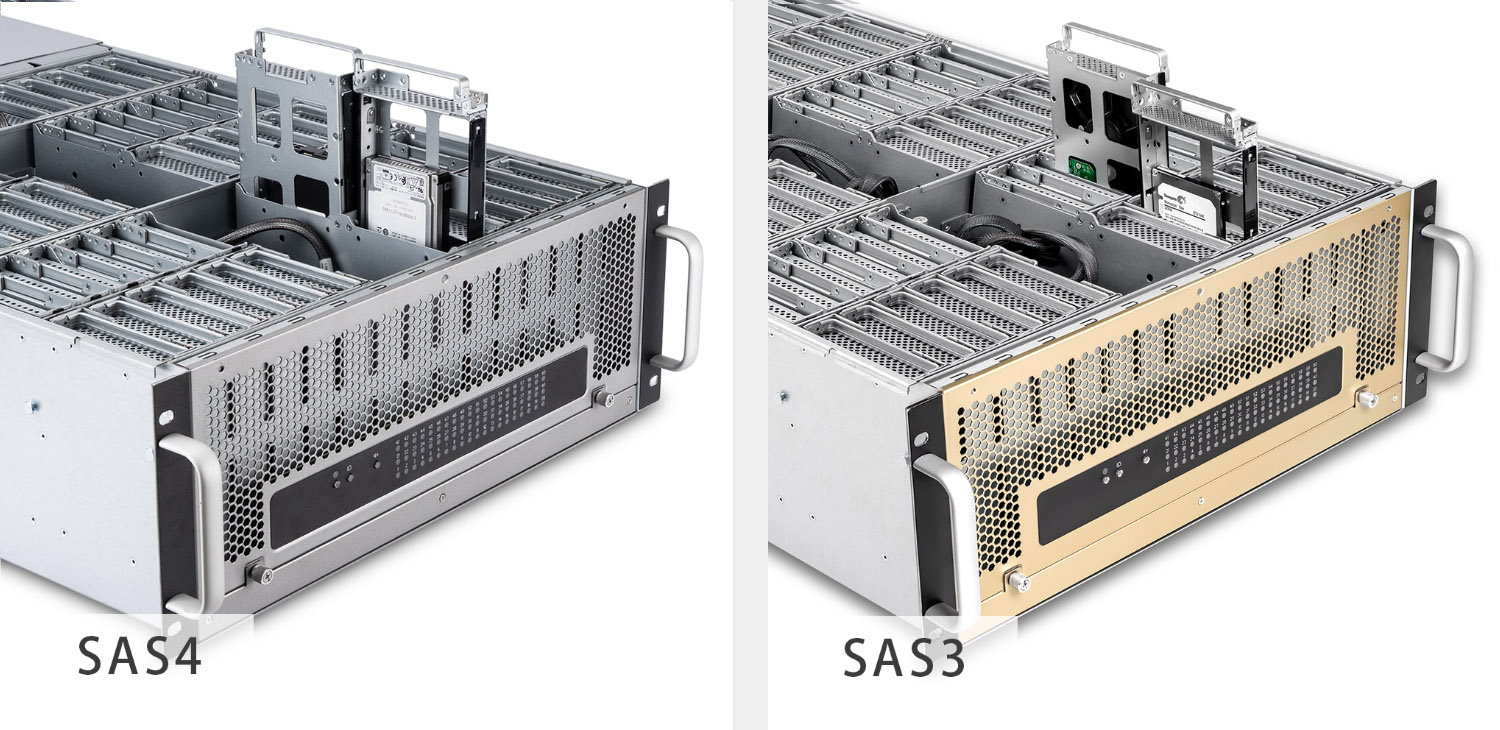

To minimize vibrations generated by the HDDs, the drives and trays are strategically arranged by cross-position.

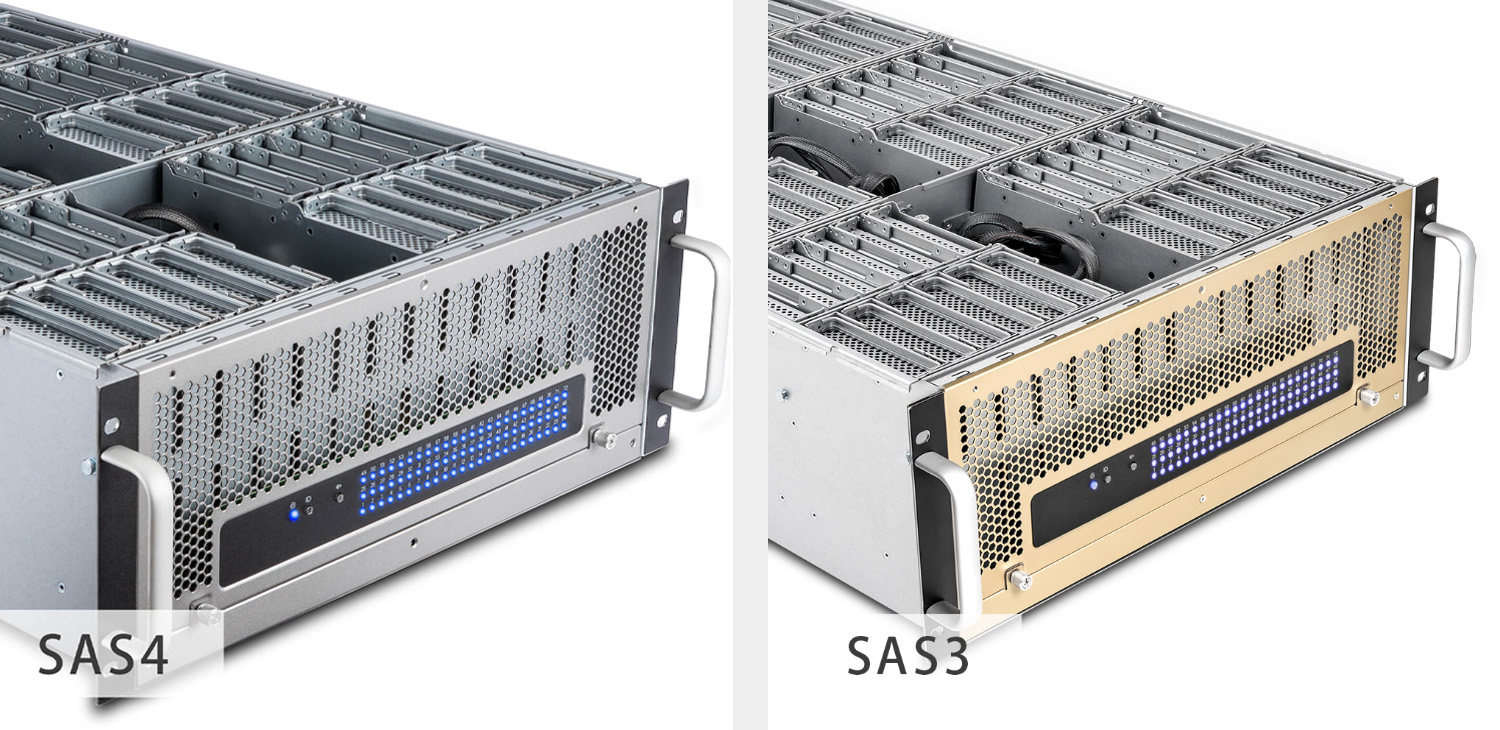

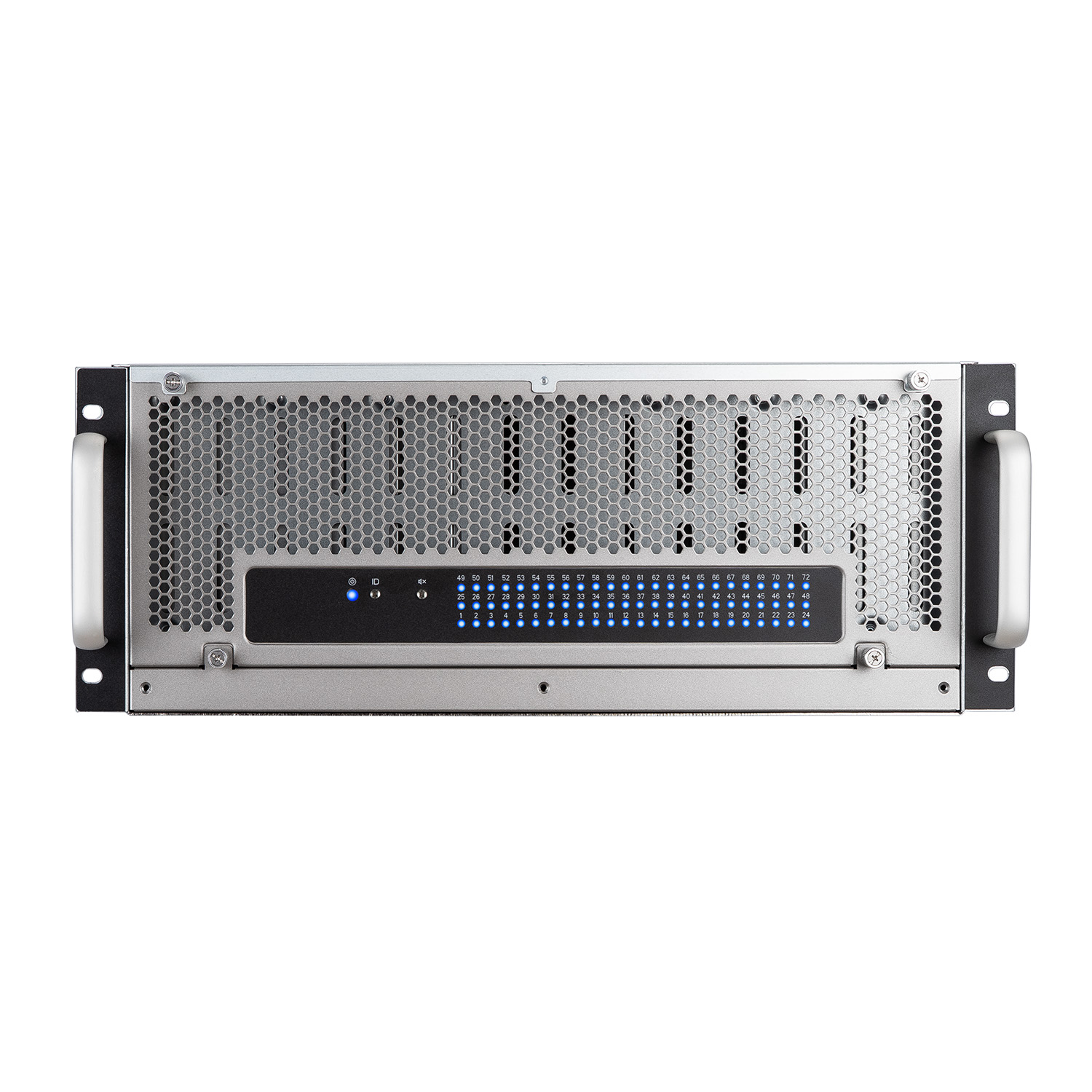

HDD faulty detection panel. Each individual LED attentively designed to indicate the status of its corresponding drive, allowing users to identify and correct errors.
Fast, Stable, and Reliability

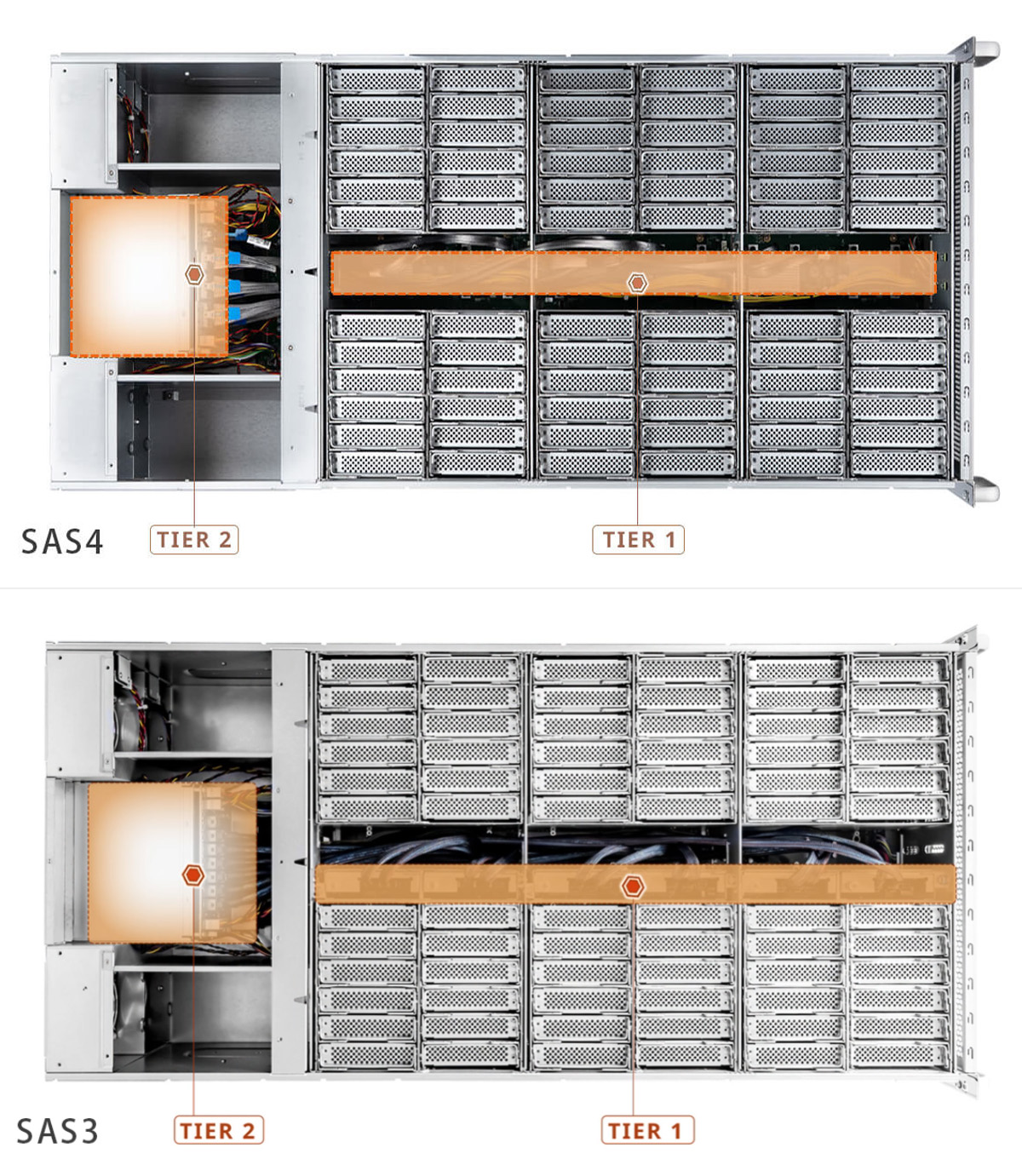

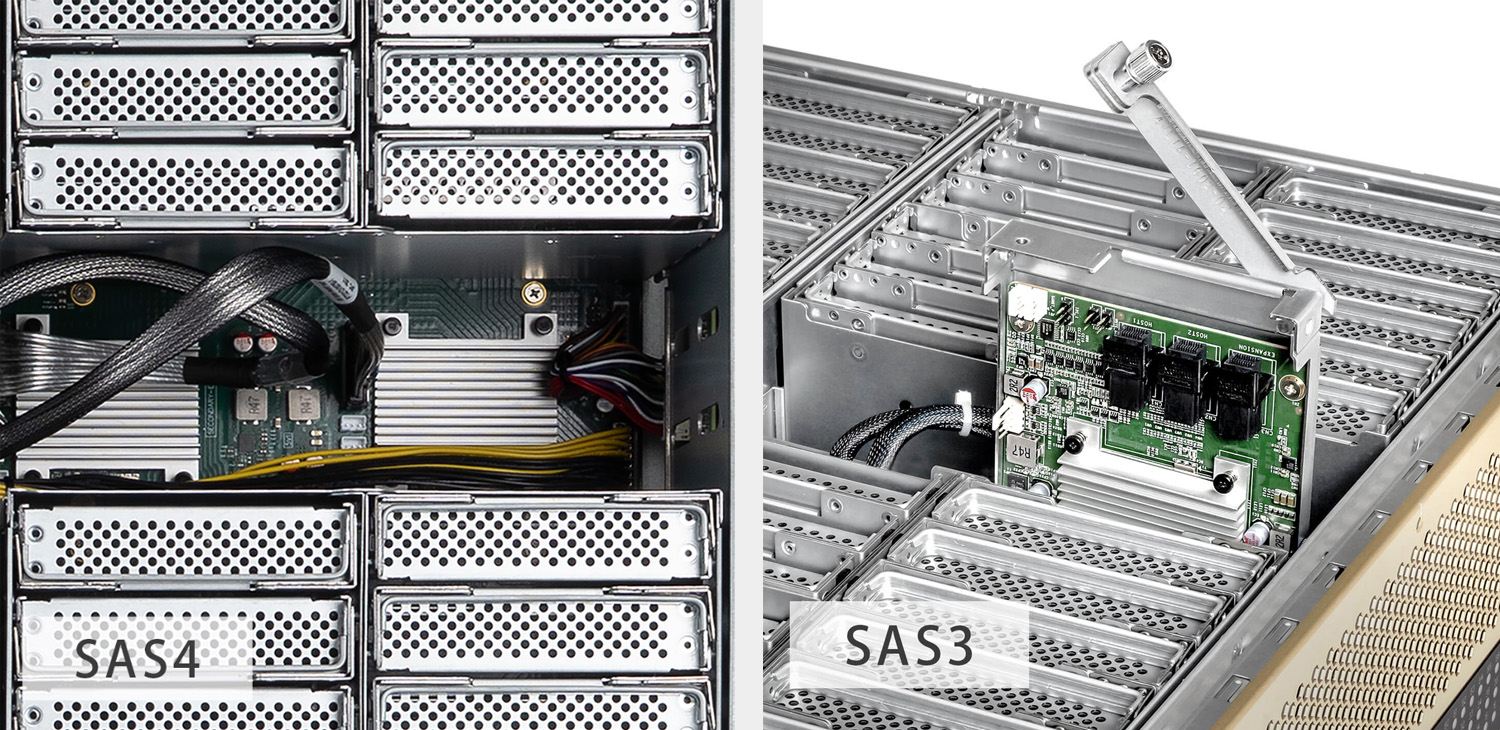

Bridge & Edge expanders create path-redundant topologies by using multi-ported devices, which is perfect for high-availability systems that mainly process massive data and also bring out superior performance. Extreme stability for data transmission by the IW-RJ460-08’s exclusive backplanes and is supported with ample room for cable management.
SAS4 : Supports SAS4 (24 Gb/s) connectivity via MCIO 8i connectors, ensuring a reliable, high-performance data rate.
SAS3 : Supports SAS3 (12 Gb/s) connectivity, delivering a reliable, high-performance data rate.
SAS3 : Supports SAS3 (12 Gb/s) connectivity, delivering a reliable, high-performance data rate.
Suitable for high-availability systems, the expander is equipped with dual-domain edge modules to support data redundancy. Should one path fail, traffic will fail over to an alternate path.

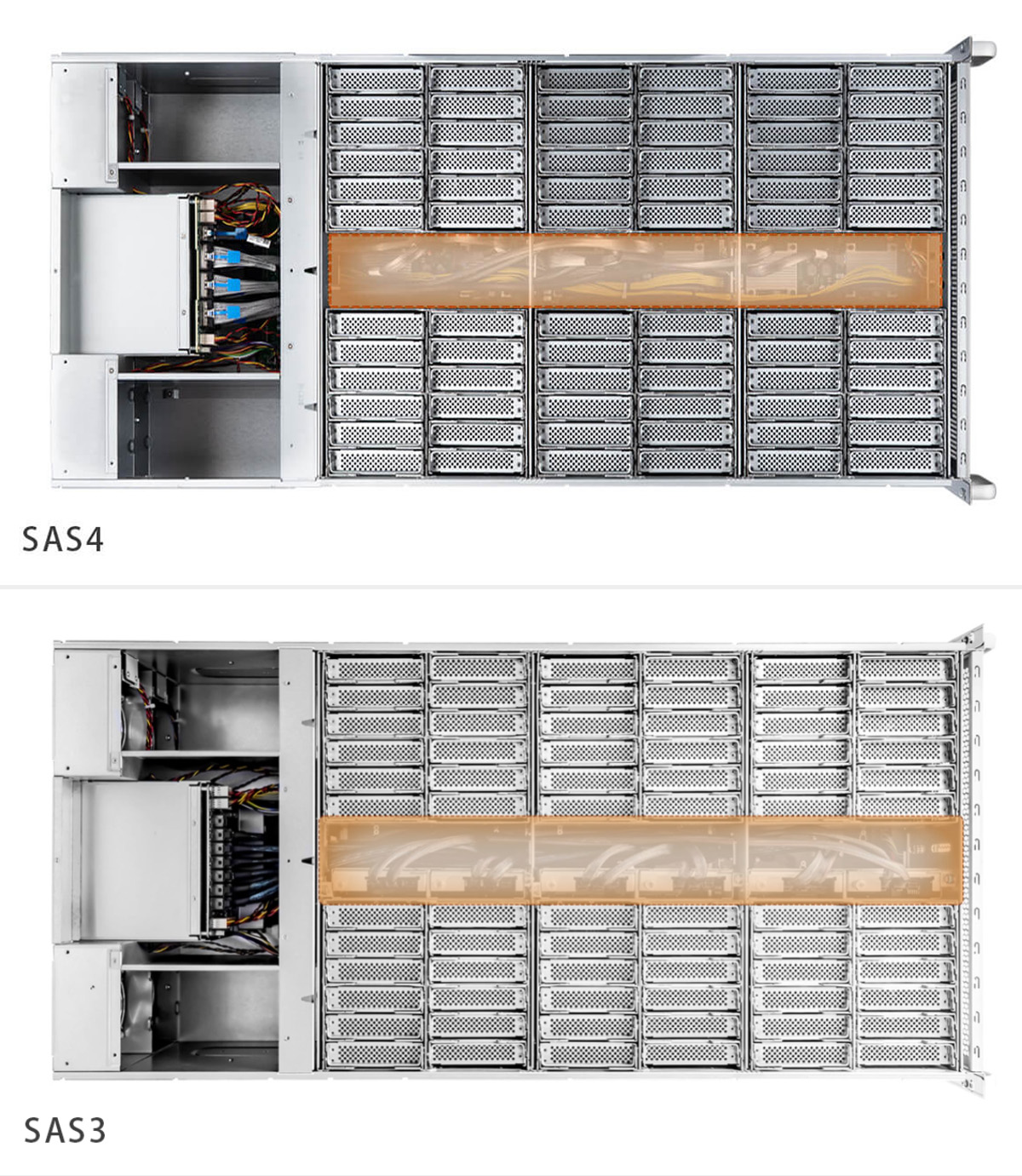

Fewer cables and optimized spacing provide more room for cable management and improved airflow.
1. Primary

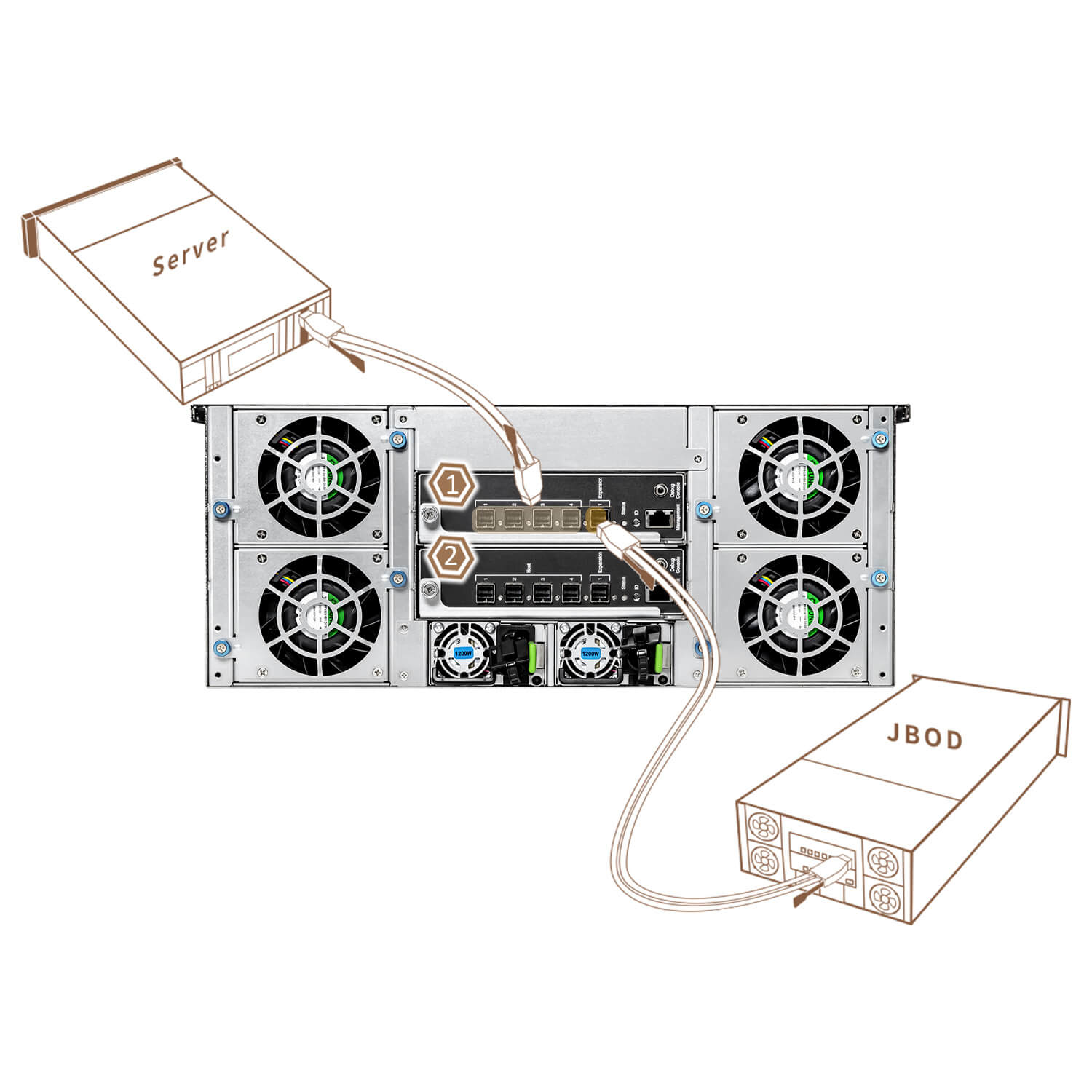

Easily uplink to the servers or downlink to another JBOD through SAS 12Gb/s, SATA 6Gb/s dual expander controller modules.
2. Secondary
The Bridge expander controls and manages as the main component for IW-RJ460-08 JBOD. By adopting dual modules, both can be connected to the same sever, offering data redundancy capability.
Modularization
Most parts of the IW-RJ472-08 are fully modular and designated as CRUs (Customer Replaceable Units). Following the KISS (Keep It Simple, Straightforward) principle, the IW-RJ472-08 enables non-technical personnel to perform quick maintenance and easily replace components.

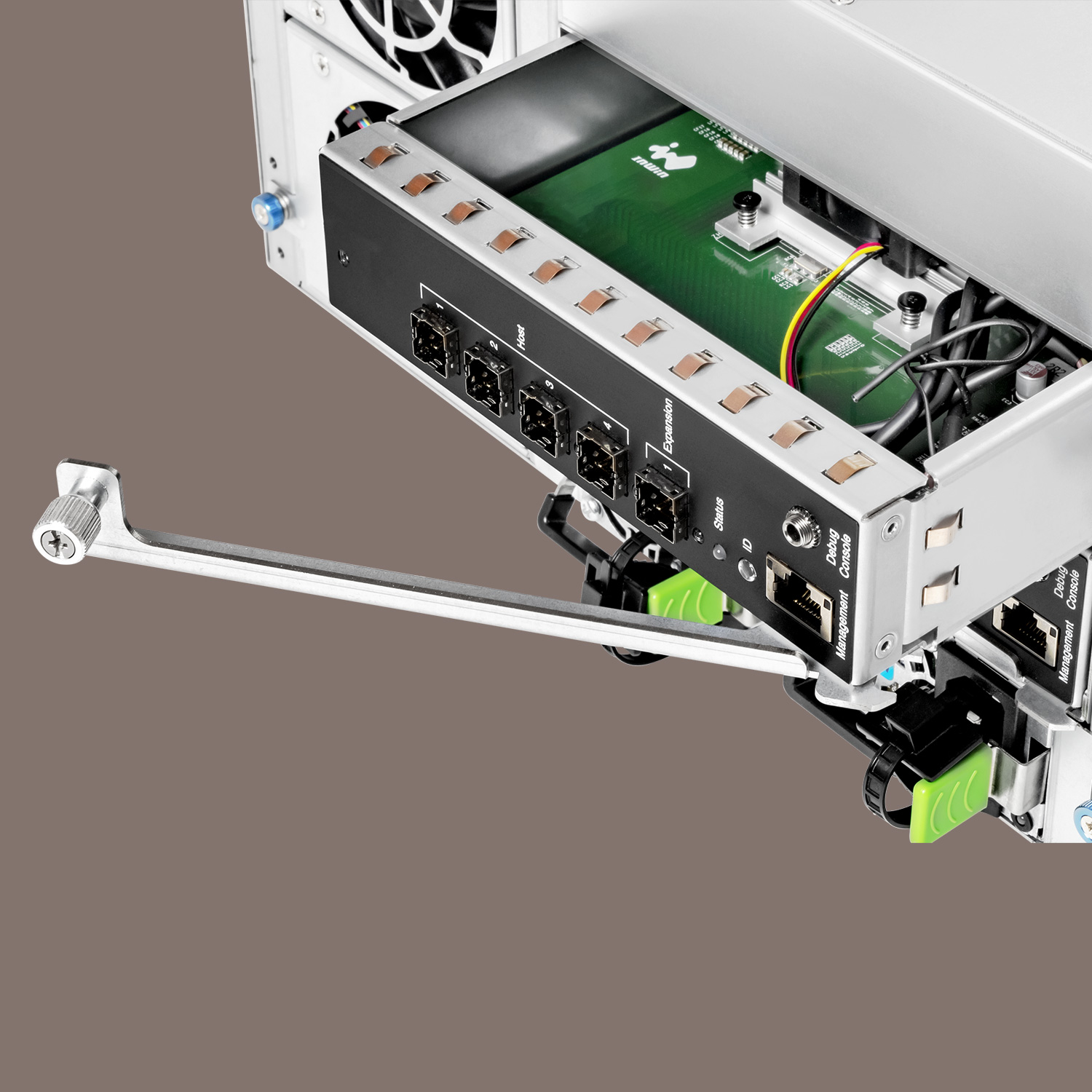

The IW-RJ472-08’s tool-free trays, edge modules and backplanes are easy to setup.

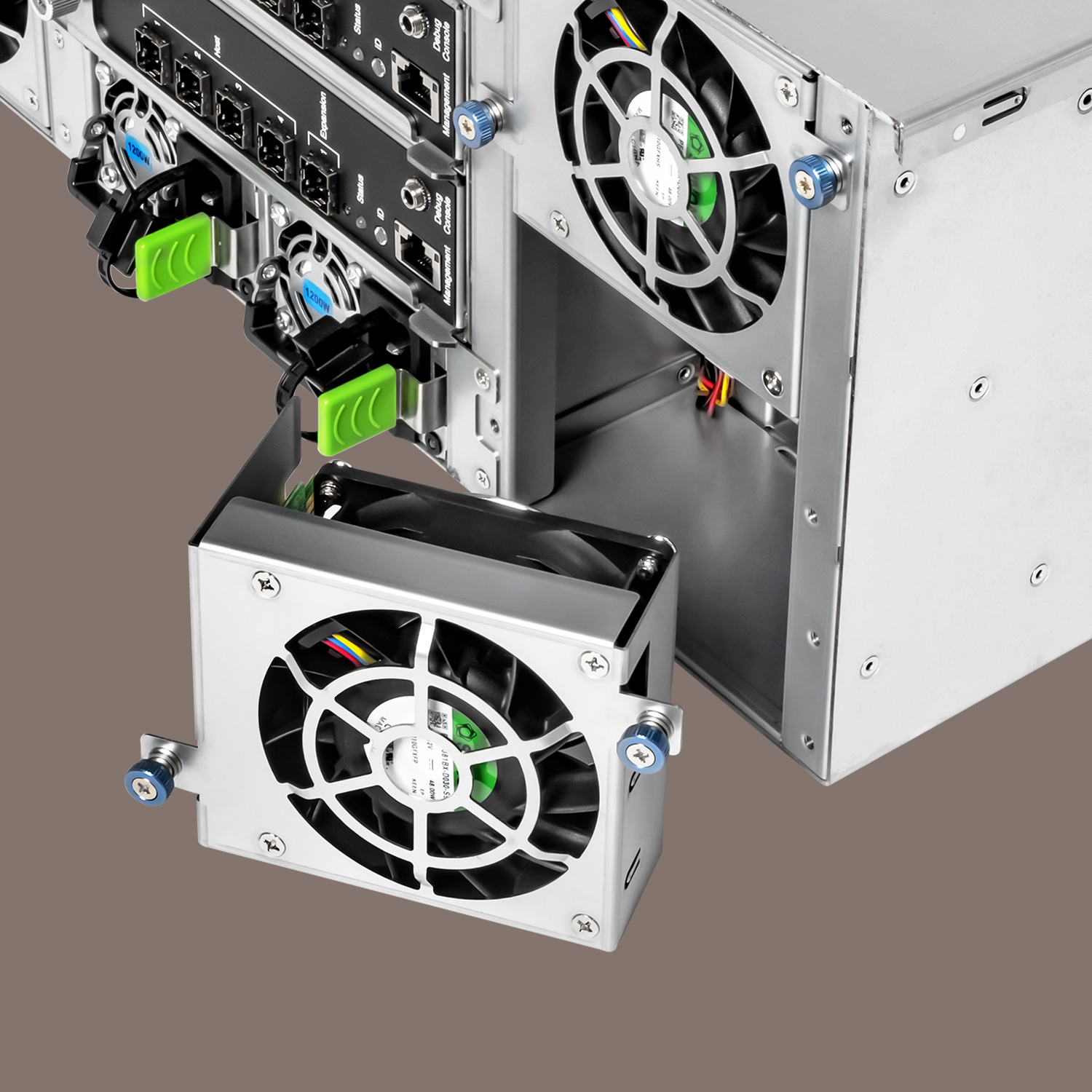

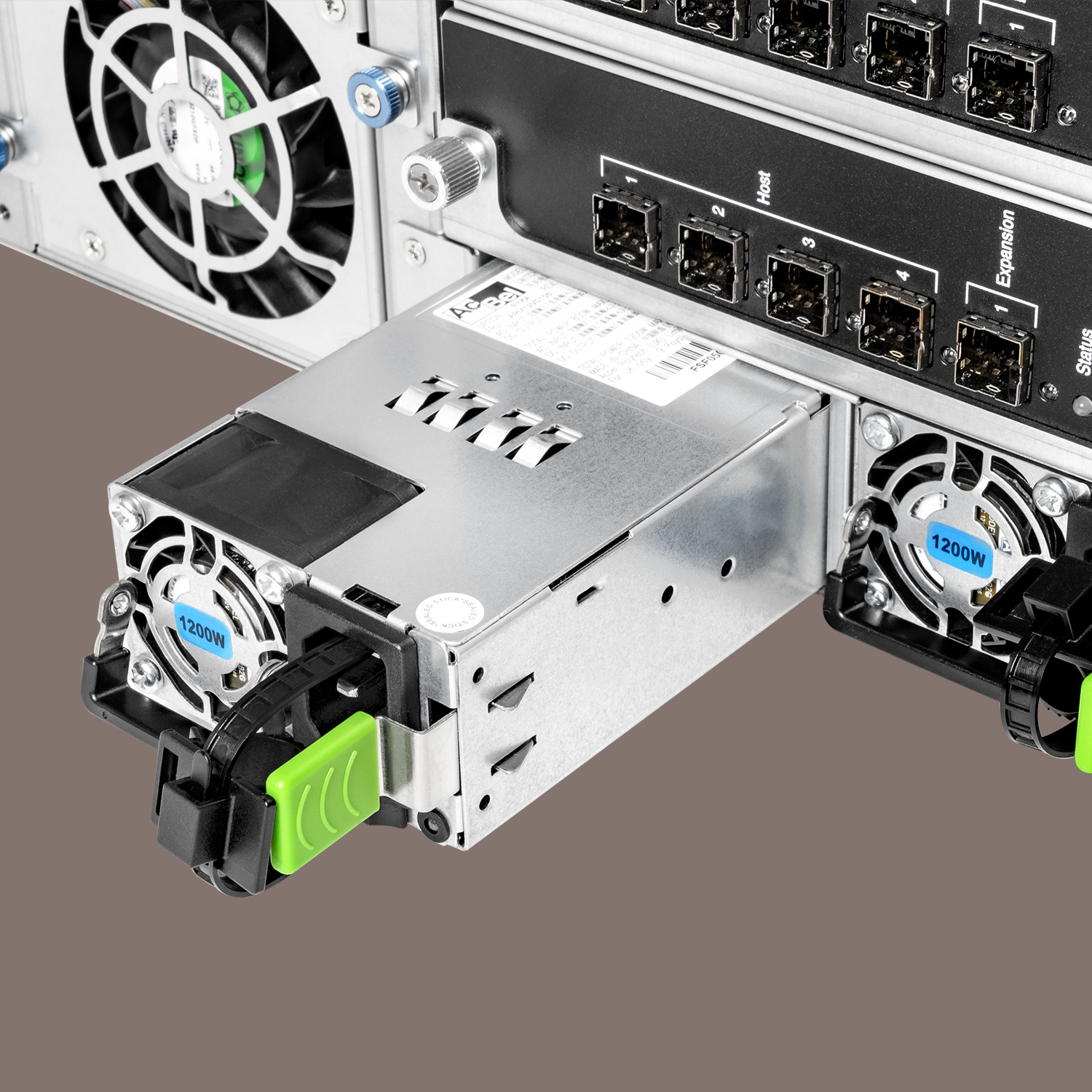

The PSUs, fans, and expanders are all hot-swappable, ensuring continuous operation during module replacement.

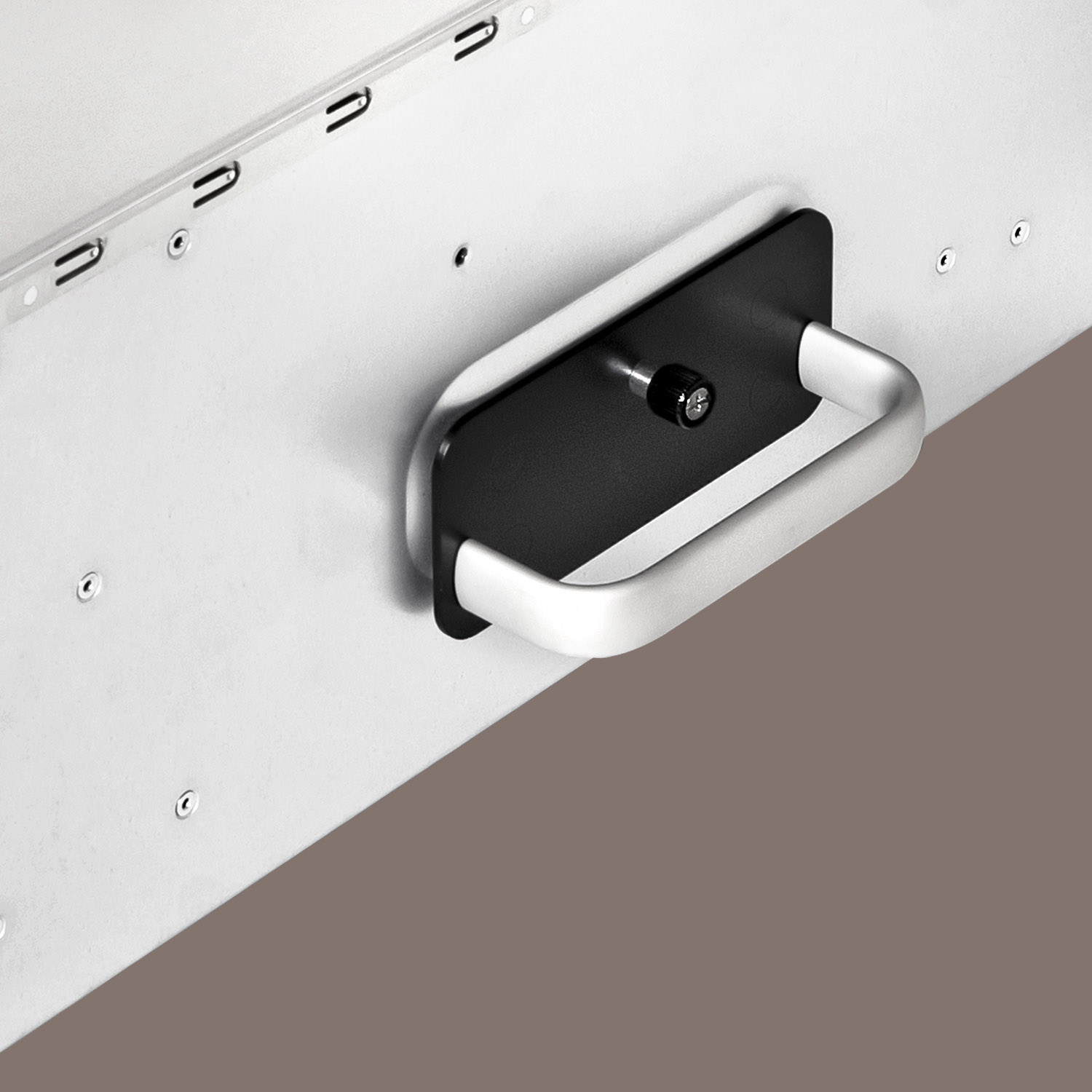

Tool-less support handles allow personnel to safely and easily transport the unit.
Tool-less support handles allow personnel to safely and easily transport the unit.
Heat Dissipation

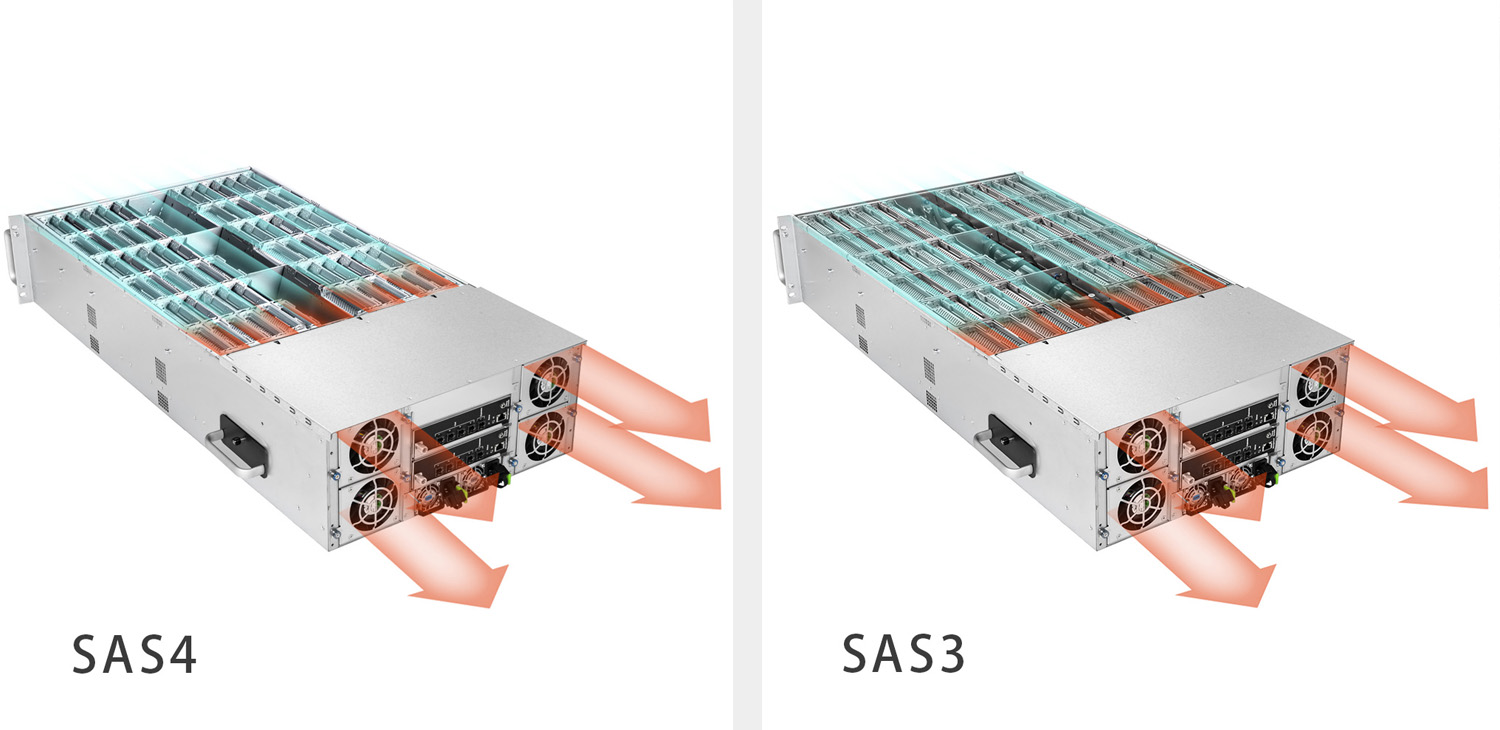

The IW-RJ472-08 generates intensive airflow by using four 80 x 38mm PWM hot-swap fans. The air tunnel, room for the cable management, and effective airflow contributes to the successful heat dissipation of the enclosure.
Optimal Integration, Standard Compatibility
Web-based GUI: The in-house interface provides intuitive monitoring of drives, system, and network, with customization options.
Compatible with 1200mm Deep Cabinets, ensuring quick, efficient installation. (Cabinet not included)
Compatible with 1200mm Deep Cabinets, ensuring quick, efficient installation. (Cabinet not included)

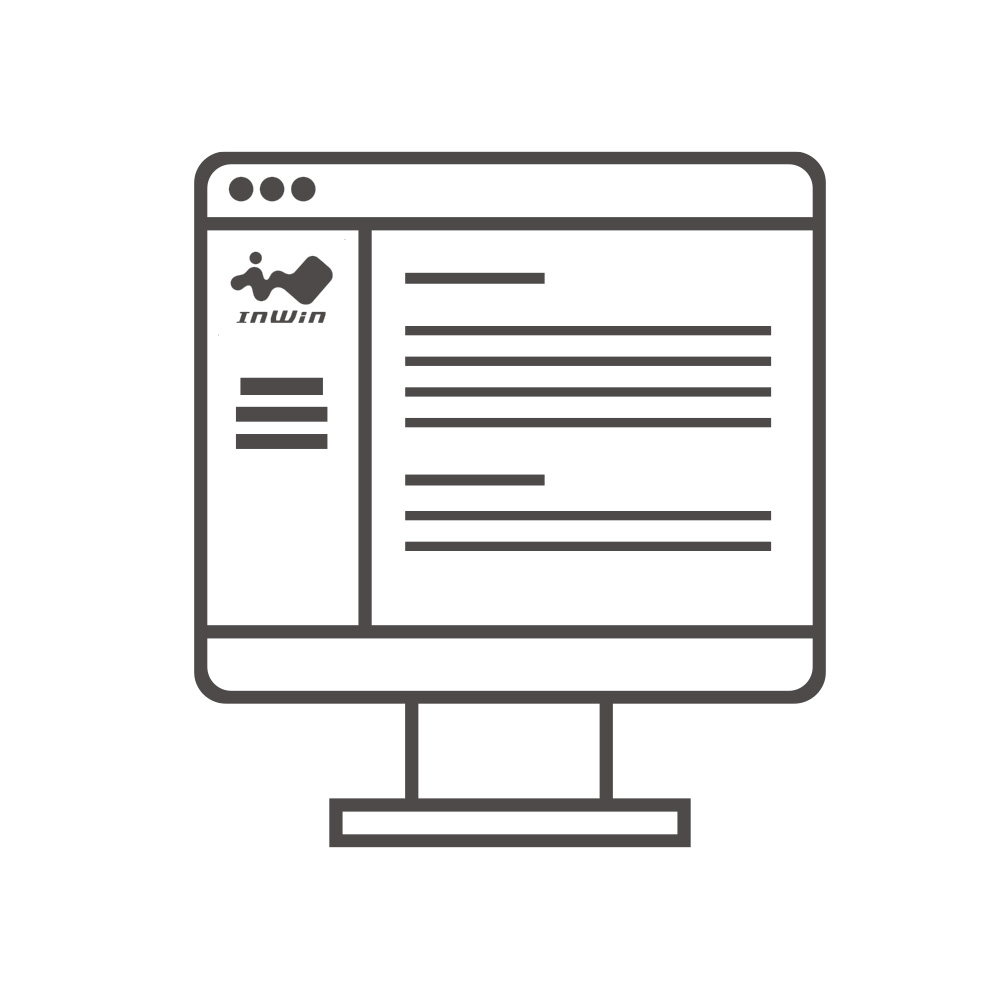

Web-based GUI

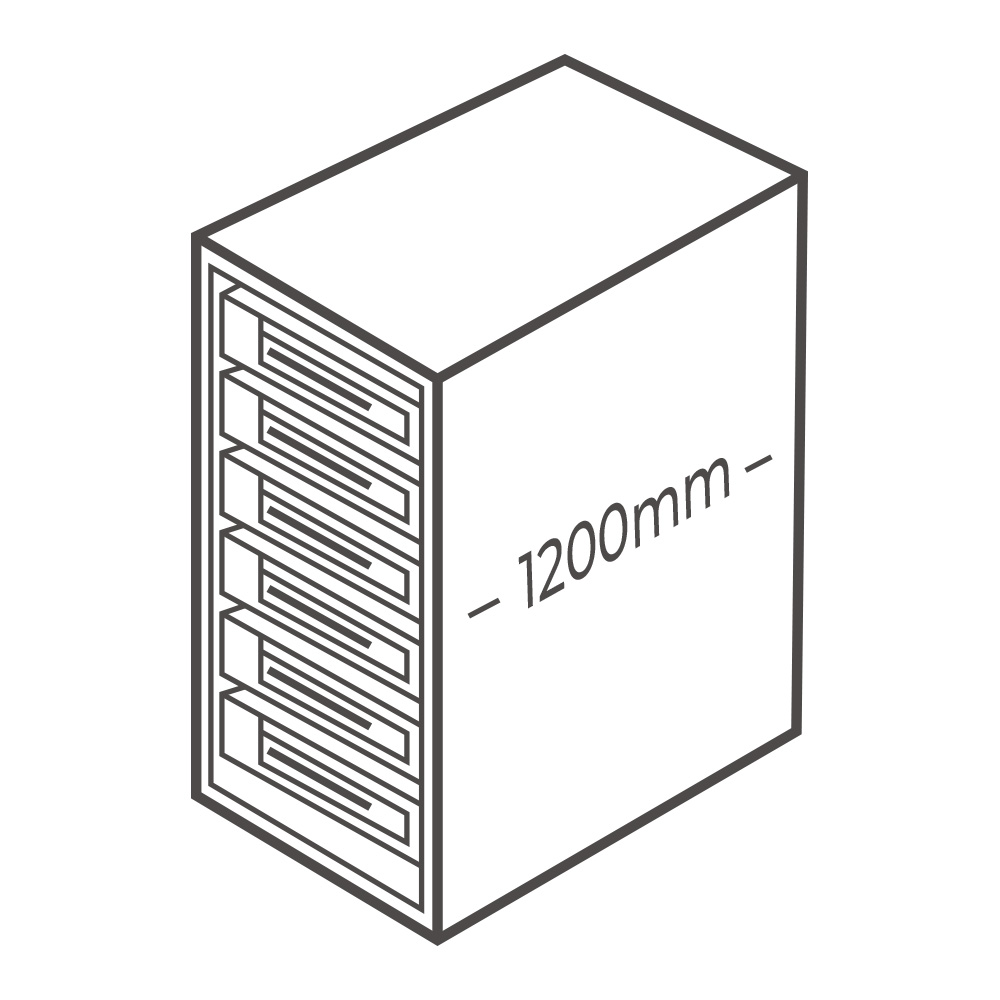

Designed for 1200mm Deep Cabinet
Power Stabilization

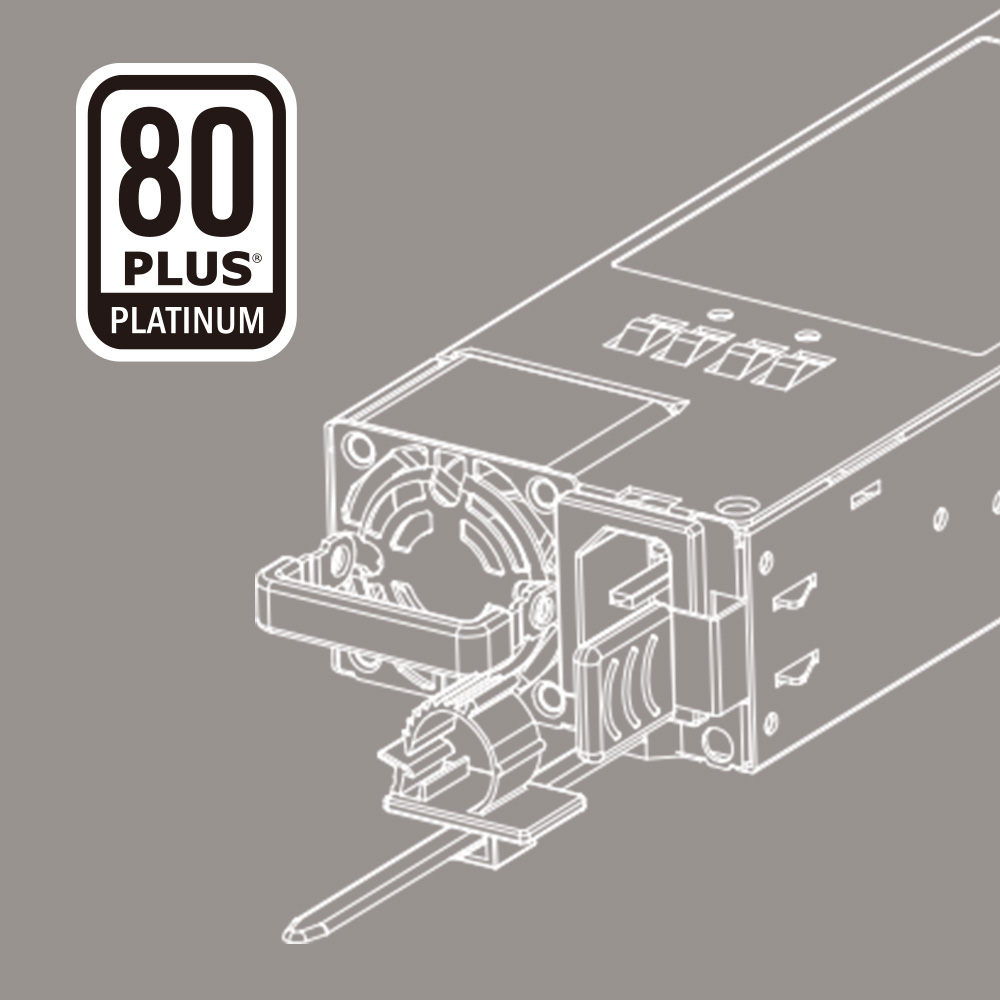

Hot-swappable, high-wattage 1200W/1600W/2000W redundant power supplies provide stable and uninterrupted power output
SAS4 Models: Support 1600 W / 2000 W. Preinstalled with 1600 W.
SAS3 Models: Support 1200 W / 1600 W. Preinstalled with 1200 W.
SAS4 Models: Support 1600 W / 2000 W. Preinstalled with 1600 W.
SAS3 Models: Support 1200 W / 1600 W. Preinstalled with 1200 W.
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| Drive Bay | Internal 2.5"/3.5" hot-swap trays x 72 ( SAS4 24 Gb/s, SAS3 12 Gb/s, SATA 6Gb/s supported) |
| Power Supply | Supports: Form factor 80 PLUS Platinum CRPS • SAS4: 1600W/2000W • SAS3: 1200W/1600W |
| Indicators | Status LED, drive status LEDs for bay 1-72 |
| Front Control Panel | Power on/off, chassis ID Panel Color: Silver (SAS4), Gold (SAS3) |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 12000 RPM |

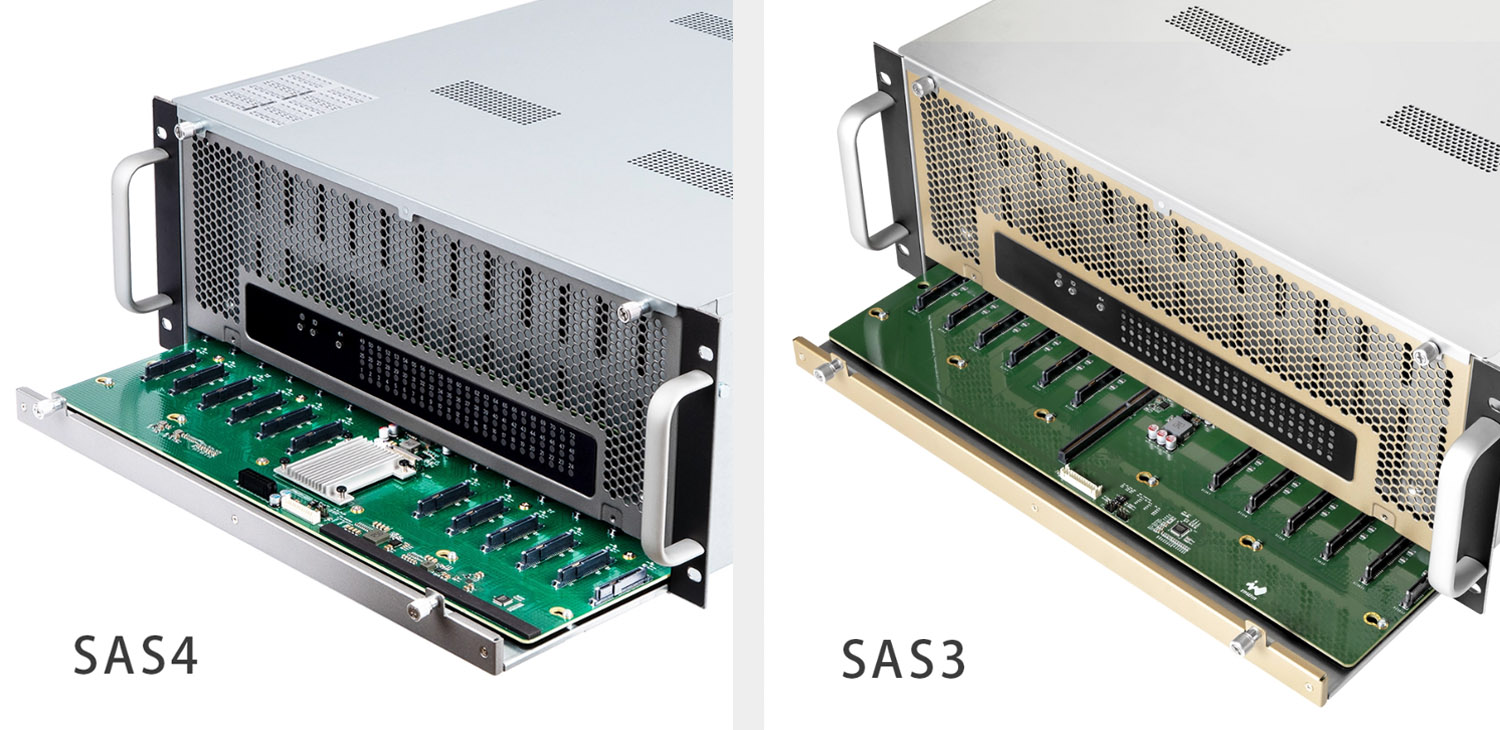

| SAS4 Backplane | Backplane x 3 • Host: each backplane equipped with 2 edge chipsets, MCIO 8i × 1 per edge • HDD: SAS/SATA × 24 per backplane Middle Plane: MCIO 8i x 6, MCIO 4i x 2 Bridge expanders x 2, Mini-SAS HD (SFF-8674)connector × 5 per expander module |
| SAS3 Backplane | Backplanes x 3: • Host: each backplane equipped with 2 edge expanders, Mini-SAS HD (SFF-8643) × 3 per expander • HDD: SAS/SATA × 24 per backplane Middle plane: Mini-SAS HD x 14 Bridge expanders x 2, Mini-SAS HD (SFF-8644) × 5 per expander module |
| Management | Smart fan, thermal monitor, HDD monitor, voltage monitor, alarm warming |
| Host/Expansion Port | 5 x Mini-SAS HD (SFF-8644) for each 12Gb/s expander module |
| SES | Supports SES-2 (SCSI enclosure service) |
| Maintenance | Supports management by Ethernet and RS-232 |
| HDD Power Management | HDD sequential power on |
| Temperature | 0ºC to 35ºC |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Product Dimensions (DxWxH; Chassis Only) | 985.75 x 447.5 x 177.1mm (38.81" x 17.62" x 6.98") |
| Package Dimensions (DxWxH) | 1270 x 645 x 680mm |
| Weight | SAS4: • Net weight: 51.48 kg • Gross weight: 63.81 kg SAS3: • Net weight: 51.48 kg • Gross weight: 63.81 kg |
| Cubic Feet | 19.67 |
| Container Information | Single packing with pallets: • 20': 24pcs • 40': 52pcs |

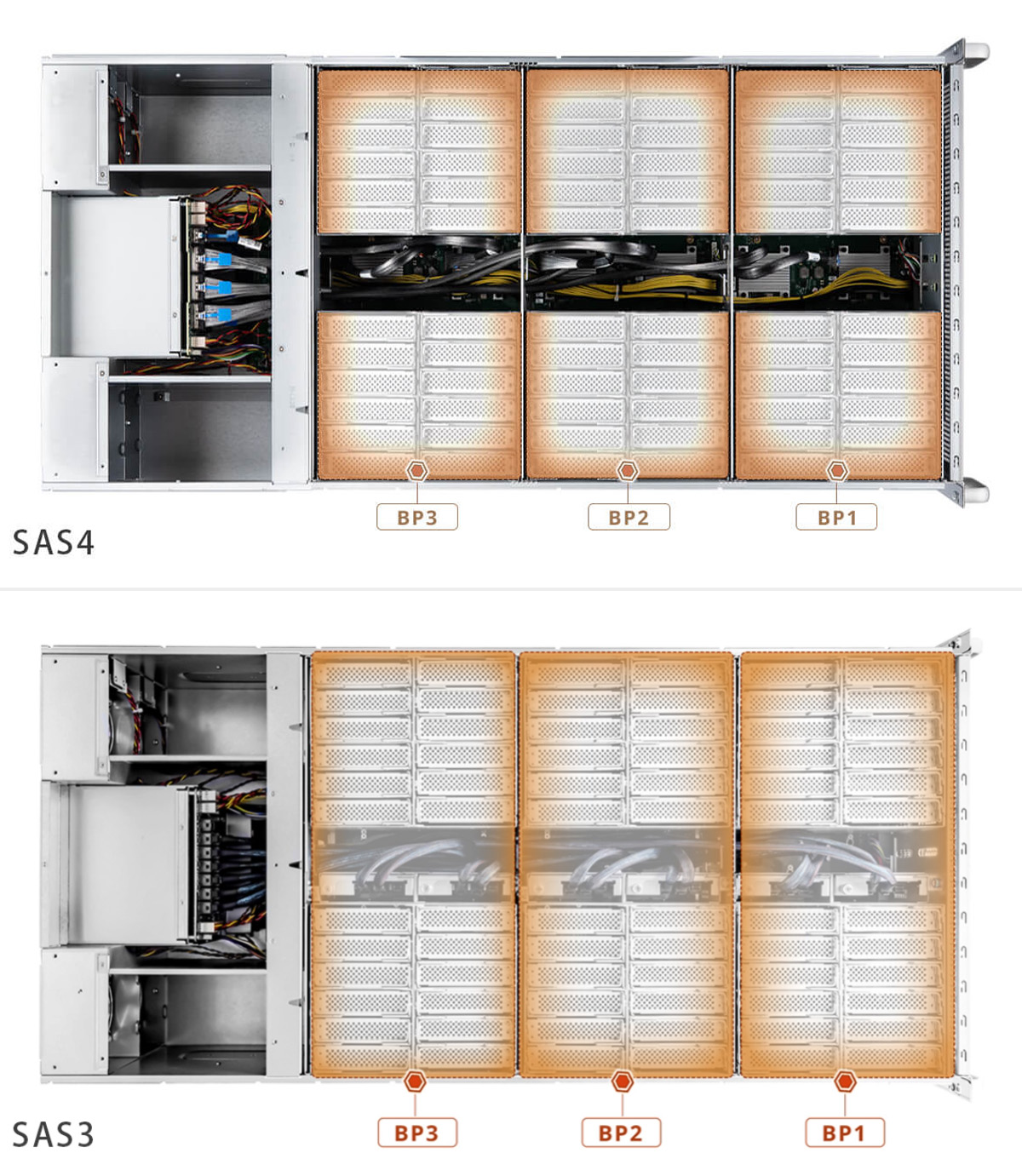

SAS4 Backplane Specifications
| Backplane Type-1&2&3 | SAS4 Backplane x 3 |
| Data Transfer Rate | 24Gb/s |
| Dimension (W x H) | 425mm x 220.94mm |
| Host Interface | Each backplane equipped with 2 edge chipsets, MCIO 8i × 1 per edge |
| HDD Interface | SAS/SATA x 24 |
| Middle Plane | MCIO 8i x 6, MCIO 4i x 2 |
| Bridge Expander | Bridge expanders x 2 |
| External Link | Uplink port: Mini-SAS HD (SFF-8674) connector × 4, per expander module Downlink cascade port: Mini-SAS HD (SFF-8674) connector × 1 ,per expander module |
SAS3 Backplane Specifications
| Backplane Type-1&2&3 | SAS3 backplanes x 3 |
| Data Transfer Rate | 12Gb/s |
| Dimension (W x H) | 425mm x 220.94mm |
| Host Interface | Each backplane equipped with 2 edge expanders Mini-SAS HD (SFF-8643) × 3 per expander |
| HDD Interface | SAS/SATA x 24 each |
| Middle Plane | Mini-SAS HD x 14 |
| Bridge Expander | Bridge expanders x 2 |
| External Link | Uplink port: Mini-SAS HD (SFF-8644) connecrtor × 4, per expander module Downlink cascade port: Mini-SAS HD (SFF-8644) connecroe × 1 per expander module |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 2RALZT412400 | CMA (Cable Management Arm) | Max. 1 |
|
| Power Supply | 3RAMAP026501 | 80 PLUS Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) | Max. 2 |
|
| Power Supply | 3RAMAP044300 | 80 PLUS Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) | Max. 2 |
|
| Power Supply | 3RAMAP038600 | 80 PLUS Platinum CRPS 2000W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 2000W max.) | Max. 2 |
|
