server system assembly
IW-PL070
Air/Liquid Cooling Pedestal Server Chassis
．Supports up to five 120mm fans to create excellent thermal performance
．Compatible with 240mm (max. 2 sets) or 360mm liquid cooling radiators
．Contains 7 PCIe slots to accommodate high-end GPUs
．Screwless adjustable card holder for full-length GPUs
．Supports 2.5"/3.5" HDDs (max. 9)
．Supports single easy-swap SATA port module for 2.5"/3.5" HDD x 5 (optional)
．Sectioned drive areas to organize operational and storage drives
．Capable of installing ATX or CRPS PSUs
COOL IT!!!
With Air or Water
Air/Liquid Cooling Pedestal Server Chassis
The IW-PL070 offers air or liquid cooling options for your home/office server. Arrange your preferred cooling layout to effectively match GPU/CPU requirements. The IW-PL070’s thermal solutions tactically covers the generous storage area to support up to nine total drives.
Optimized Cooling Solution
The IW-PL070 provides optimized air cooling solutions, and supports liquid cooling. Users have more options to arrange their cooling system according to system requirements.

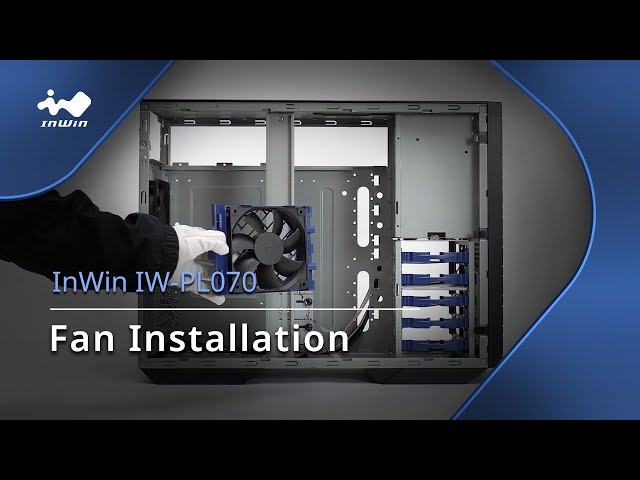

Cool With Air
For users that prefer air cooling, the IW-PL070 supports:
Front 120mm fan x 2 (One pre-installed) ,
Middle 120mm fan x 2 (One pre-installed),
Rear 120mm fan (One pre-installed), or 80mm fan x 2
Max. up to 5 or 6 fans which is great for heat dispassion.
Front 120mm fan x 2 (One pre-installed) ,
Middle 120mm fan x 2 (One pre-installed),
Rear 120mm fan (One pre-installed), or 80mm fan x 2
Max. up to 5 or 6 fans which is great for heat dispassion.
Enhanced Thermal Solutions
Max.up to 5 or 6 fans

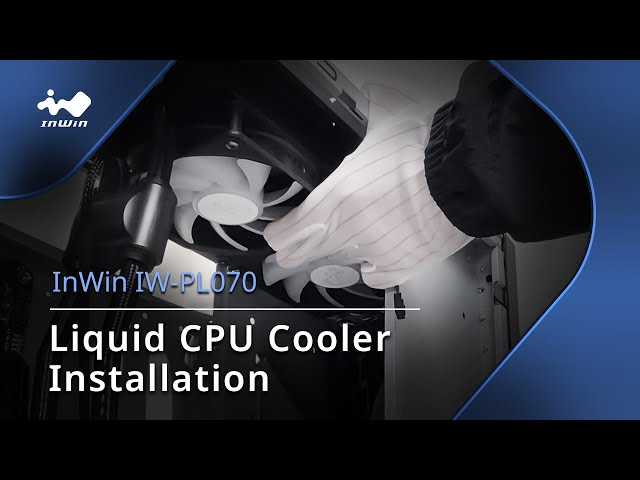

Cool With Water

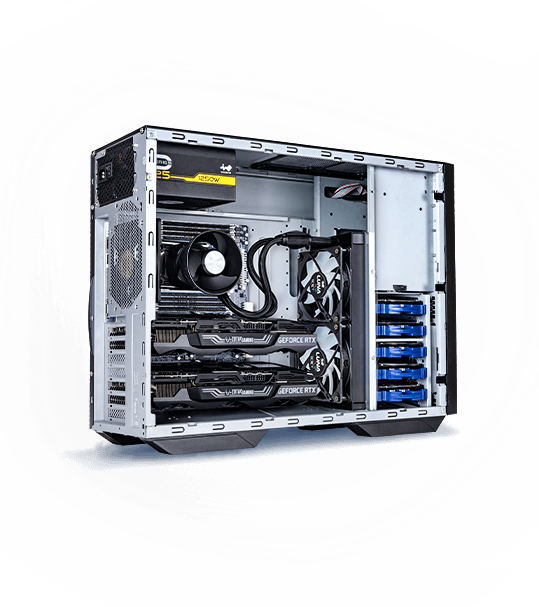

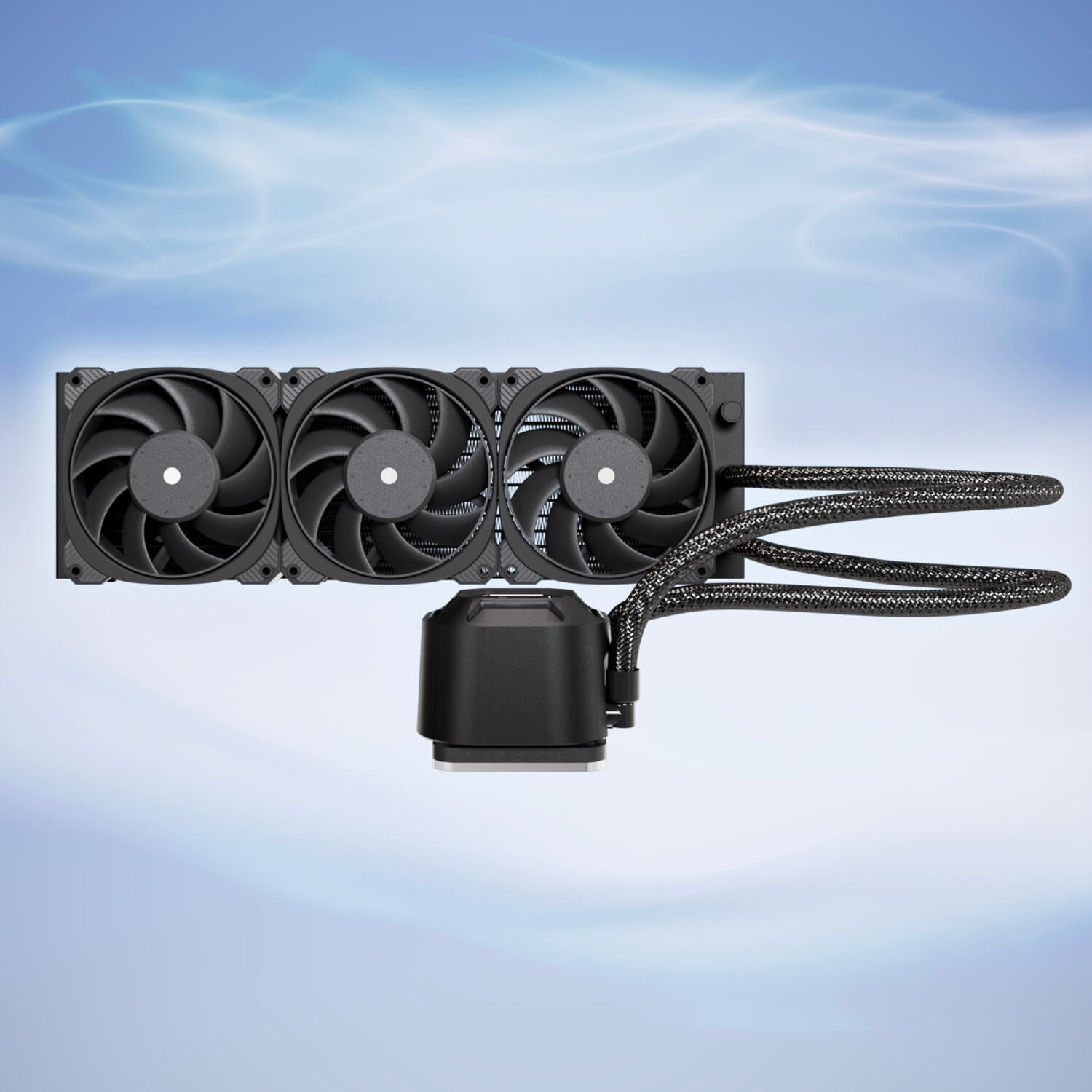

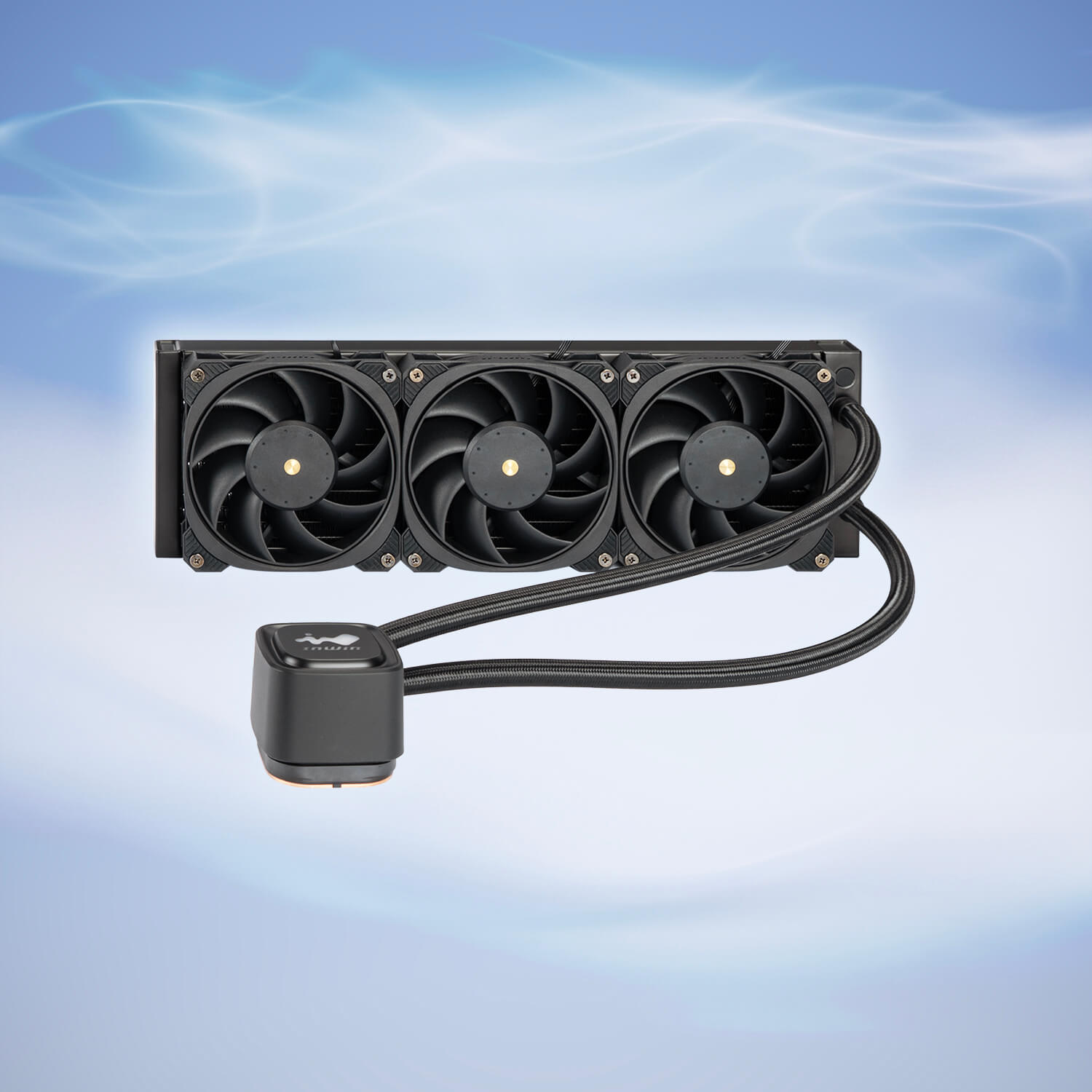

For users that prefer water cooling, the IW-PL070 supports: Top 240mm, middle 240mm or 360mm radiator. Accelerated cooling to the CPU or GPU, and users can experience a more silent setup.
Note: The middle section can only accommodate one 240mm radiator or 360mm radiator at a time. If a 360mm radiator is installed on the middle, the top 240mm radiator cannot be installed.
Extensive Hardware Support
The IW-PL070 supports up to an EEB motherboard,
and most high-end GPUs. The screwless adjustable holder safely secures the GPU.
and most high-end GPUs. The screwless adjustable holder safely secures the GPU.
Note:

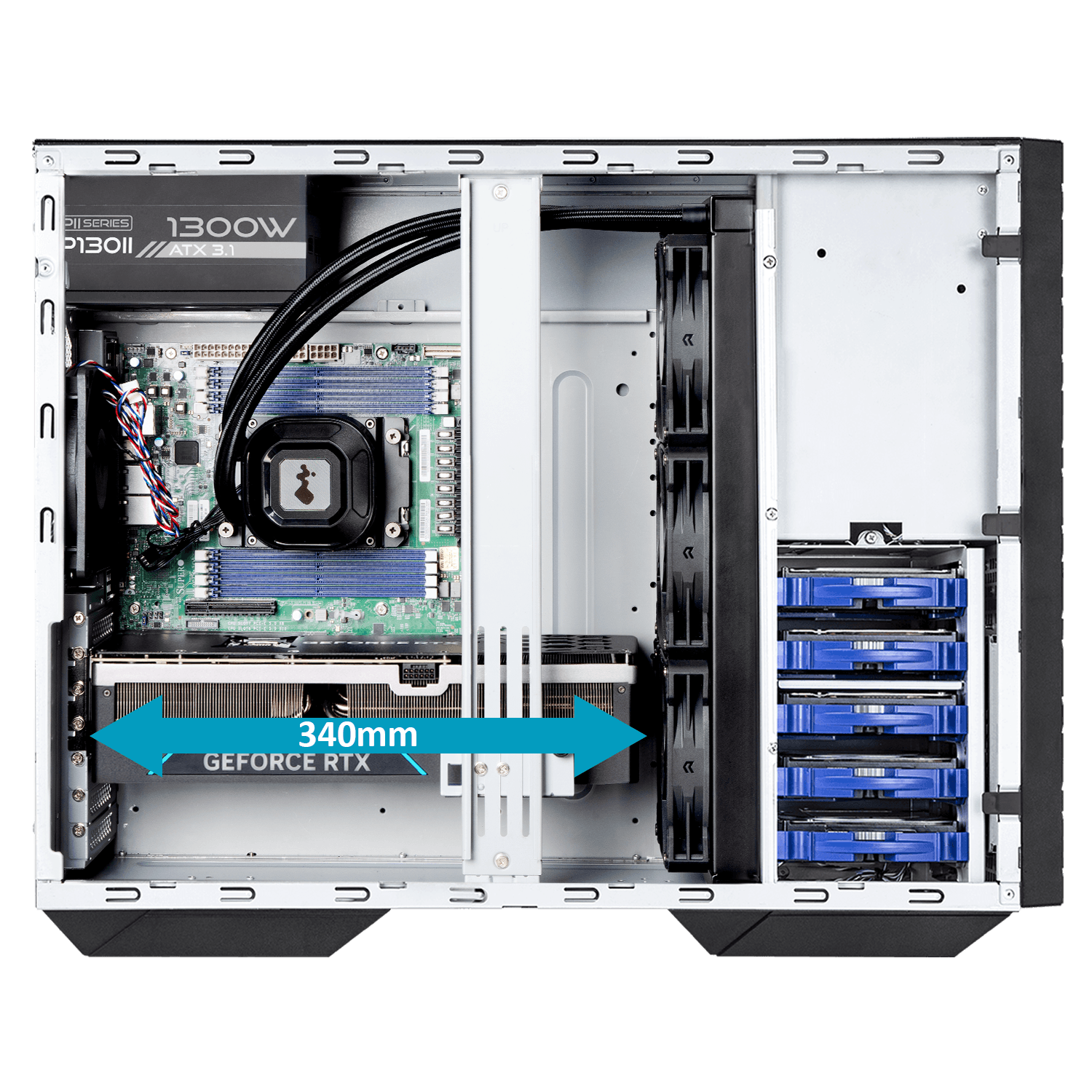

Only GPUs with a maximum length of 350mm can be installed when placing a radiator in the middle mounting area. GPUs up to 365mm can be installed when using up to two 120mm case fans.
Only GPUs with a maximum length of 350mm can be installed when placing a radiator in the middle mounting area. GPUs up to 365mm can be installed when using up to two 120mm case fans.
Compartmentalized
Drive Areas
A maximum of 9 drives can be hosted with the IW-PL070.
The two-sectioned storage areas adheres to organizational orientation to easily identify the intended drive function.
The two-sectioned storage areas adheres to organizational orientation to easily identify the intended drive function.
Top section can accommodate up to four 2.5" drives intended for operational/software programming.
Bottom section can hold up to five 2.5"/3.5" drives aimed for data/storage purposes.
Choose
Your Power!
The IW-PL070 can house either standard ATX or CRPS PSUs.
Power up your server to better suit your preferred system.
Power up your server to better suit your preferred system.
Power Supply Cable Information
Single PSU Cable Information
20+4 Pin Motherboard
x1
8 (4+4) Pin CPU
x2

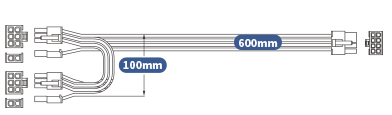

8 (6+2) Pin PCI-E
x4
4 Pin Peripheral
x1
SATA (90 Degree)
x3
Floppy
x1

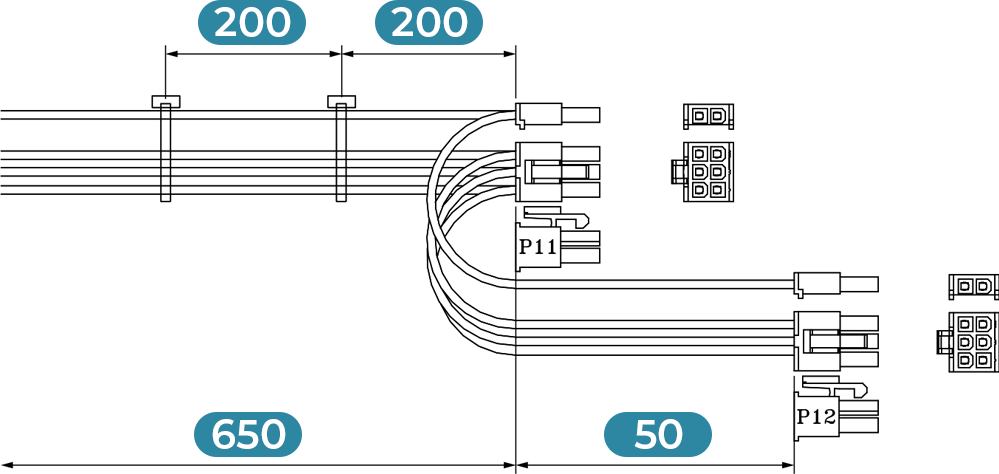

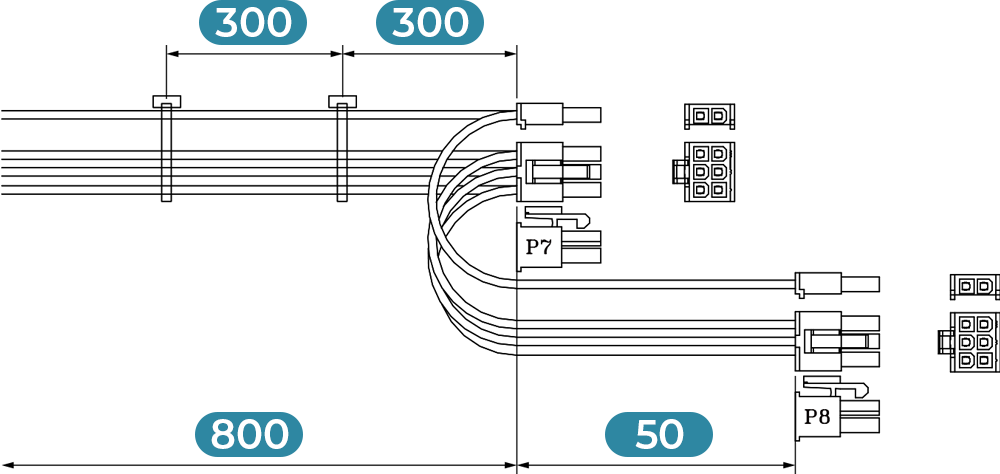

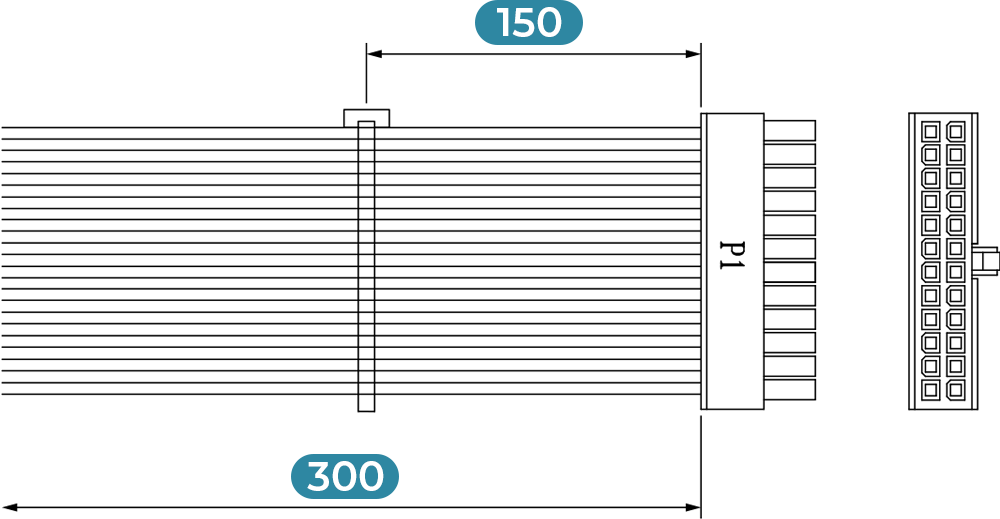

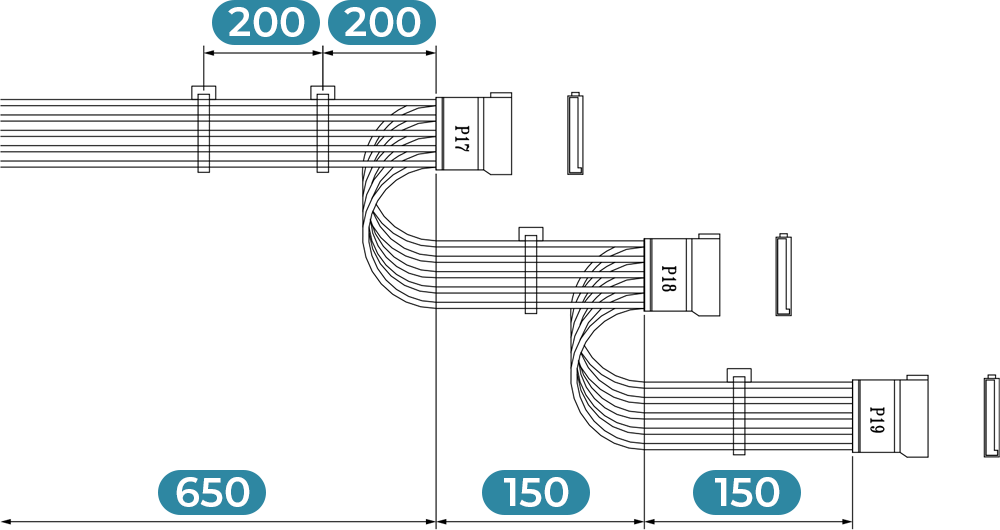

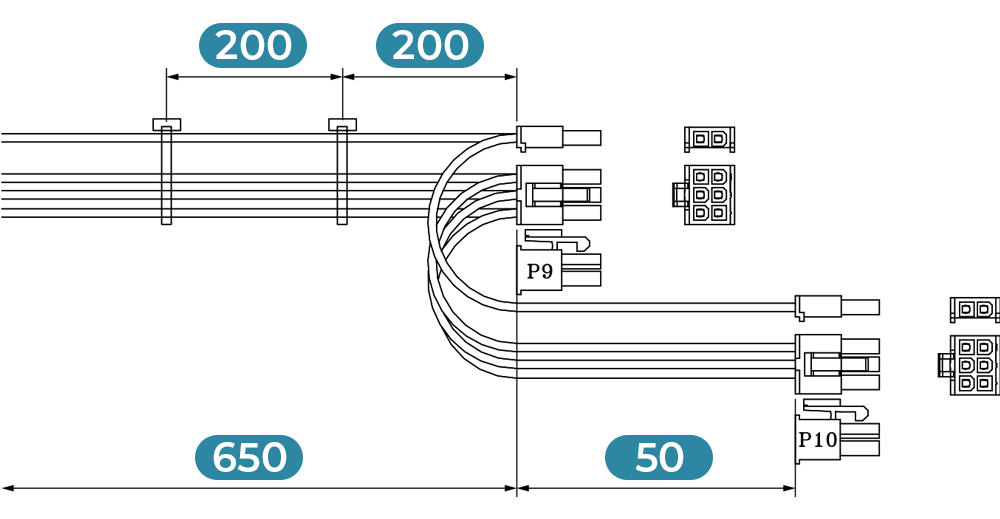

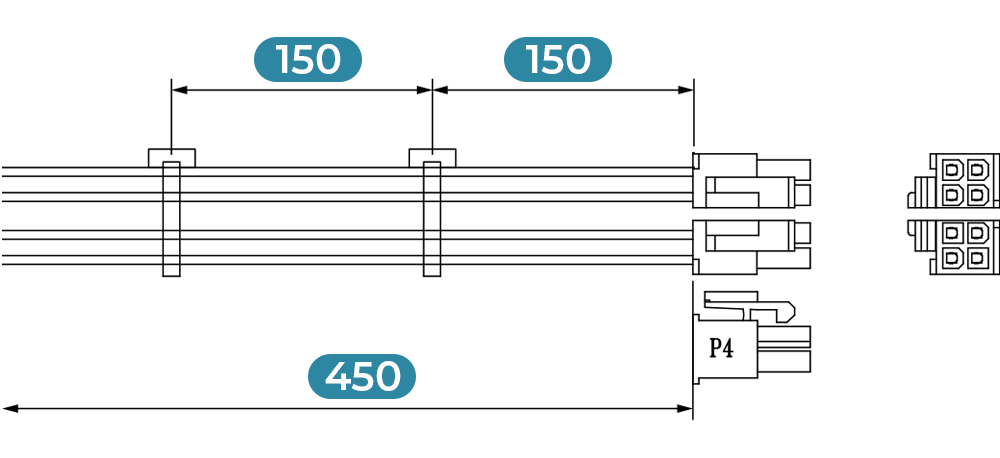

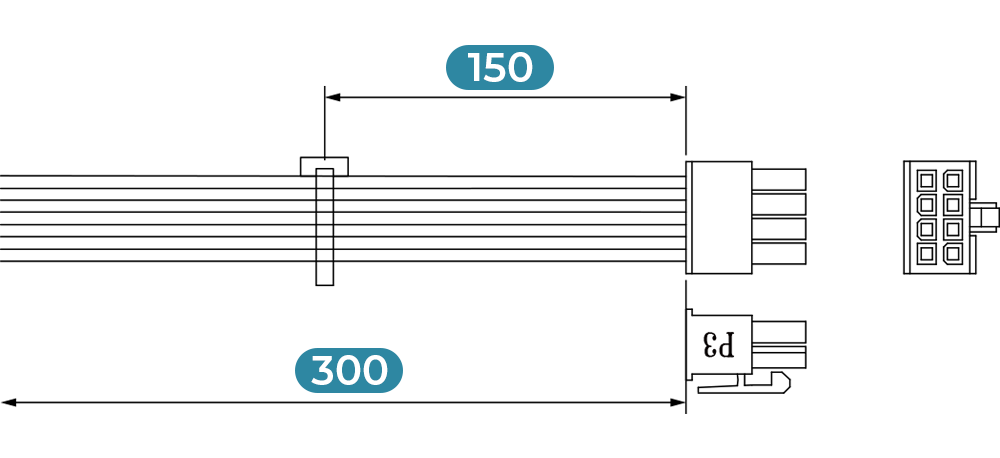

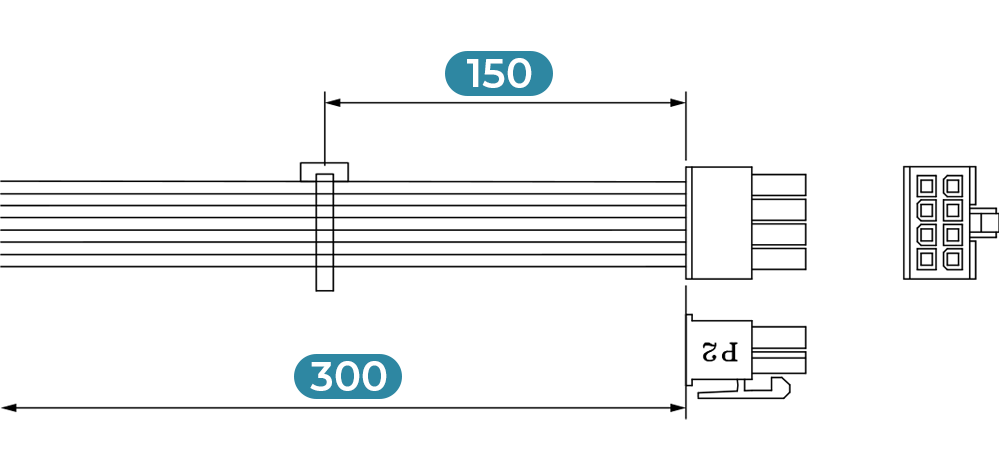

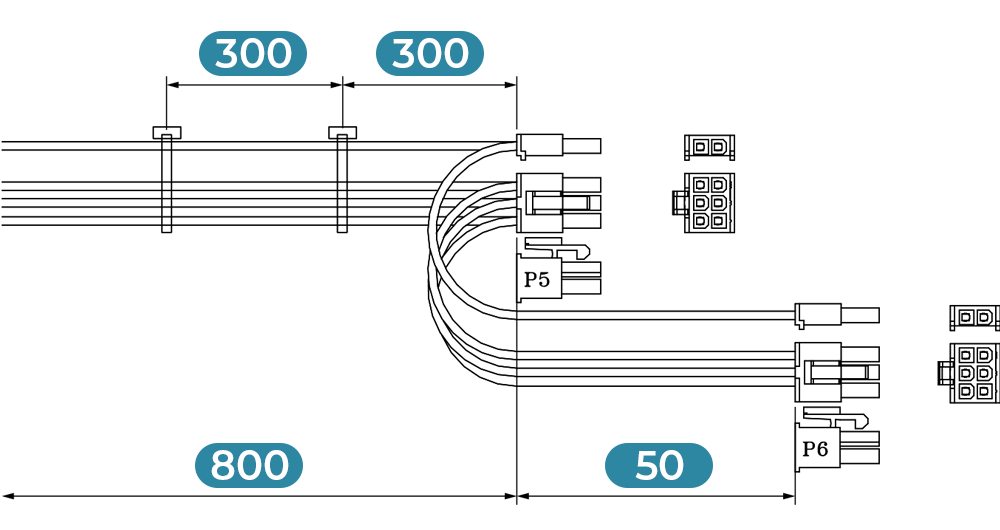

CRPS PSU Cable Information
24-Pin Main Motherboard
8 Pin CPU
8 Pin CPU
4+4 pin CPU
PCIe 6+2 pin
x2 GPU
PCIe 6+2 pin
x2 GPU
PCIe 6+2 pin
x2 GPU
PCIe 6+2 pin
x2 GPU

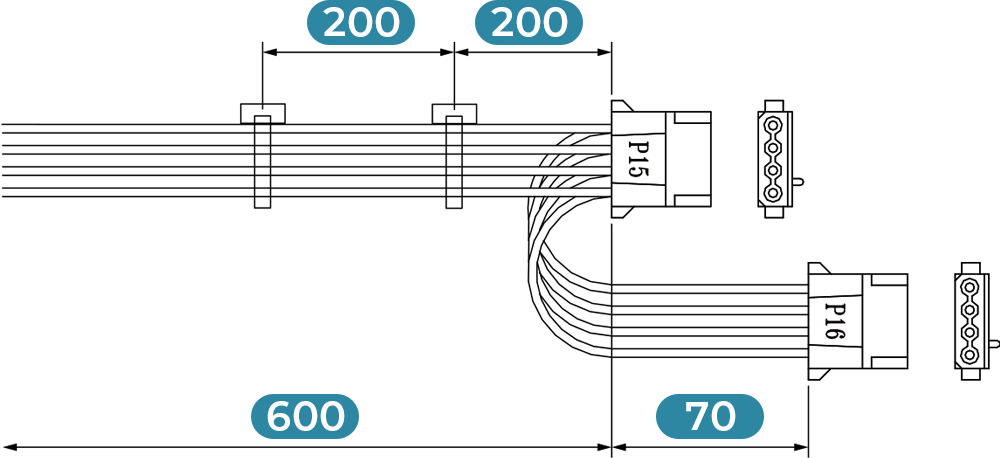

molex 4pin
x2 expansion
molex 4pin
x2 expansion
SATA 15 pin
x3 internal HDD

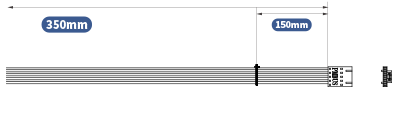

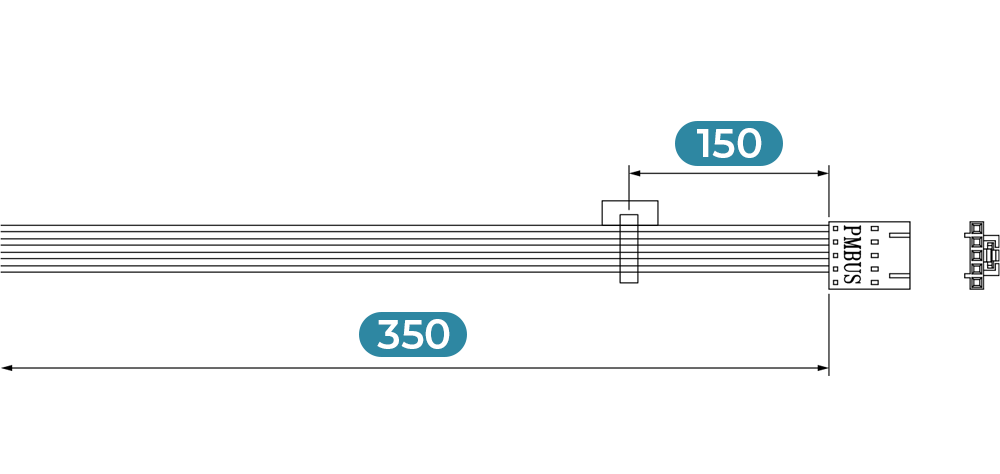

PMBus
Dimensions
Let’s Get to Work!
The IW-PL070 is a sensible workstation that can offer a range of tasks and applications to suit your needs. The cooling options, drive configuration and expandability makes for a great home/office server.
Suitable for architects to operate CAD and BIM software.
Applicable to media and entertainment editing projects.
Features for entry level AI learning/e-learning.
| Specification | |
|---|---|
| M/B Form Factor | ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13") |
| Drive Bay | Internal: • 2.5"/3.5" trays x 5 • optional 2.5" drives x 4 (1 x 9mm, 3 x 15mm) |

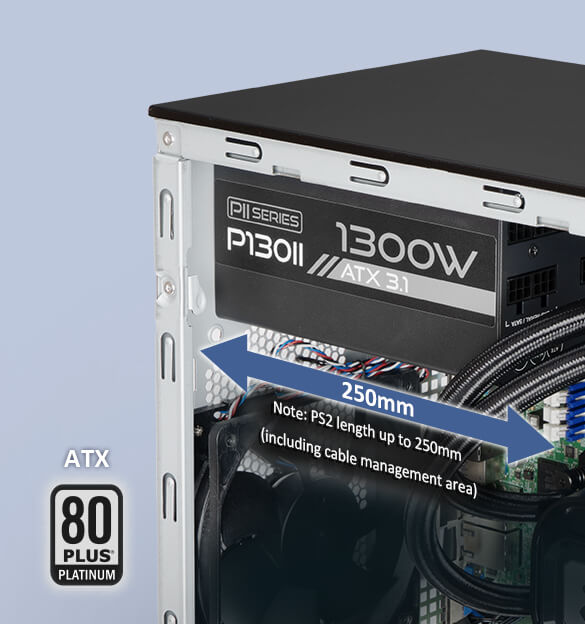

| Power Supply | Supports: • 1250W PS2 single PSU, 80 Plus Gold, length up to 250mm (including cable management area) • 1600W 2U 1+1 CRPS, 80 Plus Platinum |
| Indicator | Power status, HDD, LANs, system fail activity LEDs |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2 |
| Chassis Security | • Supports padlock loop and Kensington lock slot • Intrusion switch (optional) |
| Cooling Fan | •Front: 120 x 25mm PWM fan x 2 (one pre-installed) •Middle: 120 x 25mm PWM fan x 2 (one pre-installed) •Rear: 120 x 25mm PWM fan x 1 (one pre-installed) or 80 x 38mm PWM fan x 2 (optional) |
| Water Cooling Radiator | •Supports top 240mm, middle 240mm or 360mm AIO liquid coolers (optional) •Built-in 240mm top radiator bracket x 1 |
| Expansion Slot | Full-height PCIe slots x 7 |
| Material | • Material: SECC • Thickness: 0.8~1.0mm |
| Maximum Capacity | GPU length: •Middle radiator installed: 350mm •Middle fans installed: 365mm CPU heatsink height: 145mm PS2 power length: 250mm (including cable management area) |
| Product Dimensions (DxWxH; Chassis Only) | 560.2 x 200 x 430.1mm (22.1" x 7.9" x 16.9") |
| Package Dimensions (DxWxH) | 720 x 592 x 340mm |
| Weight (Chassis Only) | • Net weight: 11.72kg • Gross weight: 14.80kg |
| Cubic Feet | 5.12 |
| Container Information | Single packing with pallets: • 20': 110pcs • 40': 240pcs • 40' HQ: 288pcs |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Download | Preview |
|---|---|---|
| IW-PL070 eDM | ||
| IW-PL070 Compatibility List | ||
| IW-PL070 Gallery | - | |
| IW-PL070 User Manual |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Power Supply | 3RAMAP034400 | 80 Plus Gold PS2 1250W | 1 |
|
| Power Supply | 3RAMAP044300 | 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) | Max.2 |
|
| Power Supply | 2RALXX612200/ 3RAMAP045400 | CRPS PDB cage kit | 1 set |
|
| Cable | 3RAMW7105400 | Molex 4 pin to SATA x2 | Max.3 |
|
| Fan | 2RATPH001701 | 120mm fan holder | 2 |
|
| Fan | 3RAMFC001300 | 120 x 25mm PWM fan, 2500RPM | 5 |
|
| Fan | 3RAMFB007400 | 80 x 38mm PWM fan, 5500RPM | 2 |
|
| Water Cooling Radiator | 2RAKBA001401 | IW-BR24 240mm AIO liquid cooler | 2 |
|
| Water Cooling Radiator | 2RAKBA001501 | IW-BR36 360mm AIO liquid cooler | 1 |
|
| Water Cooling Radiator | 2RALXX595500 | 240mm middle radiator bracket kit | 1 |
|
| Water Cooling Radiator | 2RALXX595300 | 360mm middle radiator bracket kit | 1 |
|
| Others | 2RAKIS013601 | Single easy-swap SATA port module for 2.5"/3.5" HDDs | 5 |
|
| Others | 2RAKIS004400 | Dual easy-swap SATA port module for 2.5"/3.5" HDDs | 2 |
|
| Others | 2RALXX607001 | 2.5" HDDs cage kit (top: 9mm x 1, remaining: 15 mm x 3) | 1 |
|
| Others | 3RAMRW020400 | Intrusion switch (length: 700mm) | 1 |
|
