IW-PL052

Pedestal Long Version Server Chassis

.Flexible 5.25" ODD cage configurations with optional storage kits SK23 x 2 sets or SK34 x 1 set
.High density storage with 2.5"/3.5" hot-swap drive bays x 11
.Capable of installing standard ATX PSU or high-efficiency 80 Plus Platinum CRPS
.Supports 350mm dual-slot PCIe cards with GPU card holder (optional)
.Supports single easy-swap SATA port module for 2.5"/3.5" HDD x 5 (optional)
.Supports maximum 4 x 120mm fans or 3 x 120mm fans and optional 80mm rear fans x 2
.Supports rack installation by slide rails
.General-purpose storage server

Specification
M/B Form Factor ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13")
Drive Bay • External 5.25" x 4, 3.5" x 1
• Internal 2.5"/3.5" x 5
Power Supply Supports:
• 1250W PS2 single PSU, 80 Plus Gold
• 550W/800W/1200/1600W 1+1 CRPS, 80 Plus Platinum
Indicator Power status, HDD, LANs, system fail activity LEDs, ID
Front Control Panel Power switch, system reset, USB 3.0 x 2
Chassis Security • Supports padlock loop and Kensington lock slot
• Intrusion switch (optional)
Cooling Fan • Front: 120 x 25mm PWM fan x 1 (optional)
• Middle: 120 x 25mm PWM fans x 2 (optional)
• Rear: 120 x 25mm PWM fan x 1 (pre-installed) or optional 80 x 38mm PWM fans x 2
Expansion Slot Full-height PCIe slots x 7
Material • Material: SECC
• Thickness: 0.8mm
Maximum Capacity • GPU length: 350mm
• CPU heatsink height: 145mm
• PS2 power length: 250mm (including cable management area)
Rail Kit Supports 23" ball-bearing slide rail
Product Dimensions (DxWxH; Chassis Only) 560.2 x 200 x 430.1mm
(22.1" x 7.9" x 16.9")
Package Dimensions (DxWxH) 720 x 592 x 340mm
Weight (Chassis Only) • Net weight: 10.67kg
• Gross weight: 14.21kg
Cubic Feet 5.12
Container Information Single packing with pallets:
• 20': 110pcs
• 40': 240pcs
• 40' HQ: 288pcs
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
Item Download Preview
IW-PL052 eDM
IW-PL052 Gallery -
Item Part Number Description Support Picture

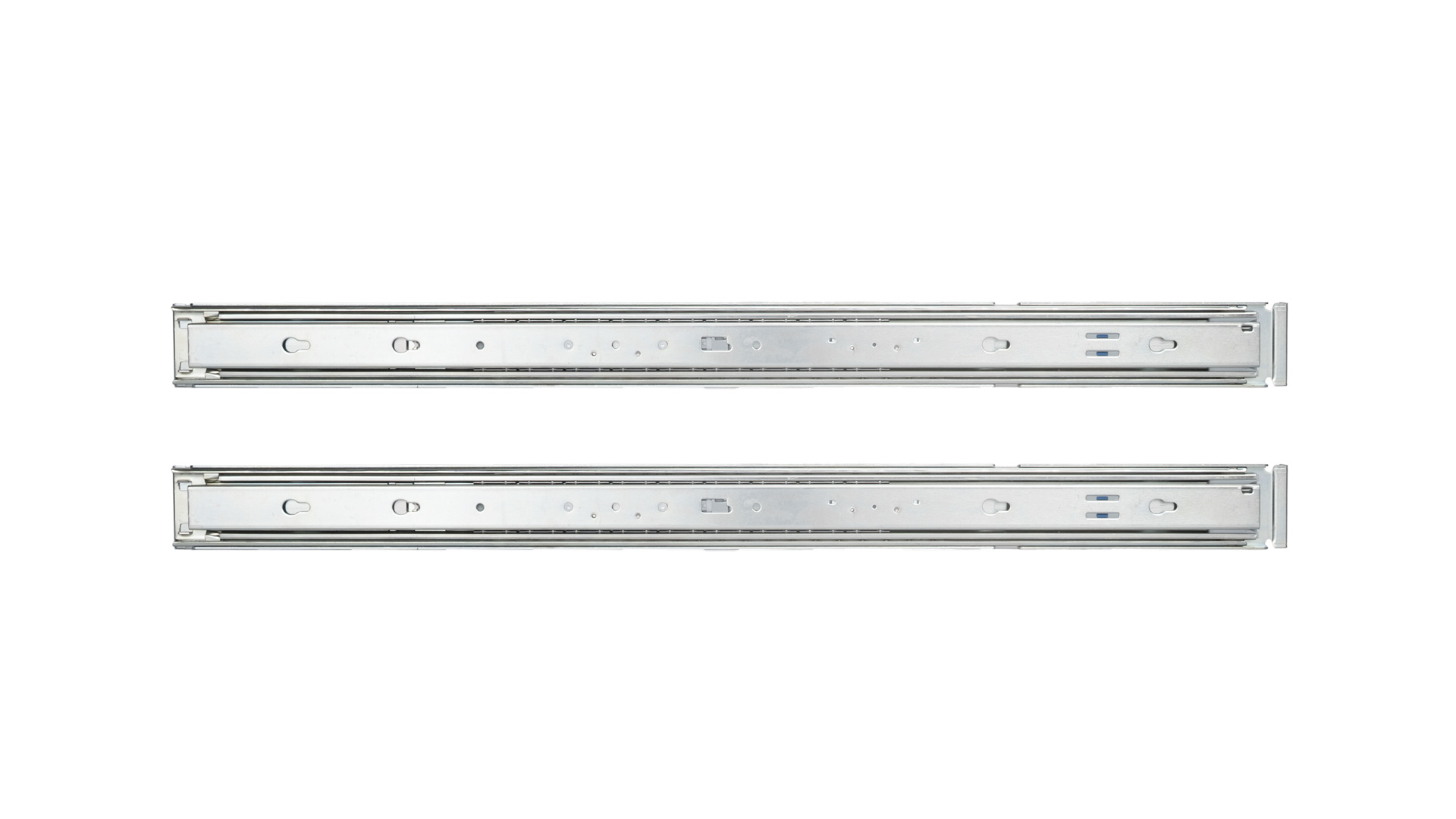

Slide Rail 3RAMIS144400 23" ball-bearing slide rail 1 set
Power Supply 3RAMAP034400 80 Plus Gold PS2 1250W 1
Power Supply 3RAMAP025502 PDB power cage for CRPS 550W/800W 1
Power Supply 3RAMAP025102 80 Plus Platinum 550W CRPS Max. 2
Power Supply 3RAMAP025202 80 Plus Platinum 800W CRPS Max. 2
Power Supply 3RAMAP030501 PDB power cage for CRPS 1200W/1600W 1
Power Supply 3RAMAP026501 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) Max. 2
Power Supply 3RAMAP044300 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) Max. 2
Fan 3RAMFC001300 120 x 25mm front or rear fan, PWM, 2500RPM Max. 2
Fan 3RAMFB007400 80 x 38mm rear fan, PWM, 5500RPM Max. 2
Fan 2RATPH063901 Plastic holder for 120mm fan (in the middle system of the chassis) 2
Storage Kit 2RAKID044201 IW-SK23-02, 3.5" hot-swap HDD x 3, SAS/SATA 12Gbps Max. 2
Storage Kit 2RAKID073901 IW-SK34-02, 3.5" hot-swap HDD x 4, SAS/SATA 12Gbps 1
Storage Kit 2RAKID088302 IW-SK23-07, 3.5" hot-swap HDD x 3, SAS/SATA 12Gbps Max. 2
Storage Kit 2RAKID088403 IW-SK34-07, 3.5" hot-swap HDD x 4, SAS/SATA 12Gbps 1
Others 3RAMRW020400 Intrusion switch/700mm 1
Others 2RAGPD034501 Front I/O USB 3.0 x 2 + Audio 1
Others 2RAGPD034701 Front I/O USB 3.0 x 2 1
Others 2RAKIS013601 Single easy-swap SATA port module for 2.5"/3.5" HDD 5
Others 2RAKIS004400 Dual easy-swap SATA port module for 2.5"/3.5" HDD 2
Others 2RALXX611600 Add-on card holder kit 1
Others 2RAKIS040800 Rack mounting ear (L) 1
Others 2RAKIS040900 Rack mounting ear (R) 1
