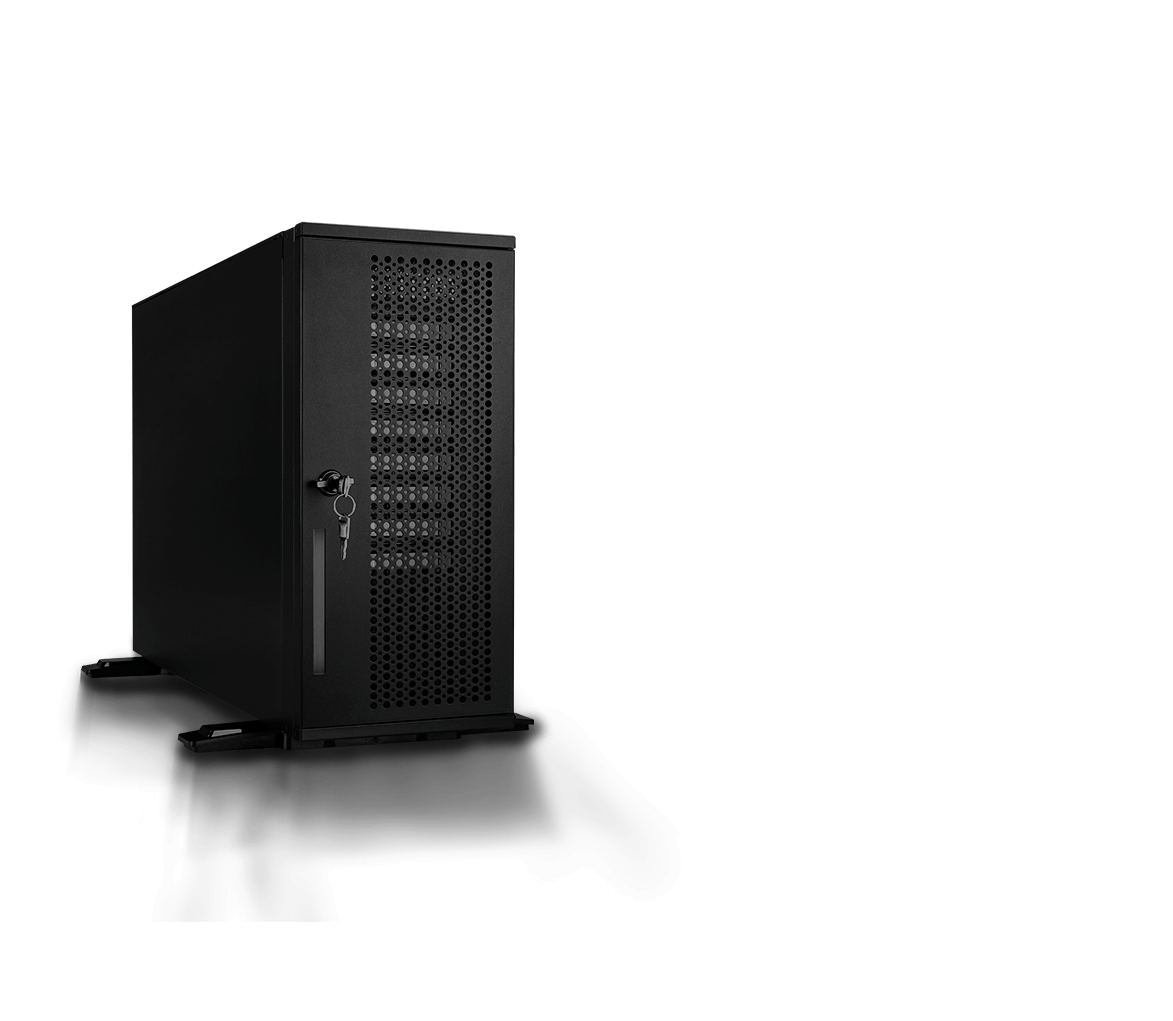

IW-PLG Tower
Excellent Performance Computing Workstation for GPU Applications
server system assembly
IW-PLG
High Performance GPU Workstation
．Compliance for Intel® Xeon Scalable / AMD EPYC family
．9 expansion slots supporting up to 4 x full-height, full-length, double-width GPU cards
．Screwless adjustable card holder for full-height GPU cards
．High efficiency CRPS modules with PDB (80 Plus Platinum 800W/1200W/1600W/2000W)
．Supports maximum 14 x 2.5" SSD drives
．Supports rack installation by slide rails
．Lockable front and side panel
Multi-GPU Computing Workstation

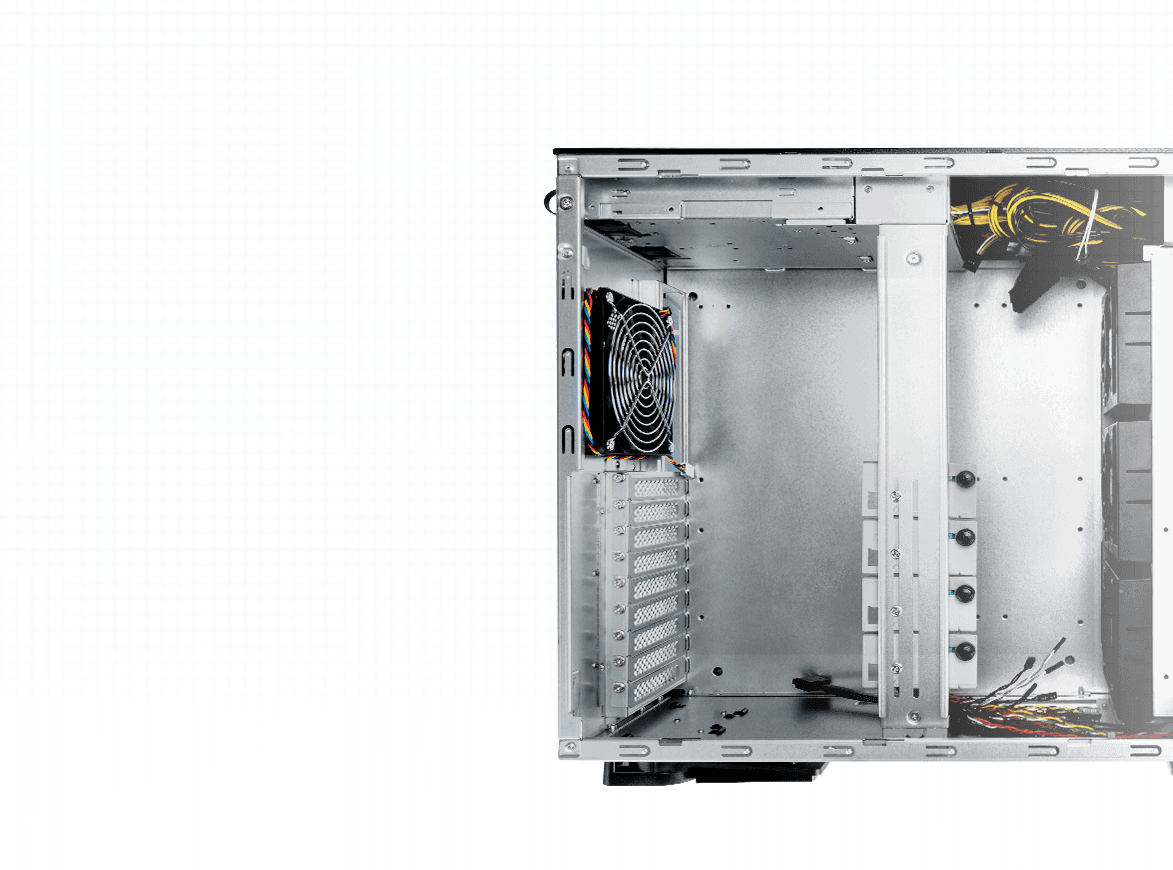

The InWin IW-PLG Tower is a professional workstation designed for SMB servers, 3D rendering, virtualization, healthcare data center and AI applications. Supporting the latest Intel® Xeon Scalable & AMD EPYC processors, the IW-PLG Tower offers high levels of performance, reliability and availability.
Maximum Compatibility
Full-height GPU x 4
2.5" SSD x 14
Built-in SAS/SATA Backplane
Maximum 2000W CRPS
EEB Motherboard Support

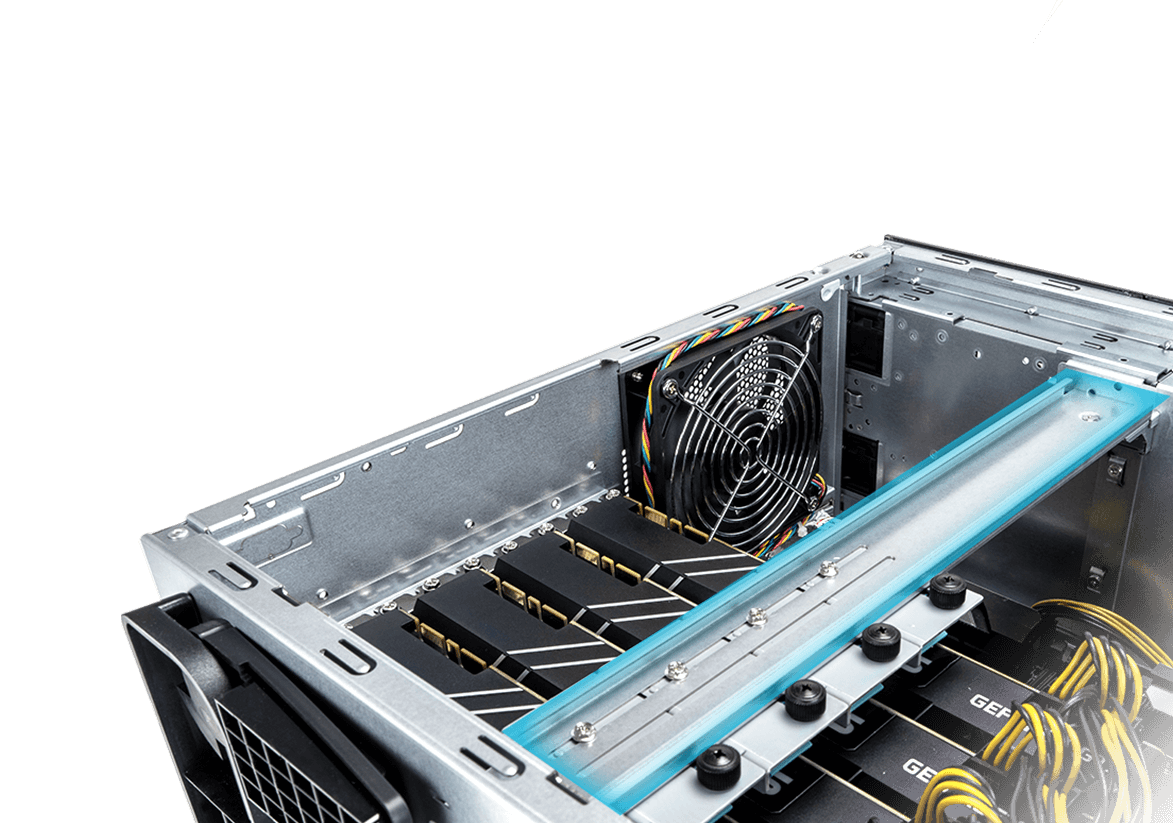

Screwless adjustable card holder for full-length / half-length GPU Cards

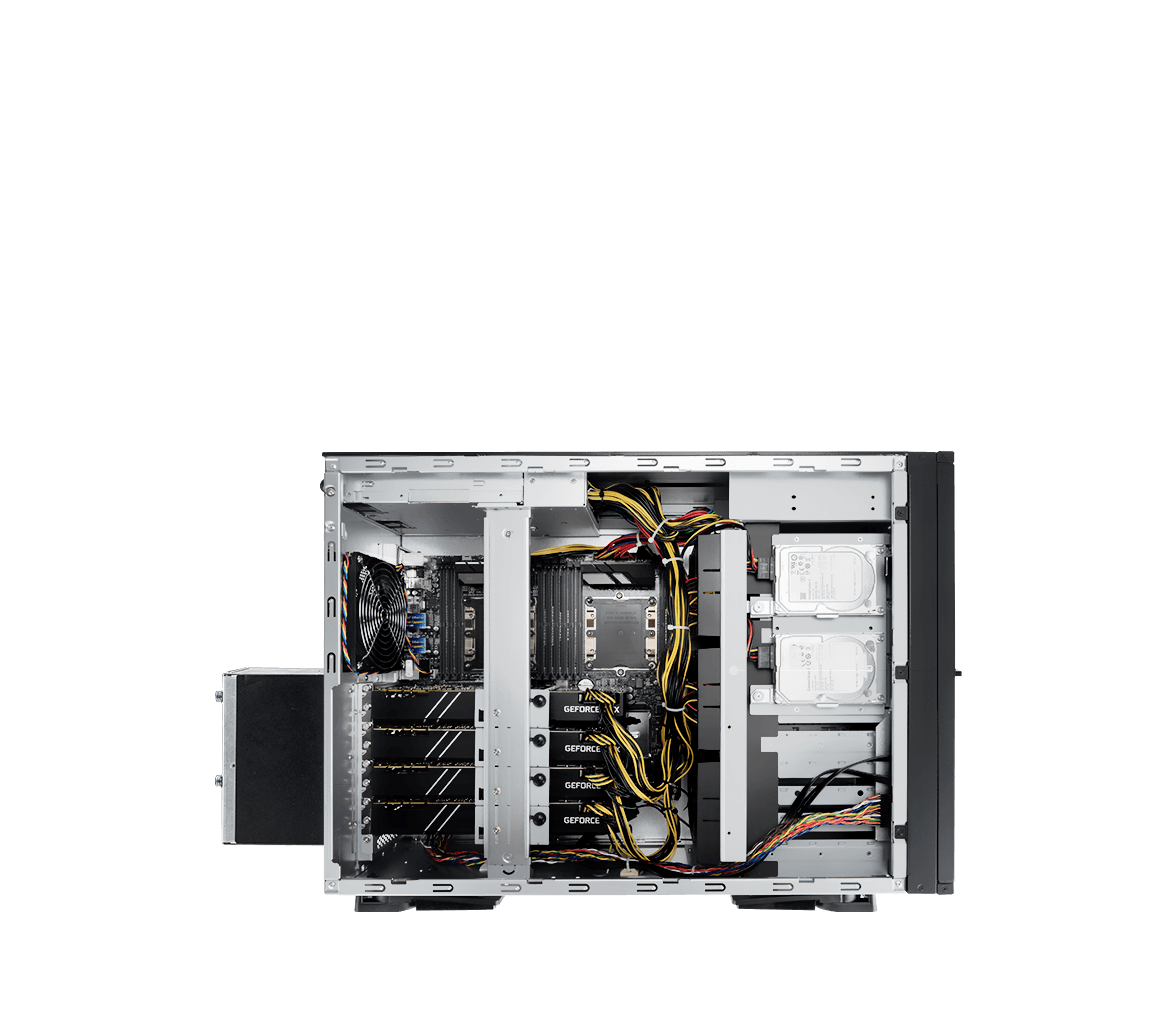

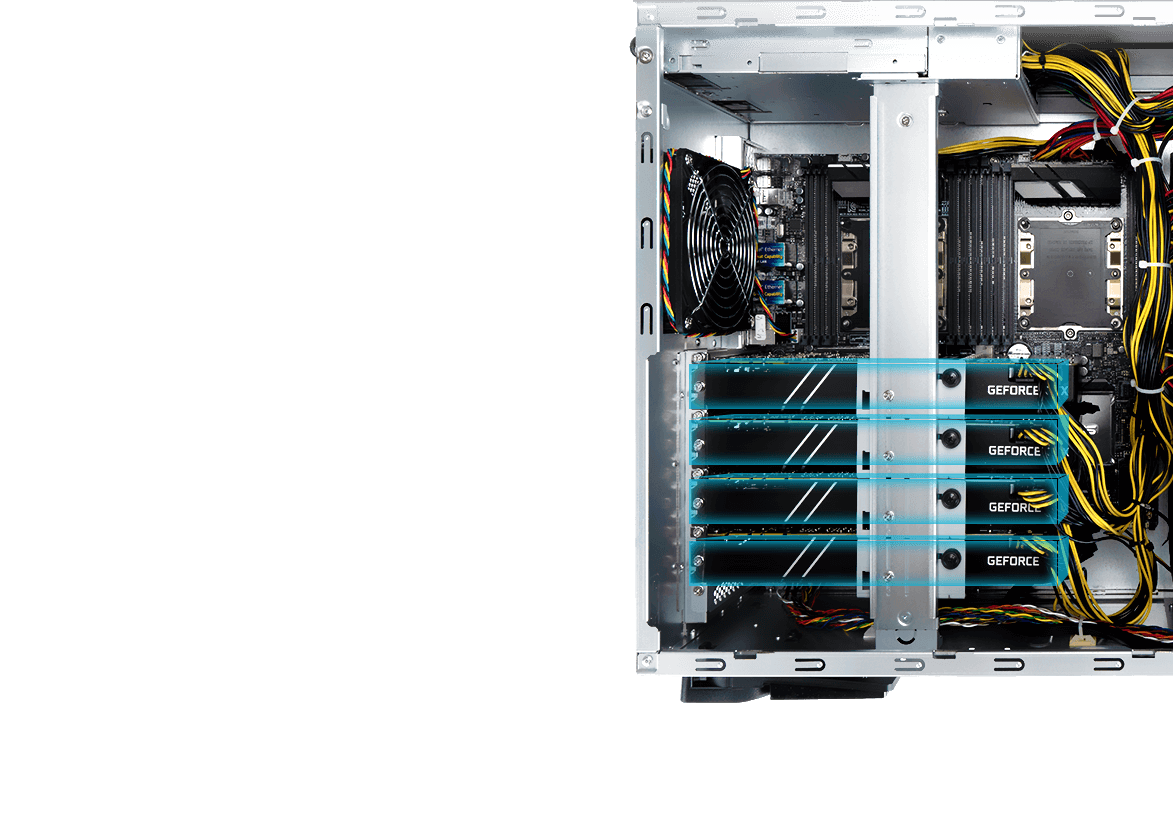

GPU Support
The IW-PLG Tower supports up to 9 expansion slots which is capable of installing up to 4 x full-height, full-length, double-width GPU cards. With so much graphics power, accomplish the most demanding computing tasks quicker and with greater efficiency.

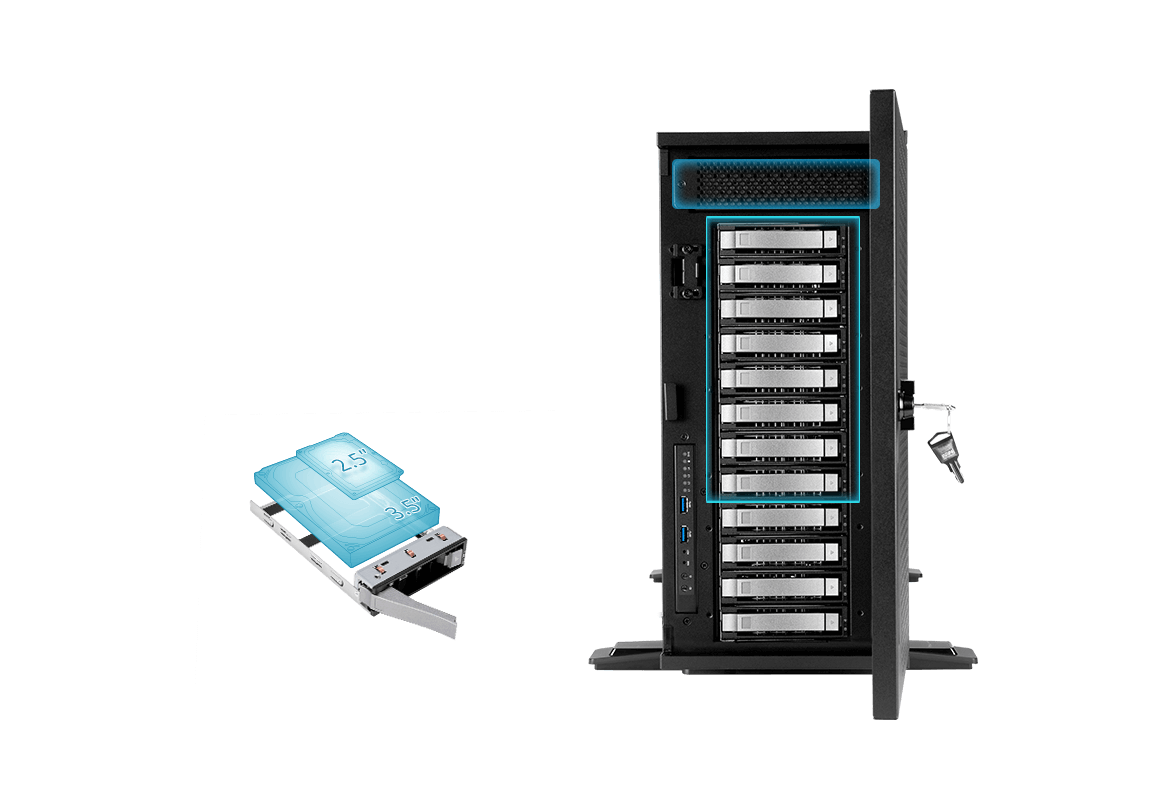

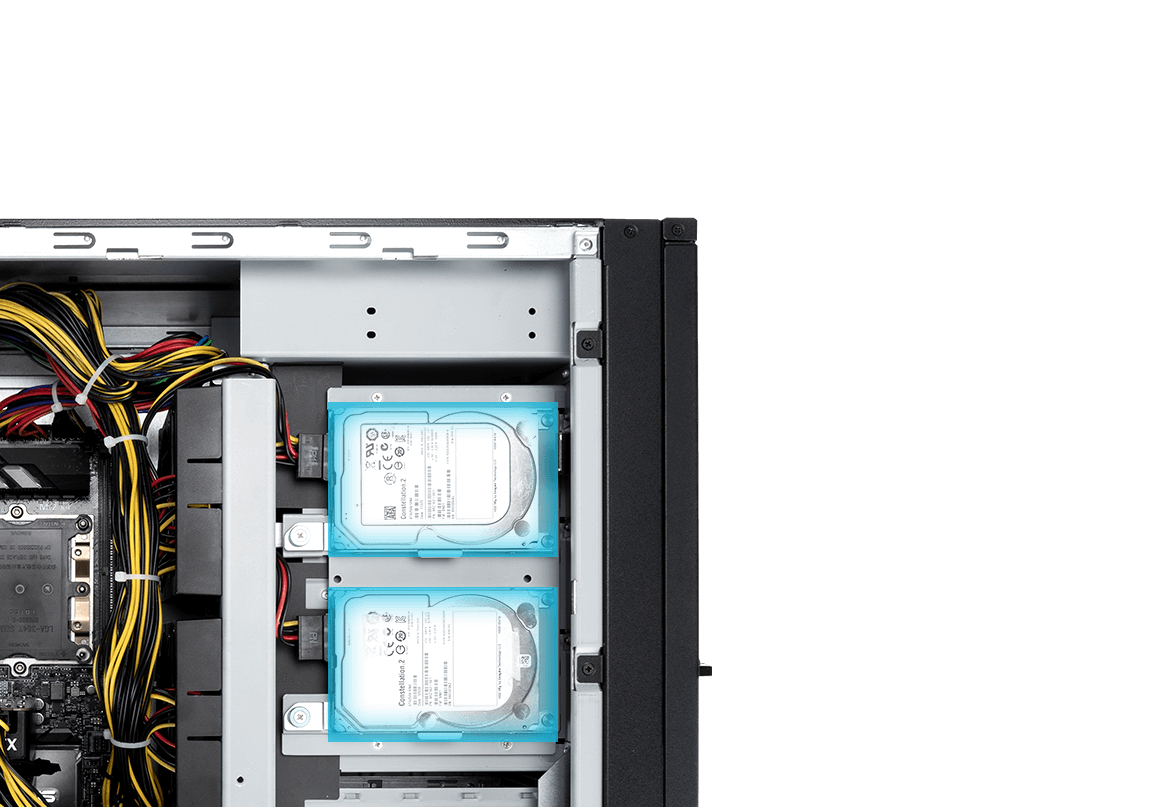

Storage Support
Internal 2.5" SSD x 2 or 3.5" HDD x 1
Storage Support
External 5.25" ODD x 1
External 2.5"/3.5" HDD x 12 (pre-installed x 8)
Built-in Mini-SAS HD Backplane
2.5"/3.5" HDD 4 bay backplane with SAS/SATA 4 port module. Maximum supports up to 3 (pre-installed x 2)

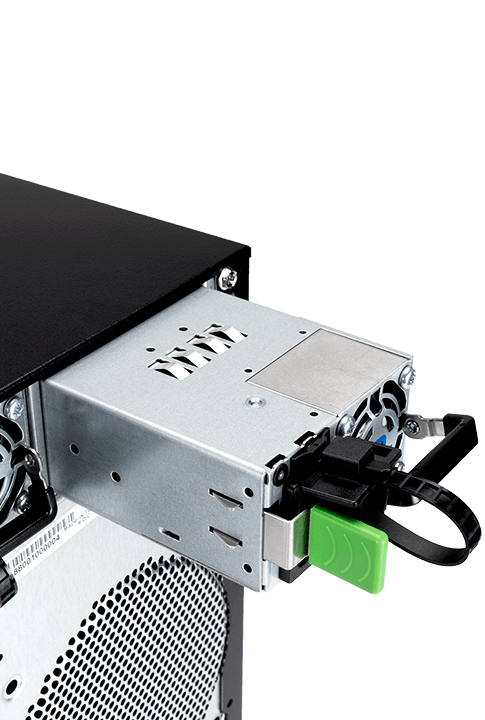

80 Plus Platinum Certified CRPS
High efficiency CRPS modules with PDB cable management, 80 Plus Platinum 800W / 1200W / 1600W / 2000W

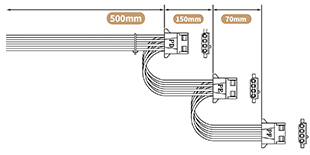

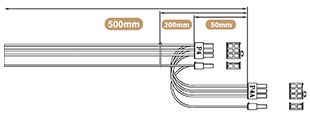

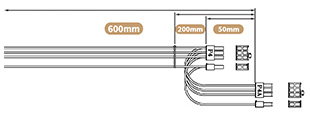

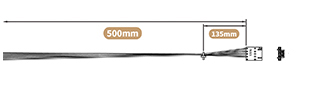

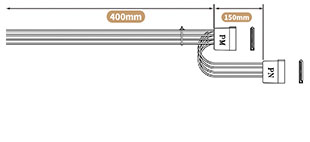

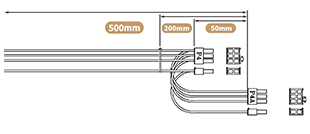

Cable Information

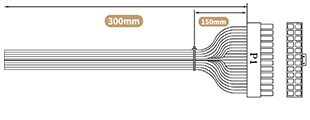

24-Pin Main Motherboard
8-Pin for CPU
4+4-Pin for CPU

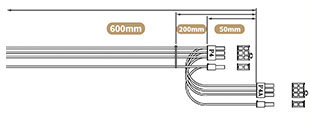

6+2/6+2-Pin for GPU
6+2/6+2-Pin for GPU
PMBus
6+2/6+2-Pin for GPU
6+2/6+2-Pin for GPU

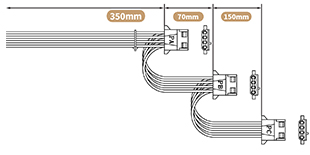

4-pin for HDD BP
4-pin for HDD BP
SATA HDD
Motherboard Support
ATX (12" x 9.6") / CEB (12" x 10.5") / EEB (12" x 13")
Efficient Thermal Performance
With the 3x 92mm fans that take in cool air from the front, hot air flows out via 1x120mm fan of the rear case for efficient thermal performance. An additional, optional fan kit on the rear panel adds GPU thermal support.

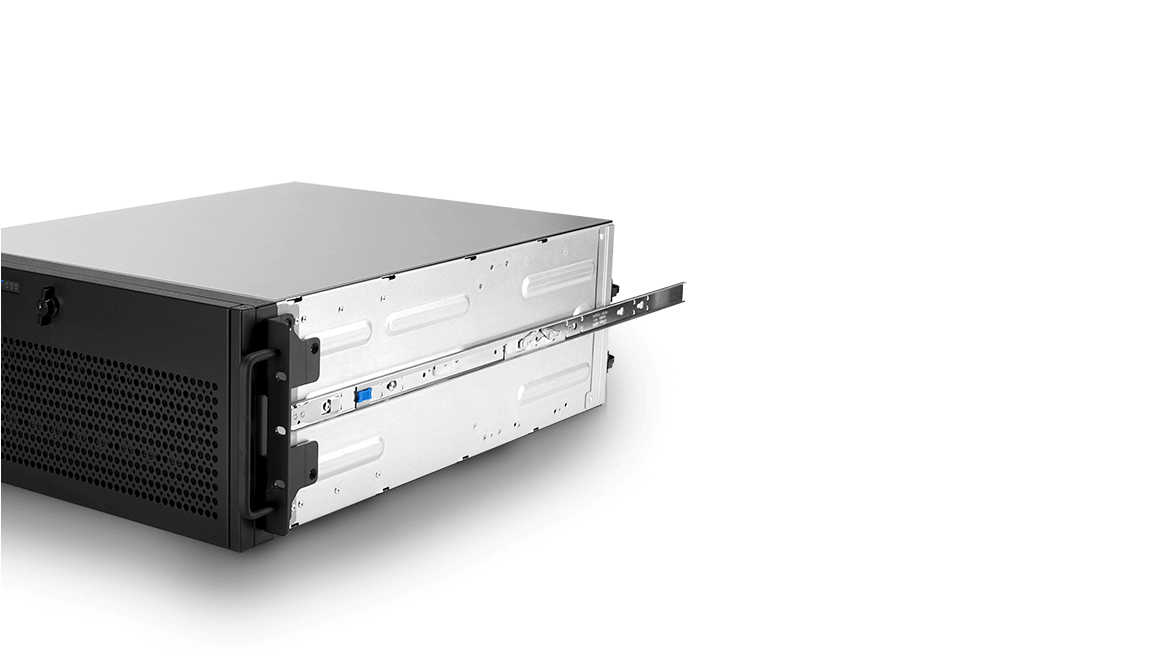

Slide Rail Support
Supports rack installation by 28" tool-less & ball-bearing slide rail.
Dimensions
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13") |
| Drive Bay | • External 2.5"/3.5" hot-swap trays x 12 (pre-installed x 8), 5.25" x 1 • Internal 2.5" x 2 or 3.5" x 1 |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS with PDB cable management • Watt: 800W/1200W/1600W/2000W |
| Indicator | Power status, HDD LED, LAN1/LAN2/LAN3/LAN4 LED, ID LED, system fail activity LED |
| Front Control Panel | Power switch, ID switch, system reset, NMI, USB 3.0 x 2 |
| Chassis Security | Supports padlock loop and Kensington lock slot |
| Backplane | Mini-SAS HD (SFF-8643), 12Gbps supported x 3 (pre-installed x 2) |
| Cooling Fan | • Middle: 92 x 25mm PWM fan x 3 • Rear: 120 x 25mm PWM fan x 1 |
| Expansion Slot | Full-height PCIe slot x 9 |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 589.7 x 200 x 430mm (23.22" x 7.87" x 16.93") |
| Package Dimensions (DxWxH) | 860 x 610 x 360mm |
| Weight (Chassis Only) | • Net weight: 16.95kg • Gross weight: 21.28kg |
| Cubic Feet | 6.67 |
| Container Information | Single packing with pallets: • 20': 100pcs • 40': 220pcs • 40' HQ: 264pcs |
12Gbps Backplane Specifications
| Backplane | Mini-SAS HD backplane |
| Dimension (W x H) | 111.5mm x 111.5mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 1 |
| HDD Interface | SAS/SATA HDD x 4 |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Download | Preview |
|---|---|---|
| IW-PLG GPU Tower eDM | ||
| IW-PLG GPU Tower Gallery | - | |
| IW-PLG GPU Tower Compatibility List | ||
| IW-PLG GPU Tower User Manual | ||
| IW-PLG Tower Passive Backplane User Manual |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS152700 | 28" tool-less & ball-bearing slide rail | 1 set |
|
| Power Supply | 3RAMAP025202 | 80 Plus Platinum CRPS 800W | Max. 2 |
|
| Power Supply | 3RAMAP026501 | 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) | Max. 2 |
|
| Power Supply | 3RAMAP044300 | 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) | Max. 2 |
|
| Power Supply | 3RAMAP038600 | 80 Plus Platinum CRPS 2000W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 2000W max.) | Max. 2 |
|
| Backplane | 2RBTVI000201 | 12Gbps Mini-SAS HD backplane | Max.3 |
|
| HDD Tray | 2RAKPH057702 | 2.5"/3.5" hot-swap HDD tray (gray color) | Max. 4 |
|
| HDD Tray | 2RAKPH038002 | 2.5" /3.5" hot-swap HDD tray (black color) | Max. 4 |
|
| Cable | 3RAMW4031700 | Mini SAS 12Gbps SFF-8643 to SFF-8643 cable, length 800mm | Max.3 |
|
| Cable | 3RAMW4036300 | 4x SATA to Mini SAS 12Gbps cable SFF-8643 , length 600mm | Max.3 |
|
| Others | 2RAKIS232800 | Rack mounting ear (L) | 1 |
|
| Others | 2RAKIS232900 | Rack mounting ear (R) | 1 |
|
| Others | 2RAKID079800 | Rear fan kit for GPU thermal, 80x38mm, 8300RPM | 1 |
|
