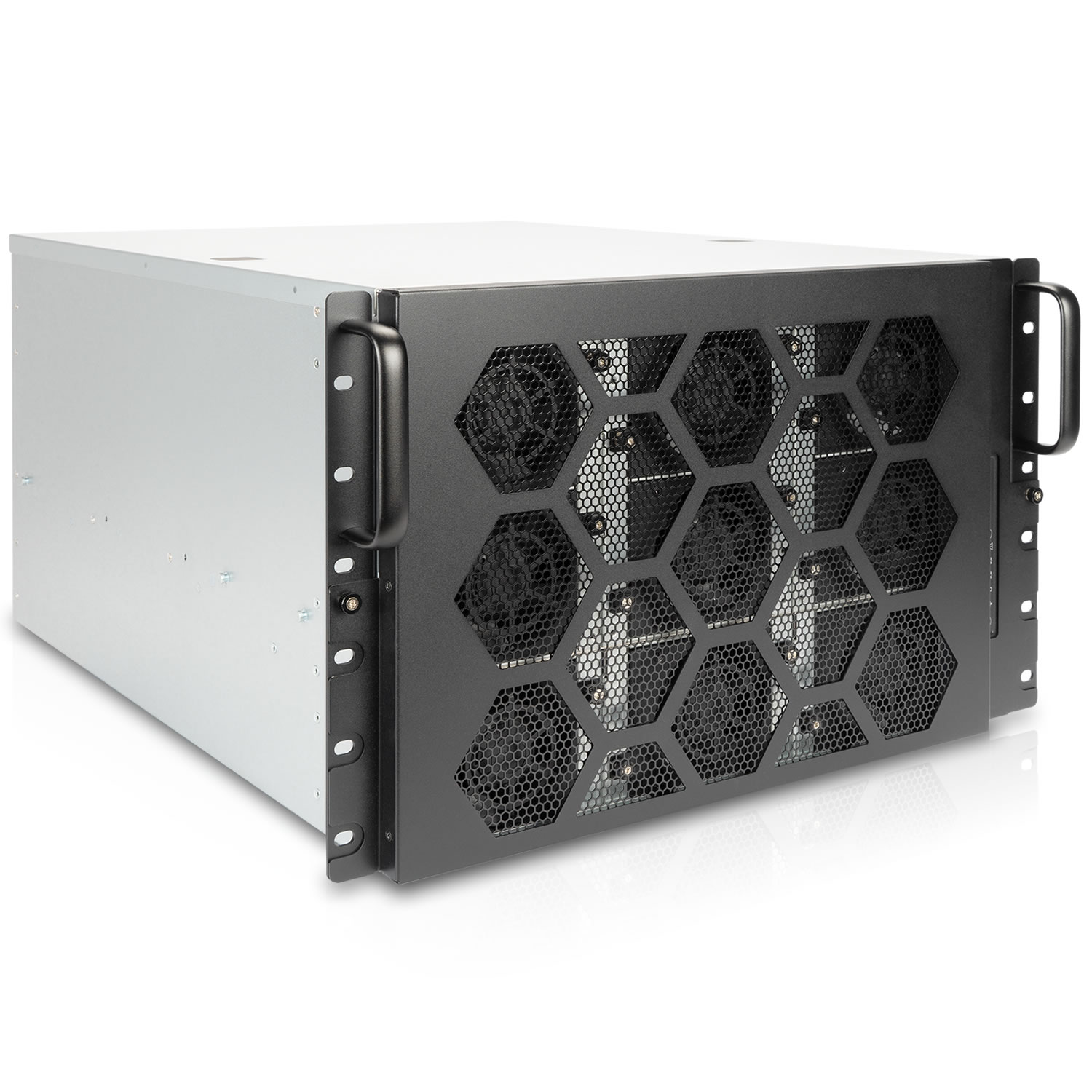

IW-RG650A

6.5U GPU Rackmount Chassis

GPU Server Specially Designed for AI, Deep Learning, and HPC
6.5U Dual Chamber Design: 4.5U Chamber for GPU and 2U Chamber for M/B
Supports 18 FHFL PCIe Slots with 4 PCIe Riser Cables Included for Multi-GPU Installation
Separate Dual Chambers for Optimized, Independent Heat Dissipation
9 Hot-Swap 80x38 mm 12000rpm PWM Fans for Excellent Cooling Performance
80 PLUS^® Titanium CRPS 3200W PSU with 4 x 12V-2x6 pin Connectors Fulfill GPU Wattage Needs

6.5U GPU Rackmount Server

Conjure Innovation’s Inception with 6.5U GPU Server for AI Applications!

AI applications

FHFL PCIe slots support

Support up to 6 GPU

CRPS

80 x 38mm fans x 9

28” slide rails

AI Ready!

The IW-RG650A 6.5U GPU server is specially designed for AI and HPC applications, featuring a spacious, independent GPU chamber that supports multiple high-end GPU installations, allowing you to build efficient AI models with reasonable hardware computation costs.

Dual Chamber Layout

The IW-RG650A features a 6.5U dual-chamber design, with a 4.5U chamber for GPUs and a 2U chamber for system components, enhancing scalability, streamlining the assembly process, and facilitating future maintenance.

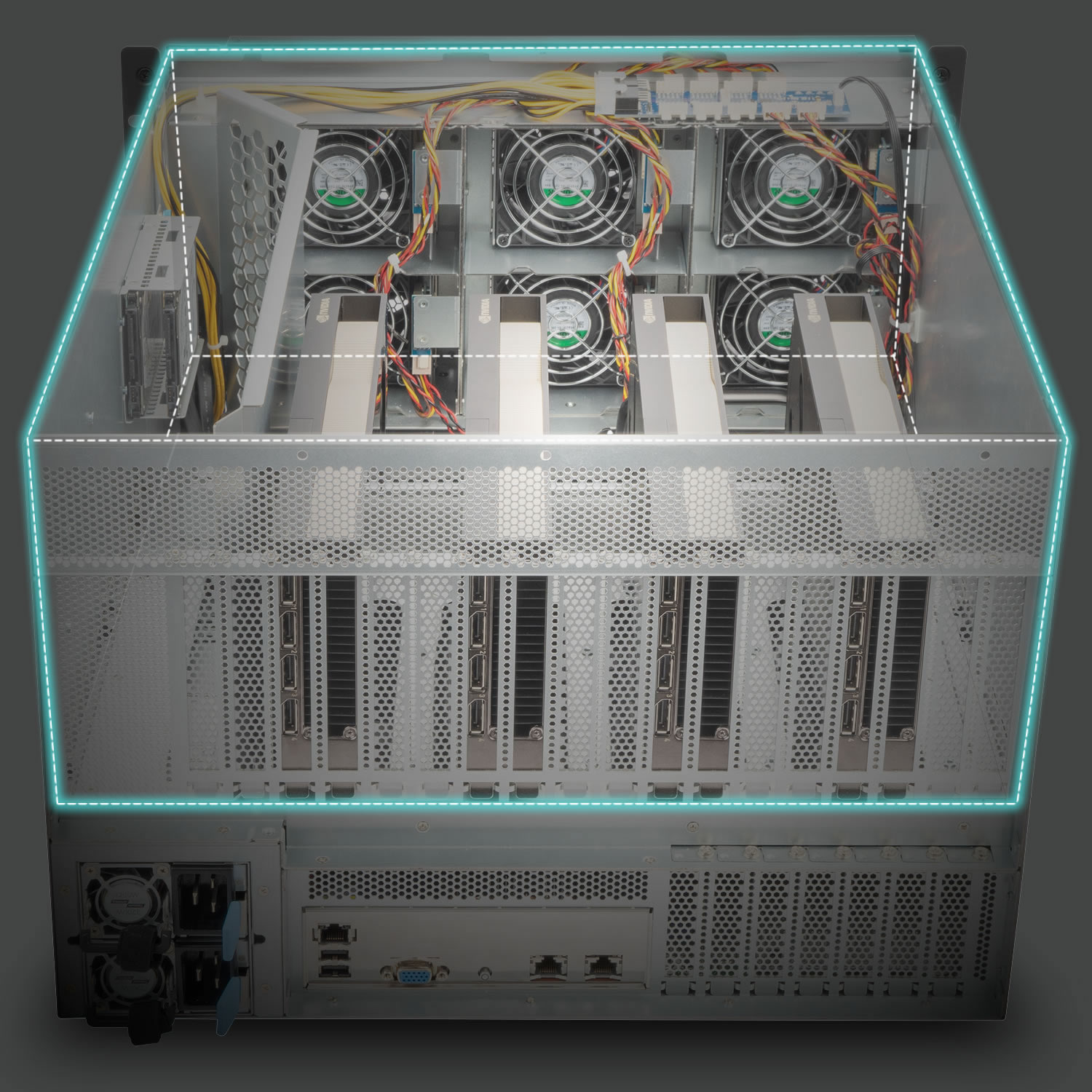

4.5U chamber for GPU

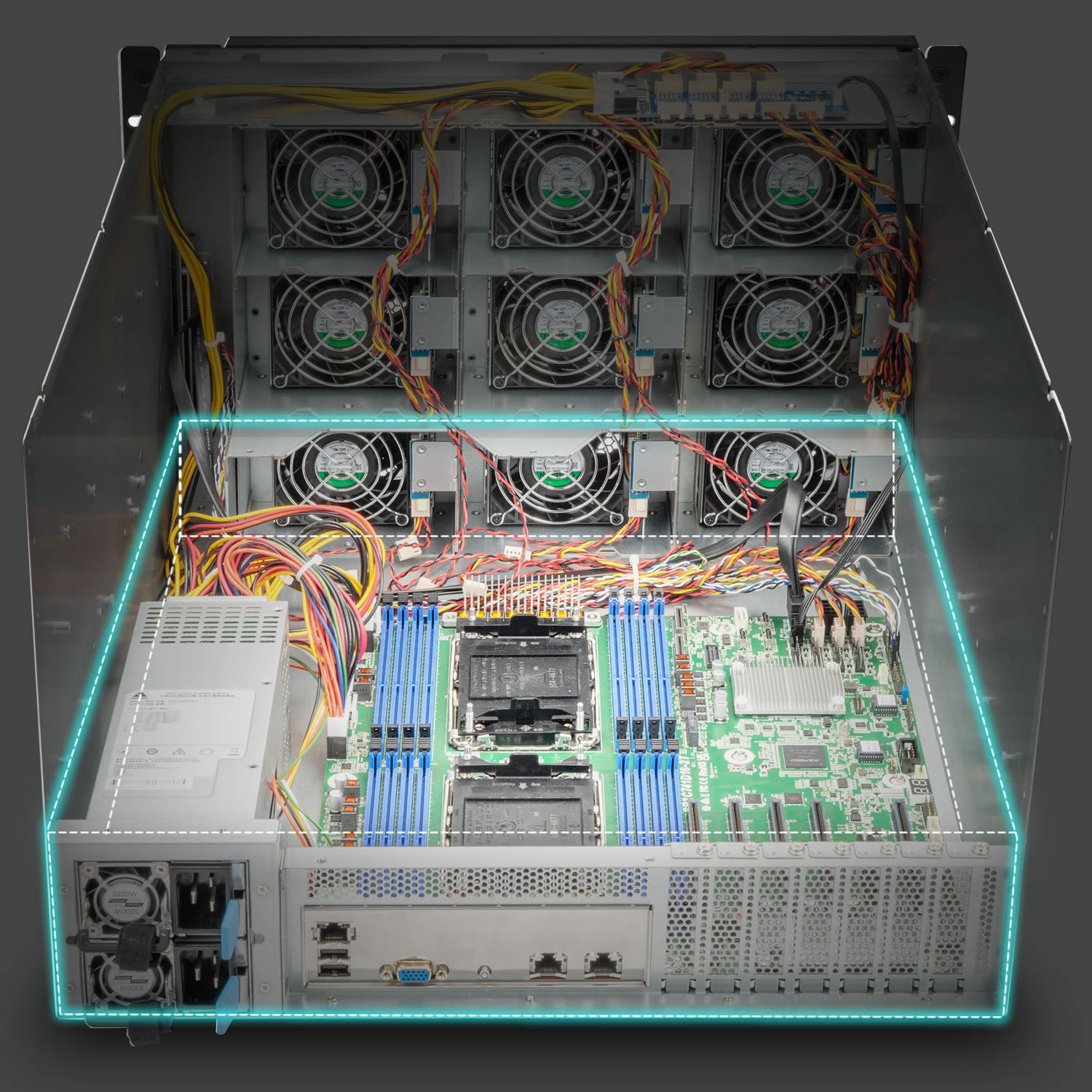

2U chamber for MB, CPU cooler and system components

Full-height PCIe slots x 18

Low-profile PCIe slots x 7

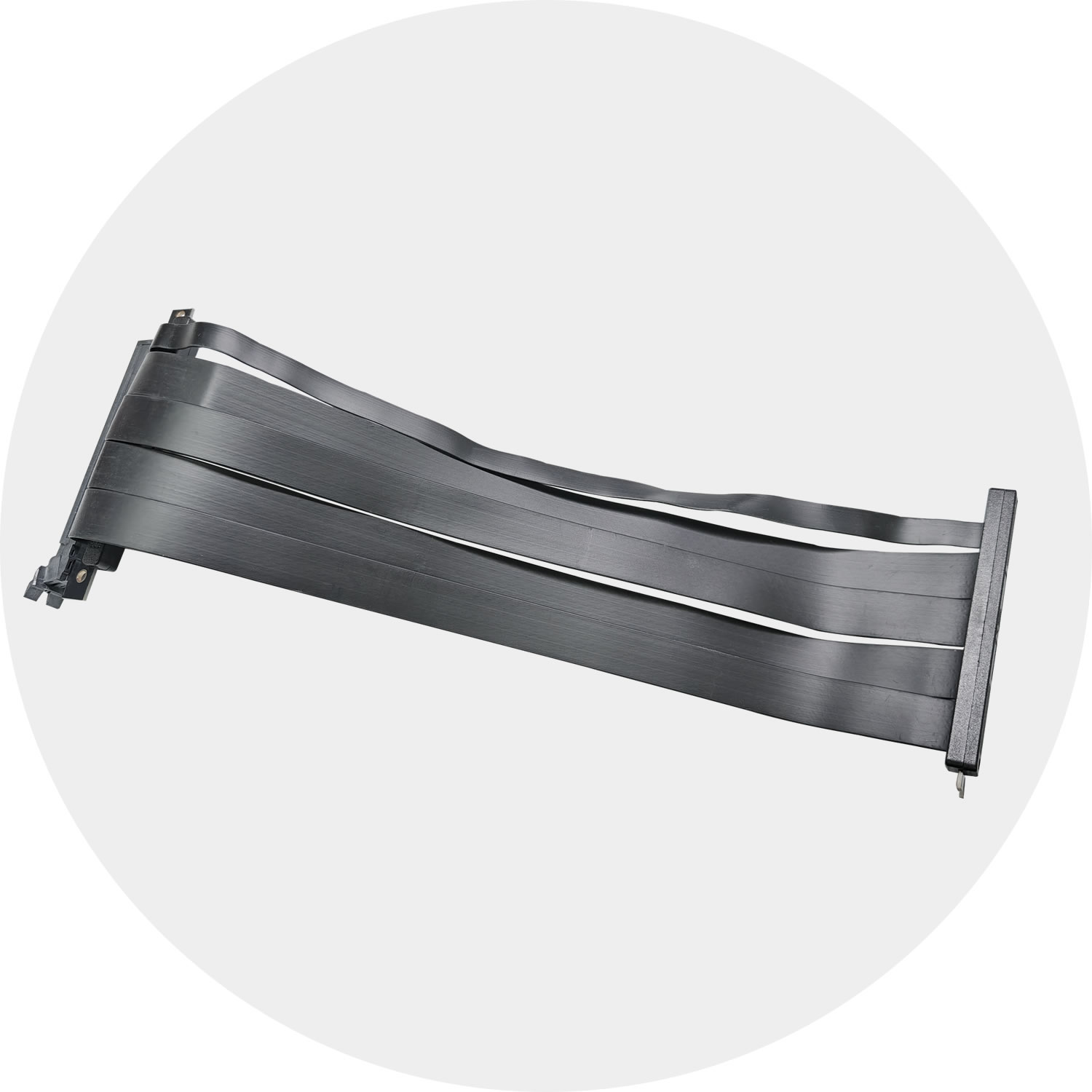

Riser cables included

Fully Supported

A total of 18 full-height full-length PCIe slots on the top chamber are designed for high-end GPU installations, with 4 PCIe Gen4 riser cables included. For configurations requiring more than four GPUs, additional riser cables are available as optional accessories. 7 half-height full-length PCIe slots on the bottom chamber for optional half-height expansion cards configurations or future upgrades.

Independent Heat Dissipation

Thanks to the dual-chamber design, dedicated airflow tunnels are provided for GPUs and system components, allowing independent heat dissipation. This enhances cooling efficiency, prevents heat interference, and ensures stable system performance.

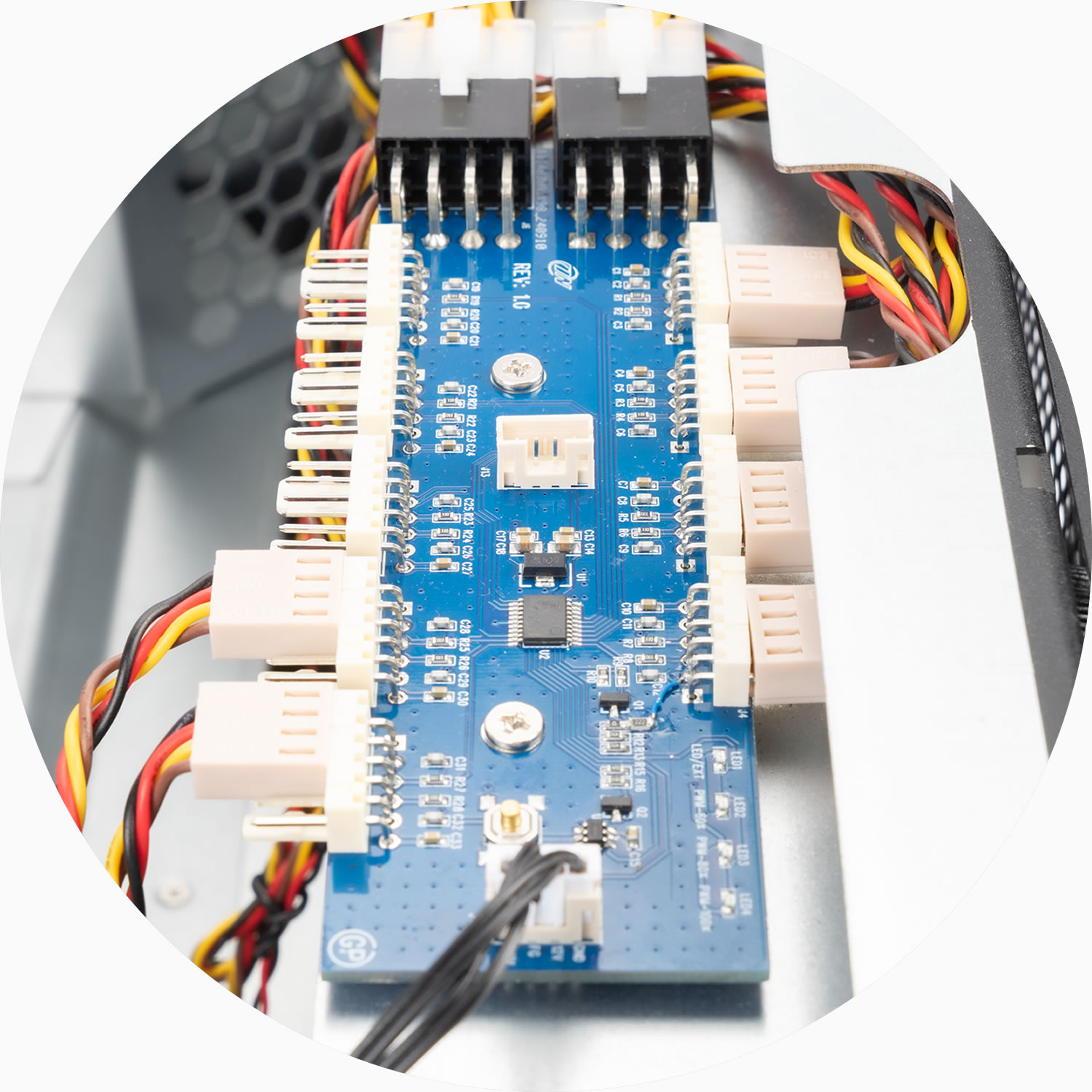

Fan hub

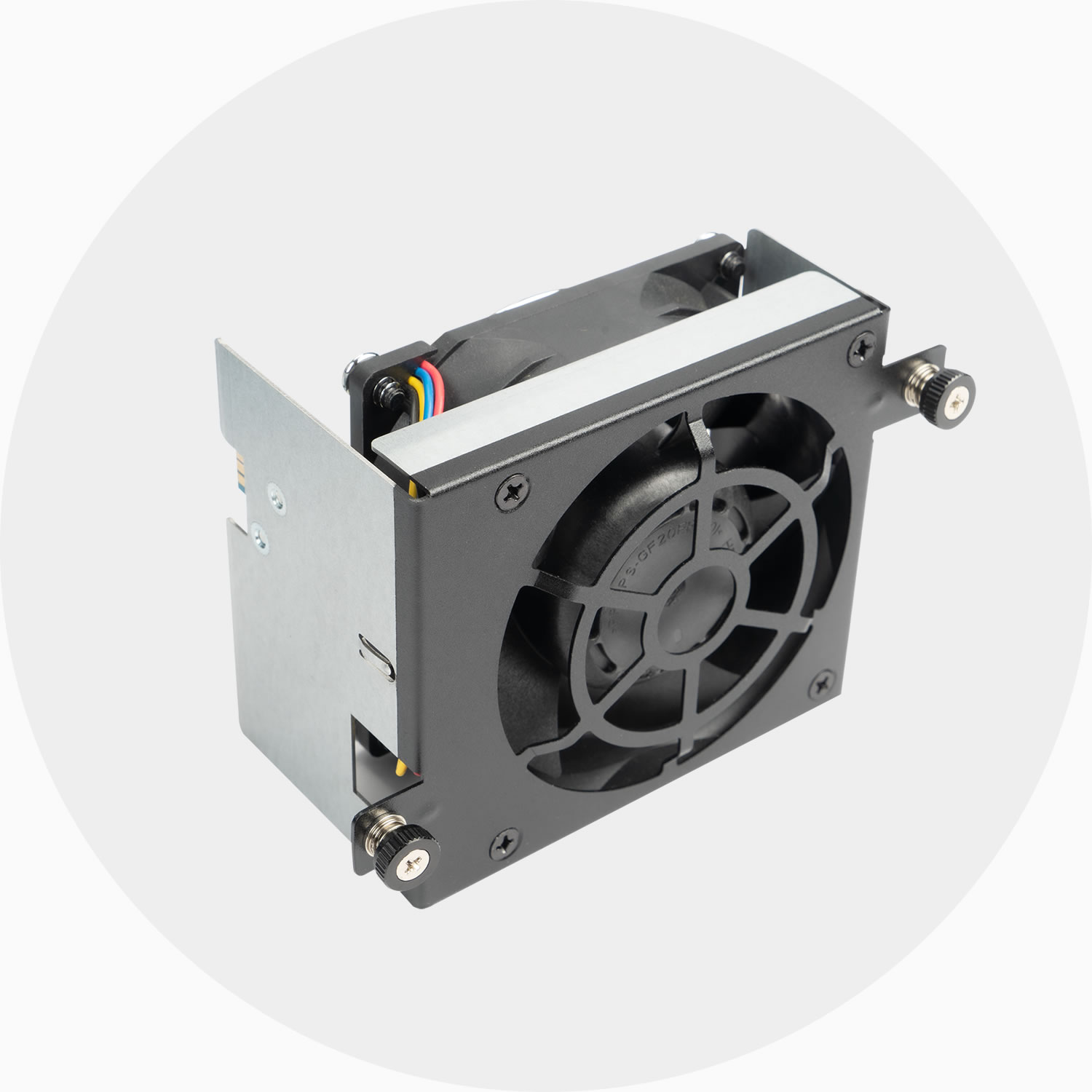

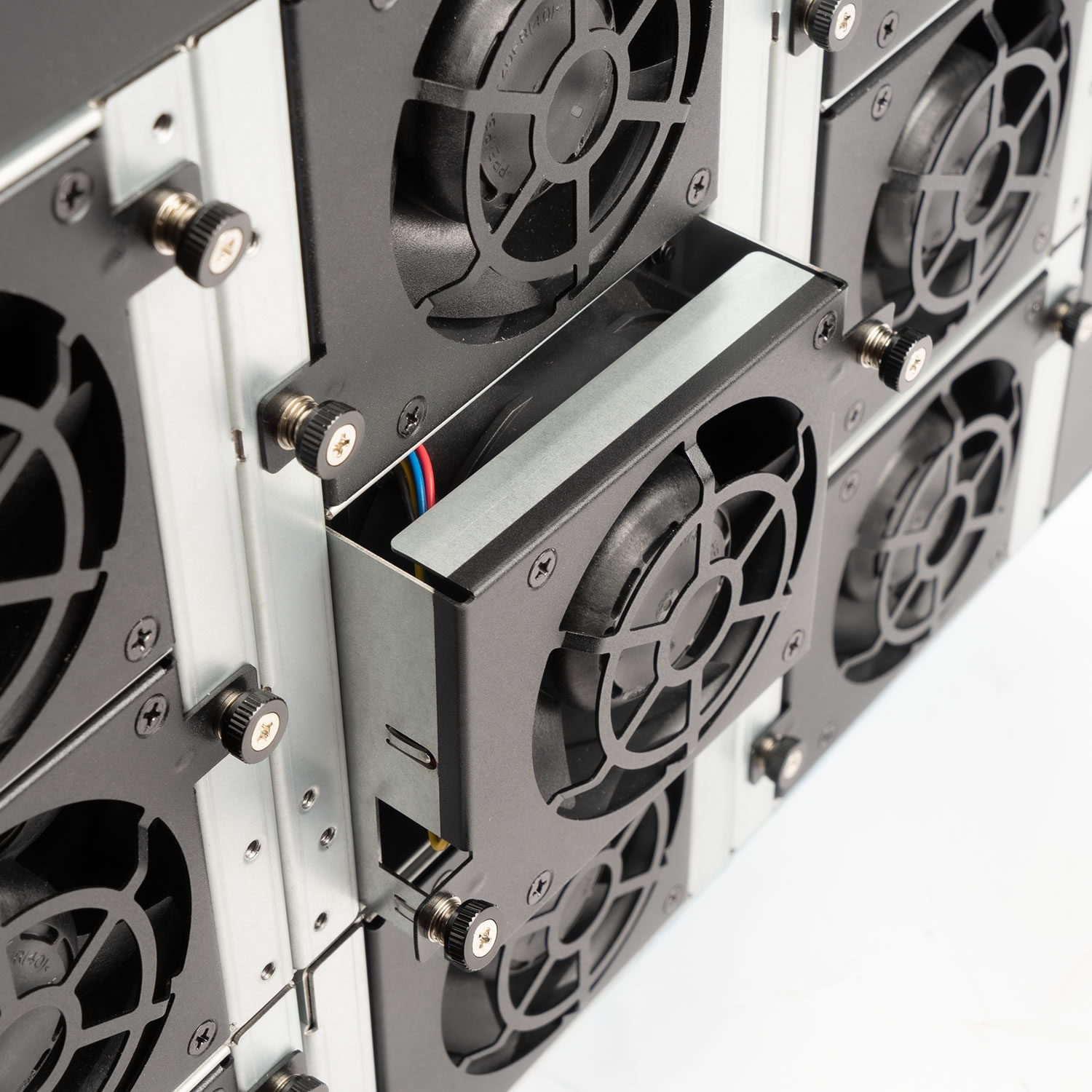

Hot-swap fan

Keep It Cool

A total of 9 hot-swappable 80x38mm 12,000 RPM PWM fans are pre-installed for exceptional cooling – 6 for the GPUs and 3 for the system components. An included fan hub enhances cable management and prevents cable clutter.

Storages Support

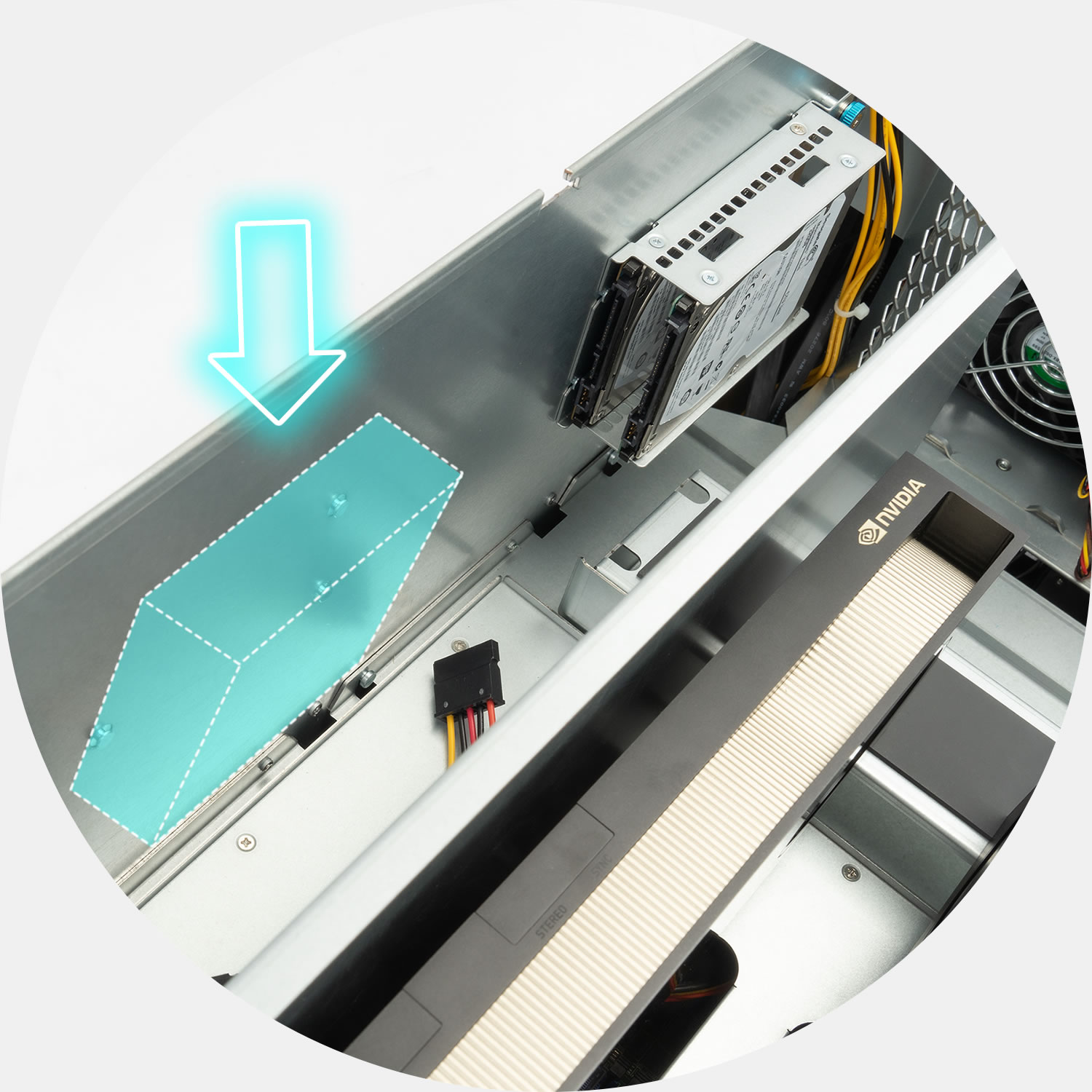

Total of 2 tool-less SSD brackets (1 included) can be installed for storage needs, each SSD tray can install up to 2 SSDs (one SATA cable is included; additional cables are available as optional accessories.).

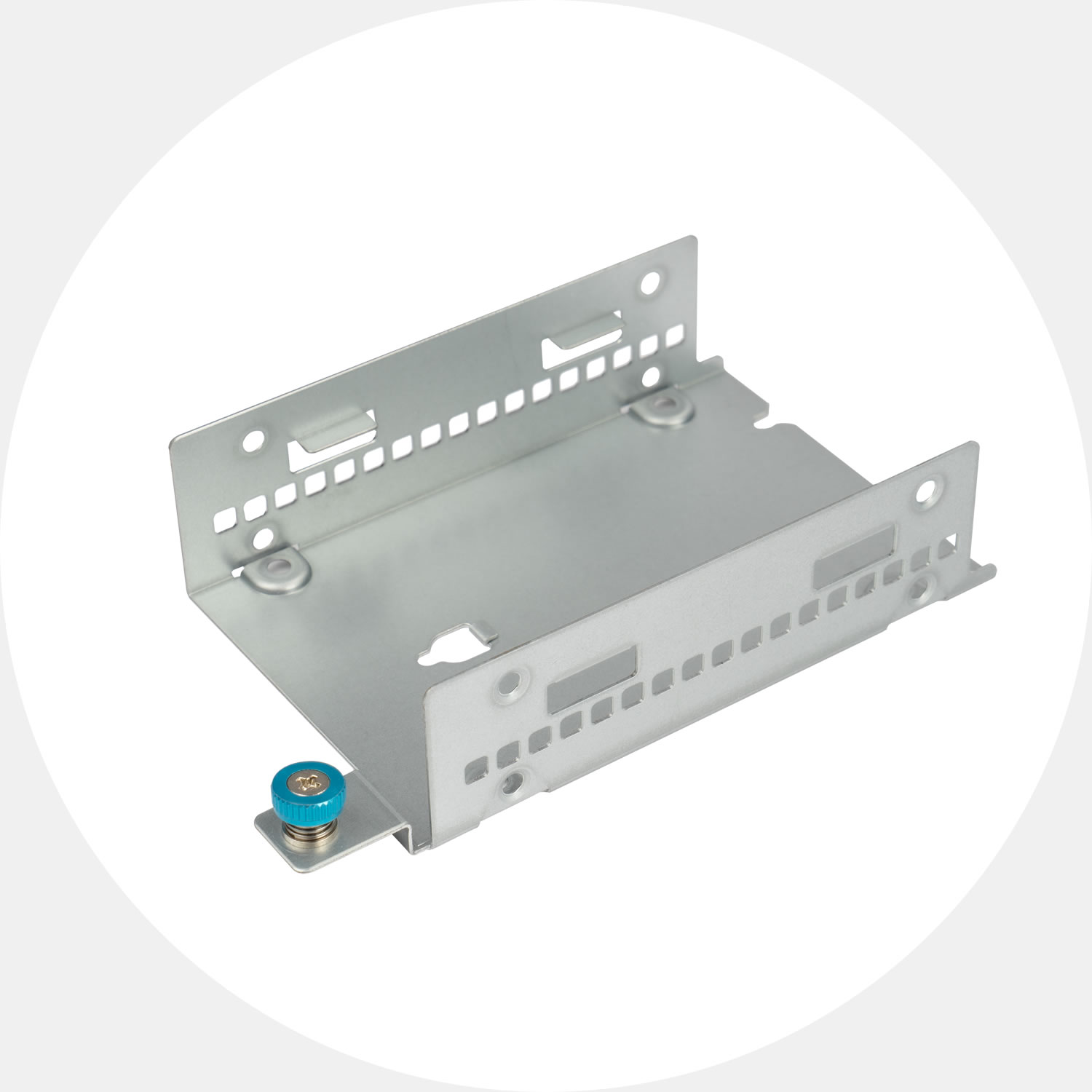

2.5" SSD bracket
(optional)

2.5" SSD bracket

Power for the AI

80 PLUS® Titanium CRPS 3200W PSU with 4 x 12V-2x6 pin connectors included to fulfill GPUs wattage needs and ensure efficient performance.
* InWin offers additional PSU connectors and PDB customization services for multi-GPU installations exceeding 4 GPUs.

Power Cable Information

Unit of Length: mm

24-Pin ATX main power

12V-2x6 PCIe x 4

1. 8-Pin CPU
2. 8-Pin for Fan Board

1. SATA
2. PMBus

6+2-Pin PCIe

Specification
Industry Standard	Compatible with EIA-RS310D standard 19" cabinets
Dual Chamber	• 4.5U upper chamber for GPU (maximum length up to 360mm) • 2U lower chamber for system components
M/B Form Factor	ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay	Internal: 2 x 2.5" 2 x 2.5" (optional)
Power Supply	Pre-installed: • Form factor: 80 Plus Titanium CRPS • Watt: 3200W
Indicators	Power LED, LAN 1/LAN 2, system LED, HDD LED
Front Control Panel	Power on/off, system reset, USB 3.0 x 2
Cooling Fans	80 x 38 mm PWM Front fans x 9, 12000 RPM (pre-installed)
Expansion Slot	Full-height PCIe slots x 18 (2 x Gen 4 PCIe riser cables 220 mm & 2 x Gen 4 PCIe riser cables 350 mm included) Low-profile PCIe slots x 7
Material	• Material: SGCC • Thickness: 1.2mm
Rail Kit	28" tool-less & ball-bearing slide rails included
Product Dimensions (DxWxH; Chassis Only)	516.2 x 432.4 x 288.9mm (20.32" x 17.02" x 11.37")
Package Dimensions (DxWxH)	840 x 610 x 439mm (33.07" x 24.02" x 17.28")
Weight (Chassis Only)	• Net weight: 22.55 kg • Gross weight: 26.16 kg
Cubic Feet	7.94
Container Information	Single packing with pallets: • 20’: 80pcs • 40’: 184pcs • 40'HQ: 230pcs

* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications
* The adjacent image is for reference only. All hardware components and optional parts are not included.

Item	Download	Preview
IW-RG650A eDM
IW-RG650A Gallery		-
IW-RG650A Compatibility List
IW-RG650A & IW-RG650B User Manual

Item	Part Number	Description	Support
Slide Rail	3RAMIS152700	28" tool-less & ball-bearing slide rails	1 set
Cable	3RAMPD047500	PCIe Gen4 x 16 lanes riser cable, 220mm	3
Cable	3RAMPD052800	PCIe Gen4 x 16 lanes riser cable, 350mm	3
Power Supply	3RAMAP048400	80 PLUS Titanium 3200W CRPS (AC Input 100-110V: 1340W Max. / 110-120V: 1500W Max. / 200-207V: 2900W Max. / 207-220V: 3000W Max. / 220-240V: 3200W Max.) / 1+1 CRPS PDB	1 set
Power Supply	3RAMW8014100	Power cord, American standard (IEC C19, 14 AWG, 1.83 m, 15A)	Max. 2
Power Supply	3RAMW8014500	Power cord, European standard (IEC C19, 3G 1.5 mm², L1830 mm, 16A)	Max. 2
Power Supply	3RAMW8017000	Power cord, British standard (IEC C19, 3G 1.5 mm², L1830 mm, 13A)	Max. 2
Power Supply	3RAMW7121700	Power cable 12V-2x6 pin GPU connectors (for installations exceeding 4 GPUs)	Max. 2
Power Supply		* InWin offers additional PSU connectors and PDB customization services for multi-GPU installations exceeding 4 GPUs.
SSD Tray	2RARID047501	2.5" SSD bracket	1
SSD Tray	3RAMW7121800	SATA and PMBus cable (bundled with the SSD bracket)	1
Fan	2RAKFB020100	80 x 38mm PWM fan ,12000 RPM, 4-pin	Max. 9

Product Video

InWin 6.5U GPU Server Chassis ｜IW-RG650 & IW-RG650B

Tutorials

InWin IW-RG650A & IW-RG650B M/B & GPU Installation

InWin IW-RG650A & IW-RG650B Power Supply Installation

InWin IW-RG650A & IW-RG650B SSDs Installation

InWin IW-RG650A & IW-RG650B Fan Installation
