IW-RL200
2U Liquid-Cooled Rackmount Chassis
- Liquid cooled 2U rackmount server
- Supports both liquid and air cooling, ensuring dual efficient heat dissipation
- apable of installing up to a 240 mm 2U height AIO liquid cooler
- AIO options are available with an Intel® LGA4710 bracket, or with LGA1851 and AMD AM5 mounting package
- Accommodates one full-height graphic card in 2U space
- Safety-certified CRPS 80 PLUS® Platinum power supply
- Short-depth edge servers ideal for limited environments
2U Rackmount Server
IW-RL200 with Pre-installed AIO Liquid Cooling
Introducing InWin’s IW-RL200 server, meticulously designed to accommodate a 240 mm AIO liquid CPU cooler within a 2U space. It supports both liquid cooling for the CPU and air cooling for the GPU, ensuring efficient dual heat dissipation for computing systems. This makes it ideal for edge computing applications such as smart factories, retail stores, and digital banking.
Edge computing
AIO liquid cooler (2U-height)
80 x 36 mm fans x3
CRPS
FHFL PCIe slots support
Internal drives
19" deep chassis
23" slide rails
Cool Does Matter

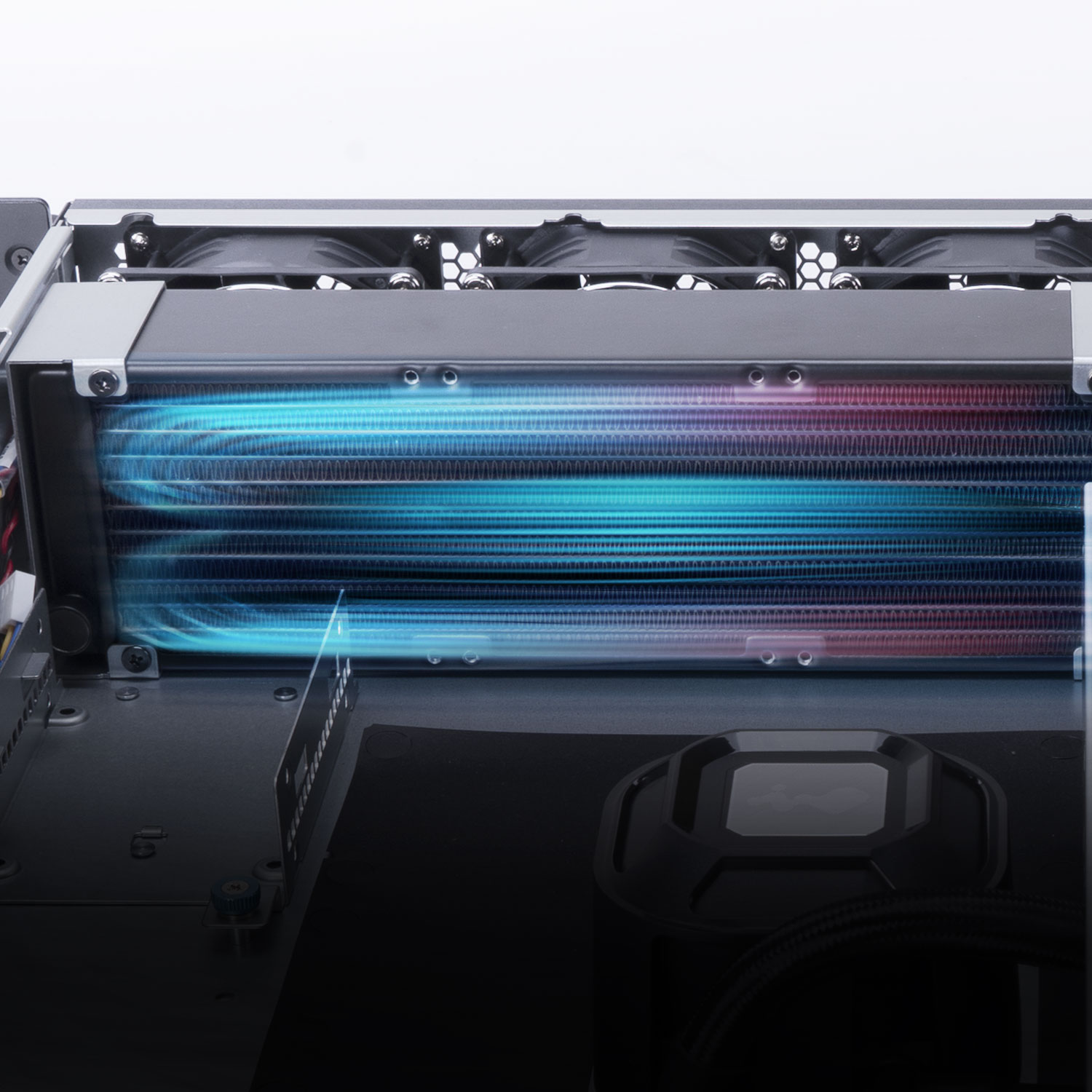

Designed to accommodate a 240 mm AIO liquid CPU cooler, ensuring efficient thermal management. Paired with three high-performance 80 x 38 mm PWM static pressure fans, it delivers exceptional cooling power for server CPU heat dissipation.
Enterprise Solutions

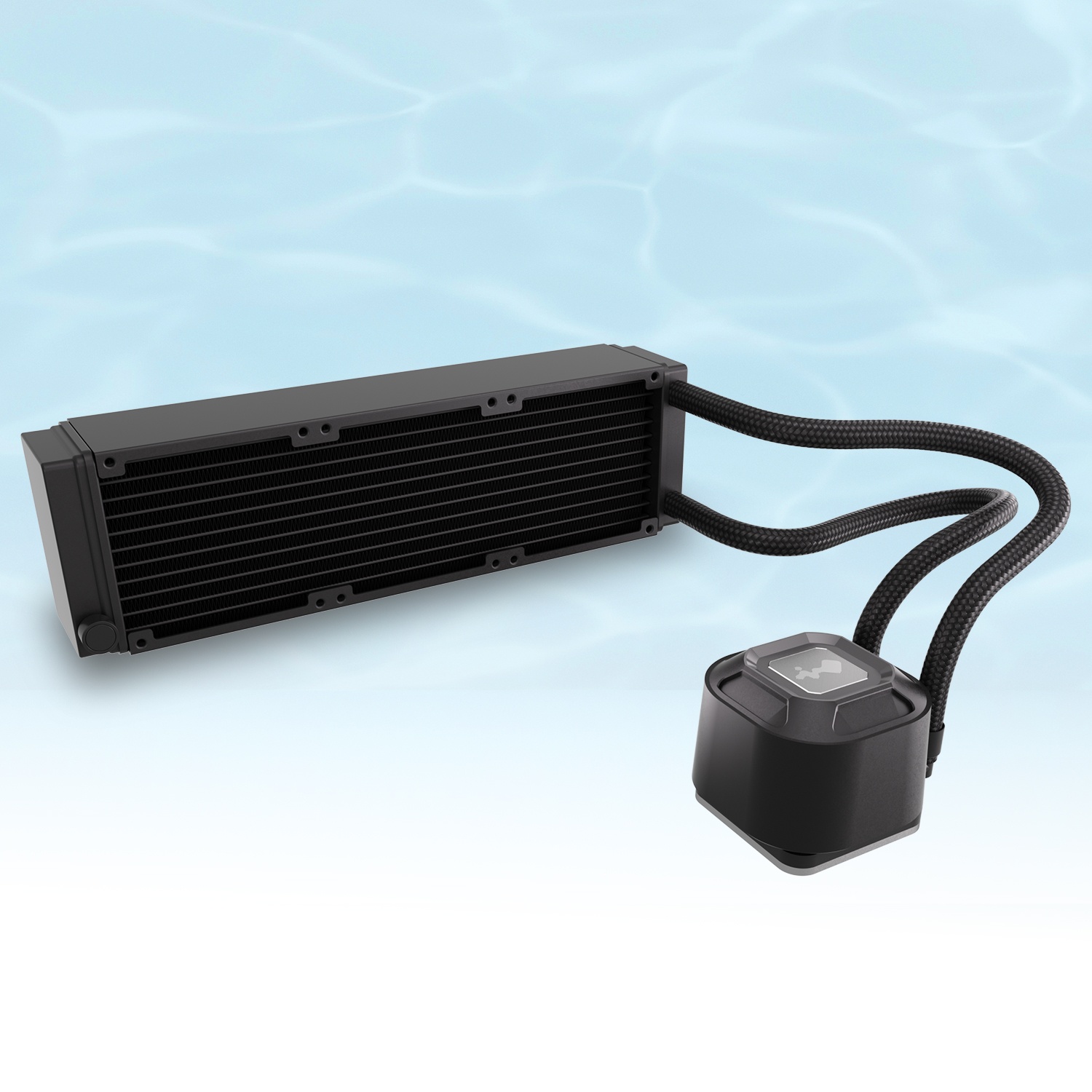

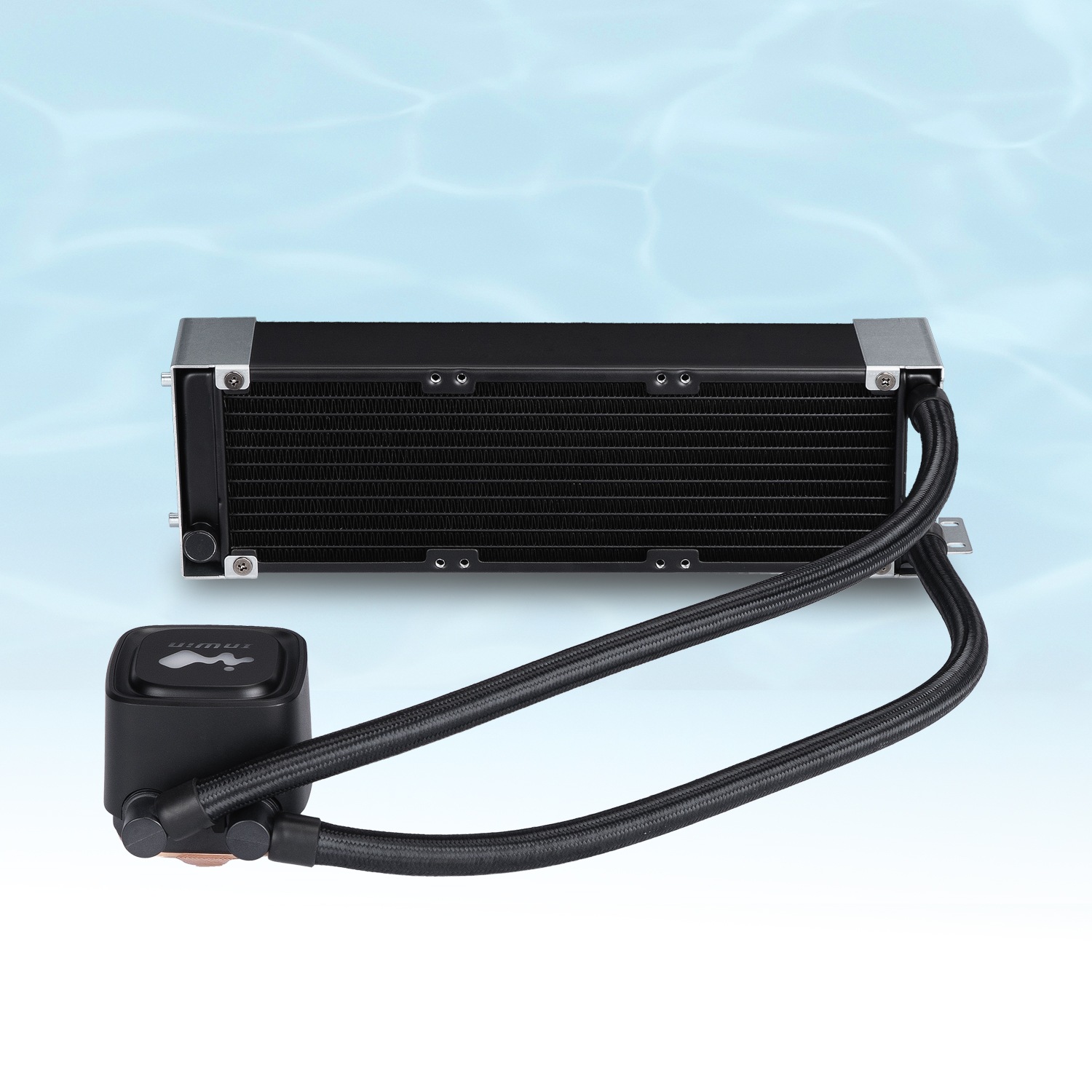

For edge computing, where high thermal demands are critical, the IW-RL200 is designed to compatible with Intel® LGA4710/1851 and AMD AM5 sockets. It covers all cores of the processor optimally and cooled with precision. The IW-RL200 delivers enhanced operational stability and performance for your computing systems.
| CPU Socket Support | Intel® LGA 4710/ 4677(bracket pre-installed) |
|---|---|
| CPU TDP | 350W |
| Radiator Dimensions (L x W x H) |
274.5 x 80 x 50 mm 10.8 x 3.1 x 2.0" |
| Tube Length | 400 mm |
| Pump Speed | 4500 RPM +/- 10% |
| Pump Power | 14.4W (15.5W MAX) |
| Fans | 80 x 38 mm fans x 3pcs, 10000 RPM, 6-Pin 12V connectors |
| Fan Airflow | 137.5 CFM |
| Fan Air Pressure | 52.5 mm / H2O |
| CPU Socket Support | Intel® LGA 1851/ 1700/ 1200/ 20xx/ 1151/ 115x AMD AM5/ AM4/ AMx/ FMx |
|---|---|
| Radiator Dimensions (L x W x H) |
276.4 x 80 x 50 mm 10.9 x 3.1 x 2.0" |
| Tube Length | 400 mm |
| Pump Speed | 3100 RPM +/- 10% |
| Pump Power | 3.6W (6.0W MAX) |
| Fans | 80 x 38 mm fans x 3pcs, 10000 RPM, 6-Pin 12V connectors |
| Fan Airflow | 137.5 CFM |
| Fan Air Pressure | 52.5 mm / H2O |
Water Cooling is a Key

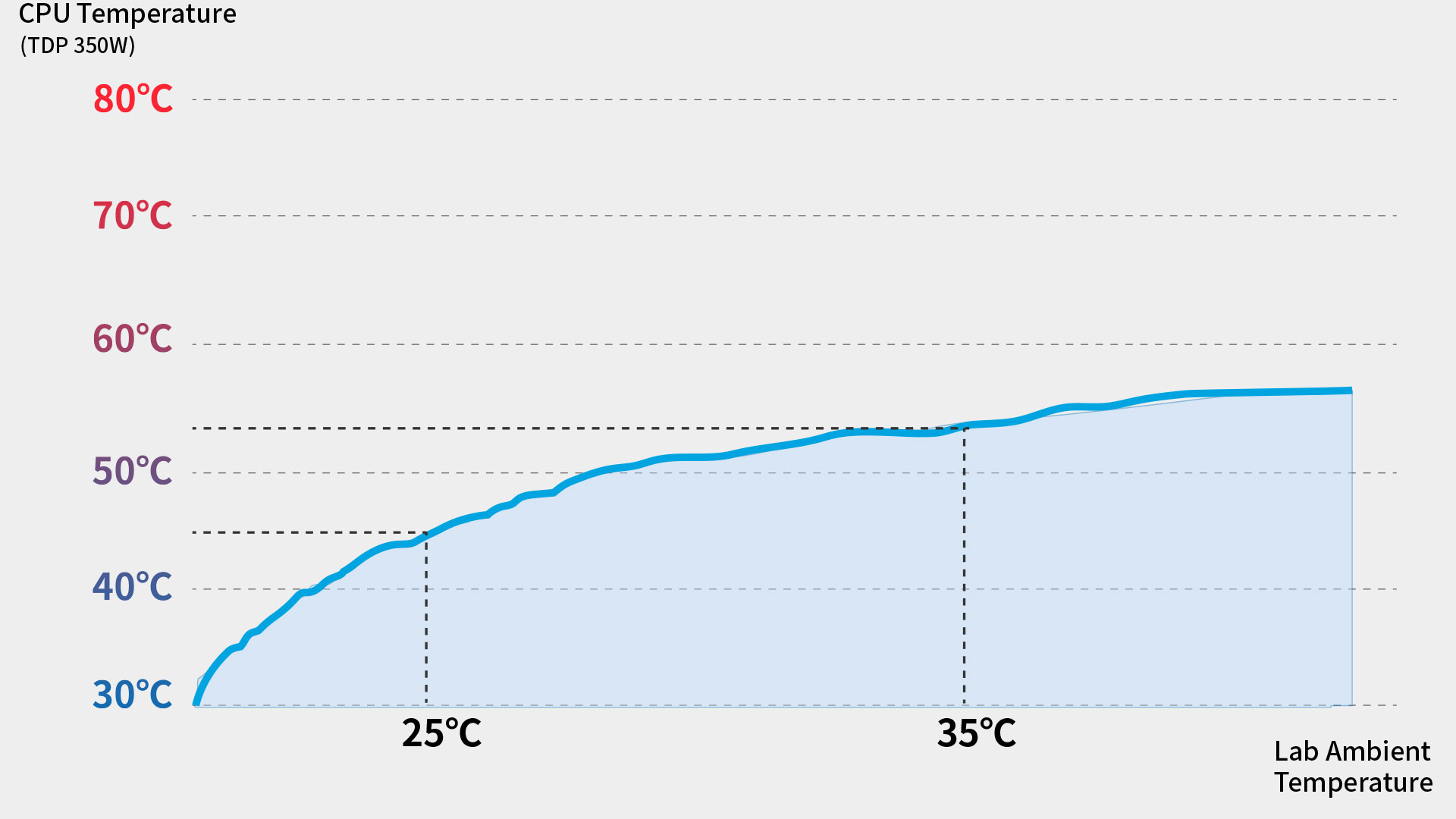

As new AI generation servers provide powerful processing capabilities, CPU configurations face thermal dissipation challenges. InWin RL series liquid-cooled servers significantly reduce energy consumption, ensuring lower CPU chip temperatures. The IW-RL200 water cooking kit offers a TDP of up to 350W (Intel® LGA 4710), enhancing system stability and enabling the handling of the most demanding workloads in edge computing.
FHFL GPUs in 2U

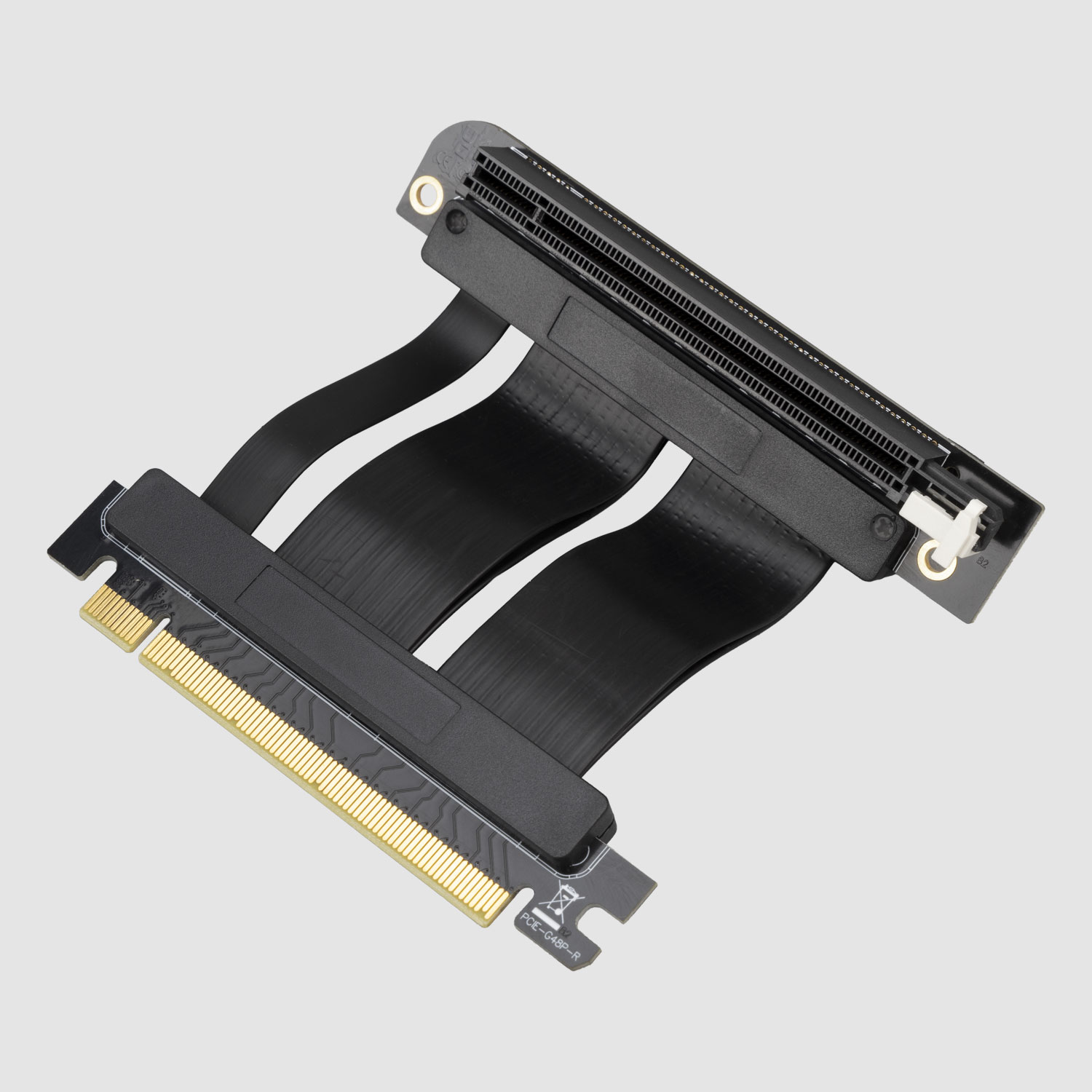

The chassis structure has been optimized to accommodate an FHFL (full-height, full-length) graphics card within a compact 2U enclosure. The IW-RL200 further demonstrates its high compatibility by supporting three full-height PCIe expansion slots, with optional PCIe Gen5/Gen4 x16 riser cables.
Go with Airflow
Featuring a meticulously designed server layout, engineered specifically to optimize airflow for your graphics card and ensure superior cooling performance.
Highly Expandable

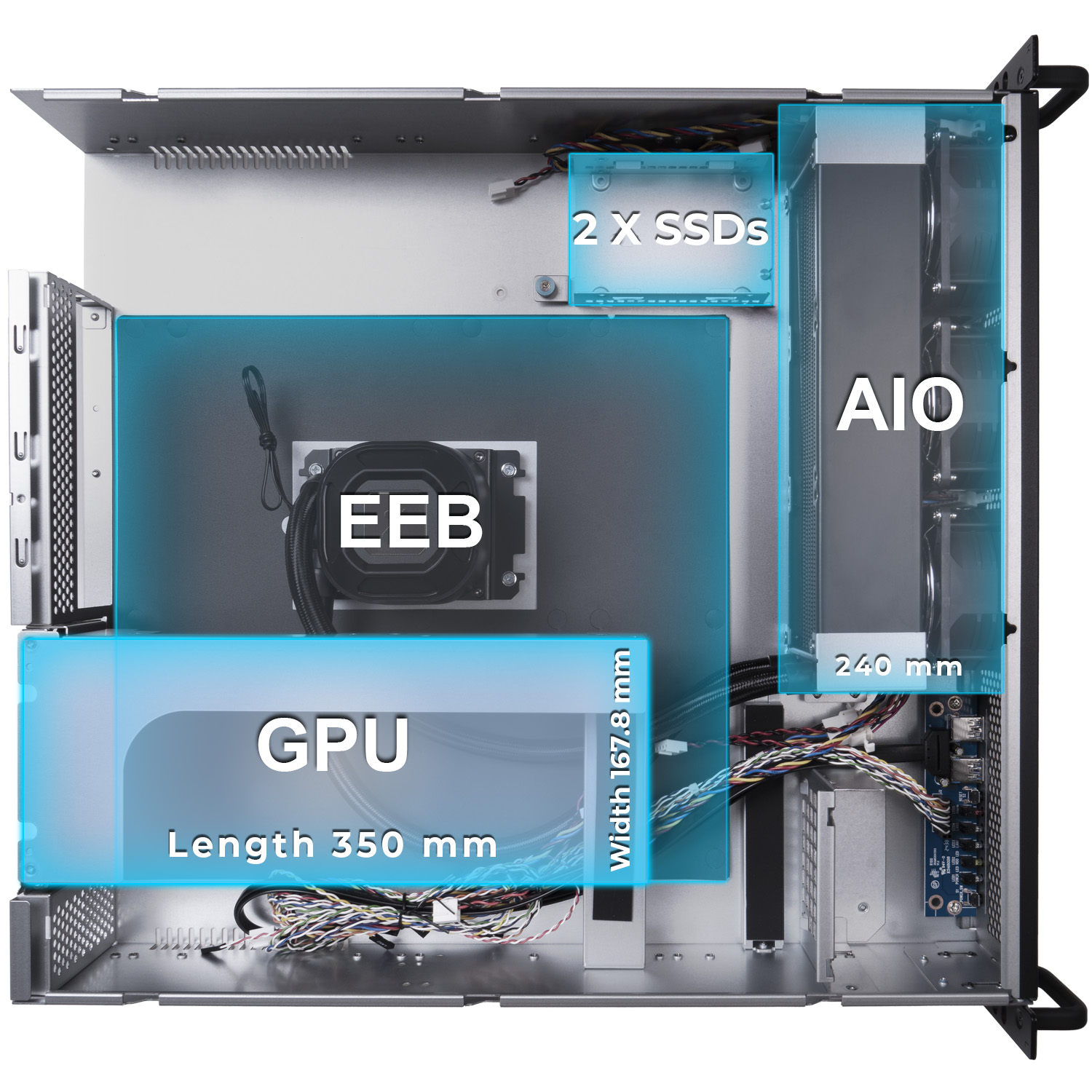

IW-RL200's 2U short-depth edge server chassis redefines space-saving solutions without sacrificing functionality. With supports a 240 mm liquid cooler, and one full-height graphics card it optimizes rack space while accommodating a EEB motherboard and a two internal SSDs. It perfectly suited for limit environments.
Reliability
With high-end graphics cards becoming more demanding, high-wattage power supplies are needed. The 1+1 CRPS is 80 PLUS® Platinum, delivering up to 92% conversion efficiency, less energy wasted.
Power Cable Information
Unit of Length: mm

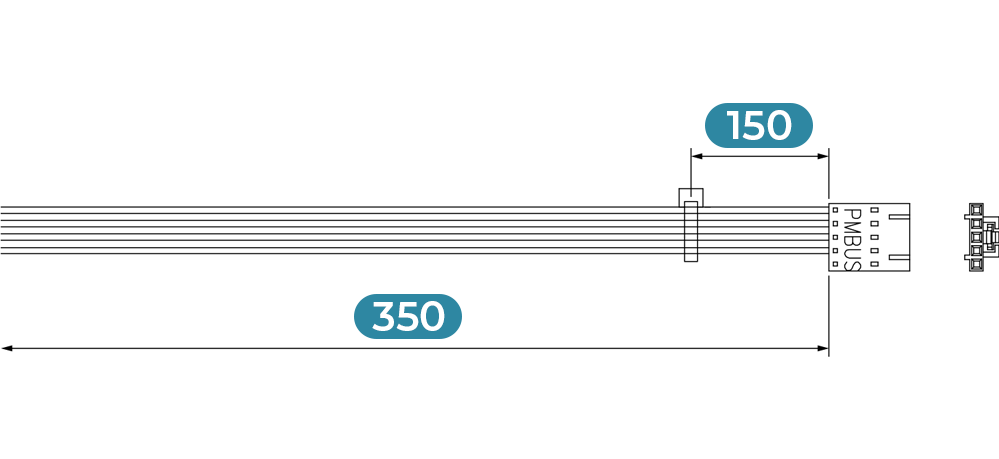

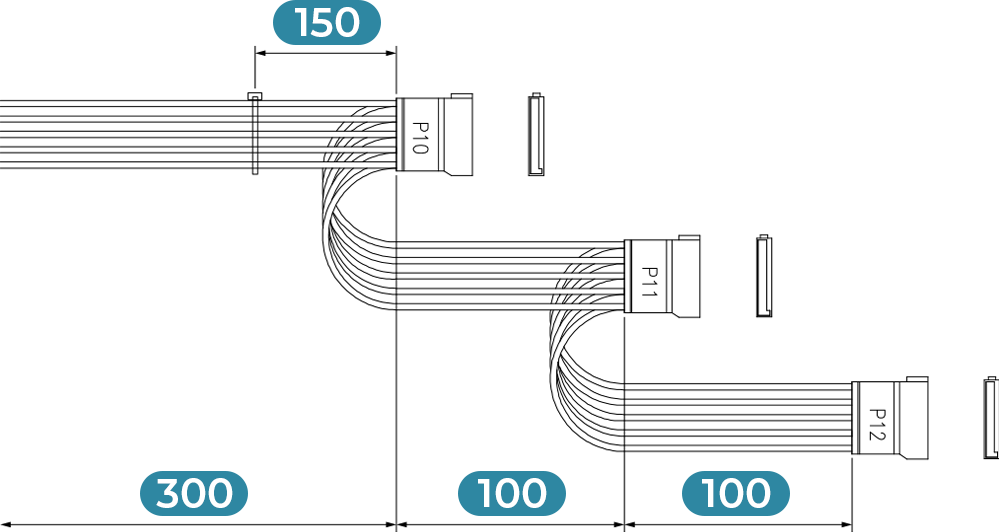

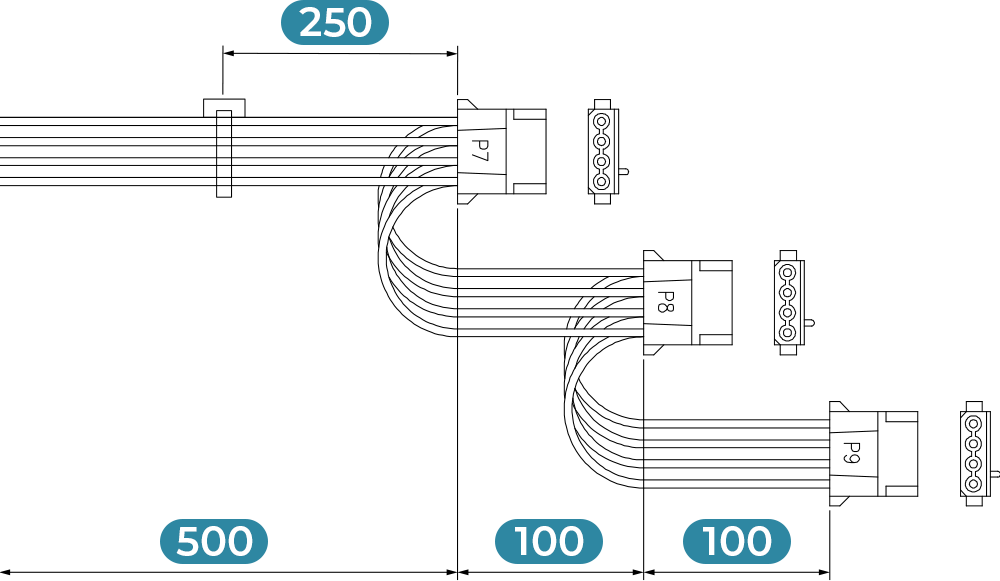

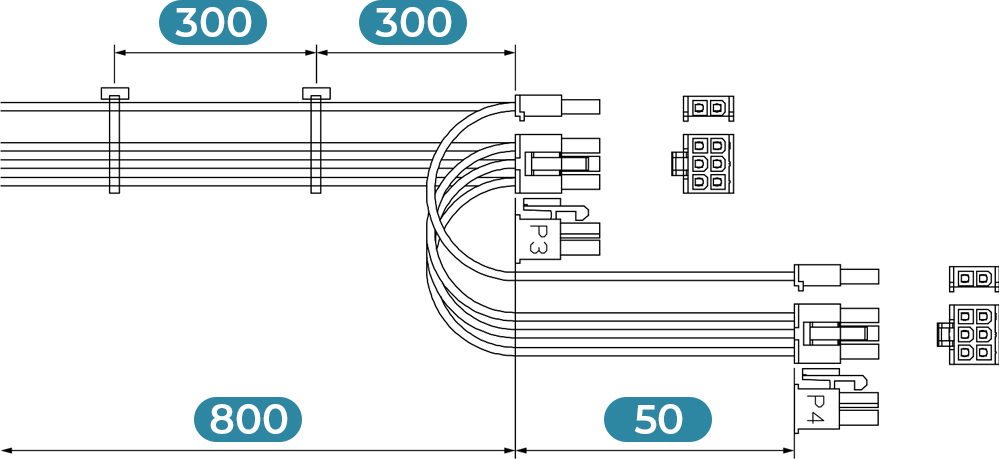

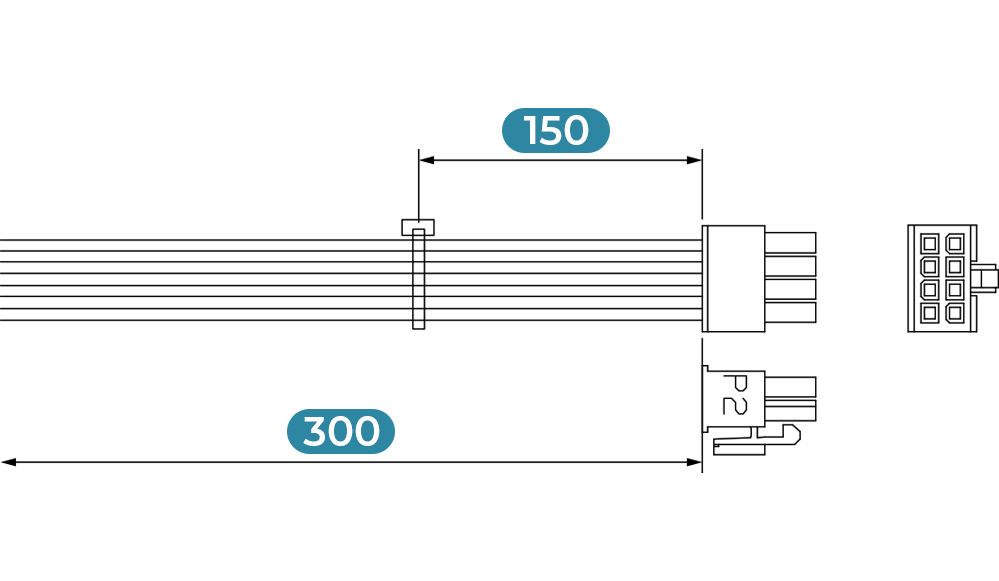

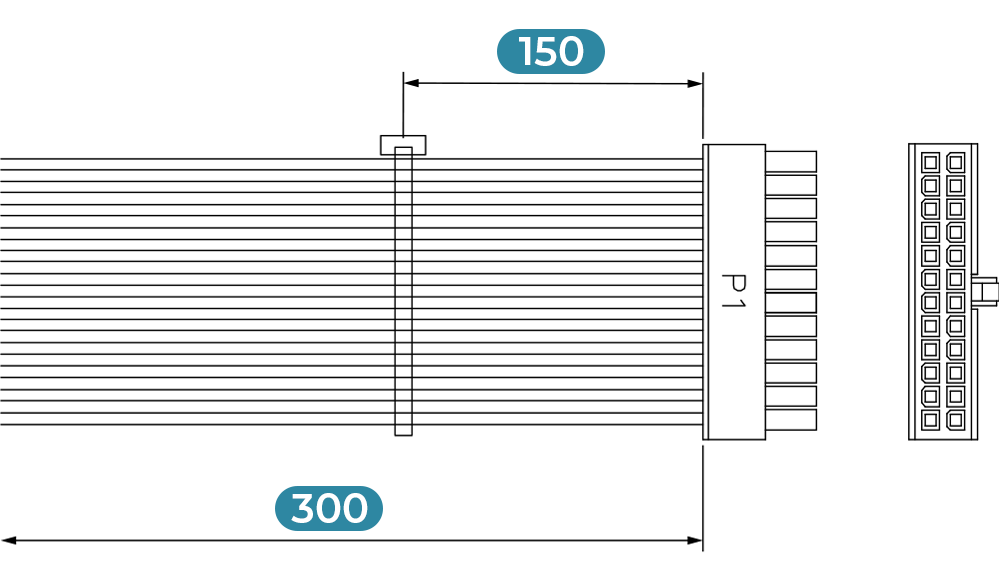

1200W CRPS Cable Information
24-Pin Main Power
Peripheral
8-Pin CPU
SATA
PCIe 6+2-Pin x 2 for GPU
PMBus
PCIe 6-+2-Pin x2 for GPU
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), ATX (12" x10"), CEB (12" x 10.5"), EEB(12" x 13") |
| Drive Bay | • Internal: 2.5" x 2 |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 1200W |
| Indicators | Power LED, LAN1/LAN2 LED, system LED, HDD LED |
| Front Control Panel | Power on/off, system reset, USB 3.0 x 2 |
| Cooling Fans | 80 x 38 mm PWM front fan x 1 (optional), 10000 RPM, 6pin |
| Water Cooling Radiator | Package 1: • 80 x 38 mm PWM fans x 3, 10000 RPM, 6pin • Front IW-LSA2U24 2U height 240 mm AIO liquid cooler x 1 (Intel® LGA4710/4677) Package 2: • 80 x 38 mm PWM fans x 3, 10000 RPM, 6pin • Front IW-LSC2U24 2U height 240 mm AIO liquid cooler x 1 (• Intel® LGA 1851/1700 •AMD AM5) |
| Expansion Slot | Full height PCI slots x 3 |
| Material | • Material: SGCC • Thickness: 1.0 mm |
| Rail Kit | Supports 23" ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 484 x 432.4 x 88 mm (19 x 17 x 3.46") |
| Package Dimensions (DxWxH) | 690 x 610 x 218 mm (27.1 x 24 x 8.5") |
| Weight | • Net weight: 7.81 kg • Gross weight: 10.29 kg |
| Cubic Feet | 3.24 |
| Container Information | Single packing with pallets: • 20': 192 pcs • 40': 400 pcs • 40'HQ: 500 pcs |
Water Cooling Kit - Package 1
| CPU Socket Support | Intel® LGA 4710/ 4677(bracket pre-installed) |
| CPU TDP | 350W |
| Radiator Dimensions (L x W x H) | 274.5 x 80 x 50 mm 10.8 x 3.1 x 2.0" |
| Tube Length | 450 mm |
| Pump Speed | 4500 RPM +/- 10% |
| Pump Power | 14.4W (15.5W MAX) |
| Fans | 80 x 38 mm fans x 3pcs, 10000 RPM, 6-Pin 12V connectors |
| Fan Airflow | 137.5 CFM |
| Fan Air Pressure | 52.5 mm / H2O |
Water Cooling Kit - Package 2
| CPU Socket Support | • Intel® LGA 1851/ 1700/ 1200/ 20xx/ 1151/ 115x • AMD AM5/ AM4/ AMx/ FMx |
| Radiator Dimensions (L x W x H) | 276.4 x 80 x 50 mm 10.9 x 3.1 x 2.0" |
| Tube Length | 400 mm |
| Pump Speed | 3100 RPM +/- 10% |
| Fans | 80 x 38 mm fans x 3pcs, 10000 RPM, 6-Pin 12V connectors |
| Fan Airflow | 137.5 CFM |
| Fan Air Pressure | 52.5 mm / H2O |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Download | Preview |
|---|---|---|
| IW-RL200 eDM | ||
| IW-RL200 Gallery | - | |
| IW-RL200 Compatibility List | ||
| IW-RL200 User Manual |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS144400 | 23" ball-bearing slide rail (weight capacity 45kg) | 1 |
|
| Power Supply | 3RAMAP026501 / 3RAMAP042300 | 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB | 2 |
|
| Fan | 2RAKFB019601 | 80 x 38mm PWM hot-swap fan, 10000RPM, 6pin | 1 |
|
| Water Cooling Radiator | 2RAKBA007500/ 2RAKFB019601 | IW-LSA2U24, 240 mm AIO liquid cooler(Intel® LGA 4710/ 4677) / 80 x 38mm PWM fan | 1 |
|
| Water Cooling Radiator | 2RAKBA010400 | IW-LSC2U24, 240mm AIO liquid cooler (• Intel® LGA 1851/ 1700/ 1200/ 20xx/ 1151/ 115x • AMD AM5/ AM4/ AMx/ FMx) | 1 |
|
| Riser Cable | 3RAMPD058100 | PCIe Gen5 x16 riser cable, 90-degree design, 60 mm length | 1 |
|
| Riser Cable | 3RAMPD047300 | PCIe Gen4 x16 riser cable, 90-degree design, 60 mm length | 1 |
|
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 |
|
Product Video
InWin RL Series | Liquid-Cooled Server Chassis
InWin RL Series Product Application
Tutorials

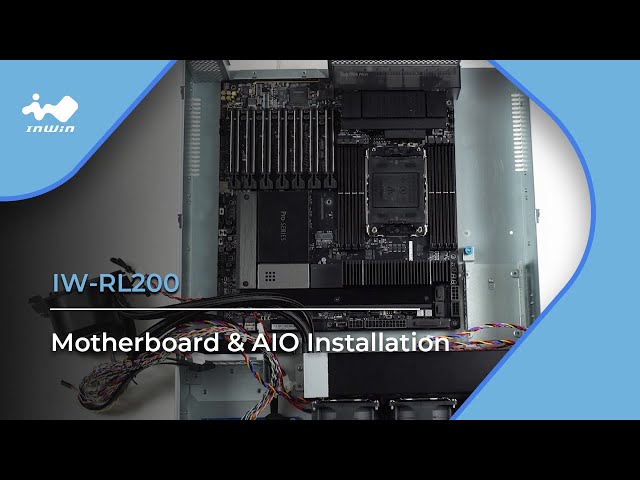

InWin IW-RL200 MB & LGA4710 AIO Installation
InWin IW-RL200 LGA1851 / AM5 AIO Installation

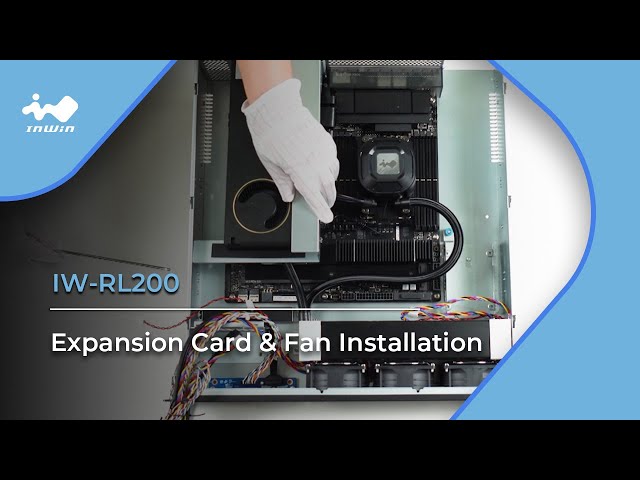

InWin IW-RL200 Expansion Card & Fan Installation
