IW-RL400
4U Liquid-Cooled Rackmount Chassis
- Liquid-cooled 4U rackmount server
- Pre-installed 360 mm AIO liquid cooler with three 120 mm fans
- AIO options are available with an Intel® LGA4710 bracket, or with LGA1851 and AMD AM5 mounting package
- Supports up to five 3.5" or four 2.5" scalable storage drives
- Optional rear fans: Two 80 x 25 mm and one additional 80 x 38 mm fan kit for enhanced GPU cooling
- Supports up to 8 FHFL PCIe slots for multi-task AI machine training
- Compatible with ATX up to 2500W and CRPS 80 PLUS® Platinum power supplies

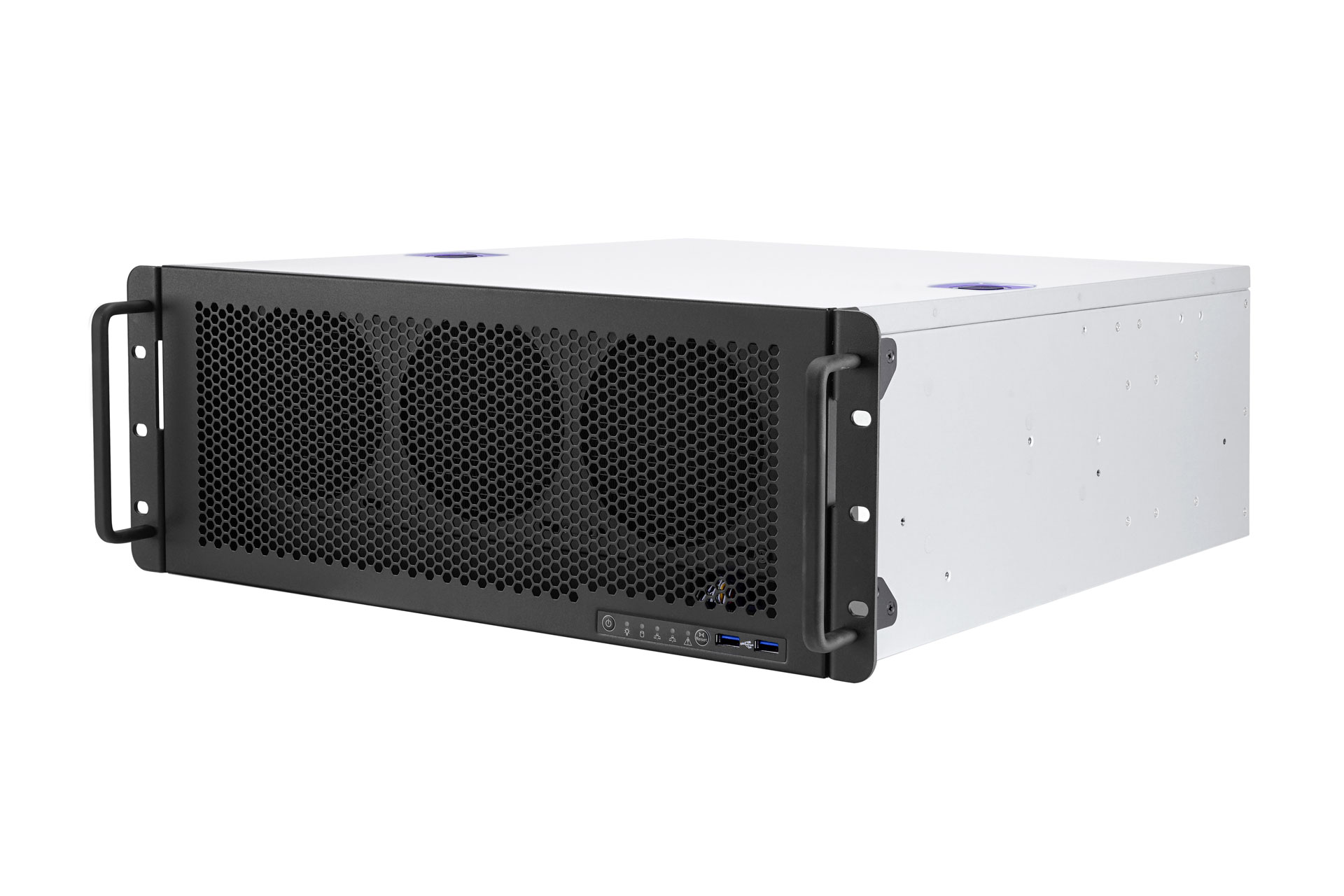

4U Rackmount Server
IW-RL400 with Pre-installed AIO Liquid Cooling
The IW-RL400 is a 4U rackmount chassis designed for AI applications, including LLM and generative AI workloads. Pre-installed with an industrial-grade 360 mm AIO liquid cooler, it ensures optimal cooling for high system loads, delivering smooth performance. With support for eight full-height, full-length PCIe slots and flexible configuration options, it is ideal for AI GPU edge servers.
AI/Edge computing
AIO liquid cooler
80x25mm fans x2
80x38mm fans x2
Internal drives
Internal drives
FHFL PCIe slots support
CRPS & ATX PSU
20" deep chassis
Elite Cooling
The IW-RL400 is equipped with a 360 mm AIO liquid cooler, engineered to support Intel® LGA4710/1851 and AMD AM5 sockets and meet the demands of enterprise cooling. Paired with three industrial-grade, double ball bearing fans capable of reaching up to 2700 RPM and delivering an impressive airflow of 93.99 CFM, it ensures superior cooling for server CPUs and delivers reliable performance in enterprise environments.
Enterprise Solutions
Edge computing thermal demands are critical! The IW-RL400 supports LGA4710/1851 and AMD AM5 processors, covering all cores optimally and cooling them with precision. The IW-RL400 delivers enhanced operational stability and performance for your computing systems.
| CPU Socket Support | Intel® LGA 4710/ 4677 (bracket pre-installed) |
|---|---|
| CPU TDP | 350W |
| Radiator Dimensions (L x W x H) |
396 x 120 x 27 mm |
| Tube Length | 450 mm |
| Pump Speed | 4500 RPM +/- 10% |
| Pump Power | 21.6W (24W MAX) |
| Fans | 120 x 25 mm fans x 3pcs, 2700 RPM, 4-Pin 12V connectors |
| Fan Airflow | 93.99 CFM |
| Fan Air Pressure | 6.32 mm / H2O |
| CPU Socket Support | Intel® LGA 1851/ 1700/ 1200/ 20xx/ 1151/ 115x AMD AM5/ AM4/ AMx/ FMx |
|---|---|
| Radiator Dimensions (L x W x H) |
397 x 120 x 27 mm 15.6 x 4.7 x 1.06" |
| Tube Length | 450 mm |
| Pump Speed | 3100 RPM +/- 10% |
| Pump Power | 3.0W (3.3W MAX) |
| Fans | 120 x 25 mm fans x 3pcs, 2700 RPM, 4-Pin 12V connectors |
| Fan Airflow | 93.99 CFM |
| Fan Air Pressure | 6.32 mm / H2O |
Water Cooling is a Key
As new AI generation servers provide powerful processing capabilities, CPU configurations face thermal dissipation challenges. InWin’s RL series liquid-cooled servers significantly reduce energy consumption, ensuring lower CPU chip temperatures.

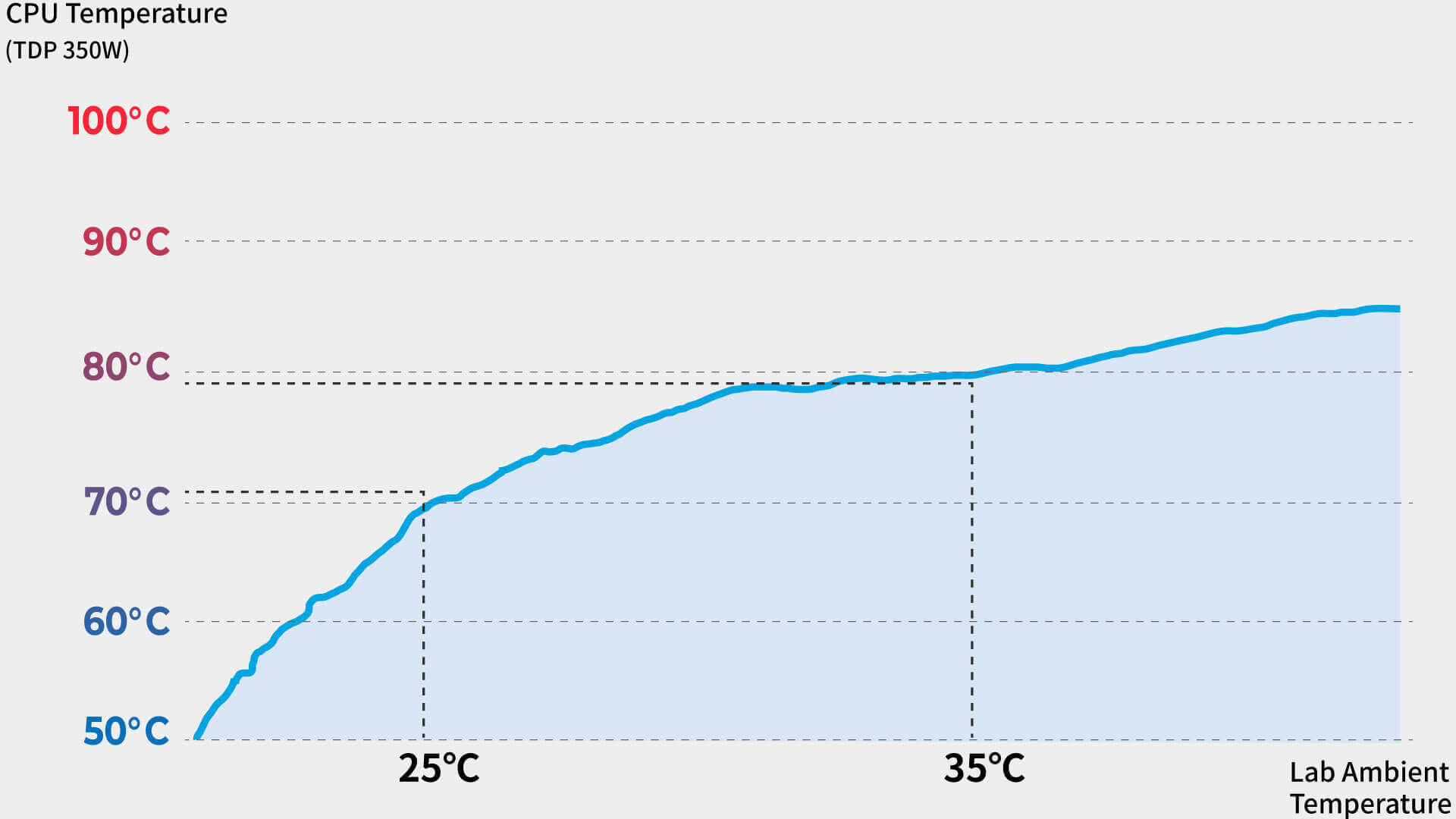

The IW-RL400 water cooling kit offers a TDP of up to 350W (Intel® LGA 4710), enhancing system stability and enabling the handling of the most demanding workloads in edge computing.
The IW-RL400 water cooling kit offers a TDP of up to 350W (Intel® LGA 4710), enhancing system stability and enabling the handling of the most demanding workloads in edge computing.

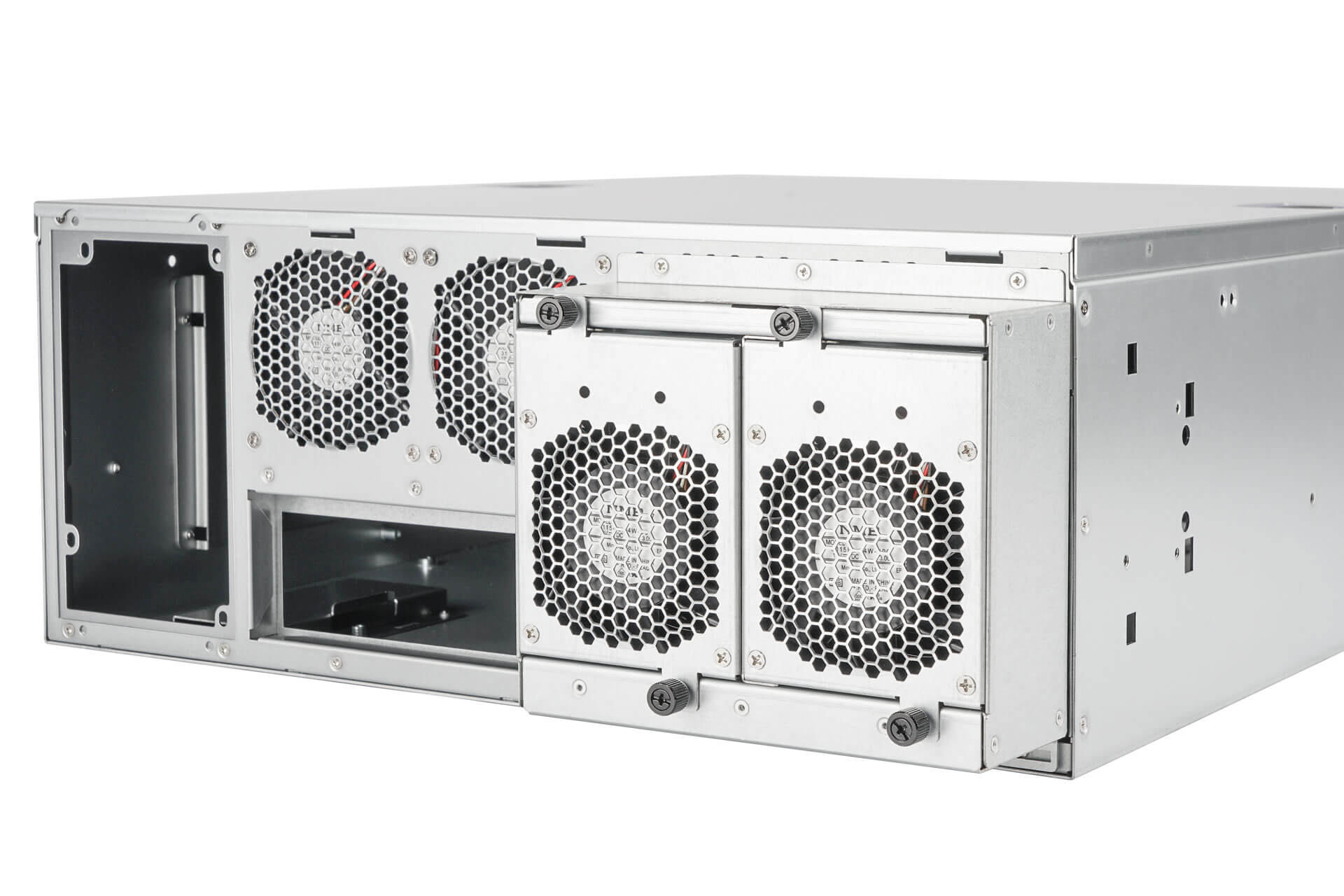

Airflow & Expansion
Besides the 360 mm AIO set, the IW-RL400 can accommodate up to 4 additional rear fans, effectively channeling heat away from the graphics card to ensure optimal cooling performance, even under the full workload of machine learning applications. Additionally, the IW-RL400 supports 8 full-height, full-length PCIe slots, allowing for a wide range of AI system configurations.
Storage Management
The IW-RL400 offers flexible storage options. Users can configure a combination of a two-layer 2.5" SSD bracket and a five-layer 3.5" HDD tray, with the option to swap the first layer for a 2.5" SSD. Alternatively, it can focus entirely on SSD options by using two 2-layer brackets, supporting up to four 2.5" SSDs.
Power Flex
The IW-RL400 offers flexible compatibility with both CRPS and standard ATX PSUs, supporting safety-certified 80 PLUS® Platinum power supplies to provide versatile power solutions for multiple GPU configurations.

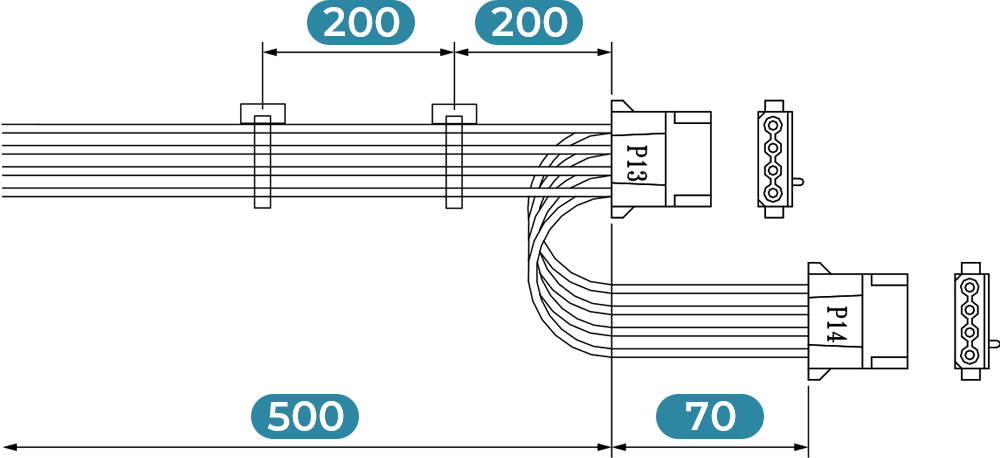

Power Cable Information
Unit of Length: mm
Single PSU Cable Information
24-Pin Main Power Connector
8 (6+2) Pin PCIE
4+4-Pin CPU
Peripheral Power Connector
PCI-E 12V-2X6
SATA

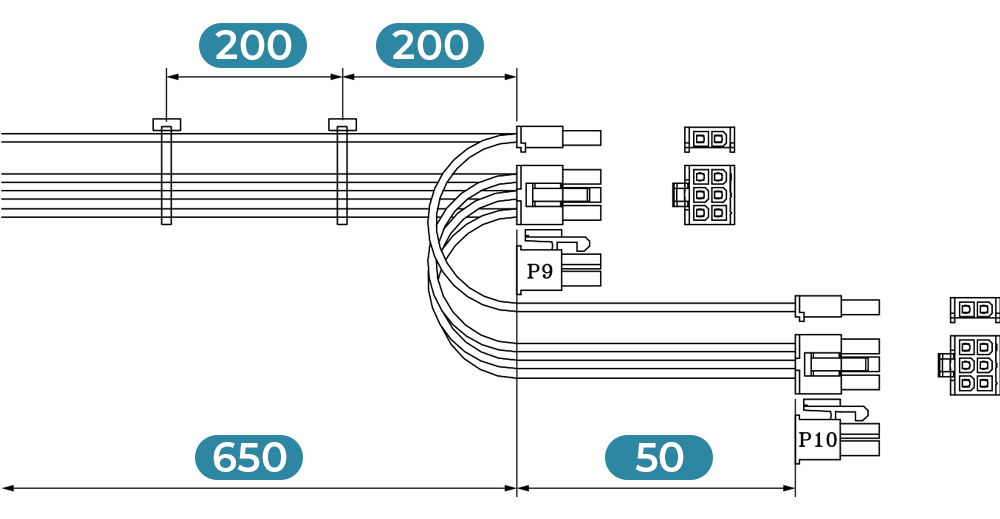

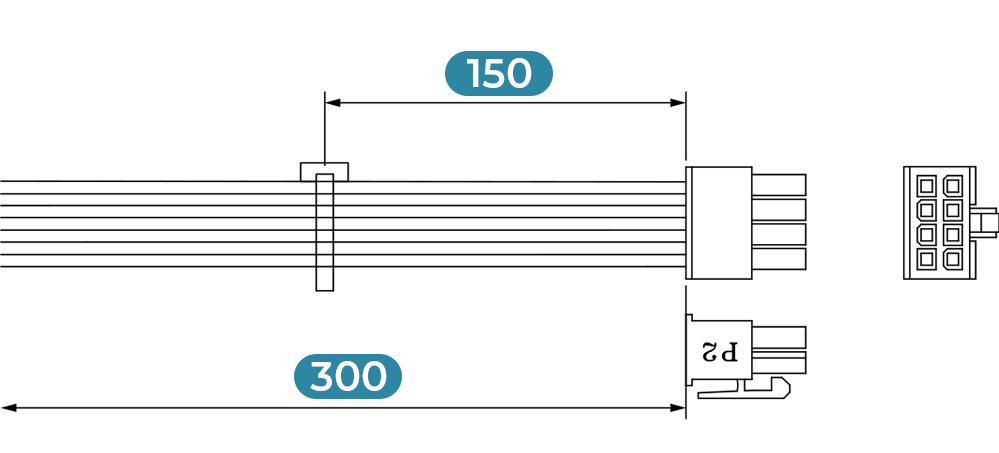

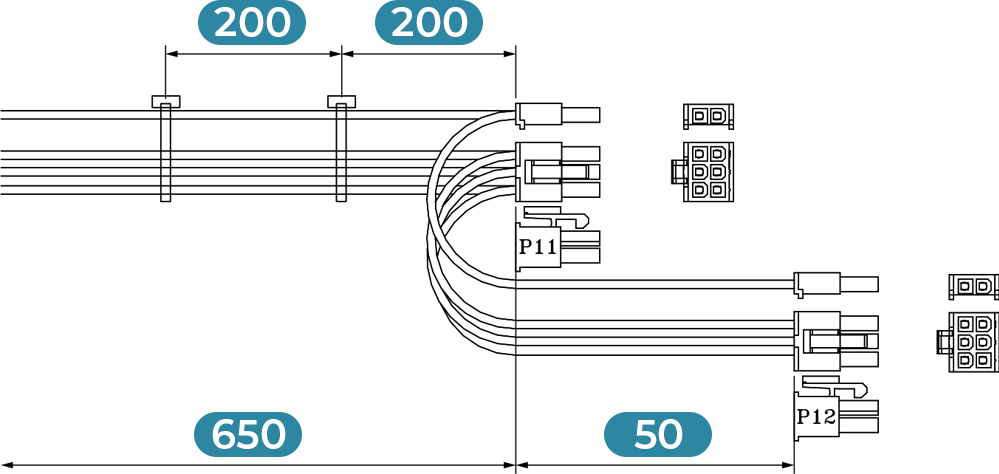

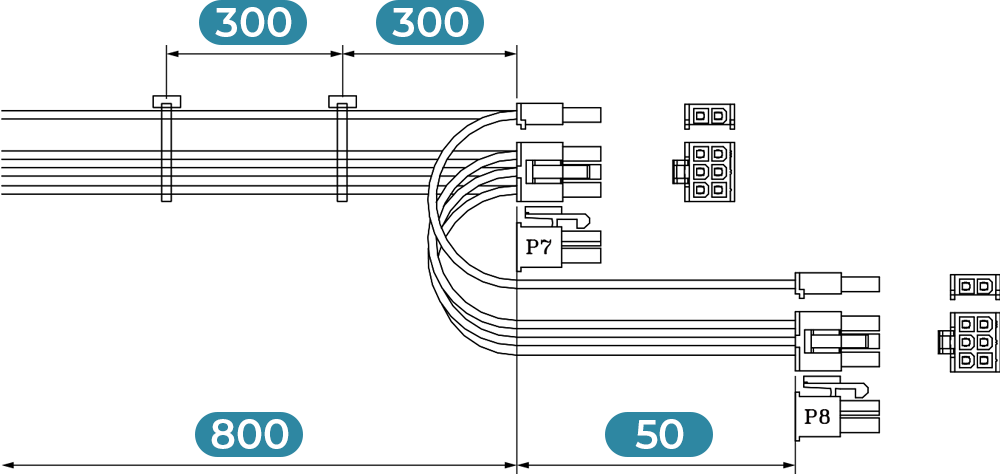

2000W CRPS Cable Information
24-Pin Main motherboard
PCIe 6+2 pin X2 GPU
8-Pin CPU
PCIe 6+2 pin X2 GPU
8-Pin CPU
molex 4pin X2 expansion
4+4-Pin CPU
molex 4pin X2 expansion
PCIe 6+2 pin X2 GPU
SATA 15pin X3 internal HDD
PCIe 6+2 pin X2 GPU
PMBus
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | Max supports: • 5 x 3.5" / 4 x 3.5" + 1 x 2.5" • 4 x 2.5" (optional) |
| Power Supply | Supports: • 2000W 1+1 CRPS, 80 Plus Platinum • 2500W Standard ATX PSU |
| Indicators | Power LED, LAN1/LAN2 LED, system LED, HDD LED |
| Front Control Panel | Power on/off, system reset, USB3.0 x 2 |
| Cooling Fans | Supports: • 80 x 25 mm PWM rear fans x 2 (optional), 4500 RPM • 80 x 38 mm PWM rear fans kit for GPU thermal (optional), 5500 RPM |
| Water Cooling Radiator | Package 1: • 120 x 25 mm PWM fans x 3, 2700 RPM, 4pin • Front IW-LSA36 360 mm AIO liquid cooler x 1 (Intel® LGA4710/4677) Package 2: • 120 x 25 mm PWM fans x 3, 2700 RPM, 4pin Front IW-LSC36 360 mm AIO liquid cooler x 1 (• Intel® LGA 1851/1700 •AMD AM5) |
| Expansion Slot | • Full-height PCIe slots x 8 |
| Material | • Material: SGCC • Thickness: 1.2 mm |
| Rail Kit | 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 525 x 430 x 174.8 mm (20.67" x 16.92" x 6.88") |
| Package Dimensions (DxWxH) | 760 x 610 x 325 mm (29.92" x 24.02" x 12.80") |
| Weight | • Net weight: 11.75 kg • Gross weight: 14.55 kg |
| Cubic Feet | 5.32 |
| Container Information | Single packing with pallets: • 20': 110 pcs • 40': 240 pcs • 40'HQ: 288 pcs |
Water Cooling Kit - Package 1
| CPU Socket Support | Intel® LGA 4710/ 4677 (bracket pre-installed) |
| CPU TDP | 350 W |
| Radiator Dimensions (L x W x H) | 396 x 120 x 27 mm 15.6 x 4.7 x 1.06" |
| Tube Length | 450 mm |
| Pump Speed | 4500 RPM +/- 10% |
| Pump Power | 21.6W (24W MAX) |
| Fans | 120 x 25 mm fans x 3pcs, 2700 RPM, 4-Pin 12V connectors |
| Fan Airflow | 93.99 CFM |
| Fan Air Pressure | 6.32 mm / H2O |
Water Cooling Kit - Package 2
| CPU Socket Support | • Intel® LGA 1851/ 1700/ 1200/ 20xx/ 1151/ 115x • AMD AM5/ AM4/ AMx/ FMx |
| Radiator Dimensions (L x W x H) | 397 x 120 x 27 mm 15.6 x 4.7 x 1.06" |
| Tube Length | 450 mm |
| Pump Speed | 3100 RPM +/- 10% |
| Pump Power | 3.0W (3.3W MAX) |
| Fans | 120 x 25 mm fans x 3pcs, 2700 RPM, 4-Pin 12V connectors |
| Fan Airflow | 93.99 CFM |
| Fan Air Pressure | 6.32 mm / H2O |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Download | Preview |
|---|---|---|
| IW-RL400 eDM | ||
| IW-RL400 Gallery | - | |
| IW-RL400 Compatibility List | ||
| IW-RL400 User Manual |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS129500 | 28" tool-less & ball-bearing slide rails (weight capacity 35kg) | 1 |
|
| Slide Rail | 3RAMIS144400 | 23" tool-less & ball-bearing slide rails (weight capacity 45kg) | 1 |
|
| Power Supply | 3RAMAP048200 | IW-P250II Standard ATX power supply (80 Plus Platinum 2500W x1) | 1 |
|
| Power Supply | 3RAMAP038600/ 3RAMAP045400 | 80 Plus Platinum CRPS 2000W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 2000W max.)/ CRPS PDB | Max.2 |
|
| HDD cage | 2RARID047501 | 2.5” HDD cage | 1 |
|
| Fan | 3RAMFS025600 | IW-DN Max, 120 x 25mm PWM fan, 2700RPM, 4pin | Max.3 |
|
| Fan | 3RAMFB008602 | 80 x 25mm PWM fan, 4500 RPM, 4pin | Max.2 |
|
| Fan | 2RAKID059800 | Rear fan kit for GPU thermal, 80 x 38mm, 5500RPM, 4pin | 1 set |
|
| Water Cooling Radiator | 2RAPIS144201 | 240/360mm middle radiator bracket kit | 1 |
|
| Water Cooling Radiator | 2RAKBA007600/3RAMFS025600 | IW-LSA36, 360mm AIO liquid cooler (Intel® LGA 4710/ 4677) / IW-DN Max, 120 x 25mm PWM fan | 1 set |
|
| Water Cooling Radiator | 2RAKBA010500/3RAMFS025600 | IW-LSC36, 360mm AIO liquid cooler (• Intel® LGA 1851/ 1700/ 1200/ 20xx/ 1151/ 115x • AMD AM5/ AM4/ AMx/ FMx) /IW-DN Max, 120 x 25mm PWM fan | 1 set |
|
| Other | 3RAMRW011300 | Intrusion switch / 800mm | 1 |
|
Product Video
InWin RL Series | Liquid-Cooled Server Chassis
InWin RL Series Product Application
Tutorials
InWin IW-RL400 MB & LGA4710 AIO & GPU Installation
InWin IW-RL400 LGA1851 / AM5 AIO Installation

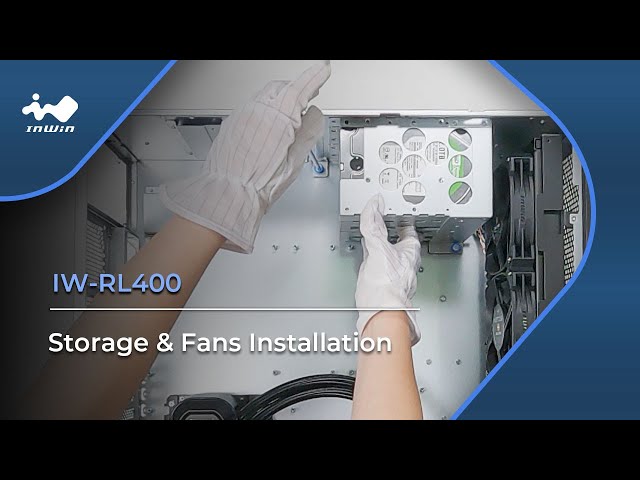

InWin IW-RL400 Storage & Fans Installation
