IW-RN424-04

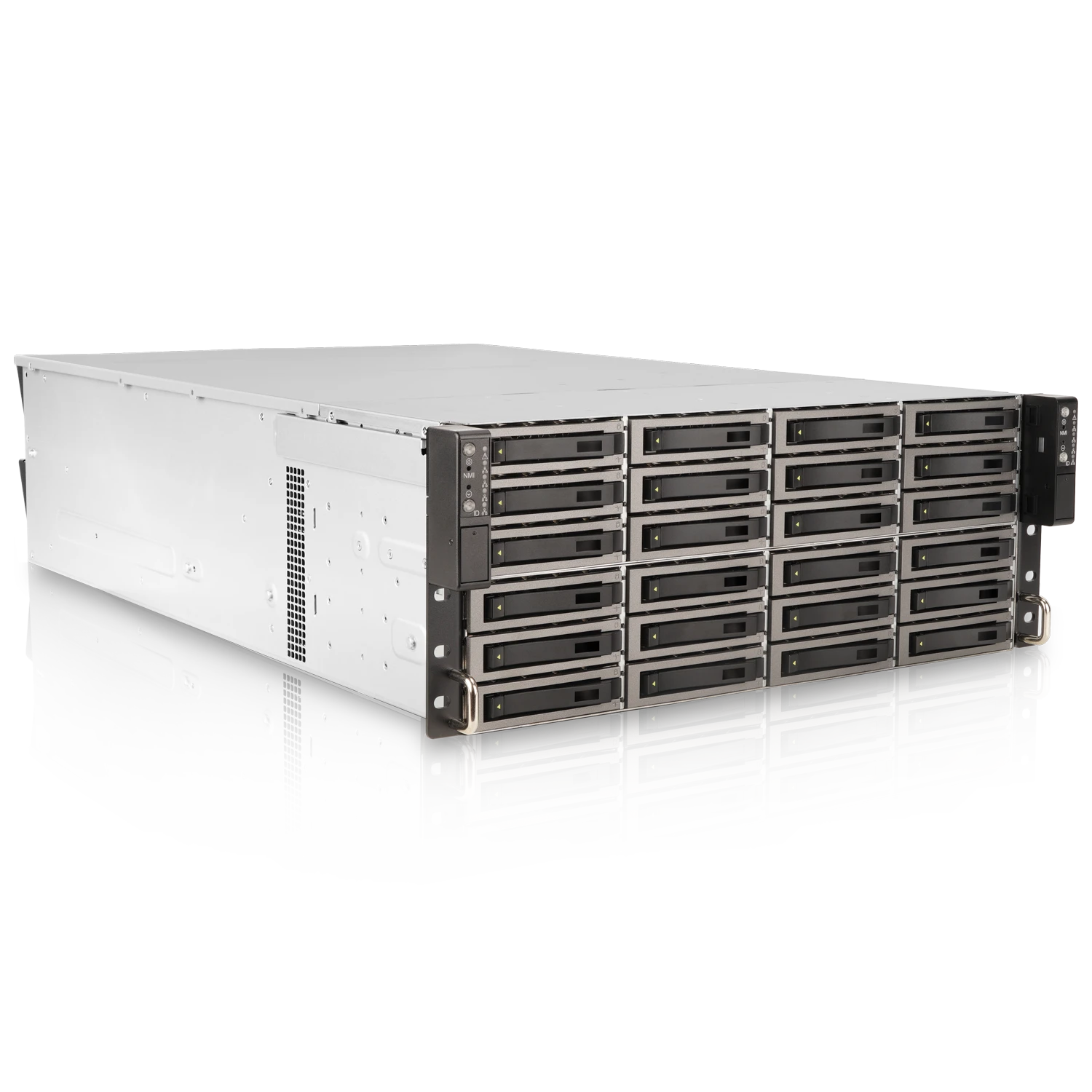

4U Dual-Node SAS4 Rackmount Server
- 4U dual-node solution delivering nonstop HPC performance
- Ensures high availability with two swappable nodes for streamlined maintenance
- 24 Gbps SAS4 expander per node connects to all 24 2.5"/3.5" hot-swap bays
- Supports motherboards up to 12" x 13.5" per node
- Provides two 2.5" 7 mm SATA bays per node for system disks
- 2700W 80 PLUS® Titanium CRPS for high-efficiency power
4U Dual-Node SAS4 Rackmount Server
Engineered for Continuous Availability and High-Density Compute
The IW-RN424-04 is a 4U dual-node SAS4 rackmount server designed to support continuous enterprise workloads. Featuring 24 Gbps SAS4 storage connectivity per node and hot-swappable compute nodes, it supports flexible connection to all 24 drive bays through independent or shared configurations, delivering high-bandwidth storage performance and streamlined serviceability for HPC, AI, and media applications.
NTB Support
Max. 12.5" × 13.5" EEB
2.5" / 3.5" Drives
2.5" System Disks ×2
60 × 38 mm Fans × 8
2700W CRPS

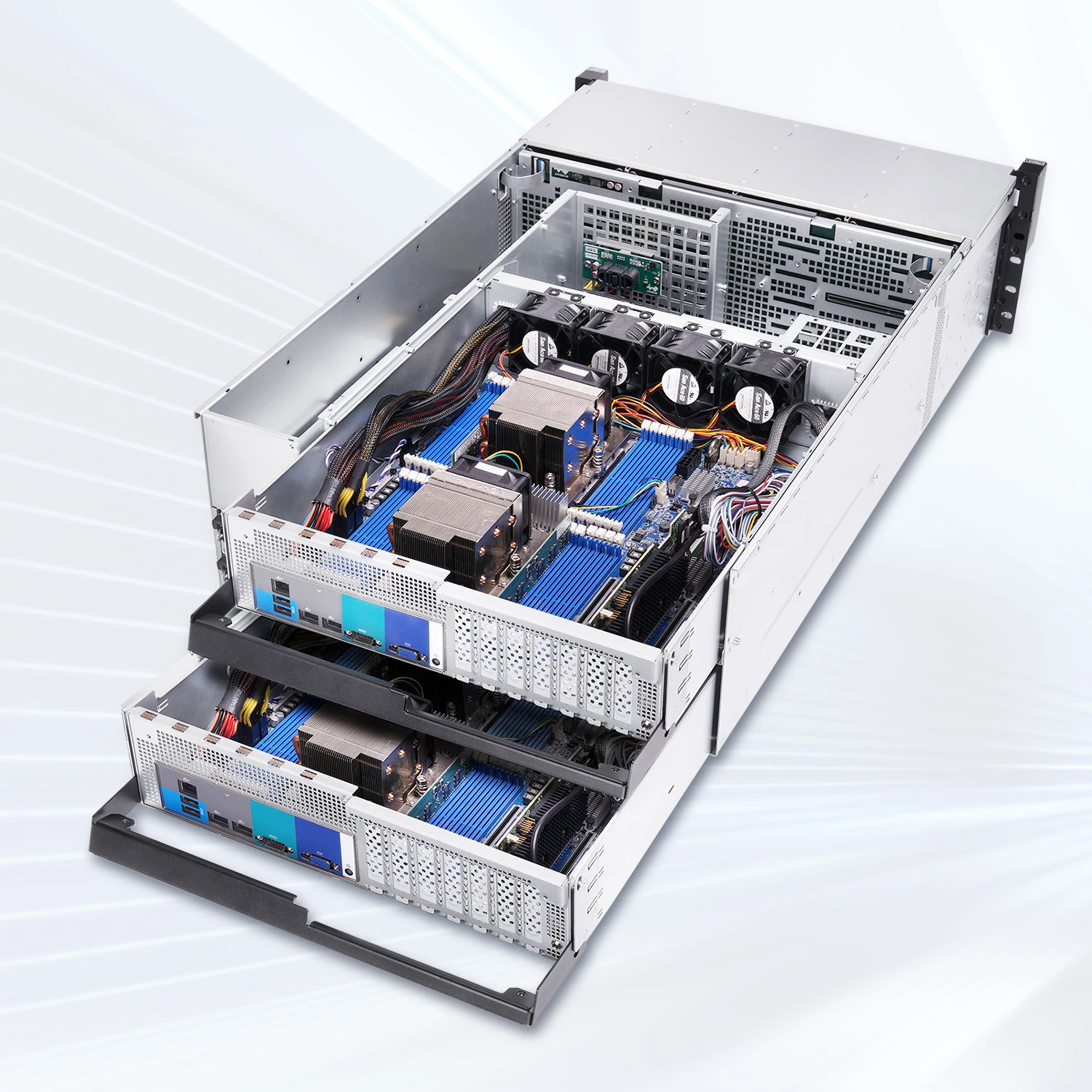

Resilience and Serviceability
Designed to support uninterrupted service, the dual-node architecture features two independent hot-swappable compute nodes that can operate as separate systems or as a redundant pair, depending on the system configuration, simplifying maintenance and minimizing service disruption.

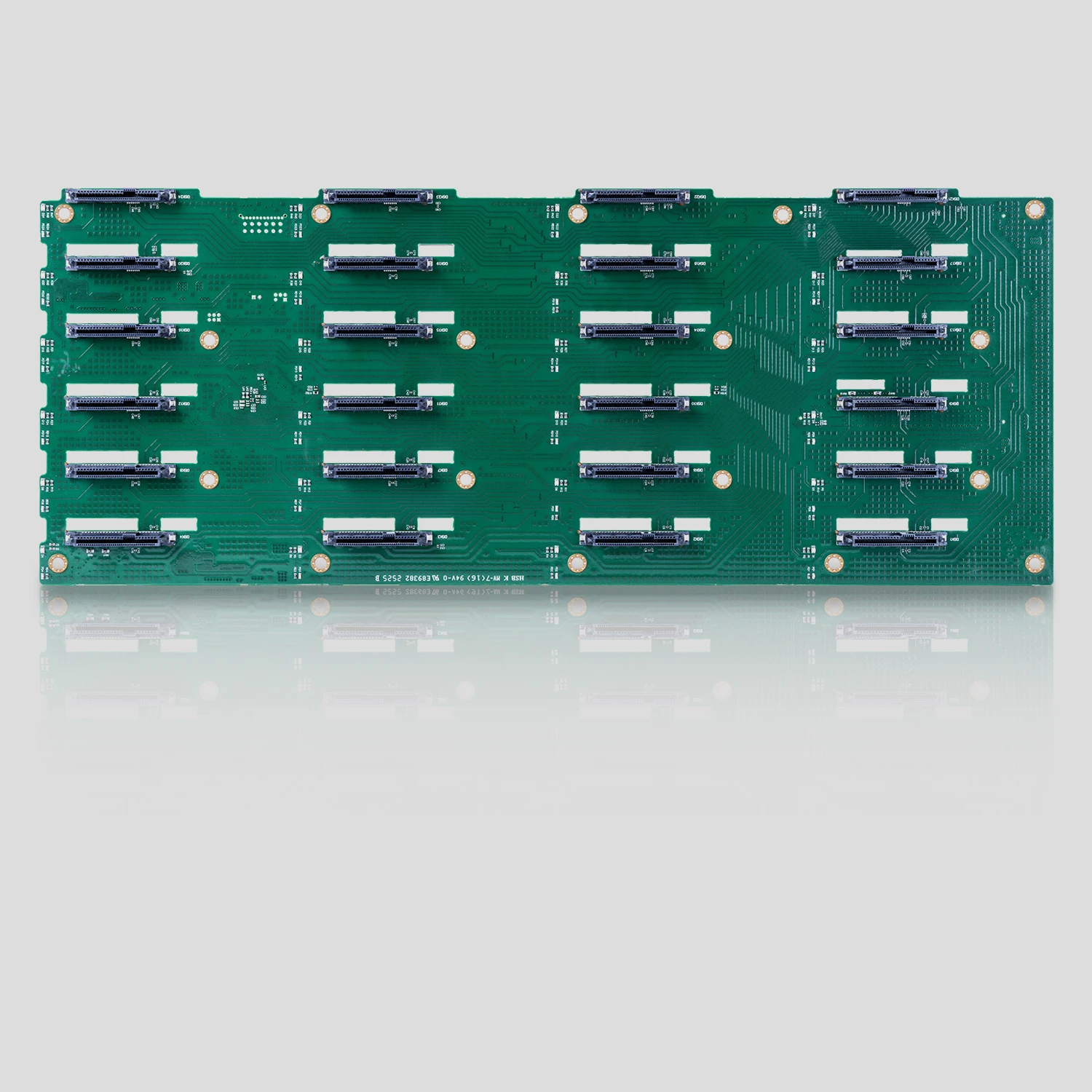

SAS4 Backplane

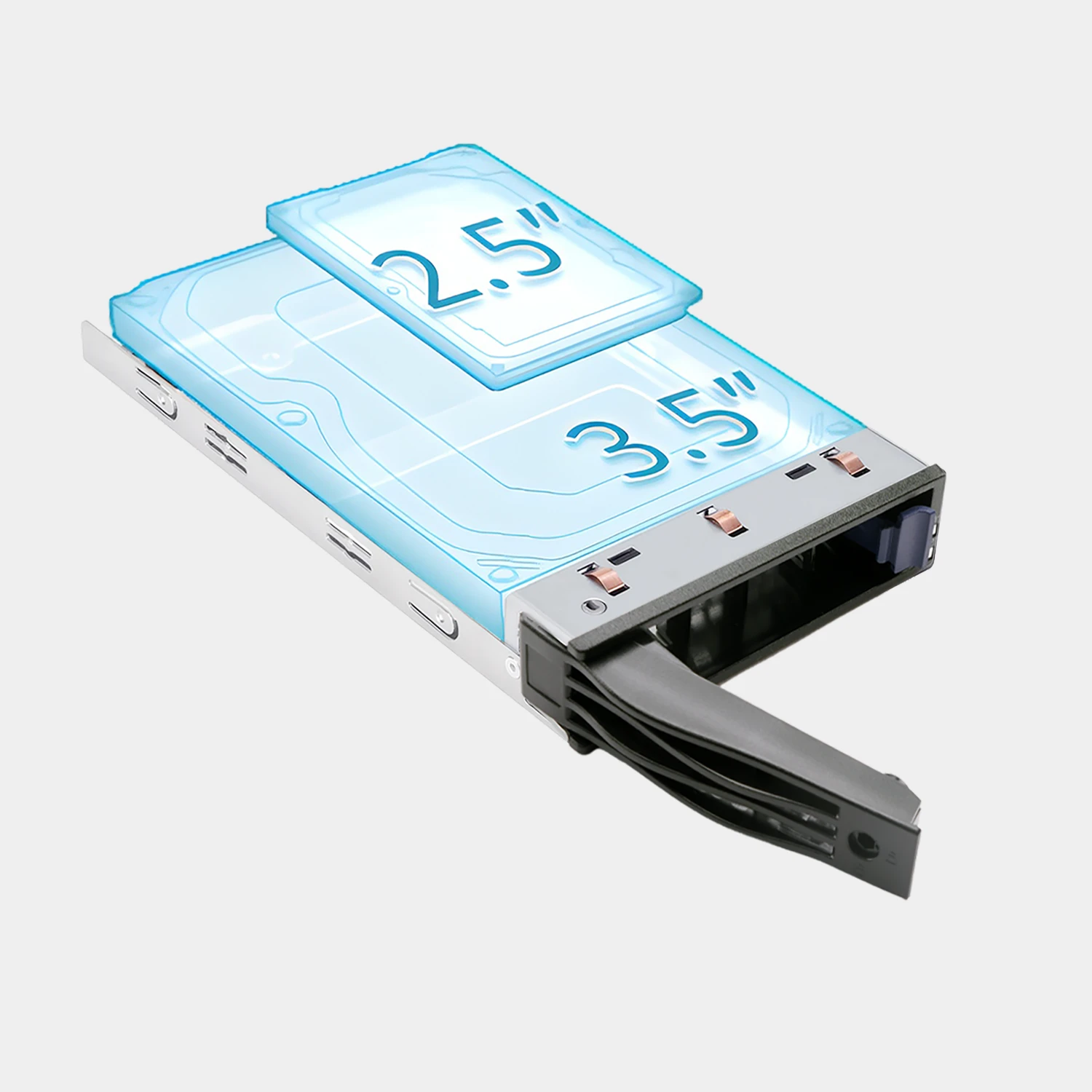

The SAS4 backplane delivers 24 Gbps storage connectivity per node through a flexible dual-node storage architecture. Depending on system configuration, both compute nodes can share the full pool of 2.5-inch and 3.5-inch SAS drives or independently access all 24 drive bays, enabling high-speed data transfer and scalable storage capacity.

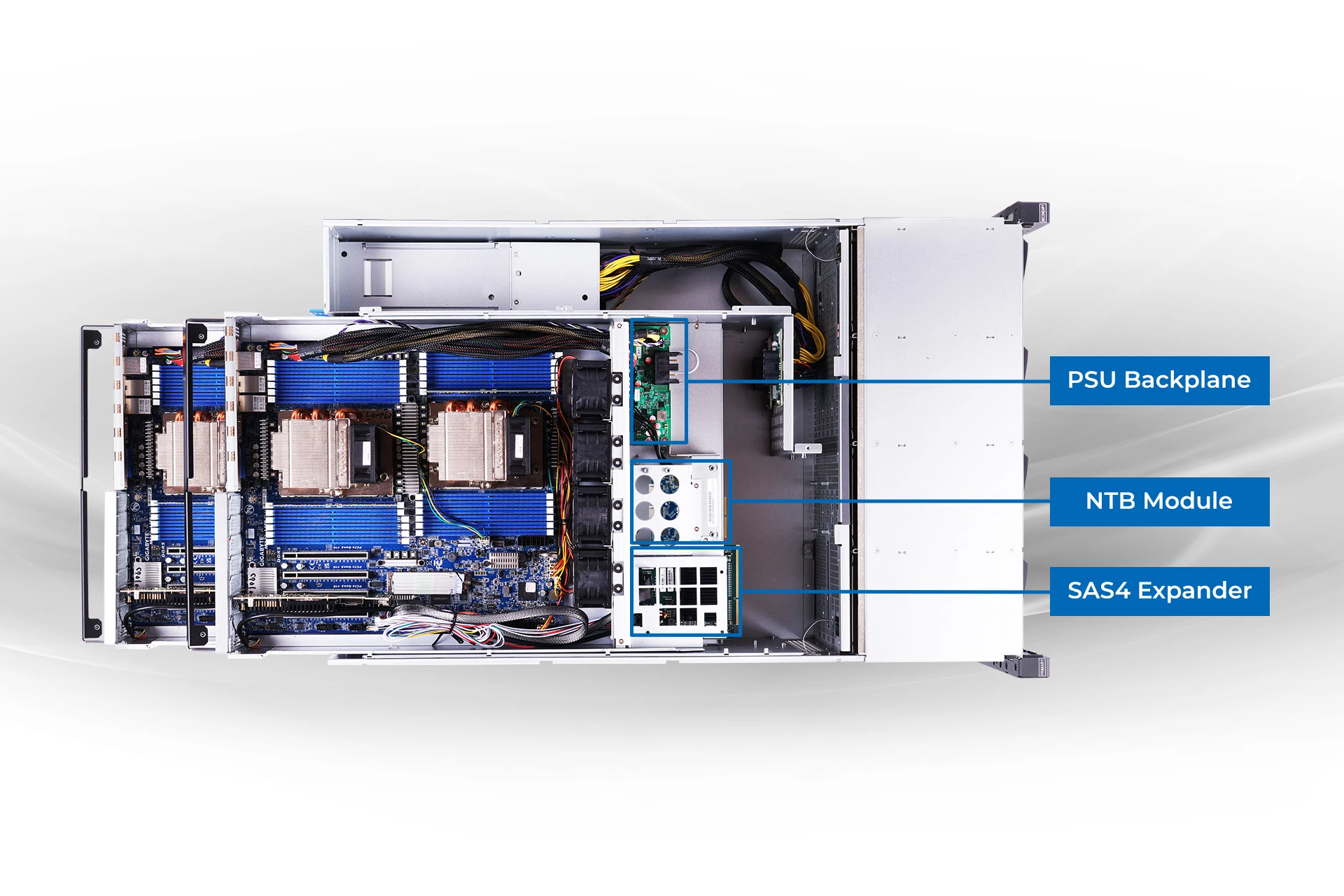

Dual-Node Architecture
Featuring dedicated SAS4 expanders, optional NTB connectivity, and independent PSU backplanes, this architecture enables high-bandwidth storage connectivity, node-to-node communication, and independent power delivery. Both nodes can operate independently with dedicated storage configurations or be configured as a redundant pair with shared access to the 24-bay storage, providing flexible deployment and streamlined serviceability for enterprise and HPC workloads.

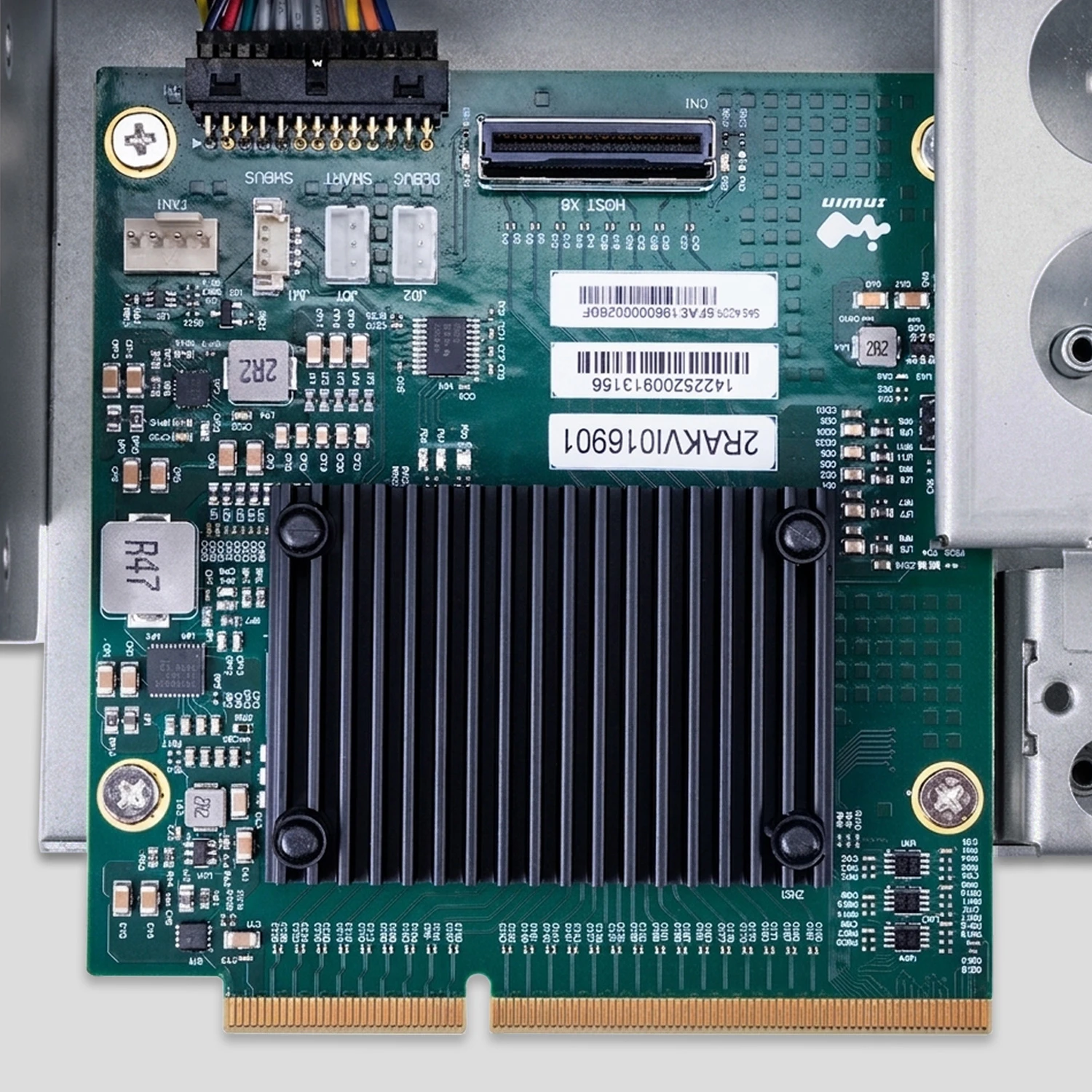

Dual SAS4 Expanders
Each compute node connects to a dedicated SAS4 expander via two MCIO (8i) interfaces, providing 24 Gbps high-bandwidth connectivity to all 24 drive bays.

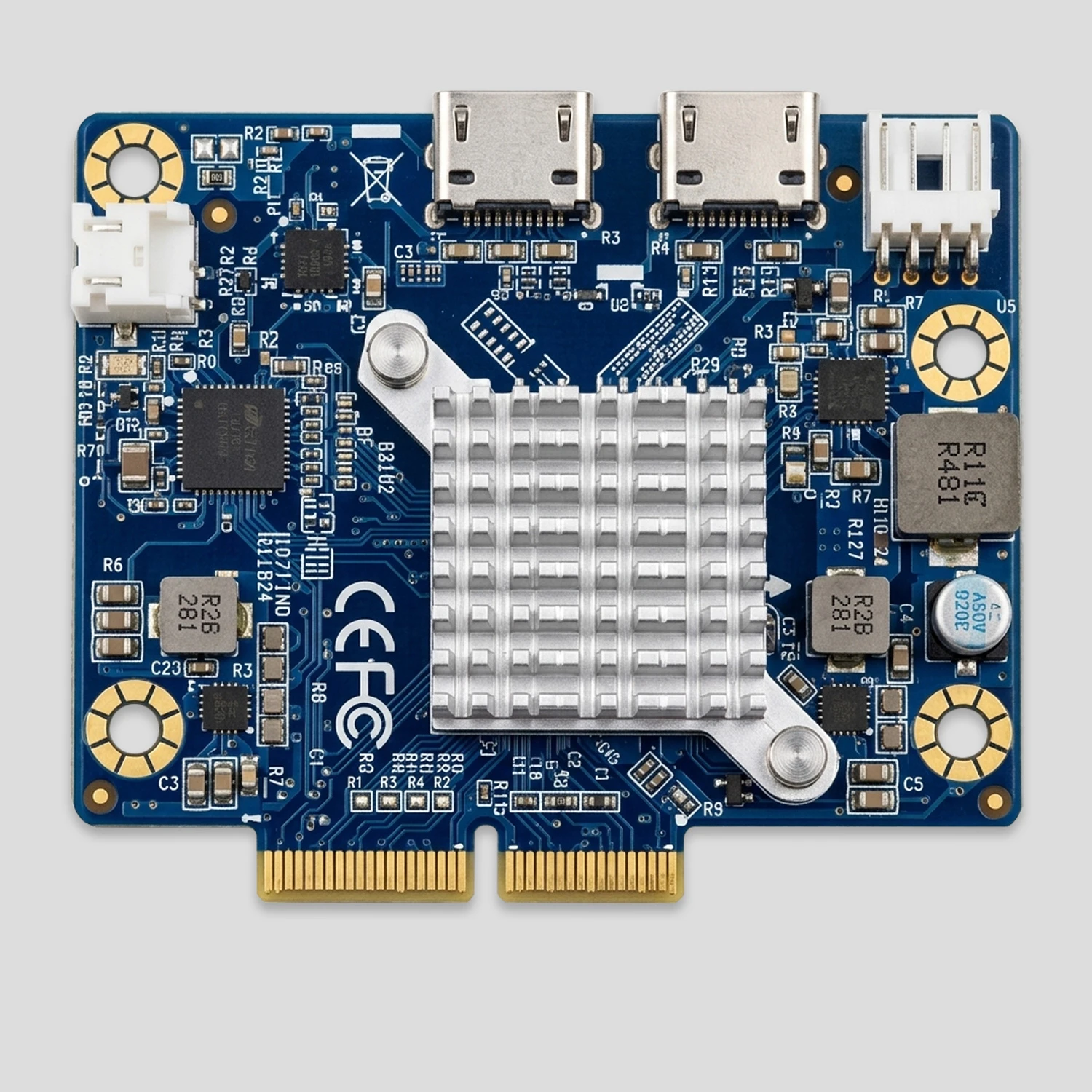

NTB Connectivity
Supports an optional Non-Transparent Bridging (NTB) module for direct node-to-node communication, enabling seamless data sharing and coordinated workload processing.

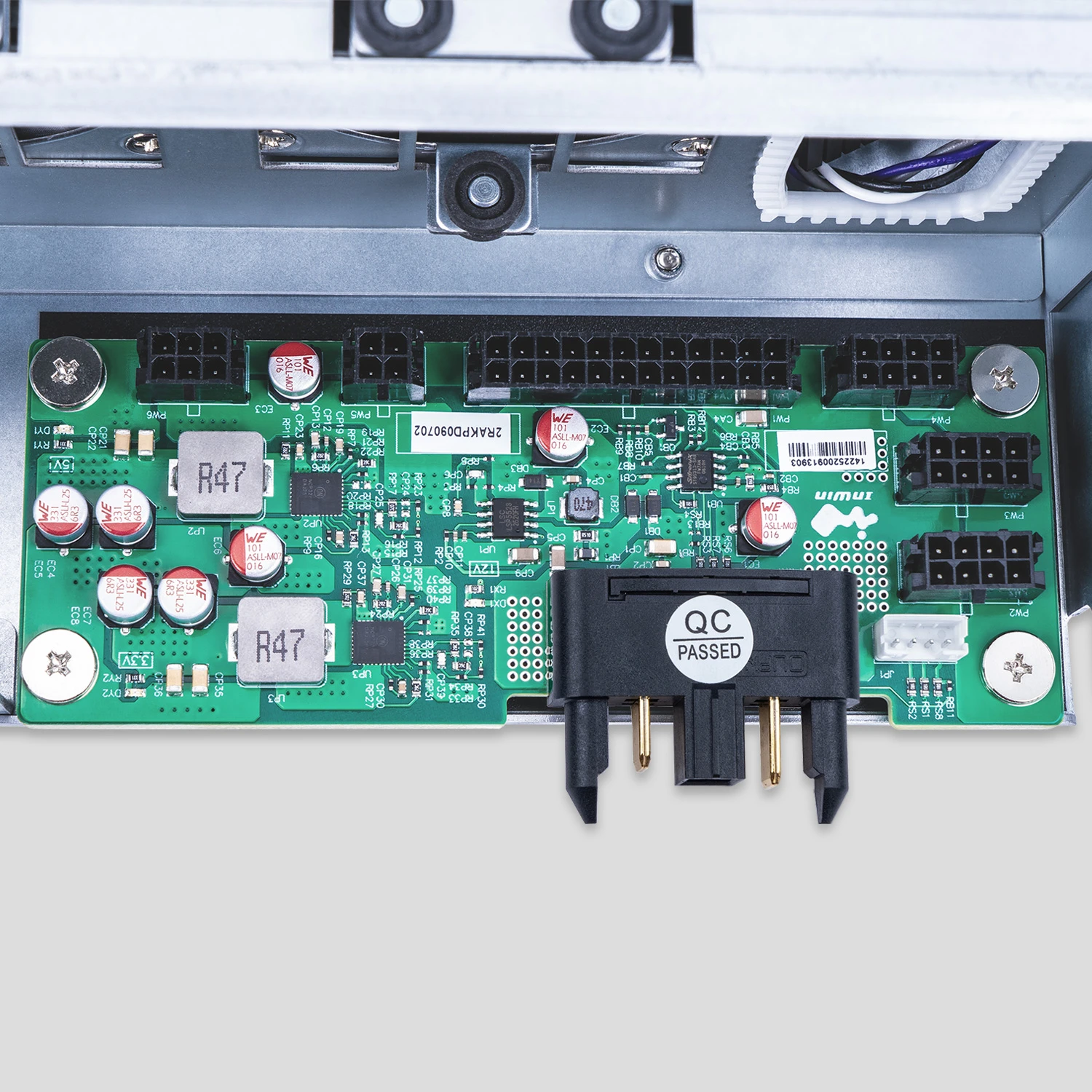

Independent PSU Backplanes
Dedicated PSU backplanes allow each compute node to be powered and serviced independently while the other node remains operational.

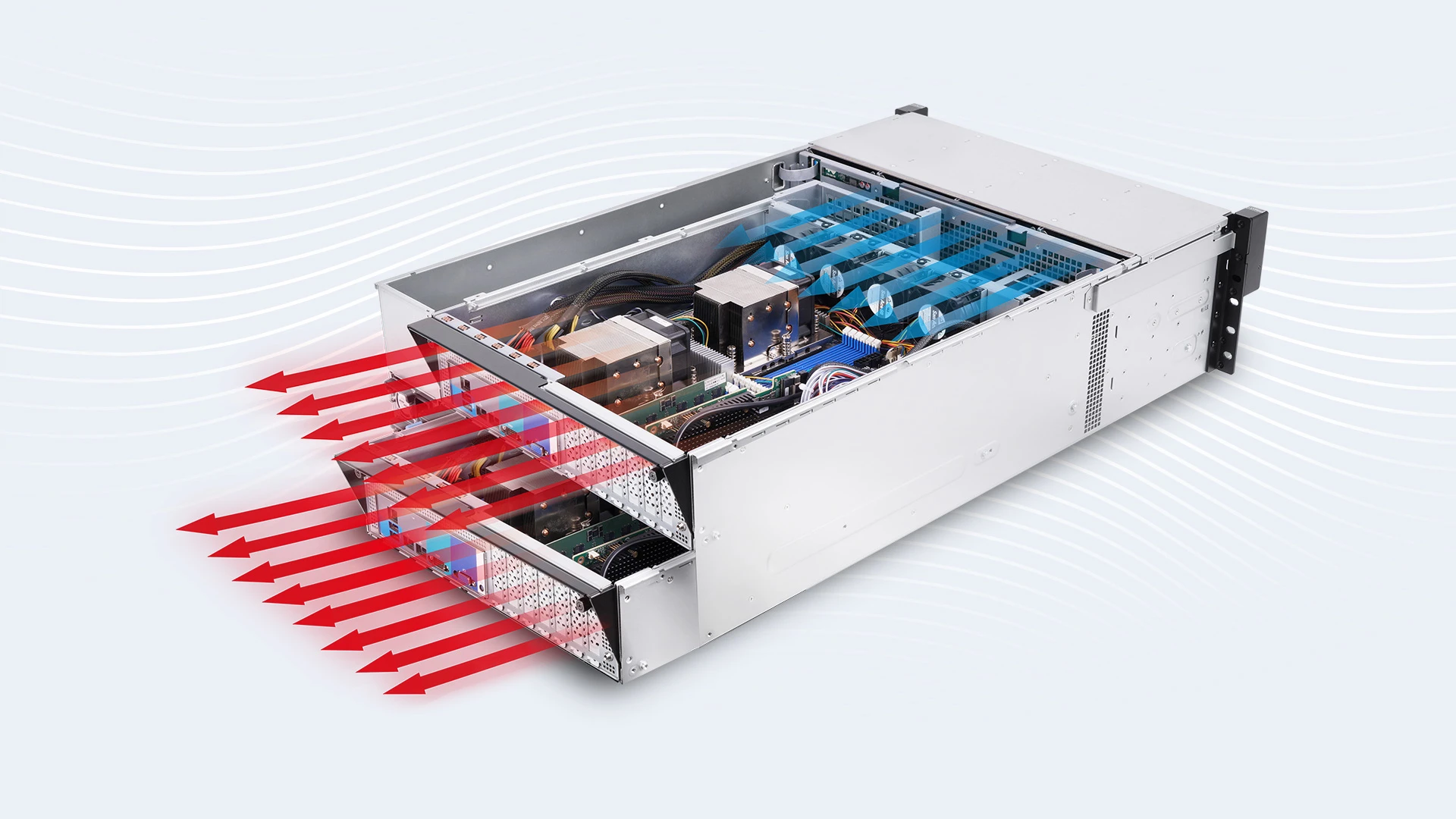

Efficient Cooling for Dual Nodes
Four high-performance 60 × 38 mm PWM fans per node provide direct airflow across the CPU, memory, and storage components, maintaining thermal stability under sustained enterprise workloads.

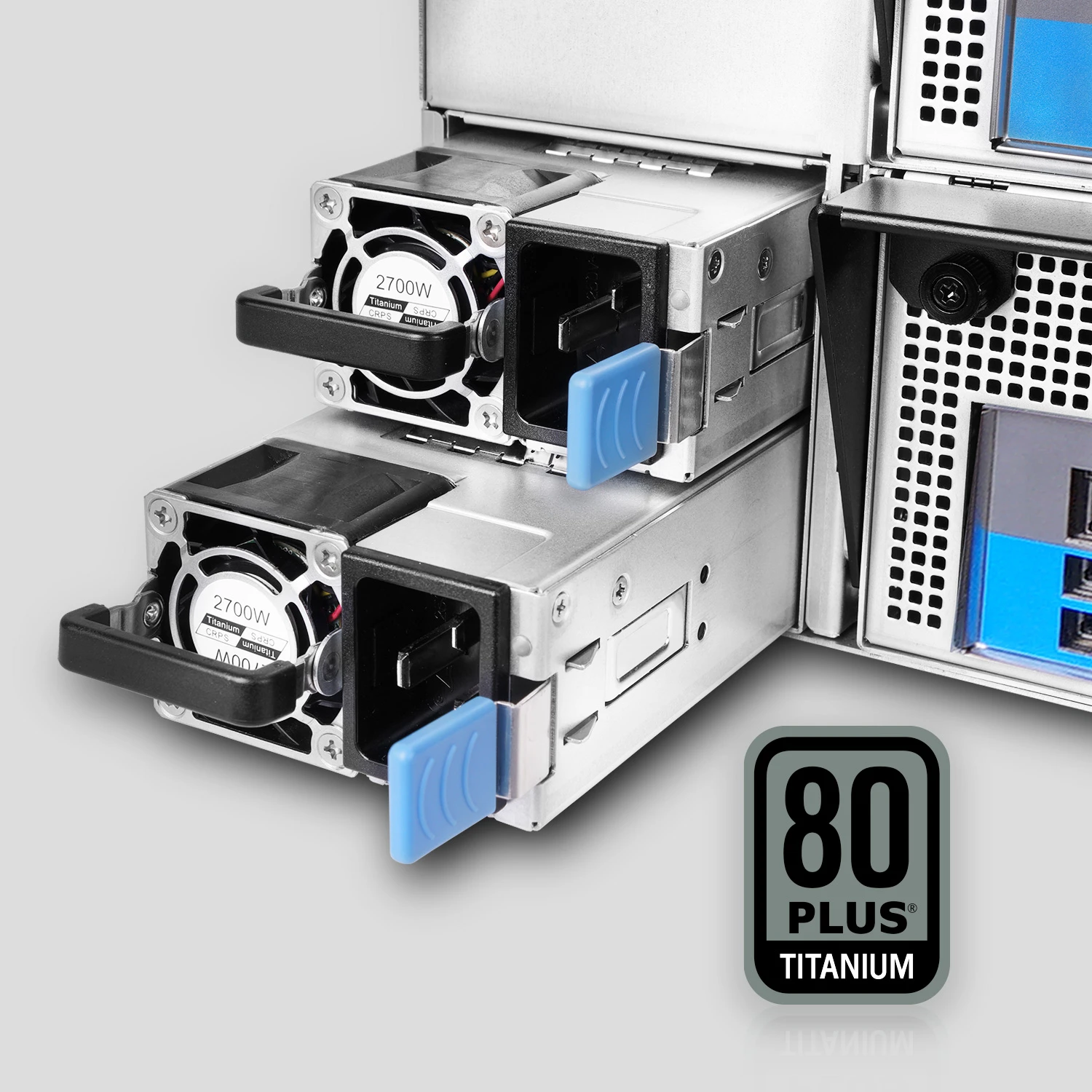

Enterprise-Class Power Architecture
Comes standard with 2700W 80 PLUS® Titanium CRPS units. Dedicated PSU backplanes and organized internal cable routing ensure reliable power distribution, simplified maintenance, and improved power availability.
Power Cable Information
Unit of Length: mm
- 24-Pin Main Power
- 8-Pin CPU
- 8-Pin CPU
- SATA
- PMBus
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinet |
| M/B Form Factor | ATX (12" x 9.6"), ATX (12" x 10"), EEB (12" x 13.5") |
| Drive Bay | • External 2.5"/3.5" hot-swap trays x 24 (supports SAS/SATA drives) • Internal 2.5" x 2 for each node (supports 7mm SSD) |
| Power Supply | Pre-installed: • Form factor: 80 PLUS Titanium CRPS • Total Watt: 2700W |
| Indicators | Per node: Power LED, ID LED, system LED, LAN1/LAN2/LAN3/LAN4 LED |
| Front Control Panel | Per node: Power on/off, NMI, system reset, ID SW |
| Backplane | • Host: MCIO(8i) with expander per node • Drive: SAS/SATA x 24 |
| SAS4 Backplane | Per node: Supports SAS4 x 32 expander |
| Cooling Fans | Per node: • 60 x 38mm PWM fan x 4, 16000RPM |
| Expansion Slot | Per node: Low-profile PCIe slots x 7 |
| Material | Material: SGCC Thickness: 1.0 mm |
| Rail Kit | Supports 30" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 705.3 x 449.5 x 174.2 mm (27.77" x 17.70" x 6.86") |
| Package Dimensions (DxWxH) | 970 x 610 x 350 mm |
| Weight (Chassis Only) | • Net weight: 31.43 kg • Gross weight: 35.76 kg |
| Cubic Feet | 7.31 |
| Container Information | Single Packing with pallets: 20': 90 pcs 40': 210 pcs 40' HQ : 252 pcs |
Backplane Specifications
| Backplane | SAS4 Backplane |
| Data Transfer Rate | SAS4 24Gb/s |
| Dimension (W x H) | 428mm x 166.8mm |
| Backplane Type | Active with expander board |
| Host Interface | MCIO(8i) with expander per node |
| HDD Interface | SAS/SATA x 24 |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS133301 | 30" tool-less & ball-bearing slide rail | 1 set |
|
| Power Supply | 3RAMAP049900 | 80 PLUS Titanium CRPS 2700W (AC input 100-127V: 800W max. / AC input 200-240V: 2700W max.) | Max. 2 |
|
| Power Supply | 3RAMAP048700 | 80 PLUS Titanium 3200W CRPS Included (AC Input 100-115V: 1340W, 116-120V: 1600W, 200-224V: 2800W, 225-240V: 3200W Max.) | Max. 2 |
|

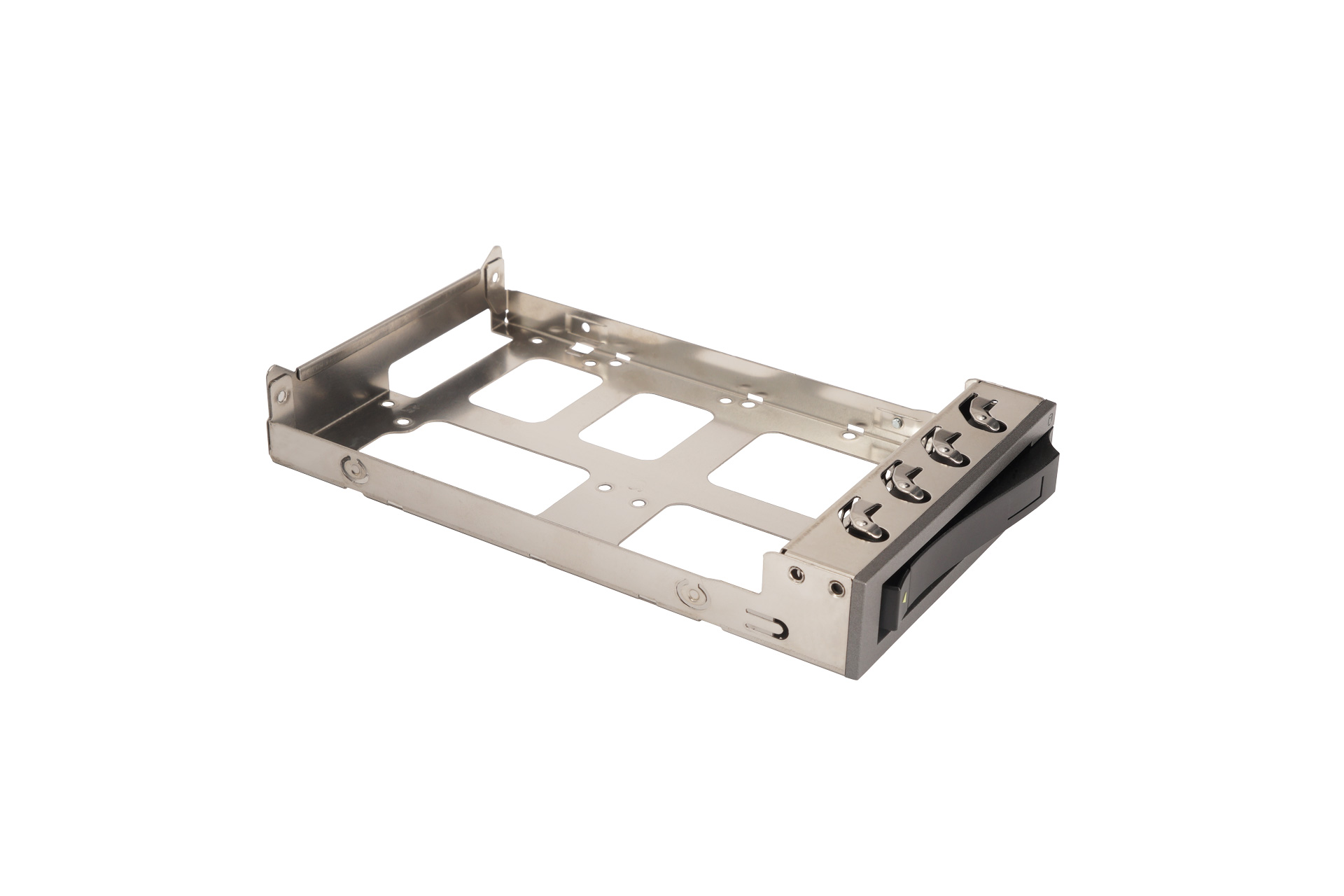

| HDD Tray | 2RAKPH031100 | 2.5"/3.5" Drive Tray with Screw Mounting | Max.24 |
|
| Others | 2RALZT388200 | Non-Transparent Bridging (NTB) Kit | 1 |
|
