Chassis Cooling
The IW-RS108-07 utilizes six of InWin's 40 x 56mm PWM easy-swap fans providing superior airflow and effectively dissipates the heat from the enclosure with anti-vibration and low-noise features.
IW-RS108-07
1U NVMe Hybrid Rackmount Chassis
- Intel® Xeon Scalable & AMD EPYC family compliant
- Backplanes with Mini-SAS HD and OCuLink connectors
- Maximum supports U.2 NVMe SSDs x 8; 3.5"/2.5" (15mm) trays x 4, and 2.5" (7mm) trays x 4
- Flexible storage configuration of 3.5" HDDs and 2.5" SSDs (15mm, 7mm)
- Intensive airflow generated by easy-swap cooling fans x 6
- Full-height PCIe slot x 1 (via riser card)
- 80 Plus® Platinum 1U redundant PSU(optional)
- Customized I/O shield backplate for specific motherboards with SGCC material
Hybrid Storage Server
for the Lowest TCO
The IW-RS108-07 is fully compliant with both Intel® Xeon Scalable & the AMD EPYC processors. Deliberately designed for three types of drive bays; supporting 3.5"/2.5" (15mm) HDDs and 2.5" (7mm) SSDs. The ability to utilize an assortment of storage devices provides customers the highest flexibility to meet storage preference and Total Cost of Ownership (TCO) requirements.
Compliant
Single PSU 500W
Redundant PSU 750W
x 8 bays
3.5"/2.5" 15mm HDD
2.5" 7mm HDD
28" slide rails
26" deep chassis
40 x 56mm fans x 6
Capacity
Maximum supports U.2 NVMe SSDs x 8
Featuring hot-swap and tool-free designs
Featuring hot-swap and tool-free designs

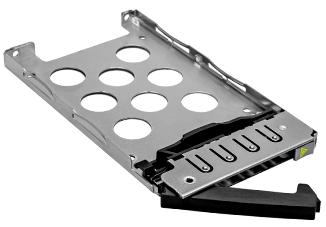

4 x 2.5" (7mm) SAS/SATA/NVMe drives

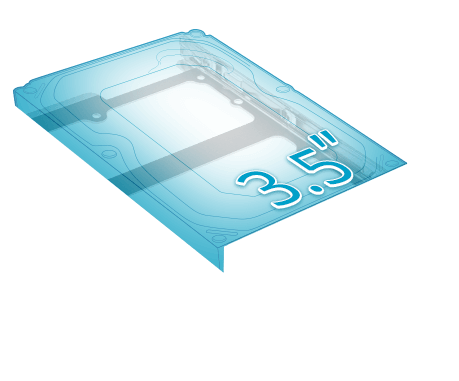

4 x 3.5"/2.5" (15mm) SAS/SATA/NVMe drives
Flexibility
Emphasizing flexible storage configurations to meet the most demanding data storage needs.
Connectivity
Mini-SAS HD & OCuLink Backplane
Mini-SAS HD & OCuLink Backplane
InWin's exclusive backplanes offer high-performance connectivity and are designed to support SAS/SATA, and NVMe with OCuLink host interfaces.
Compatibility

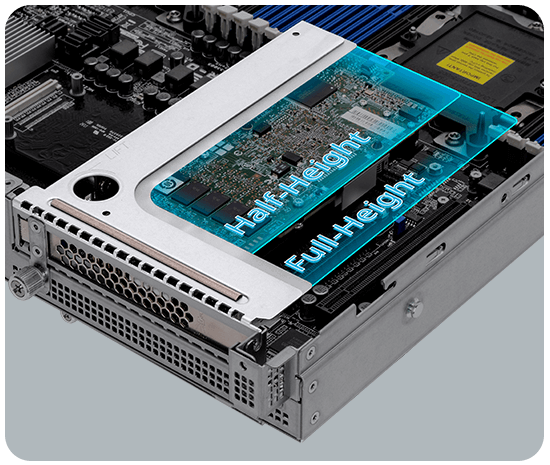

The IW-RS108-07 supports full-height PCIe slot x 1. Customers can pair InWin's PCIe riser card which can be horizontally installed in the rear of the chassis.
Superior Airflow
Easy-Swap Fans
Meets The Thermal Environment Requirements
Efficiency
The IW-RS108-07 supports two different power supply options. Both options offer highly efficient power delivery with 80 Plus ® certification.
Single PSU,
80 Plus® Gold
750W Redundant PSU,
80 Plus® Platinum
Power Supply Cable Information
Single PSU Cable Information
24 pin Main Motherboard
8 pin CPU
8 pin CPU
8 pin BP
6 pin BP
5 pin BP
PMBus
Redundant PSU Cable Information
24 pin Main Motherboard
8 pin CPU
8 pin CPU
8 pin BP
6 pin BP
5 pin BP
PMBus
Customization
Customized I/O shield backplate for 1U chassis with SGCC material is available to fulfill customers' specific I/O configuration requirements.
Easy Maintenance
The tool-less design can help customers to maintain the server more easily and efficiently. The latest design of gray color trays features an all-new mounting mechanism for the HDDs to quickly mounted and removed.
Ball-bearing slide rails
Top cover open button
Quick-install HDD tray
PCIe riser card bracket
Dimensions
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | • Top layer: external 2.5" hot-swap trays (7mm) x 4 • Bottom layer: external 3.5"/2.5" hot-swap trays x 4 |
| Power Supply | Supports: • 750W 1U redundant PSU, 80 Plus Platinum |
| Indicators | Power LED, LAN1/LAN2 LED, system LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW |

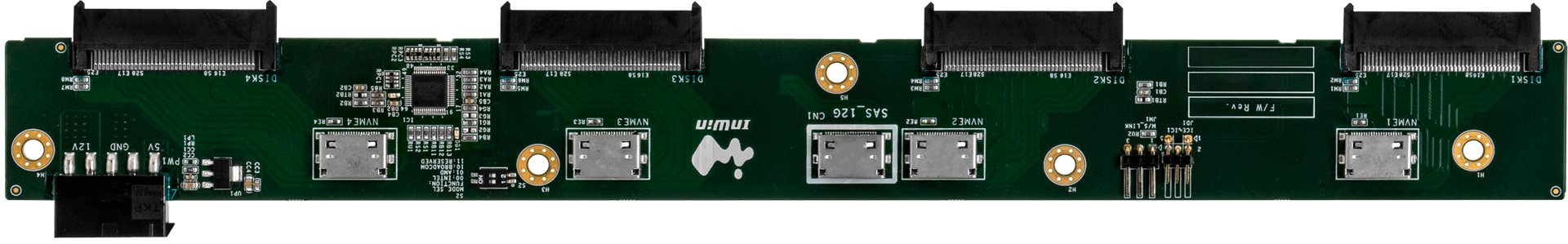

| Backplane- Top Layer | • Host: OCuLink (SFF-8611) x 5, one is for SAS/SATA data transfer rates • HDD: NVMe/SAS/SATA x 4 (2.5" 7mm) |

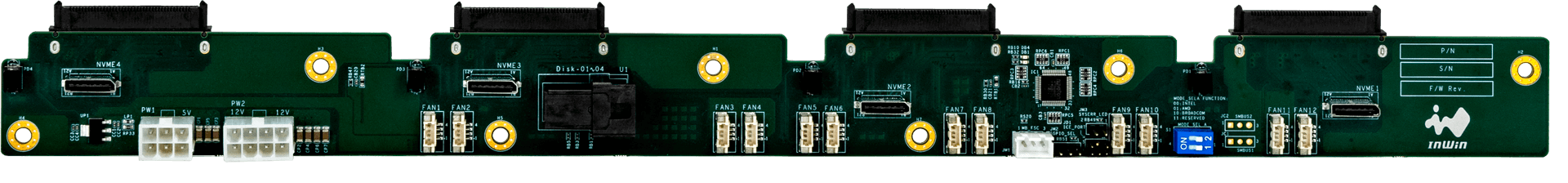

| Backplane- Bottom Layer | • Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 4 • HDD: NVMe/SAS/SATA x 4 (3.5"/2.5" 15mm) |
| Cooling Fans | 40 x 56mm PWM easy-swap fans x 6, 21500RPM |
| Expansion Slot | Full-height PCIe slot x 1 (via riser card) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 676 x 438 x 43.5mm (26.6"x17.2"x1.7") |
| Package Dimensions (DxWxH) | 880 x 610 x 180mm |
| Weight (Chassis Only) | • Net weight: 8.5kg • Gross weight: 11.92kg |
| Cubic Feet | 3.41 |
| Container Information | Single packing with pallets: • 20': 200pcs • 40': 440pcs • 40'HQ: 528pcs |
Backplane Specifications
| Backplane – Top Layer | SAS3 & PCIe Gen4 hybrid backplane |
| Data Transfer Rate | SAS3 12Gb/s PCle Gen4 16GT/s |
| Dimension (W x H) | 313.9mm x 33.5mm |
| Backplane Type | Passive |
| Host Interface | OCuLink (SFF-8611) x 5, one is for SAS/SATA data transfer rates |
| HDD Interface | NVMe/SAS/SATA x 4 (2.5" 7mm) |
| Backplane – Bottom Layer | SAS3 & PCIe Gen4 hybrid backplane |
| Data Transfer Rate | SAS3 12Gb/s PCle Gen4 16GT/s |
| Dimension (W x H) | 417.7mm x 33.5mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 4 |
| HDD Interface | NVMe/SAS/SATA x 4 (3.5"/2.5" 15mm) |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 Set |
|
| Slide Rail | 3RAMIS152300/ 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 Set |
|
| Cable | 3RAMW4031700 | Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm | 1 |
|
| Cable | 3RAMW4039700 | Mini-SAS HD 12Gbps (SFF-8643) to OCuLink (SFF-8611) Cable, 800 mm | 1 |
|
| Cable | InWin can customize the SFF-8611/ SFF-8654 cables to fulfill customers' OCuLink/SlimSAS connectors requirements. | Max. 8 | ||
| Power Supply | 3RAMAP042200 | 750W 1U redundant module, 80 Plus Platinum, IEC 62368-1 certified | Max. 2 |
|
| Power Supply | 3RAMAP043000 | 750W 1U redundant PDB power cage | 1 |
|
| HDD Tray | 2RAKPH057702 | 2.5"/3.5" hot-swap HDD tray (Gray color) | Max. 4 |
|
| HDD Tray | 2RAKPH063701 | 2.5"/3.5" hot-swap HDD tray (Gray color with NVMe symbol) | Max. 4 |
|
| HDD Tray | 2RAKPH063400 | 2.5" (7mm) hot-swap tray (Gray color) | Max. 4 |
|
| HDD Tray | 2RAKPH063900 | 2.5" (7mm) hot-swap tray (Gray color with NVMe symbol) | Max. 4 |
|
| Fan | 3RAMFB016400 | 40 x 56mm PWM easy-swap, 21500RPM, 4pin x 2 | Max.6 |
|
| Fan | 2RAKFB011800 | 40 x 56 mm PWM easy-swap fan & fan bracket, 21500RPM, 4pin x 2 | Max.6 |
|
| Riser Card | 2RAKPD074000 | PCIe Gen3 x16 riser card, left-facing 90 degree design | 1 |
|
| Riser Card | 2RAKPD079901 | PCIe Gen4 x16 riser card, left-facing 90 degree design | 1 |
|
| Riser Card | 2RAKPD087800 | PCIe Gen5 x16 riser card, left-facing 90 degree design | 1 |
|
| Riser Card | 2RAKIS305000 | PCIe Gen5 riser card bracket | 1 | |
| Back I/O Shield Plate | 2RAKIQ020900 | Rear I/O shield- ASRock EP2C624D16NM | 1 |
|
| Back I/O Shield Plate | 2RAVIQ039500 | Rear I/O shield- ASRock EP2C624D16NM w/Mezzing | 1 | |
| Back I/O Shield Plate | 2RAVIQ051200 | Rear I/O shield- ASRock EP2C612D16C-4L | 1 |
|
| Back I/O Shield Plate | 2RAVIQ051300 | Rear I/O shield- ASRock EP2C622D16-2T | 1 |
|
| Back I/O Shield Plate | 2RAKIQ020800 | Rear I/O shield- ASUS Z11PR-D16 | 1 |
|
| Back I/O Shield Plate | 2RAKIQ021100 | Rear I/O shield- Gigabyte MD61-SC2 | 1 |
|
| Back I/O Shield Plate | 2RAKIQ021000 | Rear I/O shield- Intel H28527 S2600CW2R | 1 |
|
| Back I/O Shield Plate | 2RAKIQ021200 | Rear I/O shield- Tyan S7100AG2NR | 1 |
|
| Back I/O Shield Plate | - | InWin can customize the I/O shield backplate for specific motherboards, with SGCC material to fulfill customers’ specific I/O configuration requirements. | 1 | |
| Others | 2RAKIP012002 | Mesh front panel | 1 |
|
Product Video
Competitive Advantages of InWin NVMe Hybrid Storage Server
InWin 07 Series NVMe Hybrid Storage Server Full Collection
InWin New 07 Series Hybrid Storage Server Drives Introduction
Tutorials
07 Series Motherboard & Expansion Card Installation
07 Series HDD Tray Installation

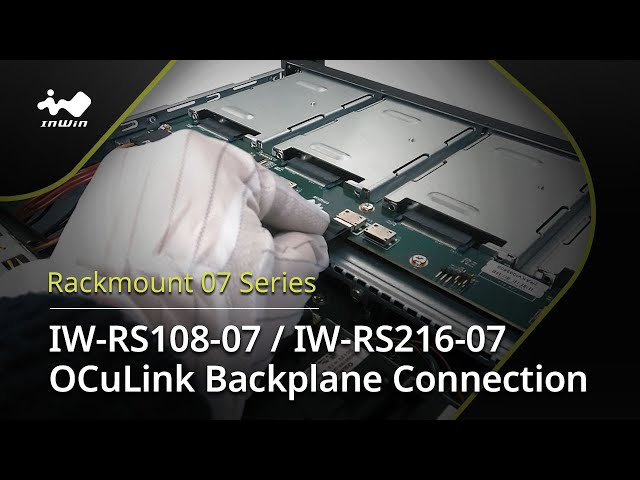

IW-RS108-07/IW-RS216-07 OCuLink Backplane Connection
