IW-RS112-08
1U PCIe Gen5 NVMe Hybrid Rackmount Chassis
- Intel® Xeon Scalable & AMD EPYC family compliant
- Hybrid backplane options for PCIe Gen5, PCIe Gen4, SAS4 and SAS3,
featuring MCIO, SlimSAS, and Mini-SAS HD connectors - Compact bay deployment, supports max. U.2 NVNe/SAS/SATA drives x 12
- Tray front panel with large cooling area and six swappable fans for optimal airflow
- Supports FHFL PCIe slot x 1, one riser card included in accessories box
- Custom I/O shield service offered for chassis backplate to match specific motherboards with SGCC material
The Compact, Speedy, Hybrid Chassis!

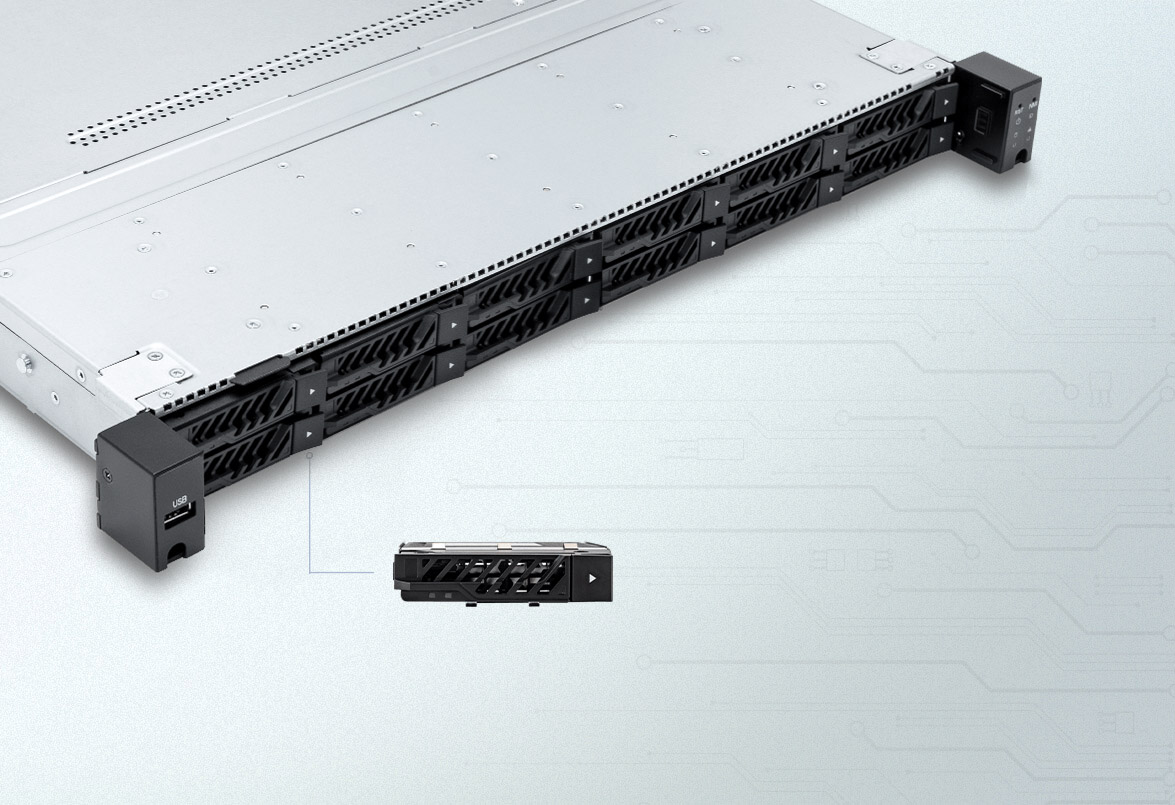

Got a need for Speed?! The IW-RS112-08 fully supports NVMe hybrid storage and PCIe Gen5 backplane. This compact 1U hybrid storage server offers impressive storage capacity, supporting up to twelve 2.5" (15mm) trays. Its unique tray design, paired with six 40 x 56mm fans, ensures optimal airflow throughout the enclosure.
PCIe Gen5 ready
x 12 bays
Compliant
Redundant PSU 750W
PCIe slot support
28" slide rails
26" deep chassis
40 x 56mm fans x 6
Compact with Compatibility
The IW-RS112-08 is a compact server with impressive storage capabilities. This 12-bay unit is fully compatible with 2.5" SAS/SATA/U.2 NVMe drives (with the PCIe Gen4 backplane supporting up to 4 U.2 NVMe bays). Users can benefit from flexible storage configurations to meet their specific needs.
The IW-RS112-08 fully demonstrates the chassis' compatibility, supporting an FHFL (full-height, full-length) PCIe slot, with a PCIe 4.0 x16 lanes riser card included.
Speedy with PCIe Gen5
The IW-RS112-08 offers three types of hybrid backplanes: PCIe Gen5 ( MCIO 4i), PCIe Gen4 (SlimSAS), SAS4 and SAS3. Users can choose backplane according to their requirements. Nevertheless, the SlimSAS backplanes adopting SFF-8654 8i slots can readily support PCIe 4.0 speeds, and with half the cables (compared with SFF-8654 4i), which can provide better cable management.
SAS4 (24Gb/s) & PCIe Gen5 (32GT/s)
SAS3(12Gb/s) & PCle Gen4 (16GT/s)
SAS3 (12Gb/s)
Note: The M/B & SSDs should correspond with PCIe Gen5.
Well-Engineered Airflow

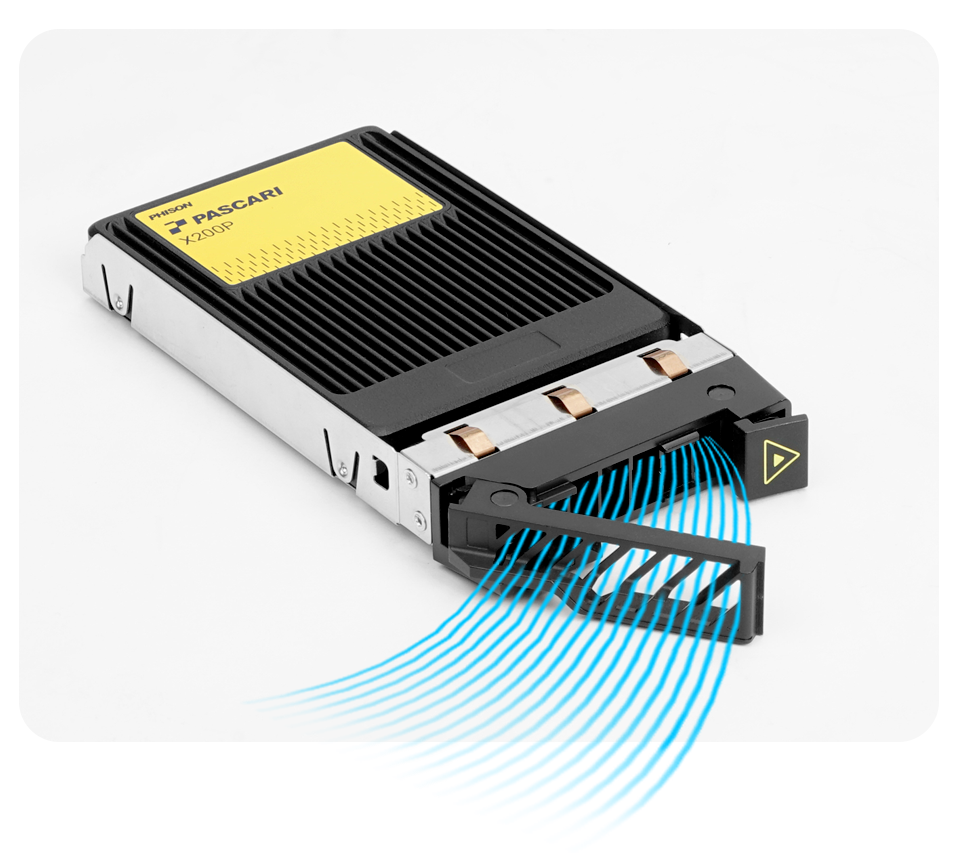

Paired with the 40 x 56mm PWM, easy-swap fans x 6 creates excellent thermal performance at 33000 RPM.
Superior Airflow
Easy-Swap Fans
Meets The Thermal Environment Requirements

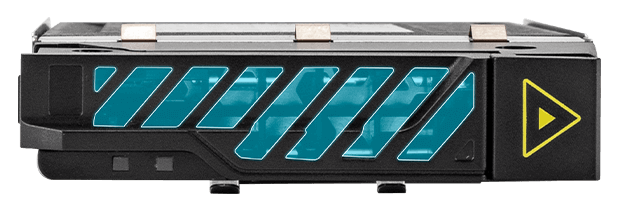

The perforated front panel trays significantly enhance airflow compared to standard solid front panel trays.
Surpass the Limitation

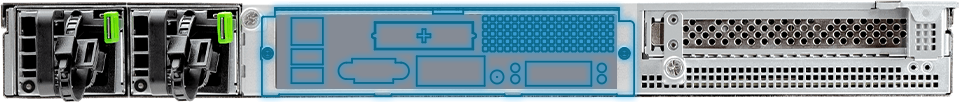

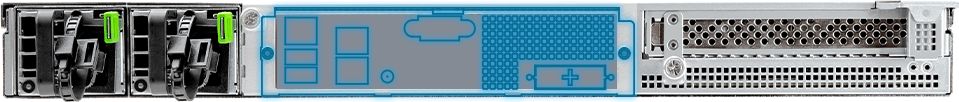

InWin can customize the I/O shield backplate for specific motherboards, with SGCC material to fulfill customers' specific I/O configuration requirements.
Reliability
The 1+1 redundant PSU is 80 PLUS® Platinum, delivering up to 92% conversion efficiency, less energy wasted, and powers your system with reliability.
Power Supply Cable Information
20+4 Pin Motherboard
8 Pin CPU
8 Pin CPU
8 Pin Backplane Power
6 Pin Backplane Power
PMBus
Dimensions
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | External 2.5" hot-swap U.2 NVNe/SAS/SATA drives x 12 |
| Power Supply | Pre-installed: • Form factor: 1U redundant PSU, 80 Plus Platinum • Watt: 750W |
| Indicators | Power LED, LAN1/LAN2 LED, system LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW, USB 3.0 x 1 |
| Backplane Type-1 | • Host: MCIO 4i x 12, SlimSAS (SFF-8654 4i) x 3 for SAS/SATA transfer rates • HDD: SAS/SATA/NVMe x 12 |
| Backplane Type-2 | • Host: Mini-SAS HD (SFF-8643) x 3, SlimSAS (SFF-8654 8i) x 2 • HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
| Backplane Type-3 | • Host: Mini-SAS HD (SFF-8643) x 3 • HDD: SAS/SATA x 12 |
| Cooling Fans | • PCIe Gen5 solution: Pre-installed 40 x 56mm PWM fans x 6, 33000 RPM • PCIe Gen4 solution: Pre-installed 40 x 56mm PWM fans x 6, 21500 RPM |
| Expansion Slot | One full-height PCIe slot with a PCIe Gen4 riser card and bracket included (Left-facing 90 degree design) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 676 x 438 x 43.5mm (26.6 x 17.2 x 1.7") |
| Package Dimensions (DxWxH) | 820 x 590 x 175mm (32.3 x 23.2 x 6.9") |
| Weight (Chassis Only) | • Net weight: 10.6kg • Gross weight: 12.97kg |
| Cubic Feet | 2.99 |
| Container Information | Single packing with pallets: • 20': 200pcs • 40': 460pcs • 40' HQ: 552pcs |
Backplane Specifications
| Backplane Type-1 | SAS4 & PCIe Gen5 hybrid backplane |
| Data Transfer Rate | SAS4 24Gb/s PCIe Gen5 32GT/s |
| Dimensions (W x H) | 404.5 x 52mm |
| Backplane Type | Passive |
| Host Interface | MCIO 4i x 12, SlimSAS (SFF-8654 4i) x 3 for SAS/SATA transfer rates |
| HDD Interface | SAS/SATA/NVMe x 12 |
| Backplane Type-2 | SAS3 & PCIe Gen4 hybrid backplane |
| Data Transfer Rate | SAS3 12Gb/s PCle Gen4 16GT/s |
| Dimensions (W x H) | 404.5 x 52mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 3, SlimSAS (SFF-8654 8i) x 2 |
| HDD Interface | SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
| Backplane Type-3 | SAS3 backplane |
| Data Transfer Rate | 12Gb/s |
| Dimensions (W x H) | 404.5 x 52mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 3 |
| HDD Interface | SAS/SATA x 12 |
* InWin NVMe backplane supports PCIe Gen5 & SAS4, the actual data transfer speed will be determined by MB and HDD specifications.
* All components and optional parts are not included. InWin reserves the right to make final modifications.
* All components and optional parts are not included. InWin reserves the right to make final modifications.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 set |
|
| Slide Rail | 3RAMIS152300/ 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 set |
|
| Cable | 3RAMW4084100 | SlimSAS (SFF-8654) 8i to SlimSAS (SFF-8654) 8i Cable, 450 mm | Max. 2 |
|
| Cable | 3RAMW4031700 | Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD Cable, 800 mm | Max. 3 |
|
| Cable | InWin can customize the connectors and cable lengths to meet customers' specific motherboard requirements | 1 set | ||
| Power Supply | 3RAMAP030400 | 750W 1U redundant PDB power cage | 1 |
|
| Power Supply | 3RAMAP042200 | 750W 1U redundant module, 80 Plus Platinum, IEC 62368-1 certified | Max.2 |
|
| Backplane | 2RBTVI011500 | SAS4 & PCIe Gen5 backplane | 1 |
|
| Backplane | 2RBTVI008002 | SAS3 & PCIe Gen4 backplane | 1 |
|
| Backplane | 2RBTVI008102 | SAS3 backplane | 1 |
|
| HDD Tray | 2RAKPH066200 | 2.5" hot-swap HDD tray | Max.12 |
|
| HDD Tray | 2RAKPH068100 | 2.5" hot-swap HDD tray with NVMe symbol | Max.12 |
|
| Fan | 2RAKFB020600 | 40 x 56mm PWM fan & fan bracket, 6pin, 33000 RPM, PCIe Gen5 solution | Max.6 |
|
| Fan | 2RAKFB011800 | 40 x 56mm PWM fan & fan bracket, 4pin, 21500 RPM, PCIe Gen4 solution | Max.6 |
|
| Riser Card | 2RAKPD079901 | PCIe Gen4 x16 lanes riser card (left-facing 90 degree design) | 1 |
|
| Riser Card | 2RAKPD087800 | PCIe Gen5 x16 lanes riser card (left-facing 90 degree design) | 1 |
|
| Others | 2RAKIP026500 | Mesh front panel | 1 |
|
| Others | InWin can customize the I/O shield backplate for specific motherboards, with SGCC material to fulfill customers' specific I/O configuration requirements. | 1 |
Product Video
InWin 08 Series 1U Rackmount｜IW-RS112-08
Tutorials
InWin IW-RS112-08 Tray, Fan, PSU Installation
InWin IW-RS112-08 MB & Expansion Card Installation

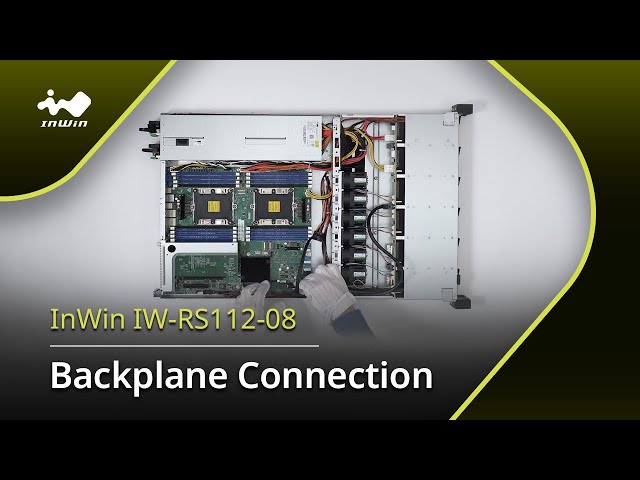

InWin IW-RS112-08 Backplane Connection
