IW-RS216-07

2U NVMe Hybrid Rackmount Chassis

  • Intel® Xeon Scalable & AMD EPYC family compliant
  • Backplanes with Mini-SAS HD or OCuLink connectors (compatible with PCIe 4.0)
  • Full range of storage configurations: 3.5" HDDs and 2.5" SSDs (15mm, 7mm)
  • 3.5"/2.5" (15mm) trays x 8, pair optional 2.5" (15mm) trays or 2.5"(7mm) trays
  • Maximum supports U.2 NVMe SSDs x 16
  • Rear drive bays support 2 x 2.5" SAS/SATA SSDs for system disks
  • 550W/800W/1200W/1600W CRPS, 80 Plus® Platinum (optional)
  • High-speed cooling fans for excellent thermal performance

2U Hybrid Storage Server
The Most Comprehensive SAS/SATA/NVMe Storage Solution

The IW-RS216-07 supports three types of drive bays: 3.5"/2.5" (15mm) HDDs, 2.5"(15mm) SSDs and 2.5" (7mm) SSDs, bringing a wide range of storage combinations. More options to meet your storage preferences and increase/maintain efficiency.

Compliant

x 16 bays

x 18 bays

2.5" 15mm HDD

2.5" 7mm HDD

System disks

CRPS

PCle slot x 7

80 x 38mm fans x 4

Multiple Storage Options

Flexible storage combinations of 2.5"(15mm) and 2.5"(7mm) drive bays and pairing 3.5"/2.5"(15mm) drive bays supports up to 16 x U.2 NVMe SSDs. For providing more drive spaces, the IW-RS216-07 has 2 x 2.5"(15mm) SAS/SATA SSDs for system disks at the rear of the chassis. All drive bays feature hot-swap and tool-free designs.

3.5"/2.5" (15mm) SSDs

2.5" (7mm) SSDs

2.5" (15mm) SSDs

All bays support NVMe/SAS/SATA

Supports SAS/SATA

Front View
Rear View


The Perfect Fit

Choose from an assortment of storage options with a variety of transfer rates and several drive bays. Make the IW-RS216-07 the perfect fit your storage needs.

Transfer Rates

SAS/SATA

NVMe

Hybrid

SSD Trays

7mm

15mm

Mix

Up to 16 trays with SAS/SATA data transfer rates
3.5"/2.5" (15mm) x 8 and 2.5" (7mm) x 8
12 total trays with SAS/SATA data transfer rates
3.5"/2.5" (15mm) x 8 and 2.5" (15mm) x 4
14 total trays with SAS/SATA data transfer rates
3.5"/2.5" (15mm) x 8, 2.5" (15mm) x 2 and 2.5" (7mm) x 4
Up to 16 trays with 100% NVMe accelerated storage
3.5"/2.5" (15mm) x 8 and 2.5" (7mm) x 8
12 total trays with 100% NVMe accelerated storage
3.5"/2.5" (15mm) x 8 and 2.5" (15mm) x 4
14 total trays with 100% NVMe accelerated storage
3.5"/2.5" (15mm) x 8, 2.5" (15mm) x 2 and 2.5" (7mm) x 4
Up to 16 trays with optional hybrid NVMe/SAS/SATA SSDs
3.5"/2.5" (15mm) x 8 and 2.5" (7mm) x 8
12 total trays with optional hybrid NVMe/SAS/SATA SSDs
3.5"/2.5" (15mm) x 8 and 2.5" (15mm) x 4
14 total trays with optional hybrid NVMe/SAS/SATA SSDs
3.5"/2.5" (15mm) x 8, 2.5" (15mm) x 2 and 2.5" (7mm) x 4
*Rear bay supports 2 x 3.5"/2.5"(15mm) HDDs with SAS/SATA data transfer rates.

Interconnect System
Mini-SAS HD & OCuLink Backplane

Featuring high-speed and exclusive connectivity, InWin’s backplanes are designed to support SAS/SATA and NVMe for OCuLink host interface.

Thermal Design

The IW-RS216-07 performs exceptionally well on eliminating heat by utilizing four of InWin's 80 x 38mm PWM hot-swap fans, featuring anti-vibration and low noise. It certainly meets thermal environment requirements from Intel® Xeon Scalable processors & AMD EPYC family.
inwin IPC rs216-07 thermal


Excellent heat dissipation

Low noise

Anti-vibration

Meets thermal environments requirements

Power Stabilization

Common Redundant Power Supply
80 Plus® Platinum Certified
Optional 550W/800W/1200W/1600W
inwin icon 80plus

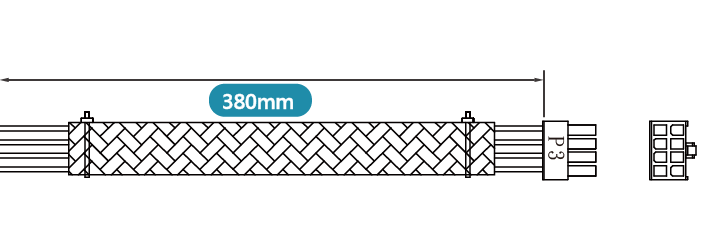

Power Supply Cable Information

24 Pin Main Motherboard
8 Pin CPU
8 Pin CPU
8 Pin BP
6 Pin BP
4 Pin Rear 2.5" 15mm HDD BP
4 Pin Rear 2.5" 7mm HDD BP
5 Pin 3.5" BP
5 Pin 3.5" BP
5 Pin 2.5"
7mm HDD BP
5 Pin 2.5"
7mm HDD BP
PMBus

Easy Maintenance

The tool-less and modularized designs are intended to help customers maintain the server more easily and efficiently. The latest gray tray color variant features an all-new mounting mechanism for the HDDs to quickly mounted and removed drives.
Ball-bearing slide rails

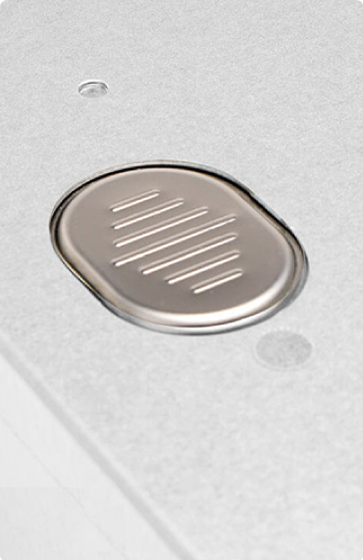

Top cover open button
Modularized backplane cage kit
Quick-install HDD trays
Hot-swap cooling fans

Dimensions

inwin rs216-07 application
Specification
Industry Standard Compatible with EIA-RS310D standard 19" cabinets
M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay • Top layer: maximum supports external 2.5" hot-swap trays (15mm) x 4 or 2.5" hot-swap trays (7mm) x 8
• Bottom layer: external 3.5"/2.5" hot-swap trays x 8
• Rear 2.5" hot-swap trays x 2 (supports SAS 12Gbps)
Power Supply Supports:
• Form factor: 80 Plus Platinum CRPS
• Watt: 550W/800W/1200W/1600W
Indicators Power LED, LAN1/LAN2/LAN3/LAN4/LED, system LED, HDD LED
Front Control Panel Power on/off, system reset, NMI, ID SW/ID LED, USB 3.0 x 2
Backplane- Top Layer Type 1 • Host: OCuLink (SFF-8611) x 3, one is for SAS/SATA transfer rates
• HDD: SAS/SATA/NVMe SSDs x 2 (2.5" 15mm)
• Backplane kits pre-installed x 2pcs with 2-drive capacity of each
Backplane- Top Layer Type 2 • Host: OCuLink (SFF-8611) x 5, one is for SAS/SATA transfer rates
• HDD: SAS/SATA/NVMe SSDs x 4 (2.5" 7mm)
• Backplane kits pre-installed x 2pcs with 4-drive capacity of each
Backplane- Bottom Layer • Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 4
• HDD: SAS/SATA/NVMe SSDs x 4 (3.5"/2.5" 15mm)
• Backplanes pre-installed x 2pcs
Cooling Fans 80 x 38mm PWM hot-swap fans x 4, 12000RPM
Expansion Slot Low-Profile PCIe slots x 7
Material • Material: SGCC
• Thickness: 1.2mm
Rail Kit Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only) 660 x 448 x 87.5mm
(26" x 17.6" x 3.4")
Package Dimensions (DxWxH) 905 x 610 x 228mm
Weight (Chassis Only) • Net weight:16.14kg
• Gross weight:19.60kg
Cubic Feet 4.44
Container Information Single packing with pallets:
• 20': 160pcs
• 40': 336pcs
• 40' HQ: 378pcs

Backplane Specifications

Backplane- Top Layer Type 1 SAS3 & PCIe Gen4 hybrid backplane kit
(Pre-installed x 2pcs with 2-drive capacity of each)
Data Transfer Rate SAS3 12Gb/s
PCle Gen4 16GT/s
Dimension (W x H) 163.5mm x 24.4mm
Backplane Type Passive
Host Interface OCuLink (SFF-8611) x3,one is for SAS/SATA transfer rates
HDD Interface SAS/SATA/ NVMe SSDs x 2 (2.5" 15mm)

Backplane- Top Layer Type 2 SAS3 & PCIe Gen4 hybrid backplane kit
(Pre-installed x 2pcs with 4-drive capacity of each)
Data Transfer Rate SAS3 12Gb/s
PCle Gen4 16GT/s
Dimension (W x H) 161.5mm x 24.7mm
Backplane Type Passive
Host Interface OCuLink (SFF-8611) x5, one is for SAS/SATA transfer rates.
HDD Interface SAS/SATA/ NVMe SSD x 4 (2.5" 7mm)

Backplane-Bottom Layer SAS3 & PCIe Gen4 hybrid backplane
(Pre-installed x 2pcs)
Data Transfer Rate SAS3 12Gb/s
PCle Gen4 16GT/s
Dimension (W x H) 404.5mm x 23mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x1 , OCuLink (SFF-8611) x4
HDD Interface SAS/SATA/NVMe SSDs x 4 (3.5"/2.5" 15mm)

Rear Disk Backplane Specifications

Backplane SAS3 backplane
Data Transfer Rate 12Gb/s
Dimension (W x H) 80mm x 37mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 1
HDD Interface SAS/SATA x 2
* InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications.
* All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications.

Item Download Preview
IW-RS216-07 eDM
IW-RS216-07 Gallery -
IW-RS216-07 Compatibility List
IW-RS216-07 User Manual
IW-RS216-07 Top Layer Type 1 Backplane User Manual
IW-RS216-07 Top Layer Type 2 Backplane User Manual
IW-RS216-07 Bottom Layer Backplane User Manual
Item Part Number Description Support Picture
Slide Rail 3RAMIS148100 28" tool-less & ball-bearing slide rail 1 set
Slide Rail - server system assembly
Slide Rail 3RAMIS152300/ 3RAMIS152400 28" tool-less & ball-bearing slide rail with CMA support 1 set
Slide Rail - server system assembly
Cable 3RAMW4031700 Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm Max. 2
Cable - server system assembly
Cable 3RAMW4039700 Mini-SAS HD 12Gbps (SFF-8643) to OCuLink (SFF-8611) Cable, 800 mm Max. 2
Cable - server system assembly
Cable InWin can customize the SFF-8611/ SFF-8654 cables to fulfill customers' OCuLink/SlimSAS connectors requirements. Max. 16
Power Supply 3RAMAP025102 80 Plus Platinum 550W CRPS Max. 2
Power Supply - server system assembly
Power Supply 3RAMAP025202 80 Plus Platinum 800W CRPS Max. 2
Power Supply - server system assembly
Power Supply 3RAMAP026501 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) Max. 2
Power Supply - server system assembly
Power Supply 3RAMAP044300 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) Max. 2
Power Supply - server system assembly
Power Supply 3RAMAP042900 CRPS PDB 1
Power Supply - server system assembly
Backplane 2RBTVI004000 Mini-SAS HD & OCuLink backplane Max. 2
Backplane - server system assembly
Backplane Kit 2RAKID105401 Top layer type 1 OCuLink backplane and 2.5" 15mm HDD trays x 2 (Gray color with NVMe symbol). Other tray combinations of transfer rates and colors are make-to-order. Max. 2
Backplane Kit - server system assembly
Backplane Kit 2RAKID105201 Top layer type 2 OCuLink backplane & 2.5" 7mm HDD trays x 4 (Gray color with NVMe symbol). Other tray combinations of transfer rates and colors are make-to-order. Max. 2
Backplane Kit - server system assembly
HDD Tray 2RAKPH057702 3.5"/2.5" (15mm) hot-swap HDD tray (Gray color) Max. 8
HDD Tray - server system assembly
HDD Tray 2RAKPH063701 3.5"/2.5" (15mm) hot-swap HDD tray (Gray color with NVMe symbol) Max. 8
HDD Tray - server system assembly
HDD Tray 2RAKPH057801 2.5" (15mm) hot-swap HDD tray (Gray color) Max. 6
HDD Tray - server system assembly
HDD Tray 2RAKPH063801 2.5" (15mm) hot-swap HDD tray (Gray color with NVMe symbol) Max. 4
HDD Tray - server system assembly
HDD Tray 2RAKPH063400 2.5" (7mm) hot-swap tray (Gray color) Max. 8
HDD Tray - server system assembly
HDD Tray 2RAKPH063900 2.5" (7mm) hot-swap tray (Gray color with NVMe symbol) Max. 8
HDD Tray - server system assembly
Fan 3RAMFB016302 80 x 38mm PWM hot-swap fan, 12000RPM, 6pin Max. 4
Fan - server system assembly
Fan 2RAKFB011602 80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin Max. 4
Fan - server system assembly
Others 2RAKIP022700 Mesh front panel 1
Others - server system assembly
Others 3RAMRW011300 Intrusion switch / 800mm 1
Others - server system assembly
