．Intel® Xeon Scalable & AMD EPYC family compliant
．Backplanes with Mini-SAS HD, OCuLink or Slimline connectors (compatible with PCIe 4.0)
．2.5" hot-swap SSD trays x 24 (optional NVMe trays x 8, distinguishes U.2 NVMe SSDs)
．Tool-less design for 2.5" SSD tray
．End-to-end 12Gbps SAS host, expander, and disk support

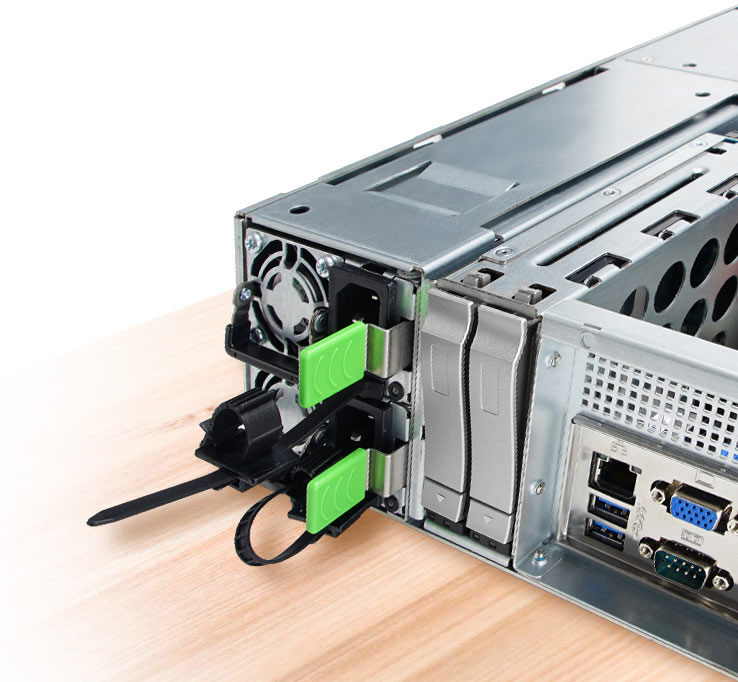

．2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis
．Highly efficient 1600W, 80 Plus® Platinum CRPS (optional)
．High-speed cooling fans for excellent thermal performance
．Supports tool-less ball-bearing slide rails

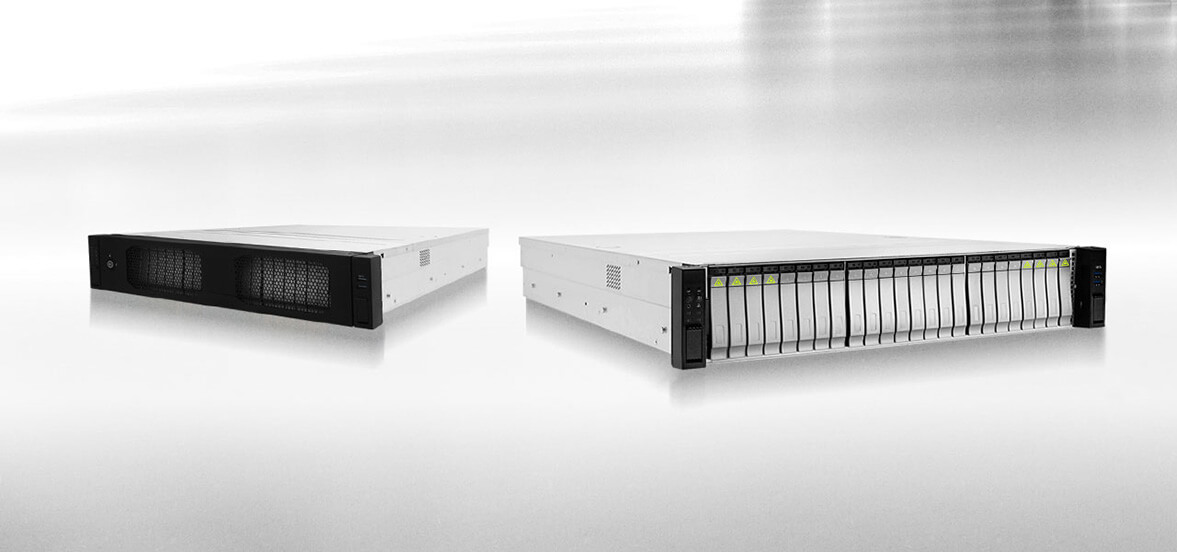

The IW-RS224-07, an NVMe hybrid storage server, is fully compliant for use with
Intel® Xeon Scalable processors & the AMD EPYC family. A high-performance, reliable storage appliance, it is perfect for business settings.
The IW-RS224-07 can be implemented in data centers, cloud computing, or simply as an enterprise’s storage server.
It’s compatible with the latest platforms and components.
Superior performance, reliability, and capacity without bottlenecks.

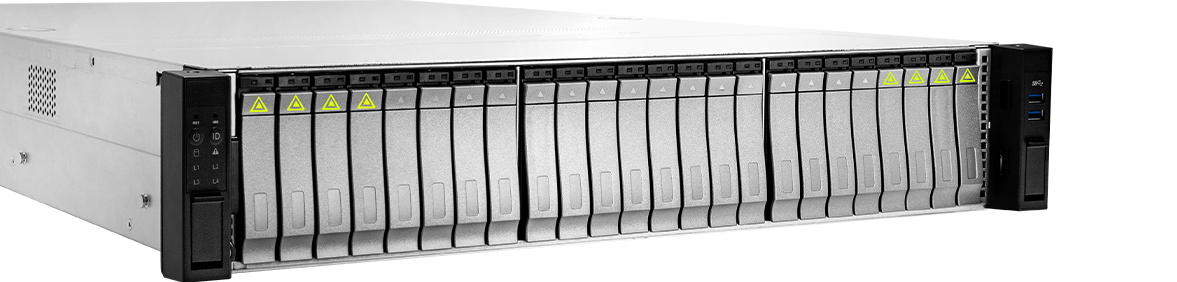

The IW-RS224-07 can be configured as either
24 x SAS/SATA or 16 x SAS/SATA + 8 x U.2 NVMe drives.
To meet your storage requirements,
the IW-RS224-07 supports 2 x 2.5" SAS/SATA SSD drive bays at the rear of the server.
InWin's backplane possesses great connectivity and is designed to support SAS/SATA, and NVMe for Slimline or OCuLink host interface.

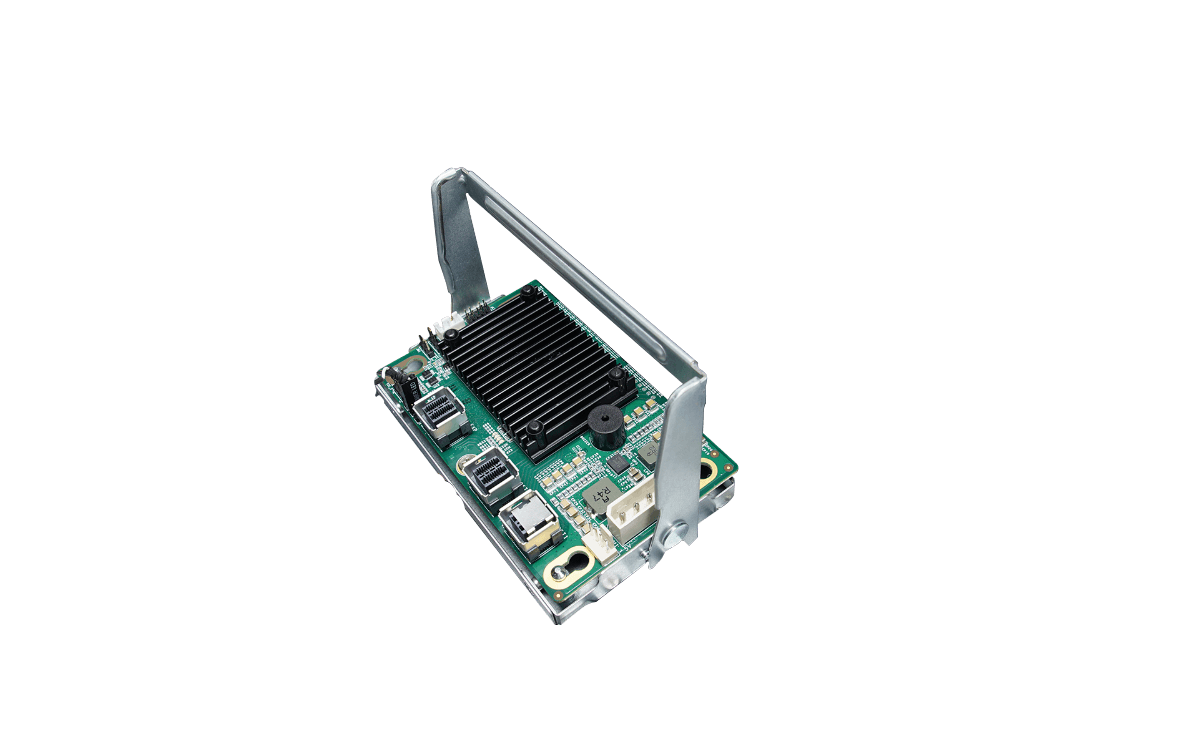

Equipped with 12G SAS Storage Array and the built-in expander board, the IW-RS224-07 is capable of integrating end-to-end
connectivity to increase the unprecedented efficiency of data management.
InWin’s hot-swappable fans feature anti-vibration and produce low noise volume but present a strong current to have optimal heat dissipation.
CRPS, with an 80 Plus® Platinum compatible performance, is able to stabilize
the operation of the system and greatly enhances the system’s availability.
Tool-less items such as ball-bearing slide rails, top cover, and hot-swap trays and fan modules
offered by InWin help users easily install their server.
Ball-bearing slide rails
Top cover open button
Hot-swap tray
Hot-swap fan modules
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | • External 2.5" screwless hot-swap SSD trays x 24 (optional U.2 NVMe SSD trays x 8) • Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12Gbps) |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W/800W/1200W/1600W |
| Indicator | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED |
| Front Control Panel | Power on/off, reset, NMI, ID SW, USB 3.0 x 2 |
| Backplane Type-1 | • Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8 • SSD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8 |
| Backplane Type-2 | • Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8 • SSD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8 |
| 12Gbps Expander Module | Supports broadcom SAS 35 x 36R expander |
| Cooling Fan | 80 x 38mm PWM hot-swap fans x 4, 12000RPM Modular design with anti-vibration |
| Expansion Slot | Low-profile PCIe slots x 7 |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Optional: supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 660 x 448 x 87.5mm (26" x 17.6" x 3.4") |
| Package Dimensions (DxWxH) | 845 x 595 x 223mm |
| Weight (Chassis Only) | • Net weight: 13.45kg • Gross weight: 16.76kg |
| Cubic Feet | 3.96 |
| Container Information | Single packing with pallets: • 20': 160pcs • 40': 368pcs • 40' HQ: 414pcs |

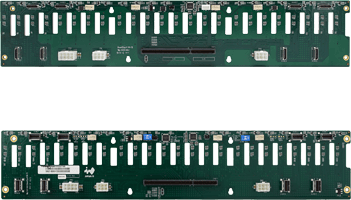

| Backplane Type-1 | Mini-SAS HD & Slimline backplane |
| Dimensions (W x H) | 420mm x 81mm |
| Backplane Type | Active with expander board |
| Host Interface | Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8 |
| SSD Interface | SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8 |
| Backplane Type-2 | Mini-SAS HD & OCuLink backplane |
| Dimensions (W x H) | 420mm x 81mm |
| Backplane Type | Active with expander board |
| Host Interface | Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8 |
| SSD Interface | SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8 |
| Item | Download | Preview |
|---|---|---|
| IW-RS224-07 eDM | ||
| IW-RS224-07 Gallery | - | |
| IW-RS224-07 Compatibility List | ||
| IW-RS224-07 User Manual | ||
| IW-RS224-07 SAS3 Backplane User Manual (Cub Expander) |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 set |
|
| Slide Rail | 3RAMIS152300 / 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 set |
|
| Cable | 3RAMW4031700 | Mini SAS 12Gbps SFF-8643 to SFF-8643 cable, 800mm | Max.3 |
|

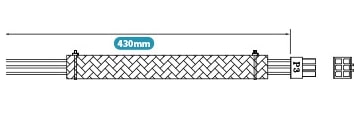

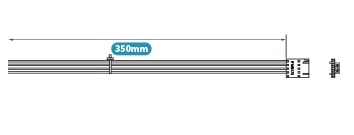

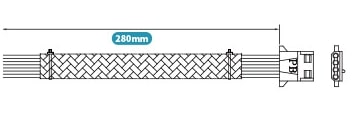

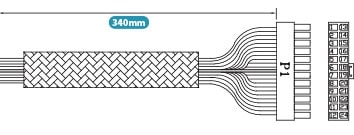

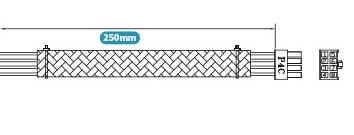

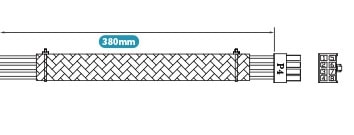

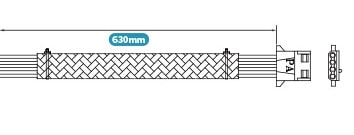

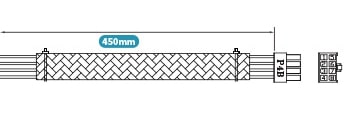

| Cable | InWin can customize the SFF-8611/ SFF-8654 cables to fulfill customers' OCuLink/Slimline connectors requirements. | Max.8 | ||
| Power Supply | 3RAMAP025102 / 3RAMAP042800 | 80 Plus Platinum 550W CRPS / CRPS PDB | Max. 2 |
|
| Power Supply | 3RAMAP025202 / 3RAMAP042800 | 80 Plus Platinum 800W CRPS / CRPS PDB | Max. 2 |
|
| Power Supply | 3RAMAP045100 / 3RAMAP045000 | 80 Plus Platinum 800W CRPS / CRPS PDB | Max. 2 |
|
| Power Supply | 3RAMAP026501 / 3RAMAP042800 | 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB | Max. 2 |
|
| Power Supply | 3RAMAP044300 / 3RAMAP042800 | 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) / CRPS PDB | Max. 2 |
|
| Backplane | 2RBTVI002901 | Mini-SAS HD & Slimline backplane | 1 |
|
| Backplane | 2RBTVI001501 | Mini-SAS HD & OCuLink backplane | 1 |
|
| HDD Tray | 2RAKPH057801 | 2.5" hot-swap HDD tray (gray color) | Max. 26 (included rear trays x 2) |
|
| HDD Tray | 2RAKPH038201 | 2.5" hot-swap HDD tray (gold color) | Max. 26 (included rear trays x 2) |
|
| HDD Tray | 2RAKPH063801 | 2.5" hot-swap HDD tray (gray color with NVMe symbol) | Max. 8 |
|
| HDD Tray | 2RAKPH038301 | 2.5" hot-swap HDD tray (gold color with NVMe symbol) | Max. 8 |
|
| Fan | 3RAMFB016301 | 80 x 38mm PWM hot-swap fan, 12000RPM, 6pin | Max. 4 |
|
| Fan | 2RAKFB011601 | 80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin | Max. 4 |
|
| Others | 2RAKIP022700 | Mesh front panel | 1 |
|
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 |
|
