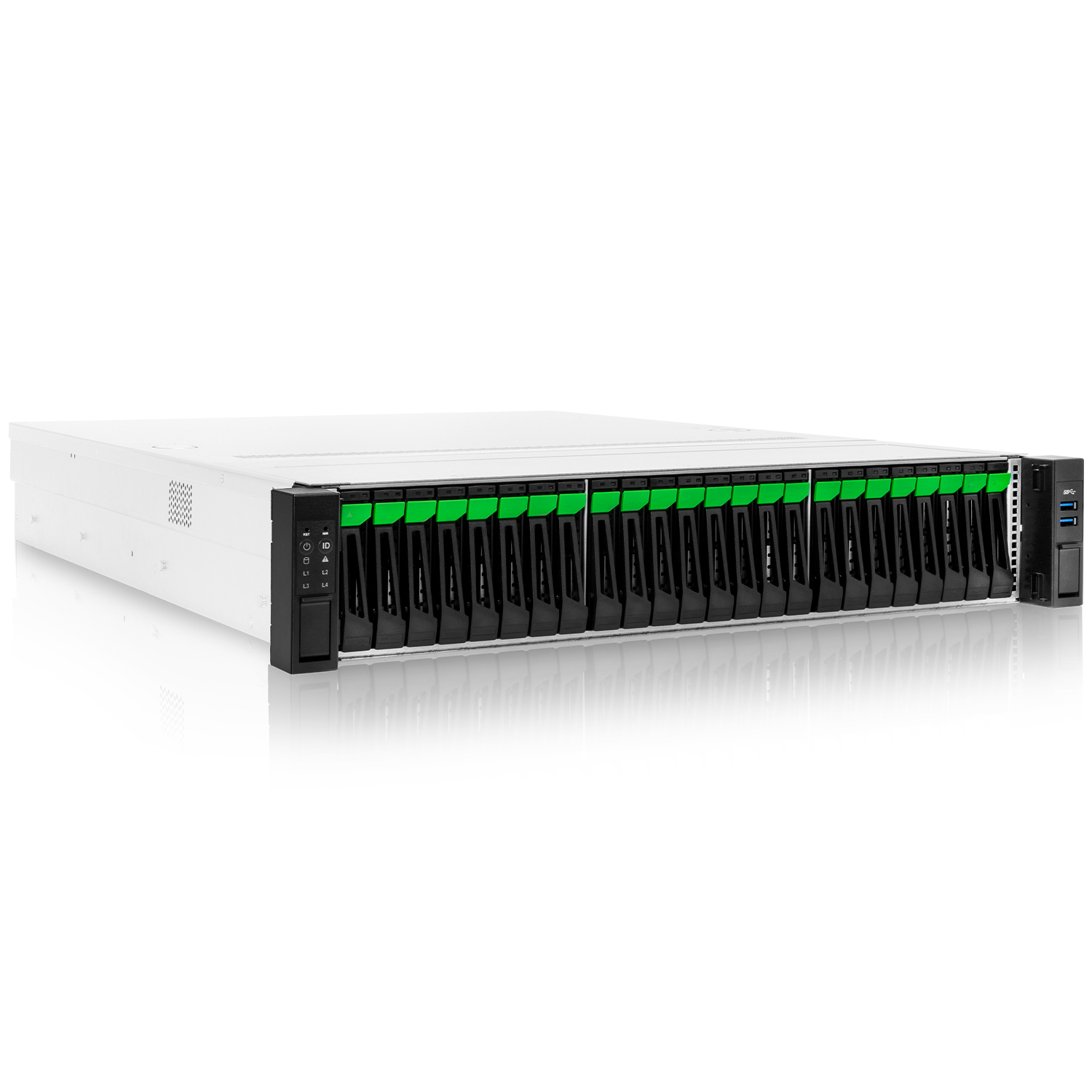

IW-RS224-09
2U PCIe Gen5 NVMe Hybrid Rackmount Chassis
- 2U PCIe Gen5 and SAS4 hybrid solution storage server
- All 24 for the 2.5" hot-swap SSD trays fully support U.2 NVMe, SAS, and SATA SSDs
- Hybrid backplane options for PCIe Gen5 and SAS4, featuring MCIO and SlimSAS connectors
- Tray front panel features a large cooling area with 17,000RPM fans to meets the PCIe Gen5 and SAS4 thermal needs
- Two 2.5" SAS/SATA SSDs for system disks located at the rear of the chassis
2U Rackmount Server
PCIe Gen5 and SAS4 Storage Server Solutions for Enterprise Architectures
The IW-RS224-09 is a high-performance NVMe hybrid storage server that delivers exceptional speed and reliability. With support for PCIe Gen5 and SAS4 data transfer speeds for flexible deployment, it ensures rapid data throughput for even the most demanding business environments. This hybrid design offers a cost-effective path for businesses requiring robust and fast storage solutions.
2.5" SSD
System disks
CRPS
80 x 38mm fans x 4
28" slide rails
Multiple Storage Options Available
Select from a range of storage options with various transfer rates. The IW-RS224-09 can support 24 x U.2 NVMe, 24 x SAS/SATA, or a combination of 12 x SAS/SATA and 12 x U.2 NVMe hot-swap drives.

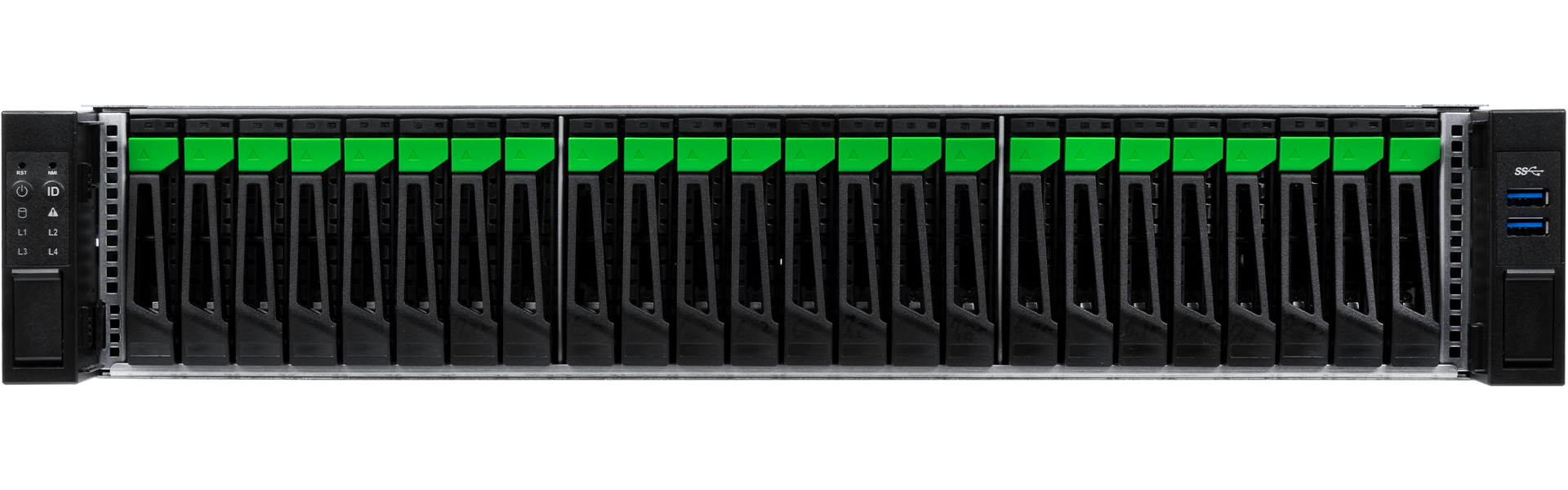

Distinguish PCIe Gen5 U.2 NVMe SSDs

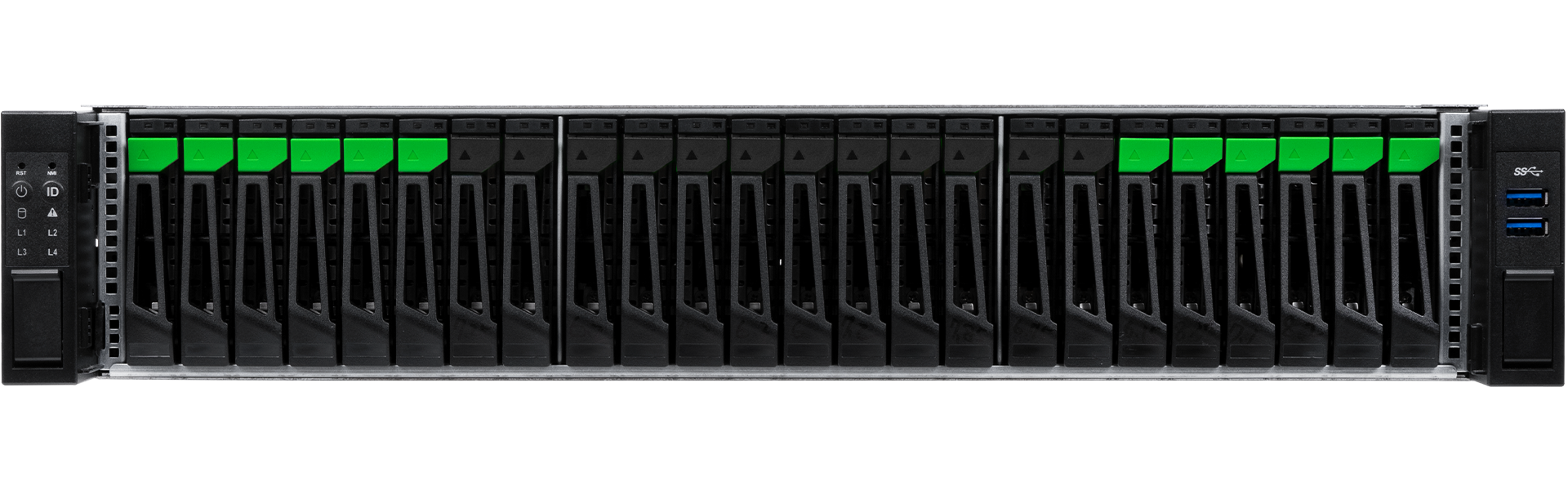

Distinguish between PCIe Gen5 NVMe and SAS4 SAS/SATA SSDs

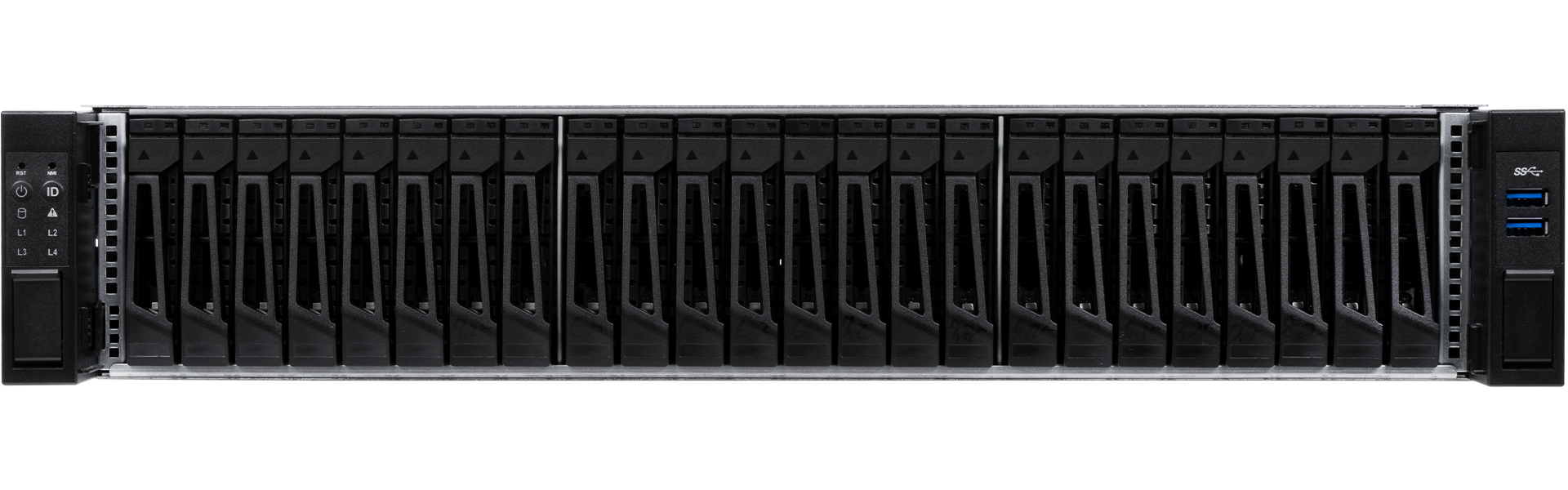

Distinguish SAS4 SAS/SATA SSDs
Boost Your Speed
The flexible, modular design of the SAS4 and PCIe Gen5 backplane conveniently supports different data transfer rates.

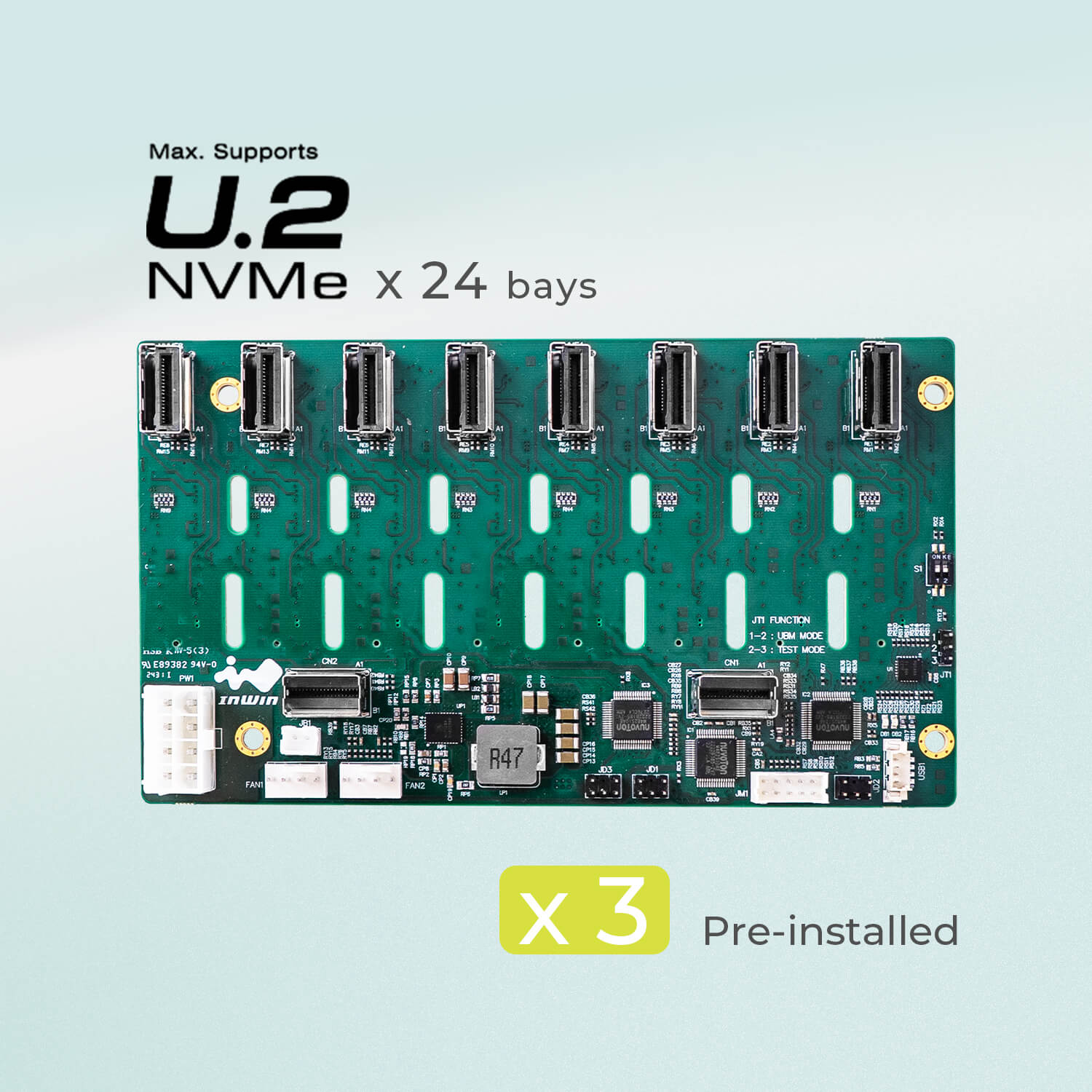

2U Boasts Three 8-bays Hybrid Backplanes
Supports 24 x U.2 NVMe, features 8 x MCIO 4i connectors, 2 x SlimSAS (SFF-8654) connectors for SAS/SATA transfer rates, and comes pre-installed with three 8-drive capacity modules specific to this model.

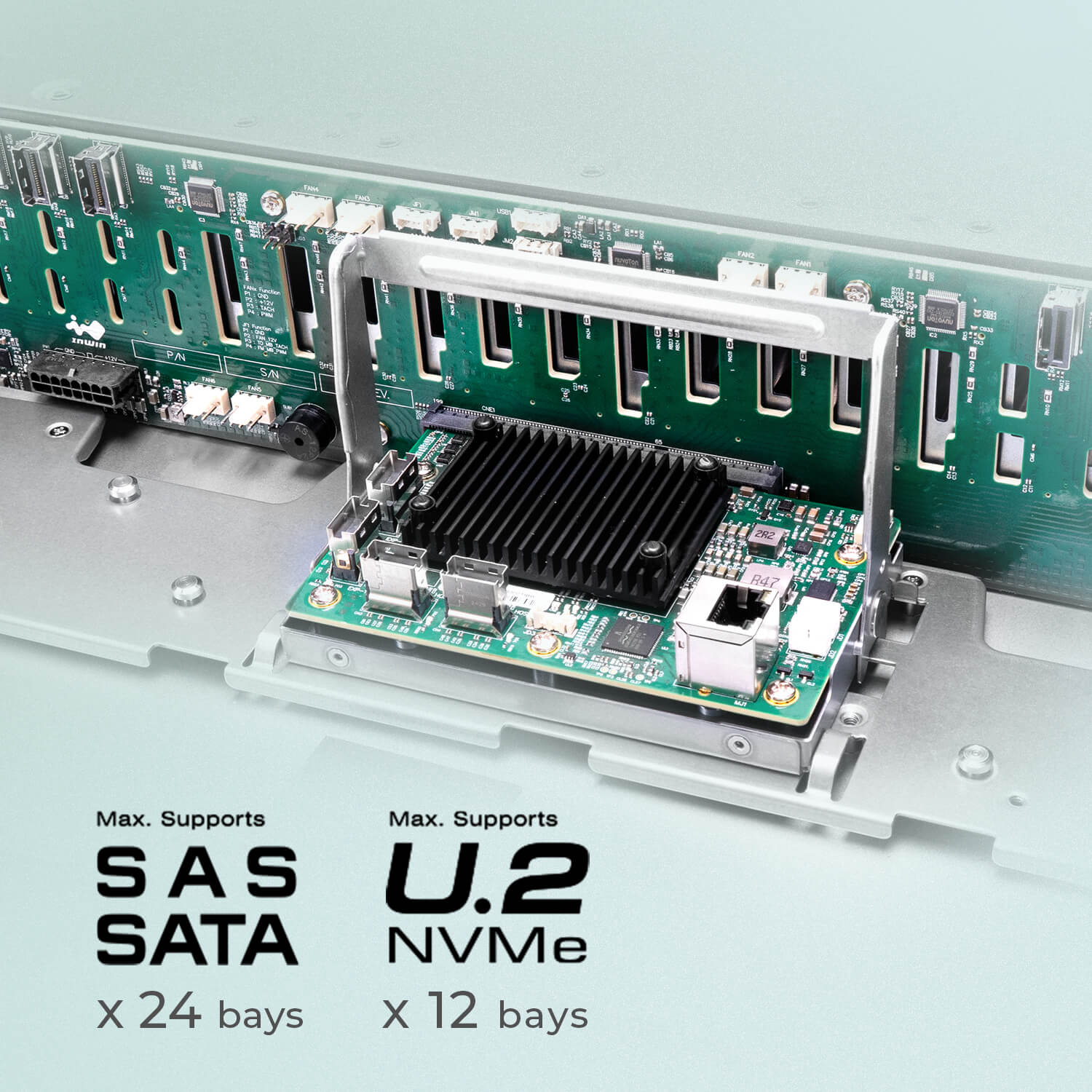

Hybrid Backplane & Expander
Supports 24 x SAS/SATA, or 12 x SAS/SATA and 12 x U.2 NVMe, features 12 x MCIO 4i connectors, 4 x SlimSAS (SFF-8654) connectors for SAS/SATA transfer rate.

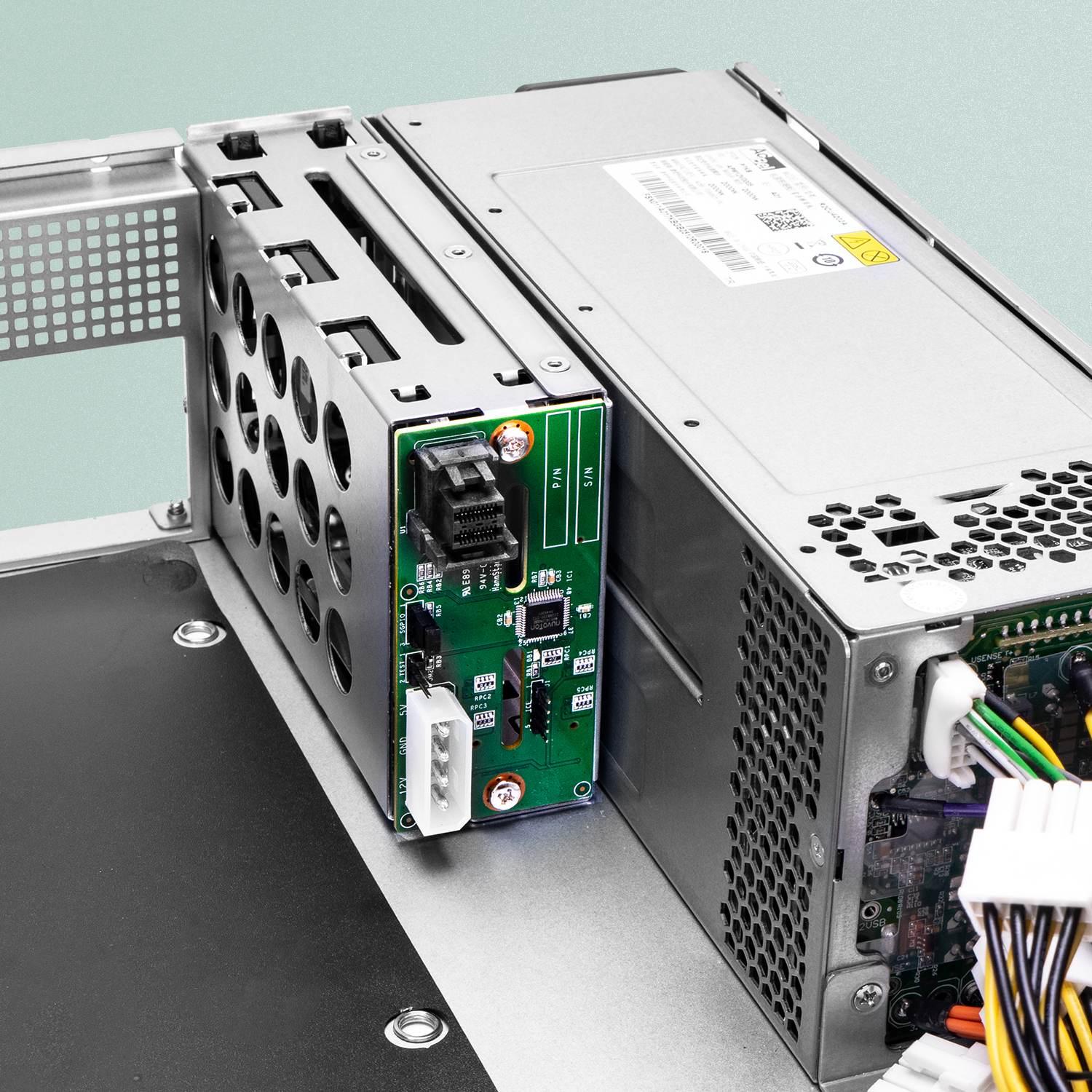

Rear Disk Backplane
The IW-RS224-09 supports 2 x 2.5" SAS3/SATA SSD drive bays at the rear of the server to accommodate system disk requirements.
Customizable Cables
InWin offers two standard lengths for MCIO 8i to 4i cables (500mm and 600mm) and a standard 600mm SlimSAS 8i to 4i cable, with additional customization available to meet customers' specific motherboard requirements.

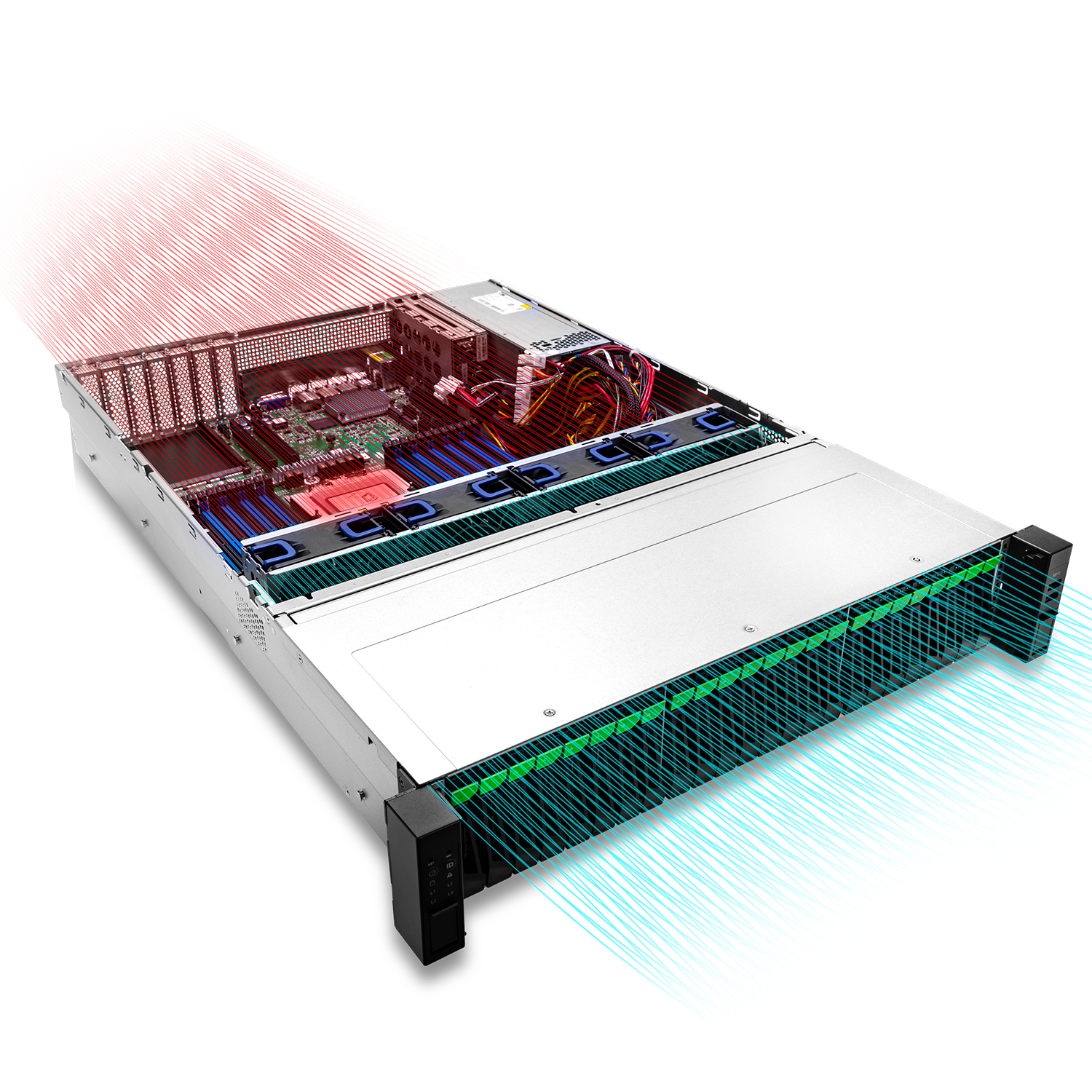

Efficient Cooling
for Next-Gen Performance

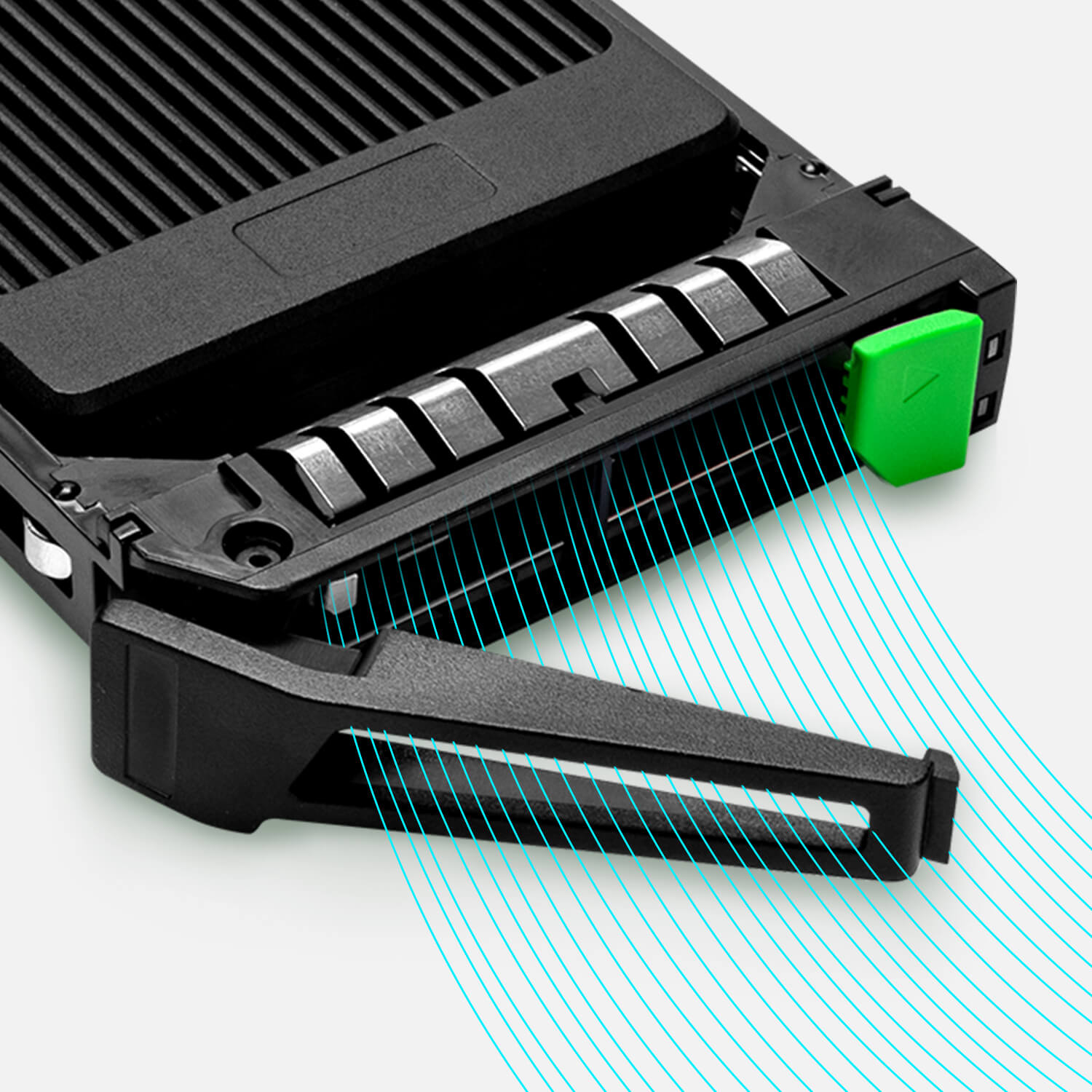

The ventilated front trays enhance airflow, while four hot-swappable modular fans running at 17,000 RPM ensure optimal heat dissipation and meet the cooling needs of PCIe Gen5 and SAS4, providing efficient thermal management.
Common Redundant Power Supplies
The IW-RS224-09 supports CRPS with 80 Plus® Platinum performance (PDB pre-installed), stabilizing system operation and significantly enhancing overall performance.
Power Cable Information
Unit of Length: mm
24-Pin Main Motherboard
4+4-Pin CPU
8-Pin Backplane or CPU x 4pcs
1. 4-Pin Rear SSD Backplane
2. SATA
2. SATA
8-Pin Backplane or CPU x 2pcs
PMBus
8-Pin Backplane
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13") |
| Drive Bay | • External 2.5" hot-swap trays x 24 (supports U.2 NVNe/SAS/SATA drives) • Rear 2.5" hot-swap trays x 2 (supports SAS/SATA drives) |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 1600W • 2000W CRPS PDB pre-installed |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW, USB 3.0 x 2 |
| Backplane Type-1 | • Host: MCIO 4i x 8, SlimSAS (SFF-8654 4i) x 2 for SAS/SATA transfer rates • SSD: NVMe/SAS/SATA SSD x 8 • Backplane pre-installed x 3pcs with 8-drive capacity of each |
| Backplane Type-2 | • Backplane Host: MCIO 4i x 12 • Expander Host: SlimSAS (SFF-8654 4i) x 4 for SAS/SATA transfer rates • SSD: SAS/SATA x 24 or NVMe x 12 and SAS/SATA SSD x 12 • Ethernet lan port x 1 |
| Cooling Fans | Pre-installed 80 x 38mm PWM hot-swap fans x 4, 17000RPM |
| Expansion Slot | Low-profile PCIe slots x 7 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 663.6 x 448 x 87.5mm (26.1" x 17.6" x3.4") |
| Package Dimensions (DxWxH) | 845 x 595 x 223mm (33.3" x 23.4" x 8.8") |
| Weight | • Net weight: 13.23kg • Gross weight: 16.6kg |
| Cubic Feet | 3.96 |
| Container Information | Single packing with pallets: • 20': 160pcs • 40': 368pcs • 40' HQ: 414pcs |
Backplane Specifications
| Backplane Type-1 | SAS4 & PCIe Gen5 2U 8-bays hybrid backplane (Pre-installed x 3pcs with 8-drive capacity of each) |
| Data Transfer Rate | SAS4 24Gb/s PCIe Gen5 32GT/s |
| Dimensions (W x H) | 138mm x 81mm |
| Backplane Type | Passive |
| Host Interface | MCIO 4i x 8, SlimSAS (SFF-8654 4i) x 2 for SAS/SATA transfer rates |
| SSD Interface | NVMe/SAS/SATA SSD x 8 |
| Backplane Type-2 | SAS4 & PCIe Gen5 hybrid backplane and expander |
| Data Transfer Rate | SAS4 24Gb/s PCIe Gen5 32GT/s |
| Dimensions (W x H) | 420mm x 81mm |
| Backplane Type | Active with expander board |
| Host Interface | • Backplane: MCIO 4i x 12 • Expander: SlimSAS (SFF-8654 4i) x 4 for SAS/SATA transfer rates • Ethernet lan port x 1 |
| SSD Interface | SAS/SATA x 24 or NVMe x 12 and SAS/SATA SSD x 12 |
Rear Disk Backplane Specifications
| Backplane | SAS3 backplane |
| Data Transfer Rate | 12Gb/s |
| Dimension (W x H) | 80mm x 37mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 1 |
| HDD Interface | SAS/SATA x 2 |
* InWin NVMe backplane supports PCIe Gen5 & SAS4, the actual data transfer speed will be determined by MB and HDD specifications.
* All components and optional parts are not included. InWin reserves the right to make final modifications.
* All components and optional parts are not included. InWin reserves the right to make final modifications.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 |
|
| Slide Rail | 3RAMIS152300 / 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 |
|
| Cable | 3RAMW6005400 | MCIO (SFF-TA-1016) 8i to 2 x MCIO (SFF-TA-1016) 4i Cable, 500 mm | Max. 12 |
|
| Cable | 3RAMW6005200 | MCIO (SFF-TA-1016) 8i to 2 x MCIO (SFF-TA-1016) 4i Cable, 600 mm | Max. 12 |
|
| Cable | 3RAMW4092200 | SlimSAS (SFF-8654) 8i to 2 x SlimSAS (SFF-8654) 4i Cable, 600 mm | 2~3 |
|
| Cable | InWin can customize the connectors and cable lengths to meet customers' specific motherboard requirements | 1 set | ||
| Power Supply | 3RAMAP044300 | 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) | Max. 2 |
|
| Backplane | 2RBTVI011600 | SAS4 & PCIe Gen5 hybrid backplane (2U 8bays) | Max. 3 |
|
| Backplane | 2RBTV1013301 | SAS4 & PCIe Gen5 hybrid backplane | 1 |
|
| Backplane | 2RAKID160200 | SAS4 Expander | 1 |
|
| HDD Tray | 2RAKPH074800 | 2.5" hot-swap HDD tray | Max. 24 |
|
| HDD Tray | 2RAKPH075400 | 2.5" hot-swap HDD tray | Max. 26 (included rear trays x 2) |
|
| Fan | 2RAKFB020701 | 80 x 38mm PWM hot-swap fan, 17000RPM, 6pin | Max. 4 |
|
| Others | 2RAKIP022700 | Mesh front panel | 1 |
|
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 |
|
Product Video

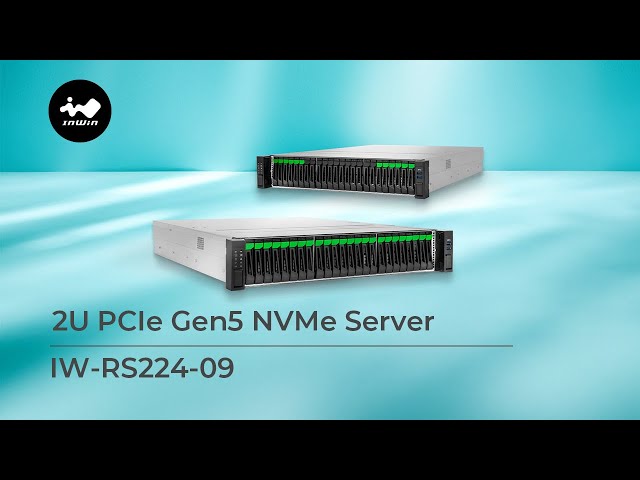

InWin 2U PCIe Gen5 NVMe Hybrid Rackmount Chassis｜IW-RS224-09
Tutorials

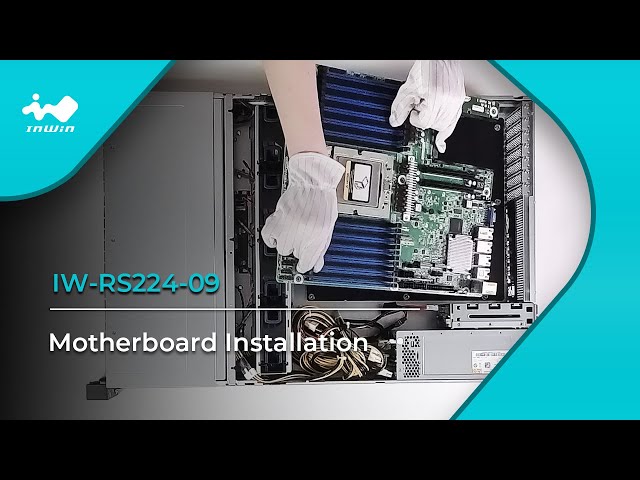

InWin IW-RS224-09 Motherboard Installation

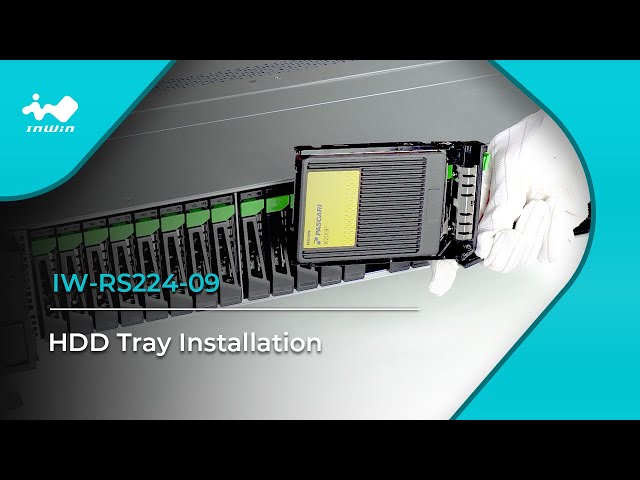

InWin IW-RS224-09 HDD Tray Installation

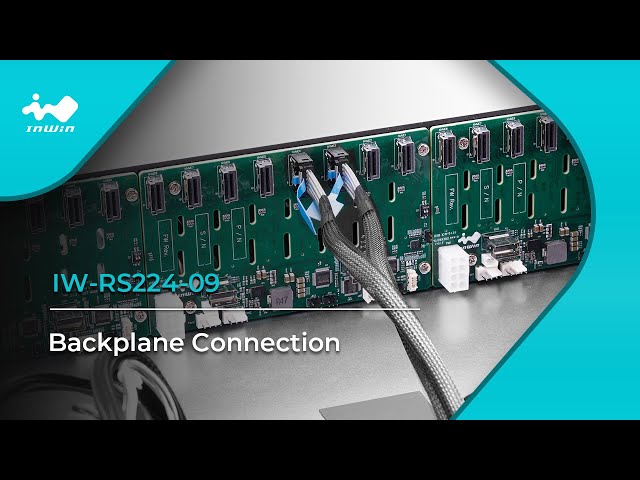

InWin PCIe Gen5 Backplane Connection
