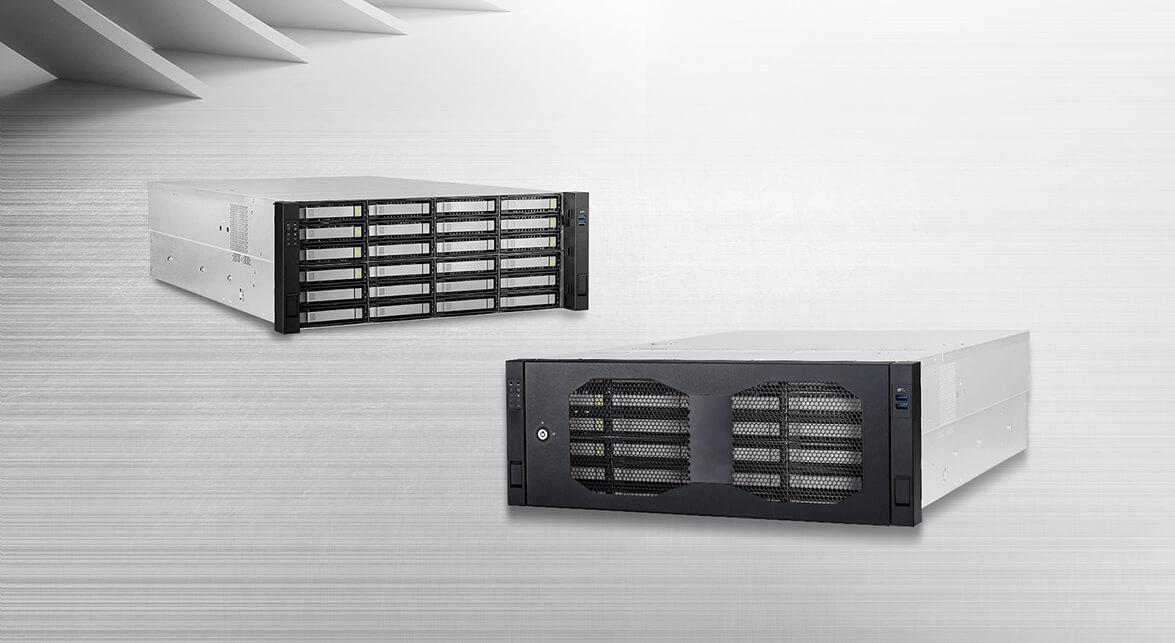

4U Rackmount Chassis / InWin / IW-RS424-07

IW-RS424-07

4U NVMe Hybrid Storage Server

．Intel® Xeon Scalable & AMD EPYC family compliant
．Backplanes with Mini-SAS HD, OCuLink or Slimline connectors (compatible with PCIe 4.0)
．End-to-end 12Gbps SAS host, expander and disk support
．2.5"/3.5" hot-swap HDD trays x 24 (optional NVMe trays x 8, distinguishes U.2 NVMe SSDs)
．2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis
．Highly efficient 550W/800W/1200W/1600W, 80 Plus® Platinum CRPS (optional)
．High-speed cooling fans for excellent thermal performance

A Comprehensive NVMe Storage Server Solution for Enterprise

Scalable, high-performance NVMe hybrid storage architectures, the IW-RS424-07 is compliant with Intel® Xeon Scalable processors & AMD EPYC family, and also delivers extreme performance and ultra-low latency to the top-tier of enterprise storage.

Intel® Xeon Scalable family

2.5"/3.5" HDD

AMD EPYC family

x8 bays

System disks

CRPS

80 x 38mm fans x 4

26" deep chassis

30" slider rails

Accelerate Access to Critical Data

The IW-RS424-07 accelerates data center workloads with NVMe hybrid architectures, support a range of data center requirements, it can be implemented in cloud and hyperscale computing, online transaction processing, virtualization and more! Delivering a suitable solution for every type of data center.

Flexible Storage Options

The IW-RS424-07 can be configured as either SAS/SATA x 24 or SAS/SATA x 16 and U.2 NVMe SSD x 8. The screwless drive trays expand to fit and secure 3.5" drives (or mount 2.5" SSD with screws).

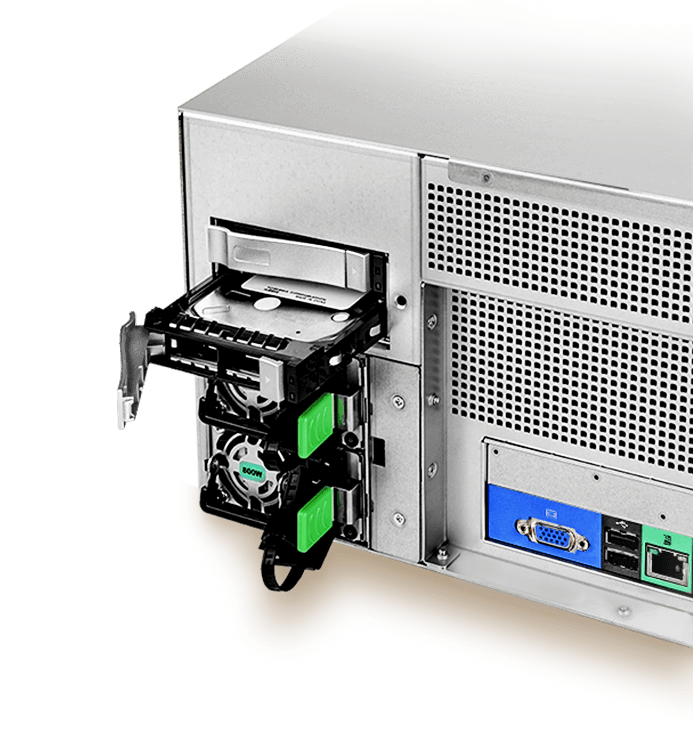

2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis (supports SAS 12G)

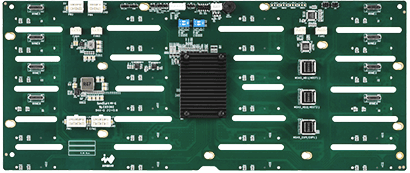

Mini-SAS HD & Slimline or OCuLink Backplane

InWin exclusive backplane comes with great connectivity and is designed to support SAS/SATA and NVMe for Slimline or OCuLink host interface.

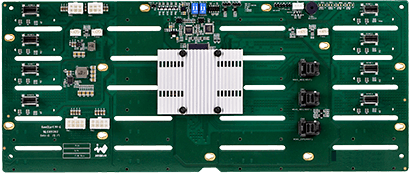

Integrated Expander

Equipped with 12G SAS storage array and the built-in expander onboard, the IW-RS424-07 can integrate end-to-end connectivity to increase the unprecedented efficiency of data management.

Keep it Cool

The IW-RS424-07 comes with 80 x 38mm PWM hot-swap fans x 4, featuring anti-vibration and produces low noise volume, but presents a strong current to have optimal heat dissipation.

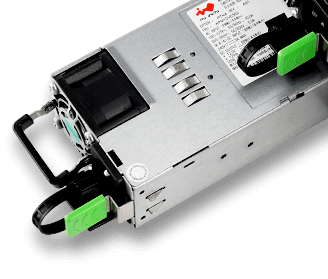

Full Range of Power Supplies

Options include 80 PLUS® Platinum Certified CRPS with 550W/800W/1200W/1600W variants, which stabilizes the operation of the system, and greatly enhances the system’s availability.

CRPS Cable Information

24 pin Main Motherboard

8 pin CPU

8 pin BP

6 pin BP

4-pin rear 2.5" HDD BP

PMBus

Tool-less Features

Tool-less items such as ball-bearing slide rails, top cover button, hot-swap trays, and fan modules offered by InWin assist users with a simplified building process.

Ball-bearing slide rails

Top cover open button

3.5" to 2.5" HDD tray

Hot-swap fan modules

Dimensions

Specification
Industry Standard	EIA-RS310D
M/B Form Factor	ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13")
Drive Bay	• External 2.5"/3.5" hot-swap trays x 24 (optional U.2 NVMe SSD tray x 8) • Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12Gbps)
Power Supply	Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W/800W/1200W/1600W
Indicator	Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED
Front Control Panel	Power on/off, reset, NMI, ID SW, USB3.0x2
Backplane Type-1	• Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8 • HDD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8
Backplane Type-2	• Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8 • HDD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8
12Gbps Expander Module	Broadcom SAS 35 x 36R expander
Cooling Fan	80 x 38mm PWM hot-swap fans x 4, 12000RPM Modular design with anti-vibration
Expansion Slot	Full-height PCI slots x 7
Material	• Material: SGCC • Thickness: 1.2mm
Rail Kit	Supports 30" ball-bearing slide rail
Product Dimensions (DxWxH; Chassis Only)	660 x 448 x 172.8mm (26" x 17.6" x 6.8")
Package Dimensions (DxWxH)	920 x 610 x 338mm
Weight (Chassis Only)	• Net weight: 18.97kg • Gross weight: 23.15kg
Cubic Feet	6.7
Container Information	Single packing with pallets: • 20': 100pcs • 40': 210pcs • 40'HQ: 252pcs

Specification

Industry Standard

EIA-RS310D

M/B Form Factor

ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13")

Drive Bay

• External 2.5"/3.5" hot-swap trays x 24 (optional U.2 NVMe SSD tray x 8)
• Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12Gbps)

Power Supply

Supports:
• Form factor: 80 Plus Platinum CRPS
• Watt: 550W/800W/1200W/1600W

Indicator

Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED

Front Control Panel

Power on/off, reset, NMI, ID SW, USB3.0x2

Backplane Type-1

• Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8
• HDD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8

Backplane Type-2

• Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8
• HDD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8

12Gbps Expander Module

Broadcom SAS 35 x 36R expander

Cooling Fan

80 x 38mm PWM hot-swap fans x 4, 12000RPM
Modular design with anti-vibration

Expansion Slot

Full-height PCI slots x 7

Material

• Material: SGCC
• Thickness: 1.2mm

Rail Kit

Supports 30" ball-bearing slide rail

Product Dimensions (DxWxH; Chassis Only)

660 x 448 x 172.8mm
(26" x 17.6" x 6.8")

Package Dimensions (DxWxH)

920 x 610 x 338mm

Weight (Chassis Only)

• Net weight: 18.97kg
• Gross weight: 23.15kg

Cubic Feet

6.7

Container Information

Single packing with pallets:
• 20': 100pcs
• 40': 210pcs
• 40'HQ: 252pcs

Item

Download

Preview

IW-RS424-07 eDM

IW-RS424-07 Gallery

IW-RS424-07 Compatibility List

IW-RS424-07 User Manual

IW-RS424-07 Slimline Backplane User Manual

IW-RS424-07 OCuLink Backplane User Manual

Item	Part Number	Description	Support
Slide Rail	3RAMIS133301	30" tool-less & ball-bearing slide rail	1 set
Cable	3RAMW4031700	Mini SAS 12Gbps SFF-8643 to SFF-8643 cable, 800mm	Max.3
Cable		InWin can customize the SFF-8611/ SFF-8654 cables to fulfill customers' OCuLink/Slimline connectors requirements.	Max.8
Power Supply	3RAMAP025102 / 3RAMAP042800	80 Plus Platinum 550W CRPS / CRPS PDB	Max. 2
Power Supply	3RAMAP025202 / 3RAMAP042800	80 Plus Platinum 800W CRPS / CRPS PDB	Max. 2
Power Supply	3RAMAP045100 / 3RAMAP045000	80 Plus Platinum 800W CRPS / CRPS PDB	Max. 2
Power Supply	3RAMAP026501 / 3RAMAP042800	80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB	Max. 2
Power Supply	3RAMAP044300 / 3RAMAP042800	80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) / CRPS PDB	Max. 2
Backplane	2RBTVI009700	Mini-SAS HD & Slimline backplane	1
Backplane	2RBTVI005500	Mini-SAS HD & OCuLink backplane	1
HDD Tray	2RAKPH057702	2.5"/3.5" hot-swap HDD tray (gray color)	Max. 24
HDD Tray	2RAKPH038002	2.5" /3.5" hot-swap HDD tray (black color)	Max. 24
HDD Tray	2RAKPH063701	2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol)	Max. 8
HDD Tray	2RAKPH038102	2.5"/3.5" hot-swap HDD tray (black color with NVMe symbol)	Max. 8
HDD Tray	2RAKPH057800	2.5" Screwless hot-swap SSD rear tray (gray color)	Max. 2
HDD Tray	2RAKPH038200	2.5" Screwless hot-swap SSD rear tray (gold color)	Max. 2
Fan	3RAMFB016301	80 x 38mm PWM hot-swap fan, 12000RPM, 6pin	Max. 4
Fan	2RAKFB011601	80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin	Max. 4
Others	2RAKIP023300	Mesh front panel	1
Others	3RAMRW011300	Intrusion switch / 800mm	1

Item

Part Number

Description

Support


Slide Rail

3RAMIS133301

30" tool-less & ball-bearing slide rail

1 set

Cable

3RAMW4031700

Mini SAS 12Gbps SFF-8643 to SFF-8643 cable, 800mm

Max.3

Cable

InWin can customize the SFF-8611/ SFF-8654 cables to fulfill customers' OCuLink/Slimline connectors requirements.

Max.8

Power Supply

3RAMAP025102 / 3RAMAP042800

80 Plus Platinum 550W CRPS / CRPS PDB

Max. 2

Power Supply

3RAMAP025202 / 3RAMAP042800

80 Plus Platinum 800W CRPS / CRPS PDB

Max. 2

Power Supply

3RAMAP045100 / 3RAMAP045000

80 Plus Platinum 800W CRPS / CRPS PDB

Max. 2

Power Supply

3RAMAP026501 / 3RAMAP042800

80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB

Max. 2

Power Supply

3RAMAP044300 / 3RAMAP042800

80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) / CRPS PDB

Max. 2

Backplane

2RBTVI009700

Mini-SAS HD & Slimline backplane

Backplane

2RBTVI005500

Mini-SAS HD & OCuLink backplane

HDD Tray

2RAKPH057702

2.5"/3.5" hot-swap HDD tray (gray color)

Max. 24

HDD Tray

2RAKPH038002

2.5" /3.5" hot-swap HDD tray (black color)

Max. 24

HDD Tray

2RAKPH063701

2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol)

Max. 8

HDD Tray

2RAKPH038102

2.5"/3.5" hot-swap HDD tray (black color with NVMe symbol)

Max. 8

HDD Tray

2RAKPH057800

2.5" Screwless hot-swap SSD rear tray (gray color)

Max. 2

HDD Tray

2RAKPH038200

2.5" Screwless hot-swap SSD rear tray (gold color)

Max. 2

Fan

3RAMFB016301

80 x 38mm PWM hot-swap fan, 12000RPM, 6pin

Max. 4

Fan

2RAKFB011601

80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin

Max. 4

Others

2RAKIP023300

Mesh front panel

Others

3RAMRW011300

Intrusion switch / 800mm
