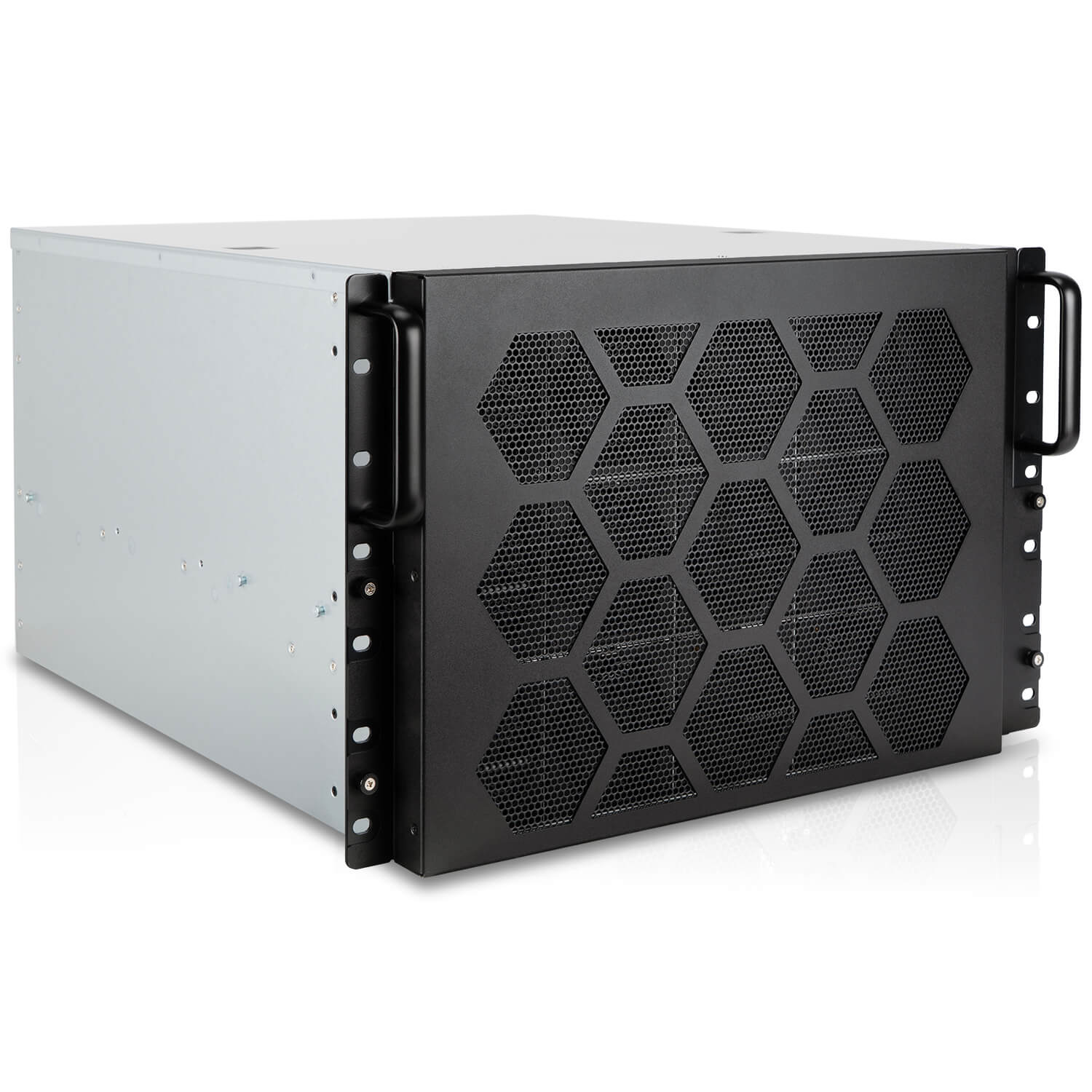

IW-RG650 PRO
6.5U GPU Rackmount Chassis
- GPU server designed for AI, deep learning, and HPC
- 6.5U dual chamber design: 4.5U chamber for GPUs and 2U chamber for motherboard
- Features 16 FHFL PCIe slots, enabling support for 6 professional GPUs in high-density configurations
- Independent dual chambers for optimized heat dissipation
- 12 hot-swap 80 x 56 mm 17,000 RPM PWM fans for high-performance cooling
- 2+1 80 PLUS® Titanium CRPS power supplies delivering up to 6.4 kW
6.5U HPC Rackmount Server
High-Density GPU Architecture for AI Workloads
AI / HPC applications
Support up to 6 GPU
FHFL PCIe slots x 16
80×56 mm fans x 12
2+1 3200W CRPS
28" slide rails
Ultimate GPU Platform

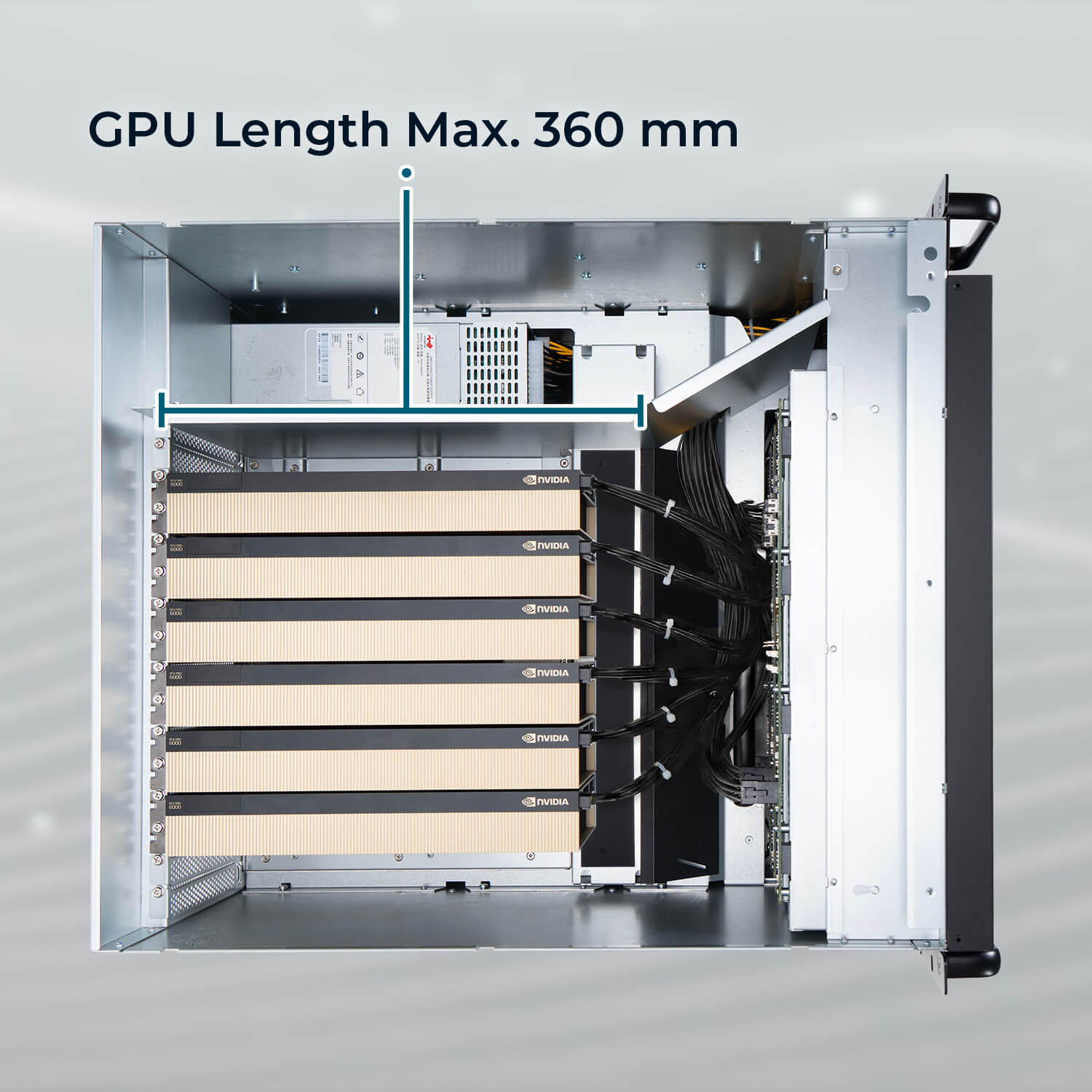

The IW-RG650 PRO features an HPC-driven dual-layer architecture designed to support up to six full-length professional GPUs within a compact 6.5U form factor. With 360 mm of GPU clearance and dedicated airflow-optimize layout, the system maintains thermal stability under sustained AI training workloads, ensuring consistent, high-performance operation.

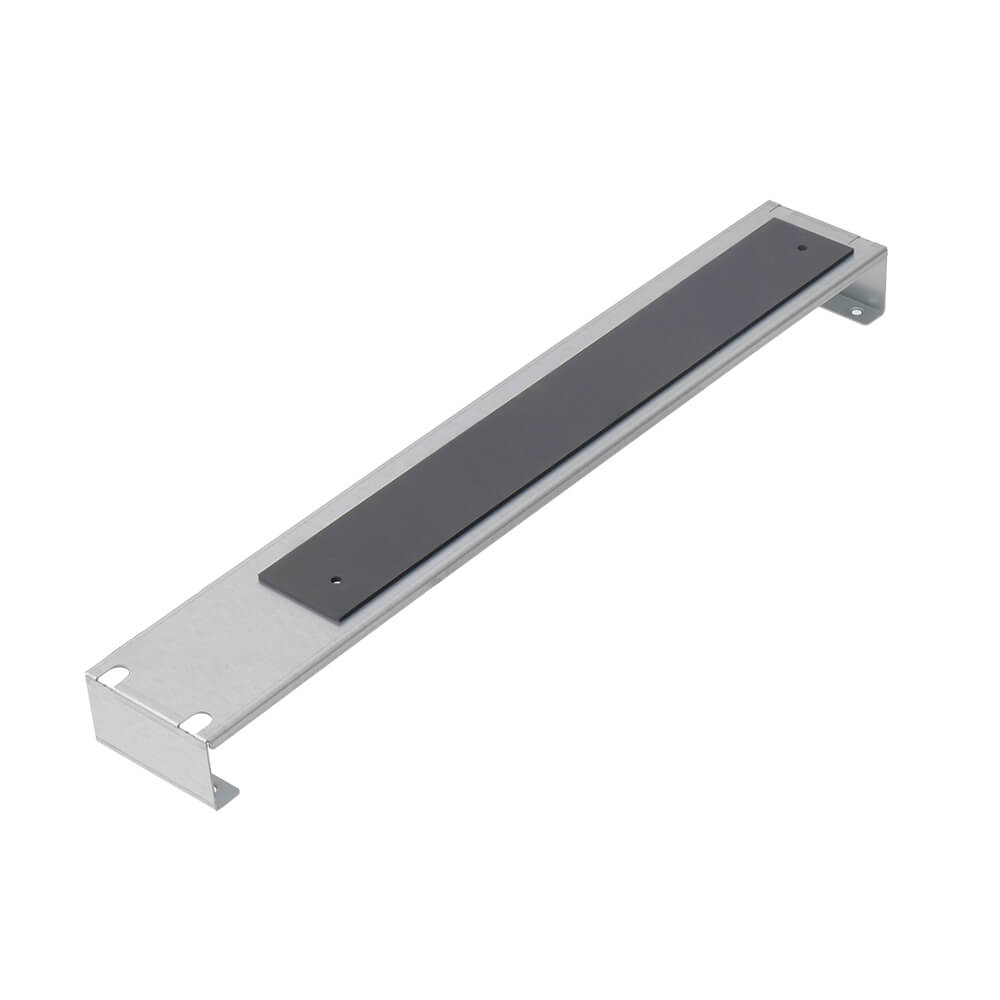

GPU Holder

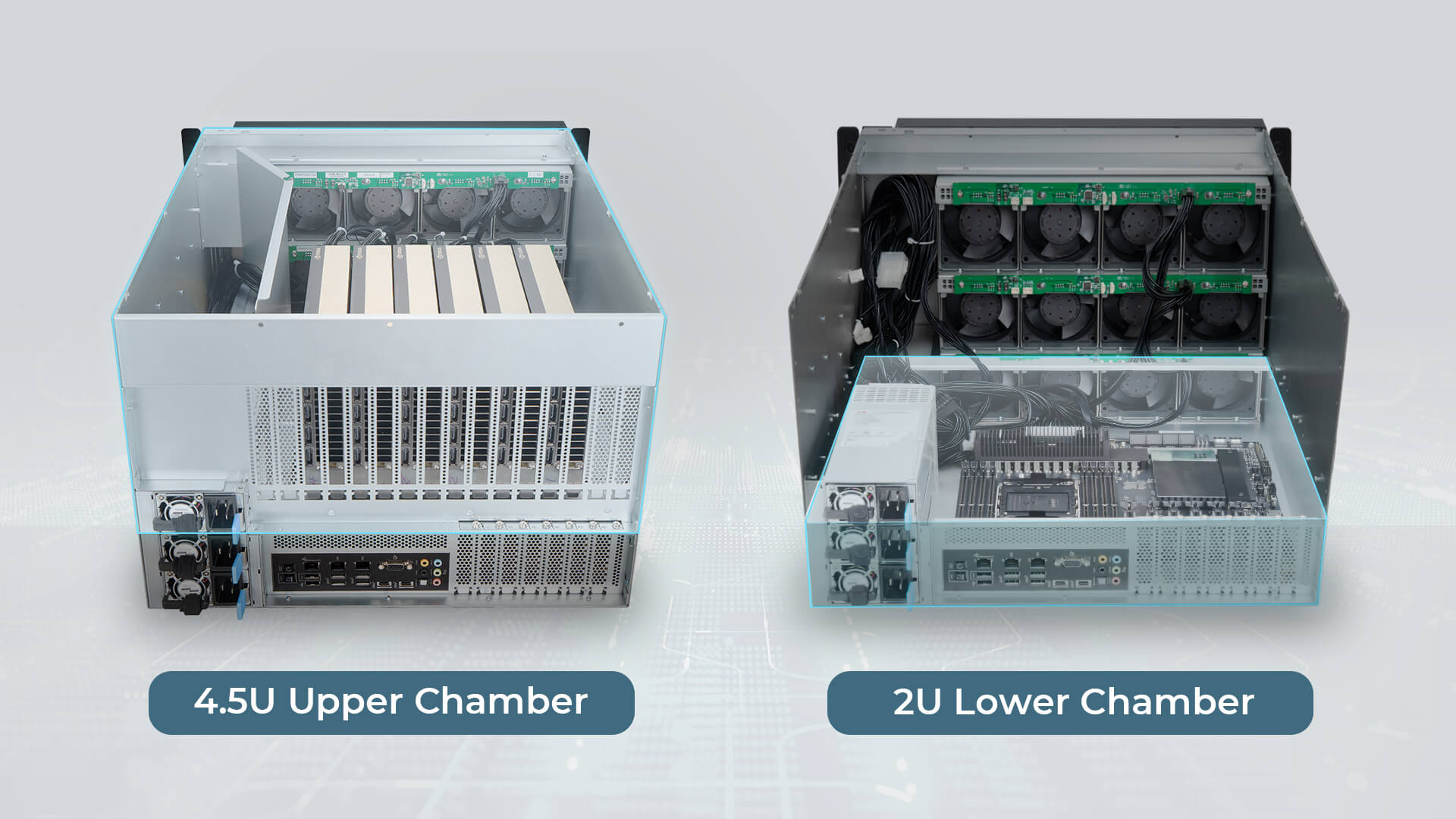

Dual Chamber Design
With a 4.5U upper chamber dedicated to GPU deployment and a 2U lower chamber for system components, the IW-RG650PRO maintains clear separation between high-density compute hardware and supporting system zones. This layout enhances airflow management and ensures stable, continuous 24/7 operation under demanding HPC and AI workloads.

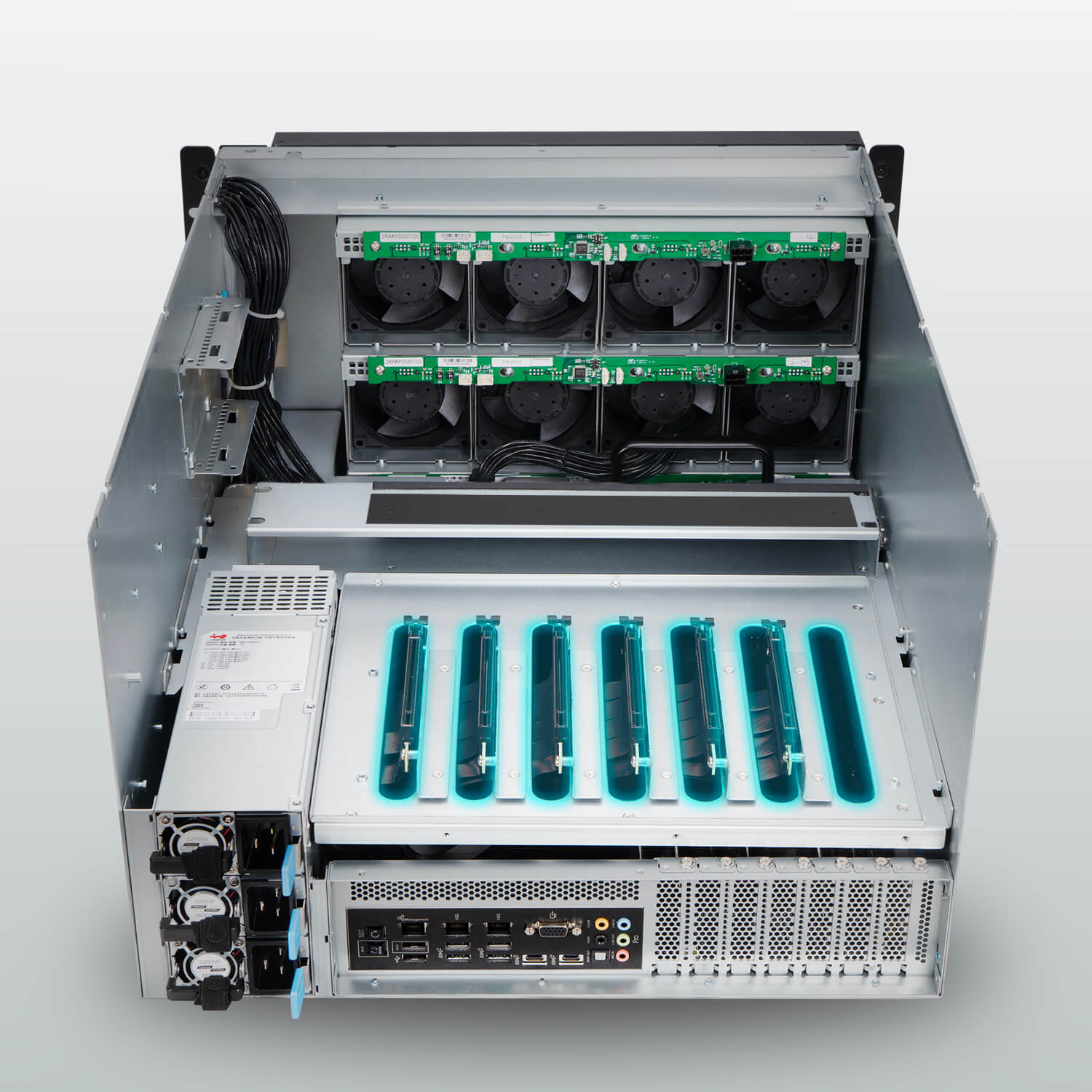

PCIe Gen5 Ready
The system comes pre-installed with six next-generation PCIe Gen5 riser cables, enabling immediate deployment of high-end GPU configurations. Additionally, seven low-profile PCIe slots are available for AI expansion, supporting flexible integration of networking, high-speed storage, or future accelerator cards as system requirements evolve.

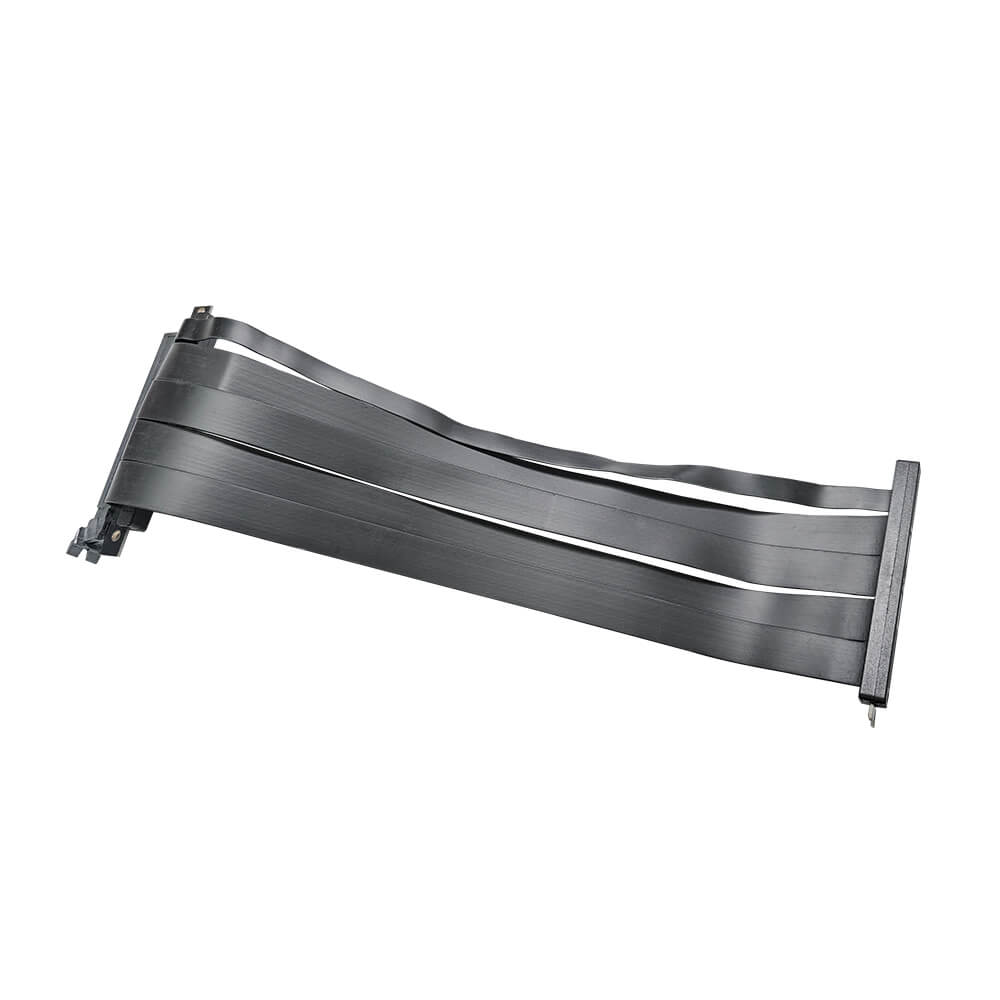

PCIe Gen5 Riser Cable

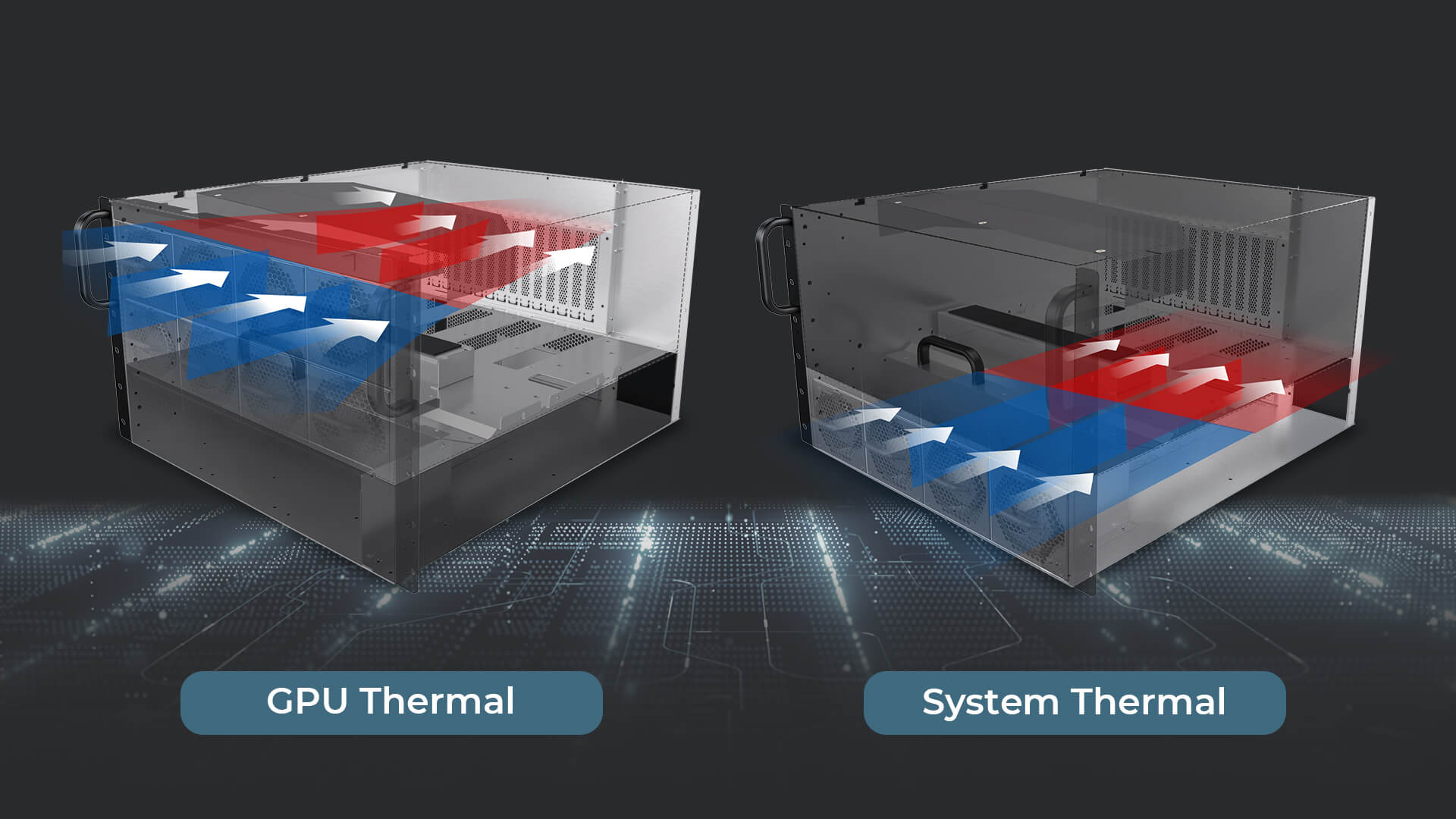

Robust Airflow with Dedicated Air Ducting
The RG650 PRO employs a precision-engineered thermal architecture featuring independent airflow paths for the GPU and system chambers, eliminating thermal crosstalk between components. Dedicated air ducts direct cooling airflow to high-heat zones, maximizing thermal efficiency and ensuring peak stability during sustained, performance-critical workloads.
Intelligent Cooling & Precision Fan Control

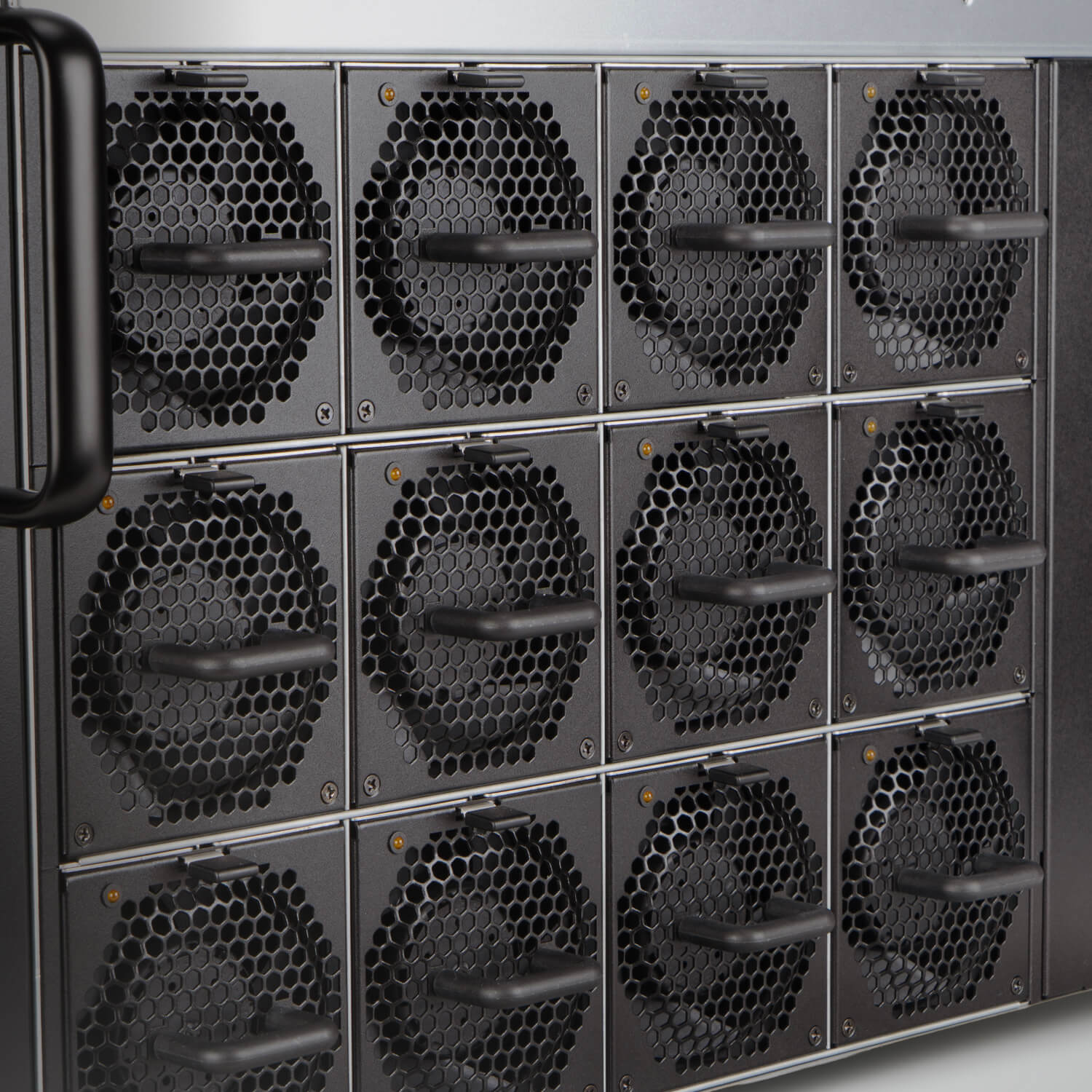

The IW-RG650 PRO features an advanced cooling management system with onboard thermal sensors monitoring both GPU and CPU zones. Dynamic PWM control adjusts fan speeds in real-time based on thermal conditions to optimize cooling efficiency. Supported by three dedicated fan control boards, the chassis incorporates 12 hot-swappable 80x56 mm fans capable of reaching 17,000 RPM. This high-static-pressure fan array delivers responsive, targeted airflow to ensure maximum reliability during continuous, high-load AI operations.

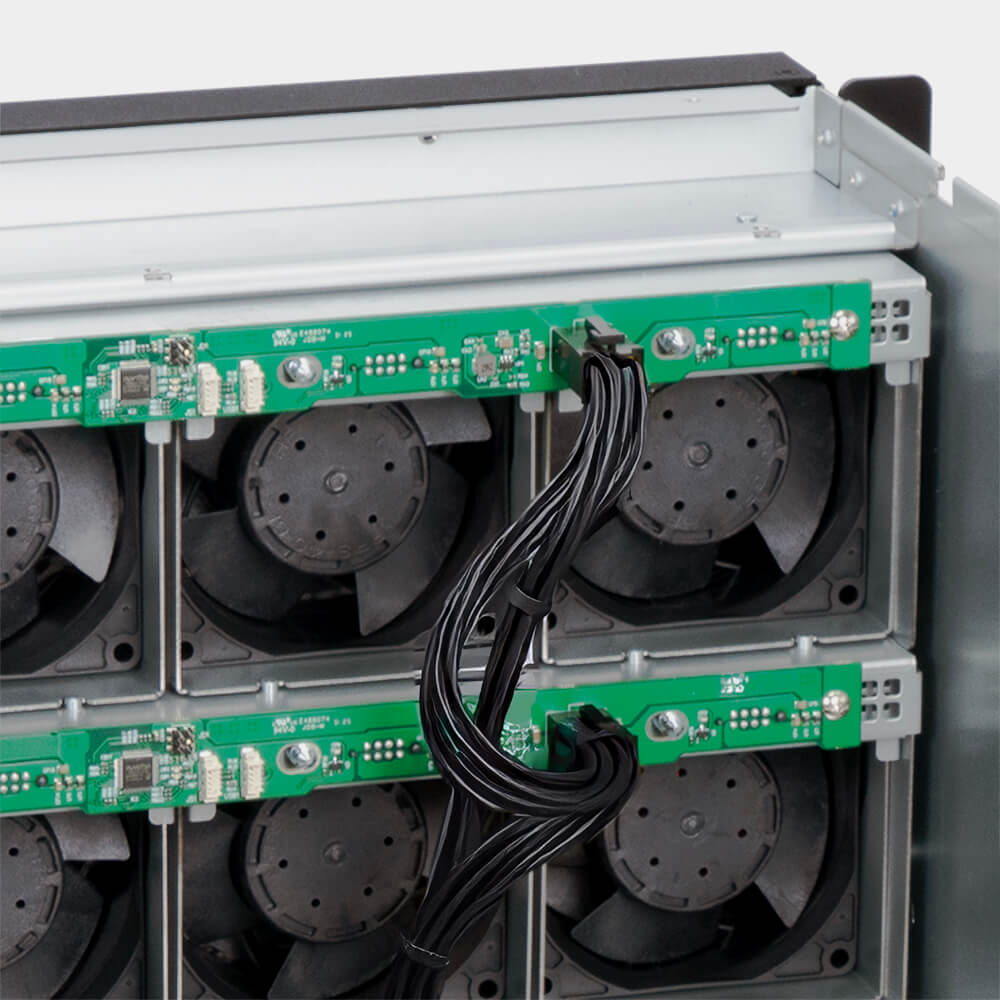

Fan control board with PCIe connector

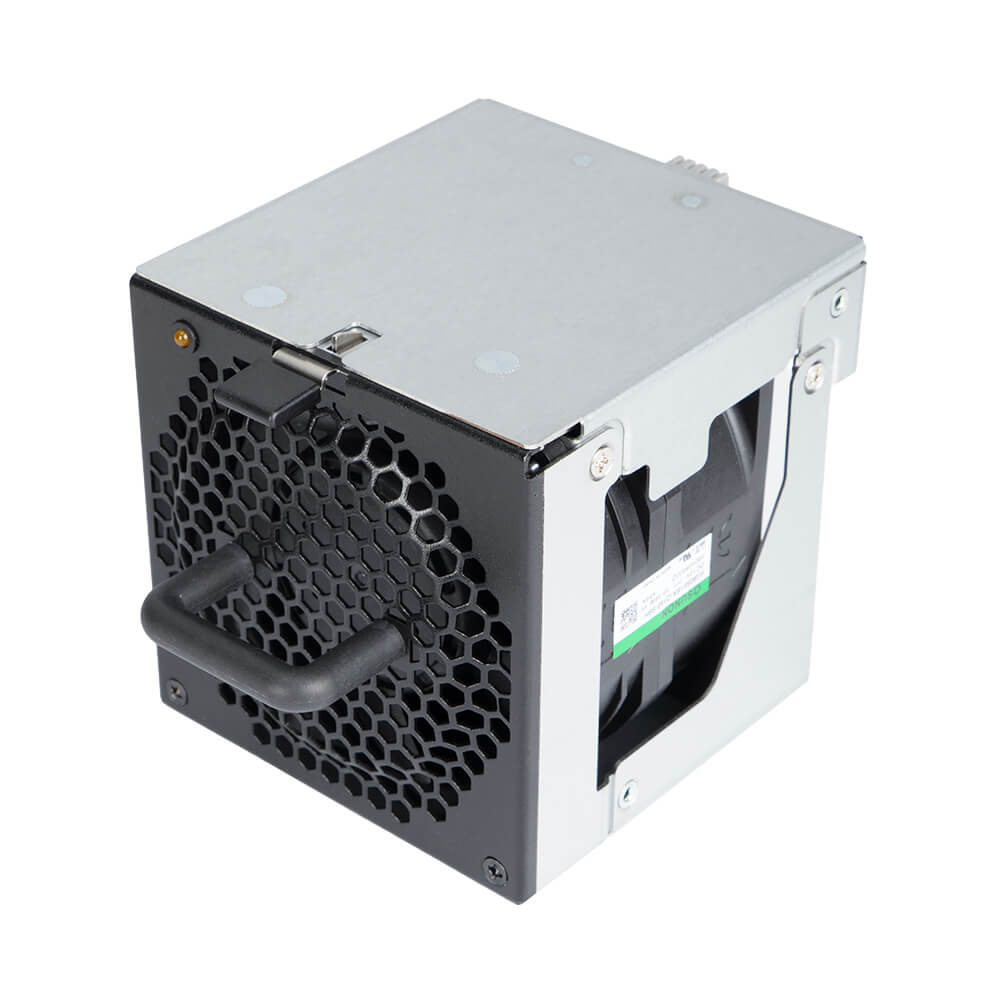

Tool-less hot-swap fan module

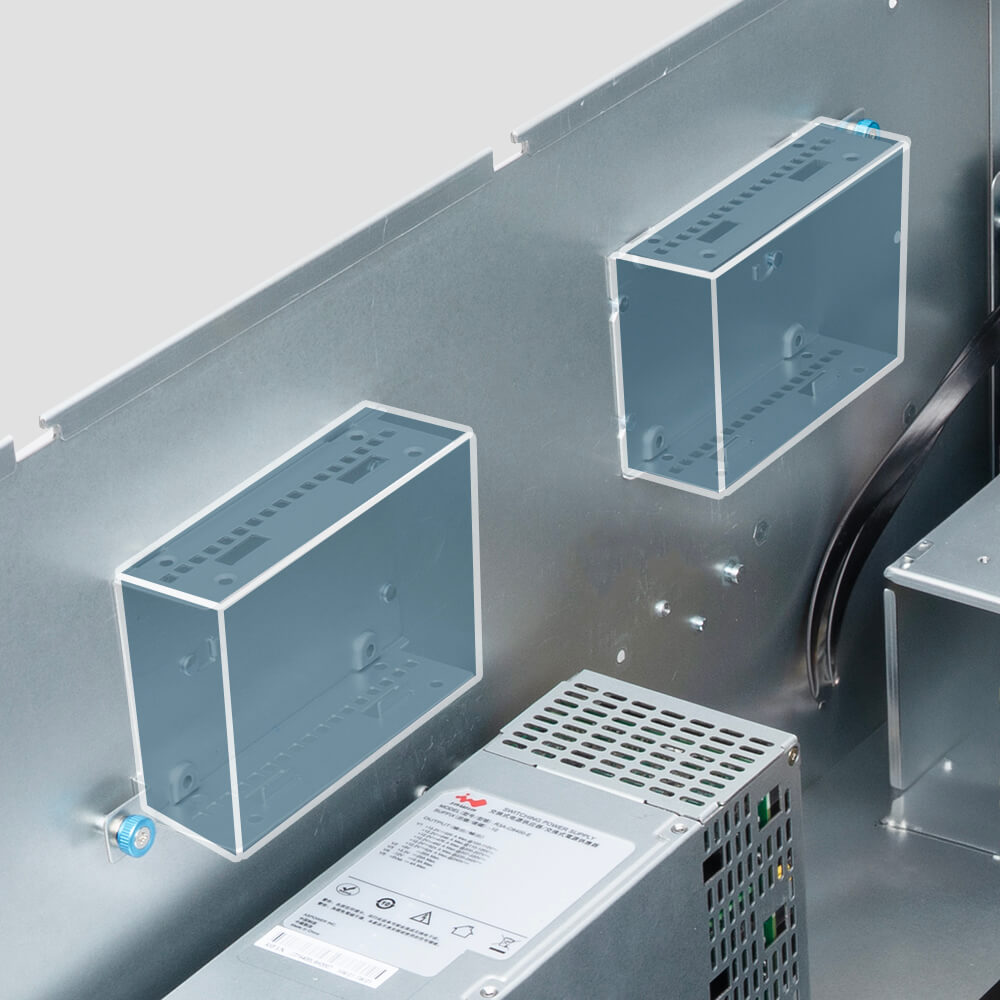

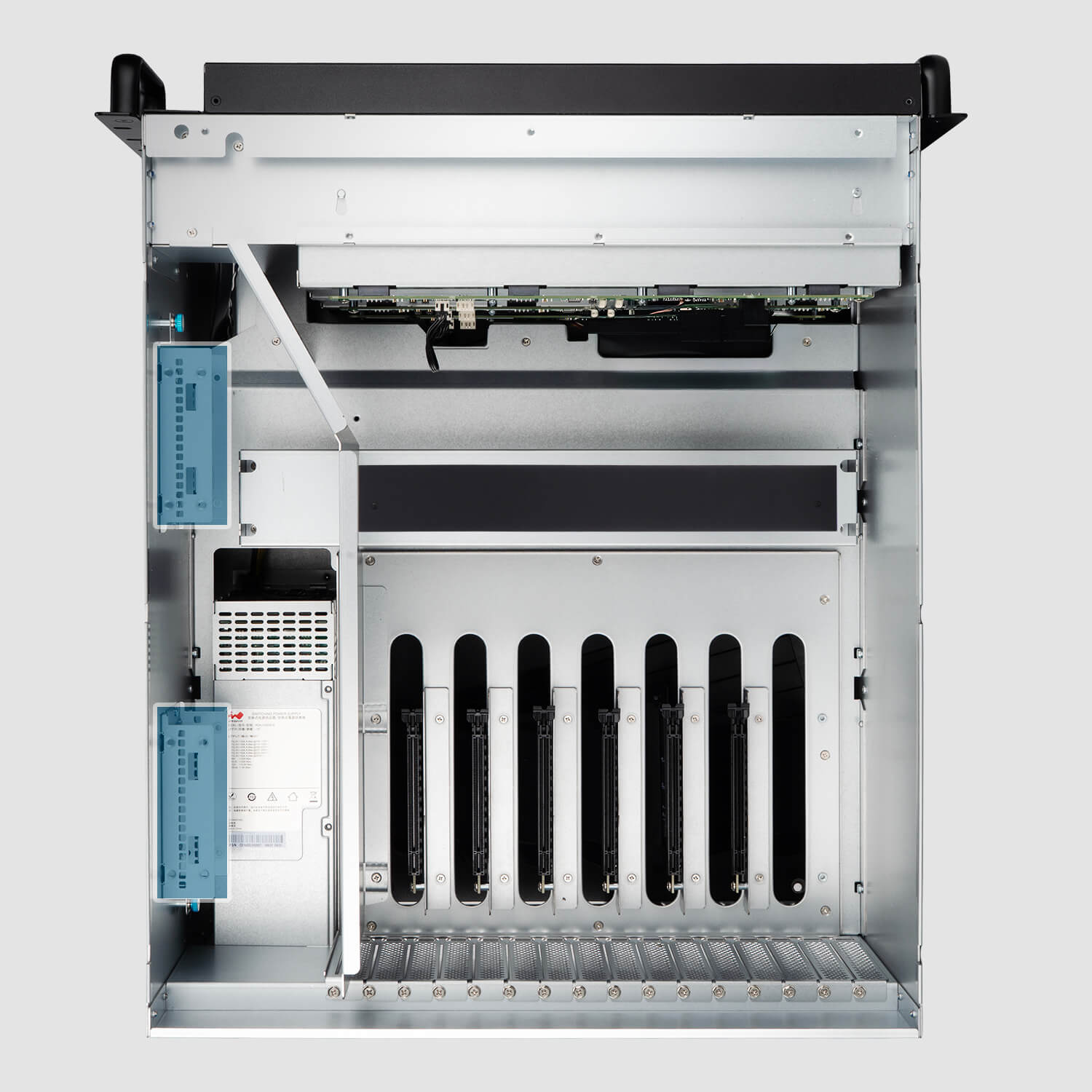

Storage Expansion
The IW-RG650 PRO supports flexible storage configurations with for up to two tool-less 2-in-1 SSD cages, accommodating a total of four 2.5-inch SSDs. For streamlined deployment, the system includes two 2-in-1 SSD cages and pre-installed SATA cables as standard.
2.5" SSD cages x 2

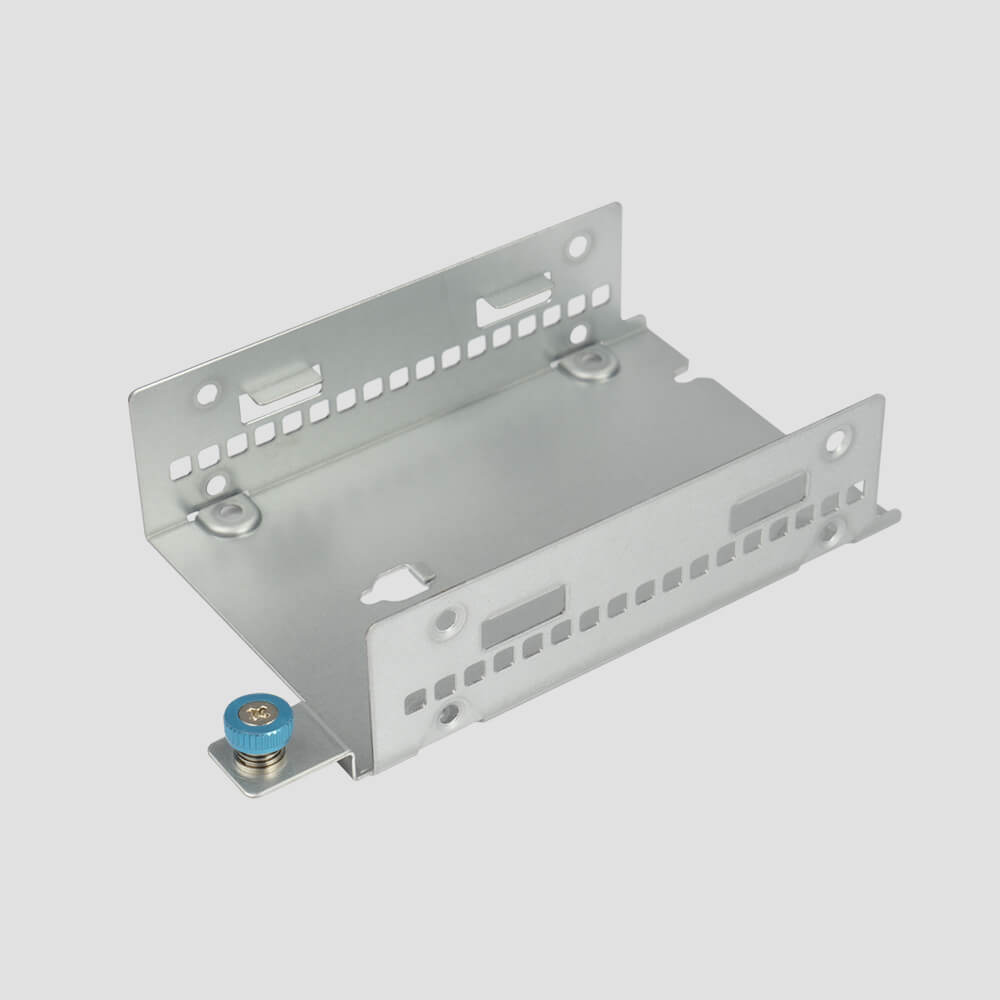

2-in-1 SSD cages (support 2.5" x 2)

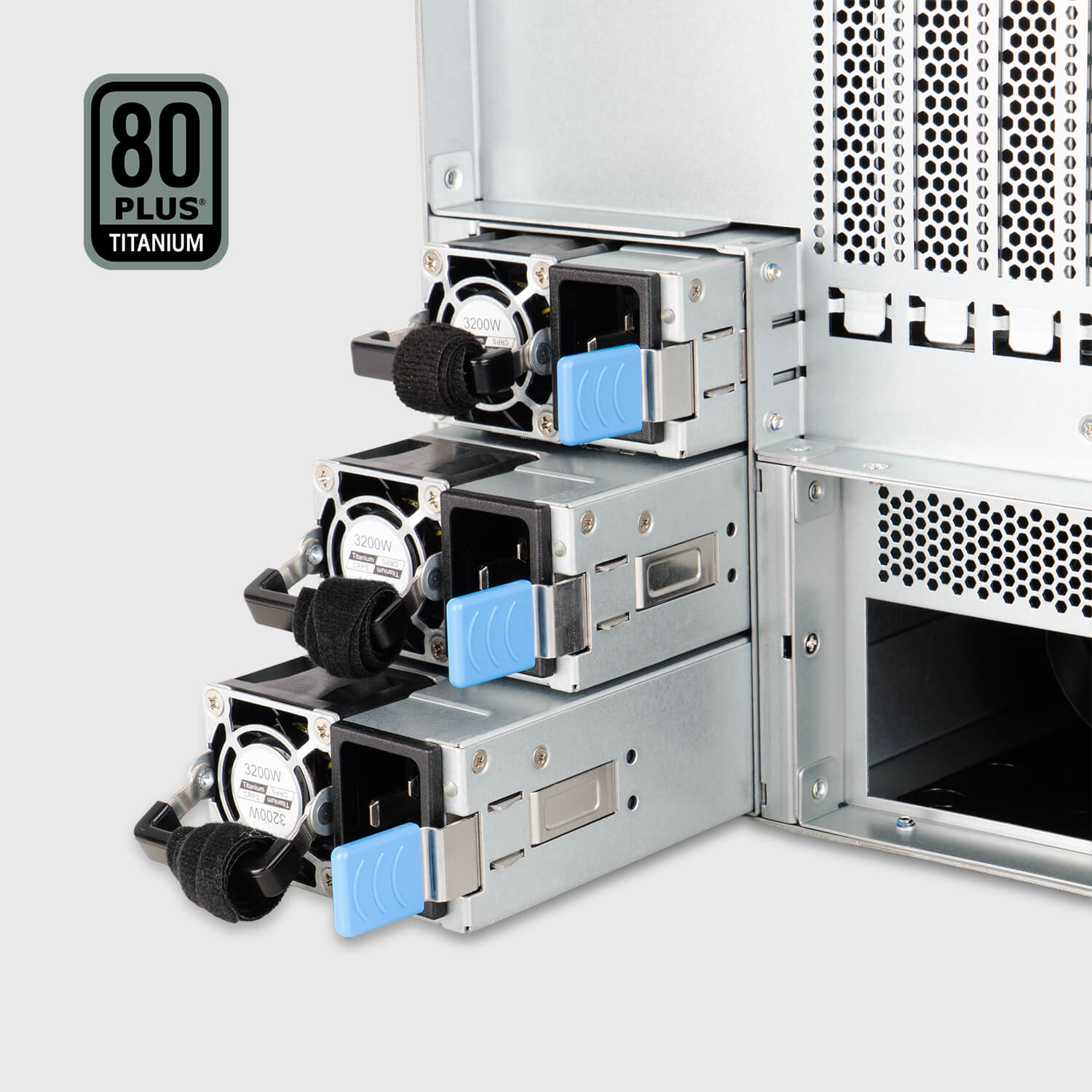

6400W CRPS 80 PLUS® Titanium Power Support
Featuring a redundant 2+1 CRPS configuration with 3200W modules, delivering a combined capacity of up to 6.4 kW. Engineered for high-density 6-GPU deployments, the 80 PLUS® Titanium-certified design achieves up to 96% efficiency, ensuring stable, high-wattage power delivery for sustained, high-load operations.
Power Cable Information
Unit of Length: mm
24-Pin Main Power
12V-2x6 PCIe x 6
1. 8-Pin CPU
2. 8-Pin for Fan Board
2. 8-Pin for Fan Board
6+2-Pin PCIe x 2
SATA
1. SATA
2. PMBus
2. PMBus
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| Form Factor | 6.5U rackmount • 4.5U upper chamber for GPU (maximum length up to 360mm) • 2U lower chamber for system components |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | Internal: 2.5" x 4 |
| Power Supply | Pre-installed: • Form factor: 2+1 80 PLUS Titanium CRPS • Total Watt: 6400W |
| Indicators | Power LED, LAN 1/LAN 2, system LED, HDD LED |
| Front Control Panel | Power on/off, system reset, USB 3.0 x 2 |
| Cooling Fans | • Front: 80 x 56 mm PWM fans x 12, 17000 RPM (pre-installed) |
| Expansion Slot | Full-height PCIe slots x 16 (Includes PCIe Gen5 riser cables: 220 mm × 3, 350 mm × 3) Low-profile PCIe slots x 7 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | 28" tool-less & ball-bearing slide rails included |
| Product Dimensions (DxWxH; Chassis Only) | 650 x 438 x 288.9mm (25.59" x 17.24" x 11.37") |
| Package Dimensions (DxWxH) | 840 x 610 x 439mm (33.07" x 24.02" x 17.28") |
| Weight | • Net weight: 30.35 kg • Gross weight: 34.47 kg |
| Cubic Feet | 7.94 |
| Container Information | Single packing with pallets: • 20’: 80pcs • 40’: 184pcs • 40'HQ: 230pcs |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications
* The adjacent image is for reference only. All hardware components and optional parts are not included.
* The adjacent image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS152700 | 28" tool-less & ball-bearing slide rails | 1 set |
|
| Power Supply | 3RAMAP048700 | 80 PLUS Titanium 3200W CRPS Included (AC Input 100-115V: 1340W, 116-120V: 1600W, 200-224V: 2800W, 225-240V: 3200W Max.) | Max. 3 |
|
| Power Supply | 3RAMAP049000 | 2+1 CRPS Power Cage with PDB Included | 1 |
|
| Cable | 3RAMW8014100 | Power cord, American standard (IEC C19, 14 AWG, L1830 mm, 15A) | Max. 3 |
|
| Cable | 3RAMW8014500 | Power cord, European standard (IEC C19, 3G 1.5 mm², L1830 mm, 16A) | Max. 3 |
|
| Cable | 3RAMW8017000 | Power cord, British standard (IEC C19, 3G 1.5 mm², L1830 mm, 13A) | Max. 3 |
|
