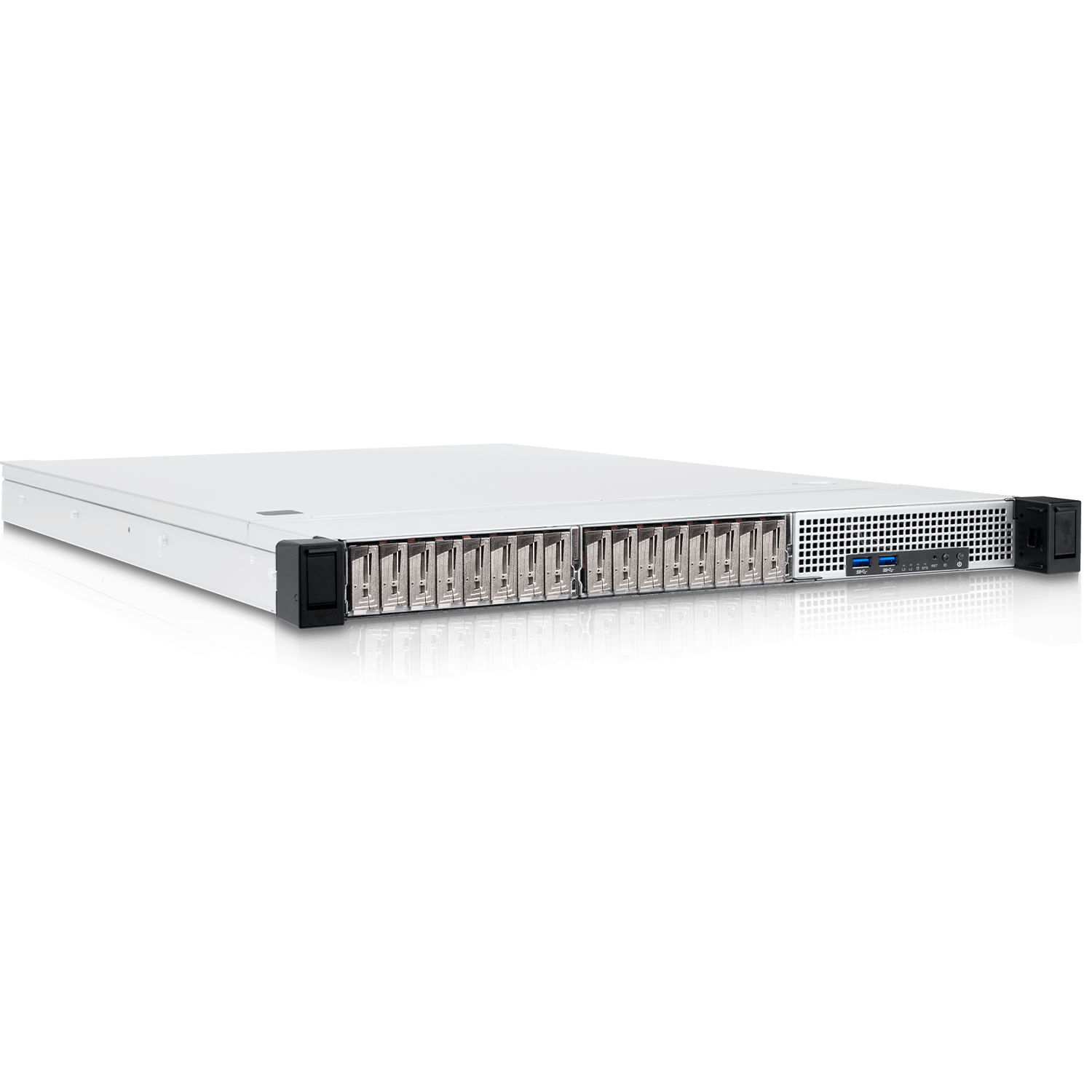

IW-RS116-E1
1U PCIe Gen5 NVMe E1.S Rackmount Chassis
- 1U high density PCIe Gen5 solution storage server
- Compact bay design, supports up to 16 E1.S NVMe hot-swap bays
- Two pre-installed backplane with MCIO 8i connectors for high-speed data transfer
- Six Easy-swap 40 x 56mm 33000RPM fans effectively meets PCIe Gen5 cooling needs
- Supports one FHFL PCIe slot for future upgrades and expansion
- Custom I/O shield service available, designed to match specific motherboards with SGCC material
Compact Powerhouse for Next-Gen Storage
The IW-RS116-E1 is specially designed for high-speed PCIe Gen5 E1.S storage solutions. This compact 1U storage server offers impressive capacity, supporting up to 16 E1.S hot-swap trays. The enclosure is equipped with six 40 x 56 mm high-RPM fans that ensure optimal airflow to meet the thermal demands of PCIe Gen5. Ideal for customers seeking high-density, stable, and high-performance storage solutions, such as those required for cloud and data center service.
40 x 56mm fans x 6
FHFL PCIe slots support
Redundant PSU
26” deep chassis
28” slide rails
High Density
With its compact 1U form factor and 16 E1.S hot-swap bays, the IW-RS116-E1 is engineered to support extensive NVMe SSD installations while optimizing rack space. This makes it an ideal solution for environments demanding high-storage capacity and exceptional IOPS (Input/Output Operations Per Second) performance.
Tool-less
Drive Bays Design
Modularize
Cage Design

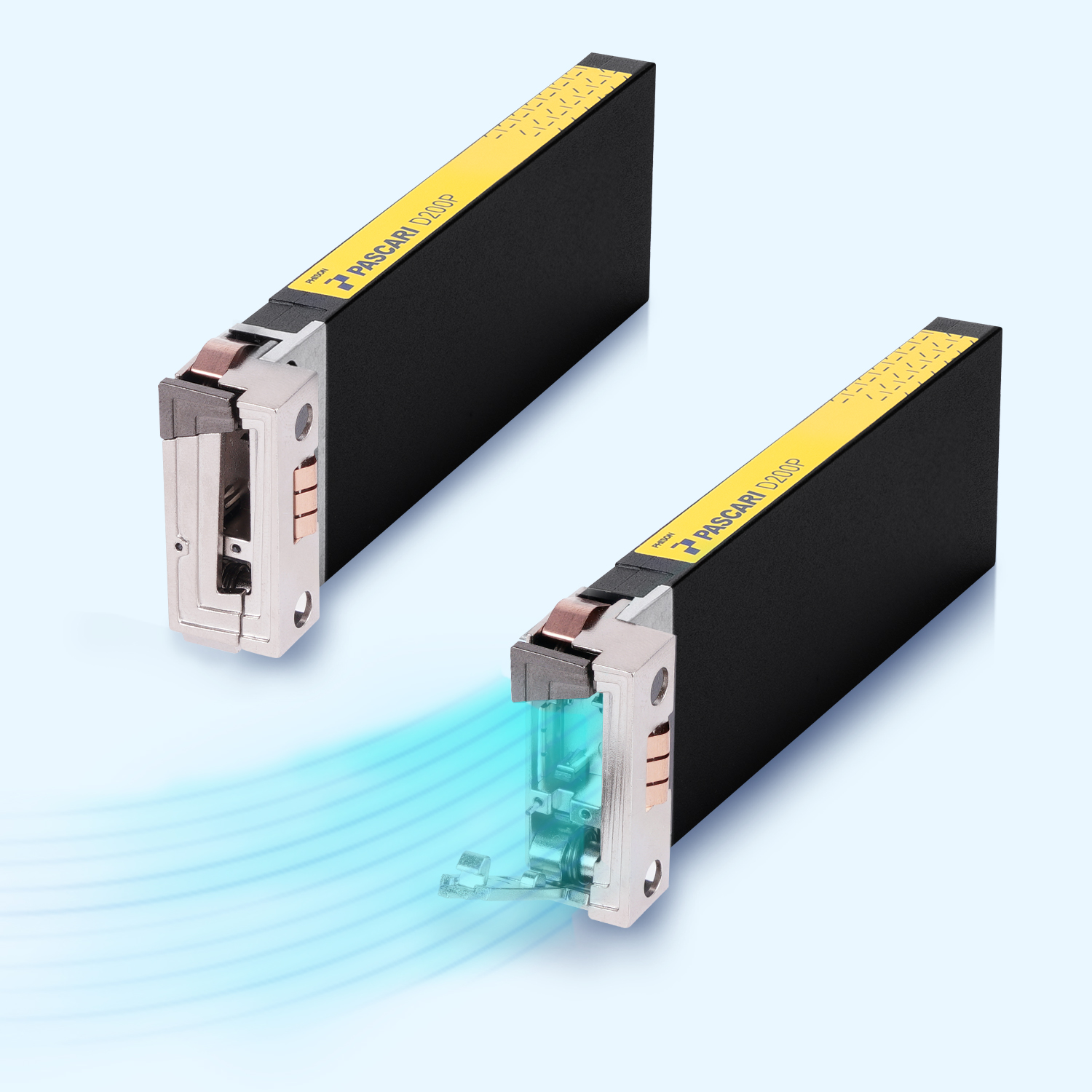

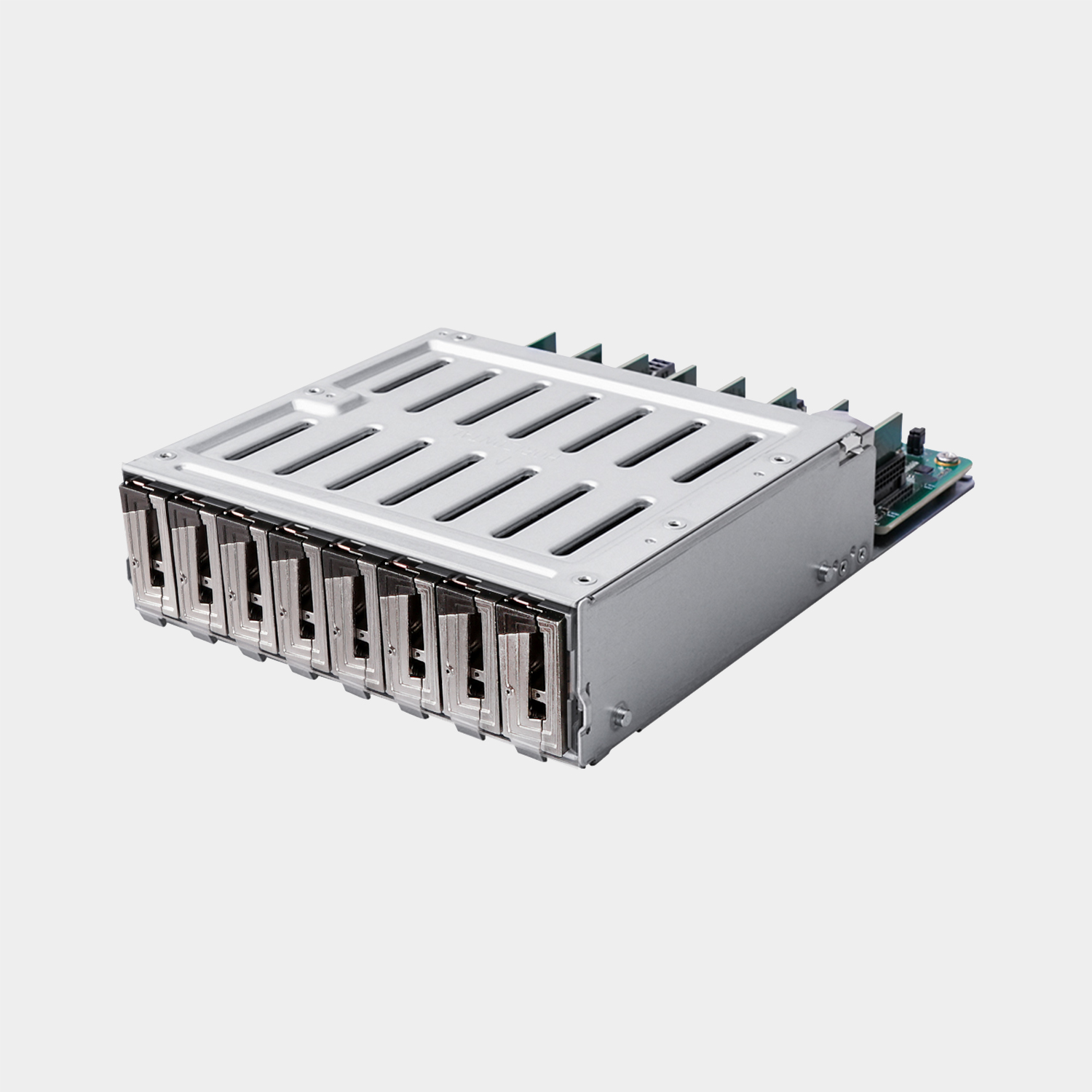

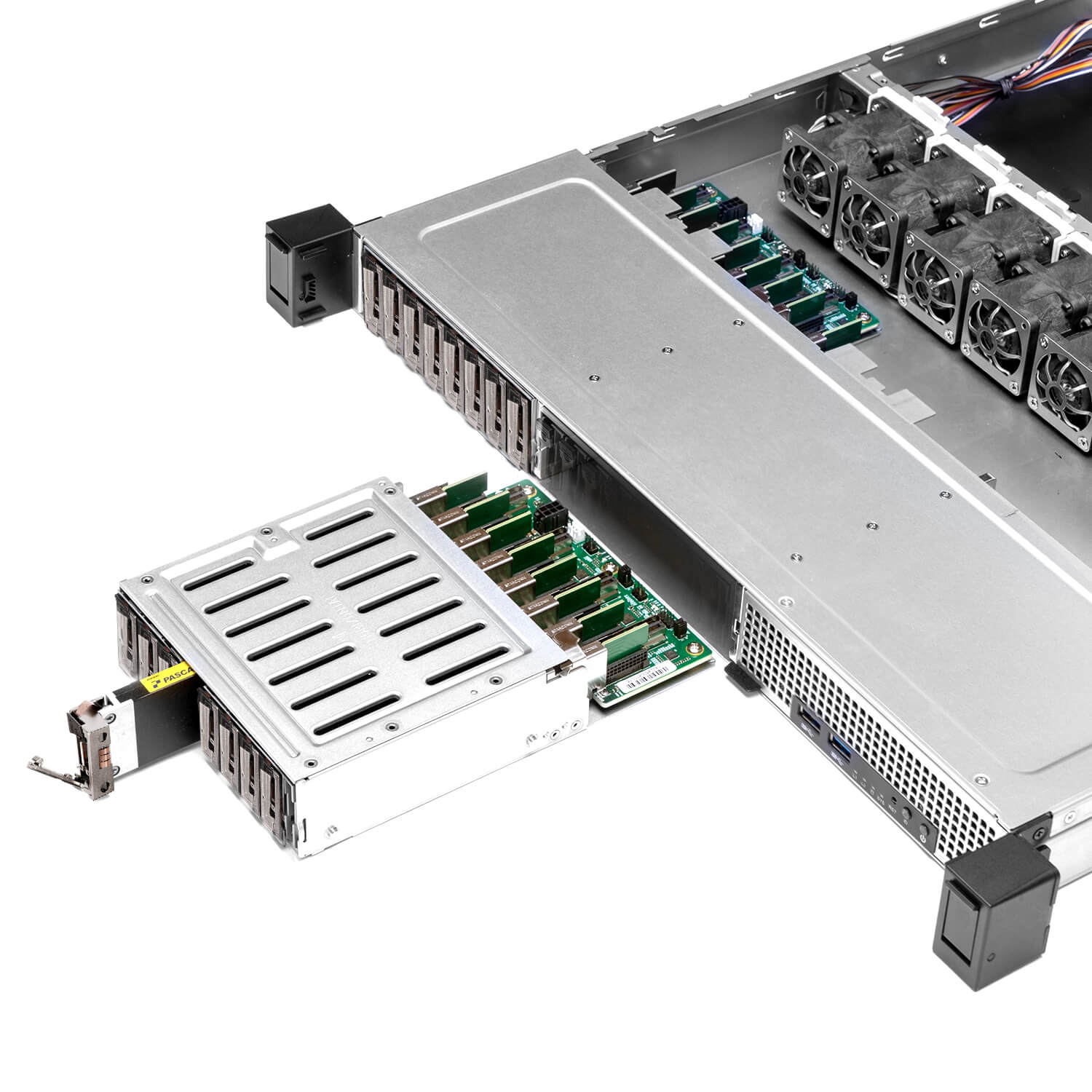

User Friendly Design
The IW-RS116-E1 E1.S drive bays are hot-swappable and tool-less. They are organized into modular cages, each containing eight bays, for easy
Gen5 Backplane
The IW-RS116-E1 features PCIe Gen5 backplanes (MCIO 8i), delivering up to 32 GT/s per lane, twice the speed of PCIe Gen4. Enhanced signal processing reduces latency. Each MCIO 8i connector supports two E1.S drives, reducing cables and enhancing airflow, making it the perfect solution for next-generation cloud and storage needs.
Note: The M/B & SSDs should correspond with PCIe Gen5.
Note: The M/B & SSDs should correspond with PCIe Gen5.

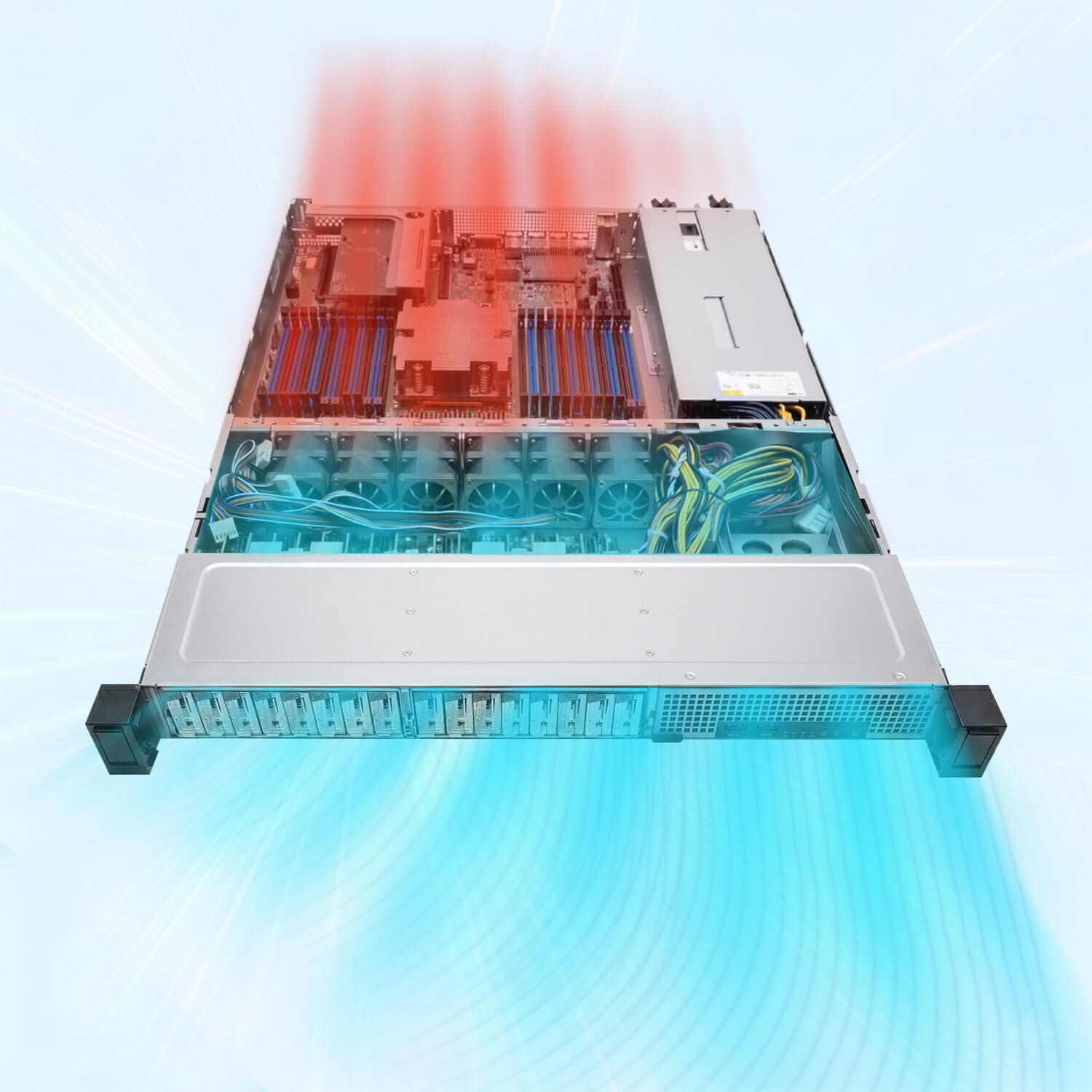

Cooling Solutions
Six 40 x 56 mm PWM easy-swap fans are pre-installed, delivering excellent thermal performance at 33,000 RPM. The perforated front panel and drive bay design ensure sufficient airflow intake.
Expandable
The IW-RS116-E1 supports full-length PCIe slots, maximizing the compatibility of your 1U compact server and enabling further expandability.
* The riser card is not included and is available in the optional items list.
* The riser card is not included and is available in the optional items list.
Break the Limits
Expand your E1.S storage with InWin’s IW-RT04-02 retimer card when the motherboard falls short. Featuring two MCIO 8i connectors, it supports up to four NVMe SSDs.
* The retimer card is not included; please contact us for more information.
* The retimer card is not included; please contact us for more information.
Customization
InWin offers tailored customization services for motherboard I/O shield backplates, ensuring a precise fit and seamless integration to meet our customers' exact specifications.
Reliability
The included 80 PLUS® Platinum 1+1 redundant PSU delivers up to 92% conversion efficiency, minimizing energy waste while ensuring reliable 24/7 operation.
Power Cable Information
Unit of Length: mm
- 24-Pin Main motherboard
- 6 Pin Backplane Power
- 8-Pin CPU x 2pcs
- 6 Pin Backplane Power
- 8-Pin CPU
- SATA
- PMBus
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13") |
| Drive Bay | • External NVMe E1.S 15mm hot-swap trays x 16 • Internal 2.5" x 2 |
| Power Supply | Pre-installed: • Form factor: 1U redundant PSU, 80 Plus Platinum • Watt: 750W |
| Indicators | Power LED, LAN1/LAN2 LED, system LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, reset, ID SW, USB 3.0 x 2 |
| Backplane | • Host: MCIO 8i x 4 • SSD: NVMe E1.S 15mm x 8 • Backplane cage kits pre-installed x 2pcs with 8-drive capacity of each |
| Cooling Fans | Pre-installed 40 x 56mm PWM fans x 6, 33000 RPM |
| Expansion Slot | Full-Height PCIe slot x 1 |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 676 x 438 x 43.5mm (26.6"x17.2"x1.7") |
| Package Dimensions (DxWxH) | 930 x 600 x 178 mm (35.4”x23.6”x7”) |
| Weight (Chassis Only) | • Net weight: 9.17 kg • Gross weight: 11.96 kg |
| Cubic Feet | 3.51 |
| Container Information | Single packing with pallets: • 20’: 200pcs • 40’: 420pcs • 40'HQ: 462pcs |
Backplane Specifications
| Backplane | PCIe Gen5 backplane (Pre-installed x 2pcs with 8-drive capacity of each) |
| Data Transfer Rate | 32GT/s |
| Dimensions (W x H) | 127.9 x 52.3mm |
| Backplane Type | Passive |
| Host Interface | MCIO 8i x 4 |
| SSD Interface | E1.S NVMe x 8 |
* InWin NVMe backplane supports PCIe Gen5, the actual data transfer speed will be determined by MB and SSD specifications.
* All components and optional parts are not included. InWin reserves the right to make final modifications.
* All components and optional parts are not included. InWin reserves the right to make final modifications.
| Item | Download | Preview |
|---|---|---|
| IW-RS116-E1 eDM | ||
| IW-RS116-E1 Gallery | - | |
| IW-RS116-E1 Compatibility List | ||
| IW-RS116-E1 User Manual | ||
| IW-RS116-E1 PCIe Gen5 Backplane User Manual |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 Set |
|
| Slide Rail | 3RAMIS152300/ 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 Set |
|
| Cable | 3RAMW6006300 | MCIO (SFF-TA-1016) 8i to MCIO (SFF-TA-1016) 8i Cable, 400 mm | Max. 8 |
|
| Cable | 3RAMW6006200 | MCIO (SFF-TA-1016) 8i to MCIO (SFF-TA-1016) 8i Cable, 550 mm | Max. 8 |
|
| Cable | InWin can customize the connectors and cable lengths to meet customers' specific motherboard requirements | |||
| Power Supply | 3RAMAP048600 | 750W 1U redundant PDB power cage | 1 |
|
| Power Supply | 3RAMAP042200 | 750W 1U redundant module, 80 Plus Platinum, IEC 62368-1 certified | Max. 2 |
|
| Fan | 2RAKFB020600 | 40 x 56mm PWM fan & fan bracket, 6pin, 33000 RPM, PCIe Gen5 solution | Max. 6 |
|
| Riser Card | 2RAKPD079901 | PCIe Gen4 x16 lanes riser card (left-facing 90-degree design) | 1 |
|
| Riser Card | 2RAKPD087800 | PCIe Gen5 x16 lanes riser card (left-facing 90-degree design) | 1 |
|
| Others | 2RAKIP026500 | Mesh front panel | 1 |
|
| Others | InWin can customize the I/O shield backplate for specific motherboards, with SGCC material to fulfill customers' specific I/O configuration requirements. | 1 |

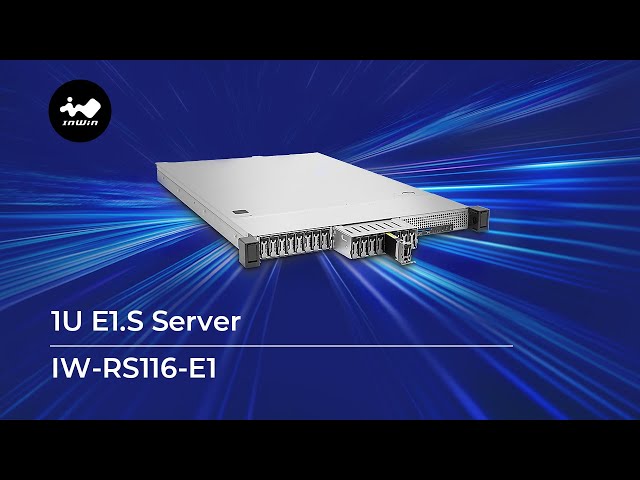

Product Video
InWin PCIe Gen5 Server Chassis｜IW-RS116-E1
Tutorials

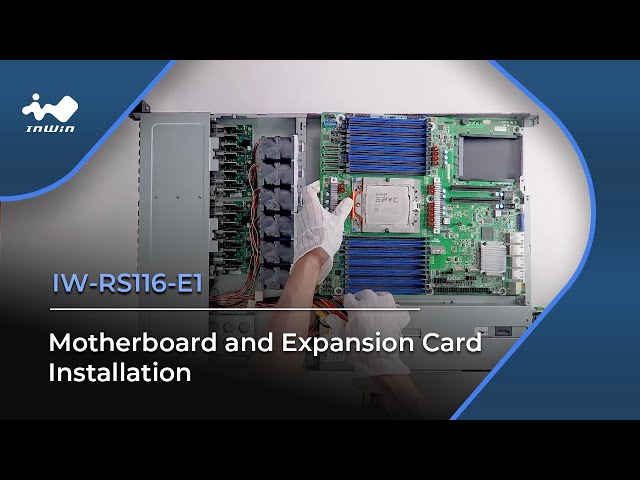

IW-RS116-E1 M/B & Expansion Card Installation

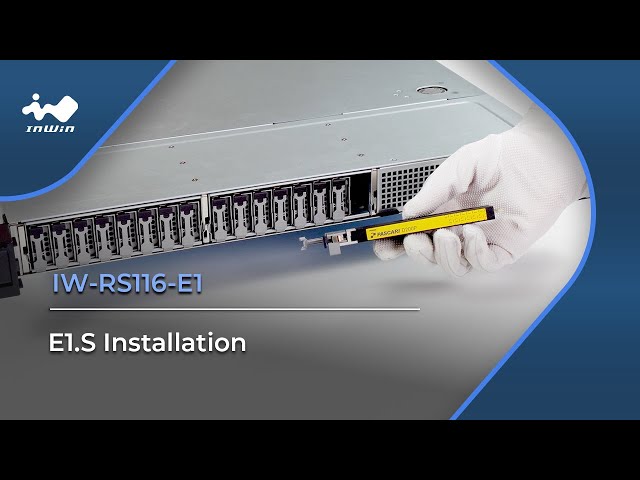

IW-RS116-E1 E1.S SSDs Installation
IW-RS116-E1 2.5" SSDs Installation

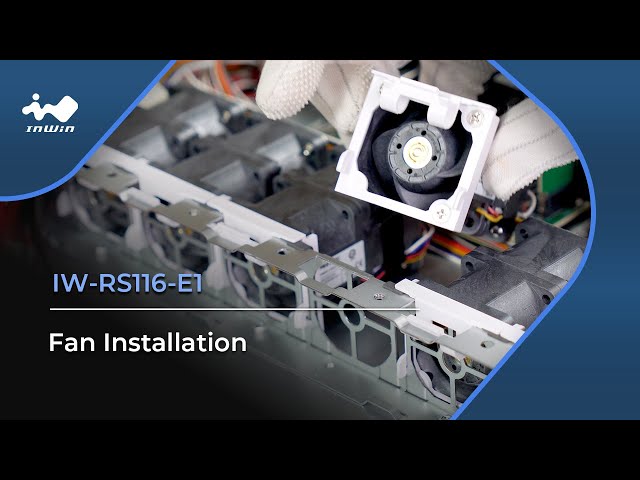

IW-RS116-E1 Fans Installation

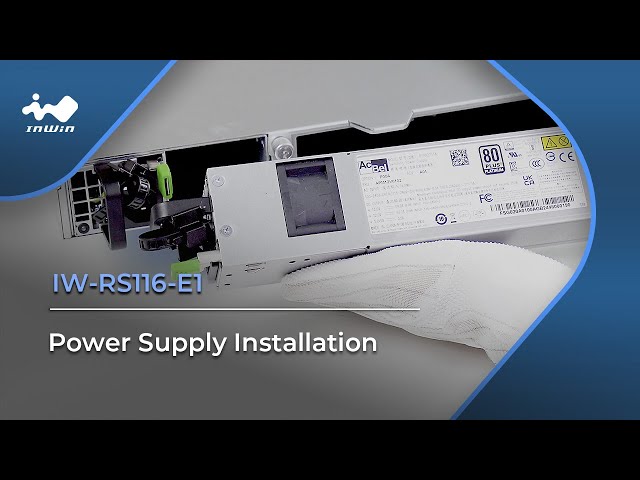

IW-RS116-E1 PSUs Installation
